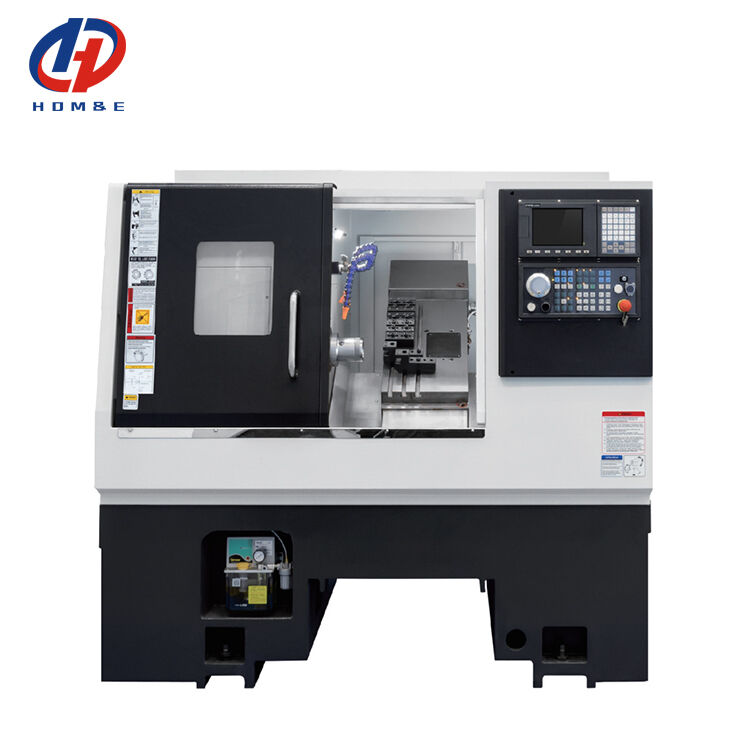

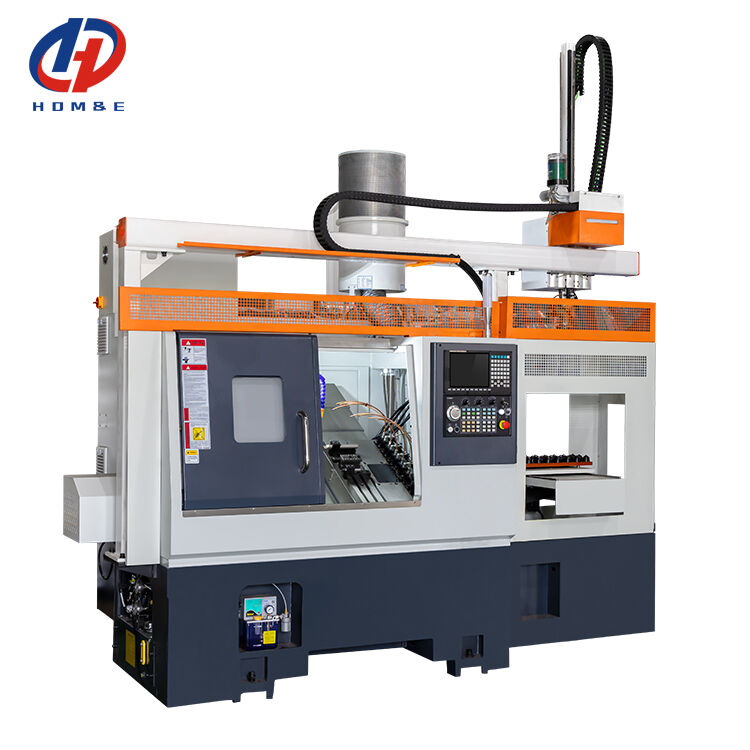

High Efficiency Gang Tool CNC Lathe H130 Processing of Small Components Turn-mill CNC Lathe,Optional single-machine automation system
Y-axis CNC Turn-Mill Gang Tool Lathe enables multi-axis linkage, finishes turning, milling, drilling & tapping in one clamping to minimize errors. Micron-level precision, rigid frame and fast tool change ensure stable efficiency for batch complex parts in auto and precision hardware industries.
Product Features:
1. The bed is integrally cast, featuring high shock absorption and low deformation.
2. The 30-degree inclined bed design facilitates the movement of workpieces for operators, while also ensuring smooth chip removal.
3. It moves quickly and has high processing efficiency.
4. Different combination power heads can be equipped to meet various processing requirements.

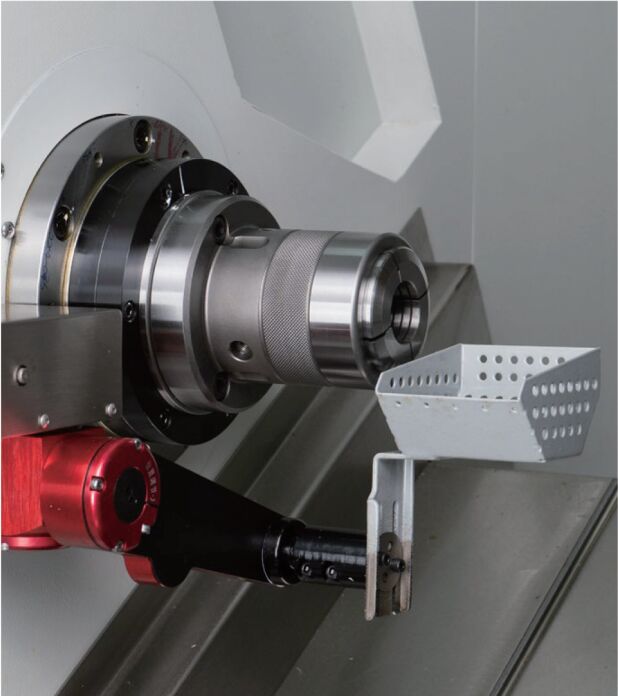

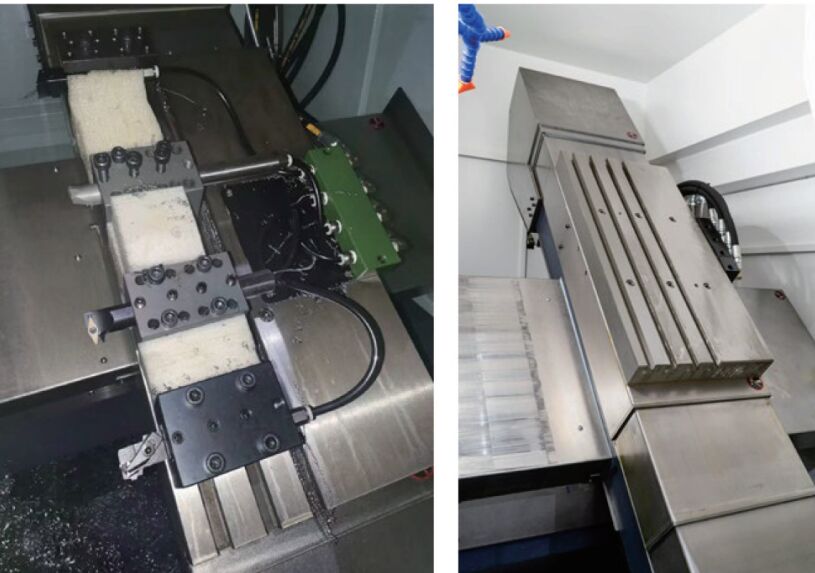

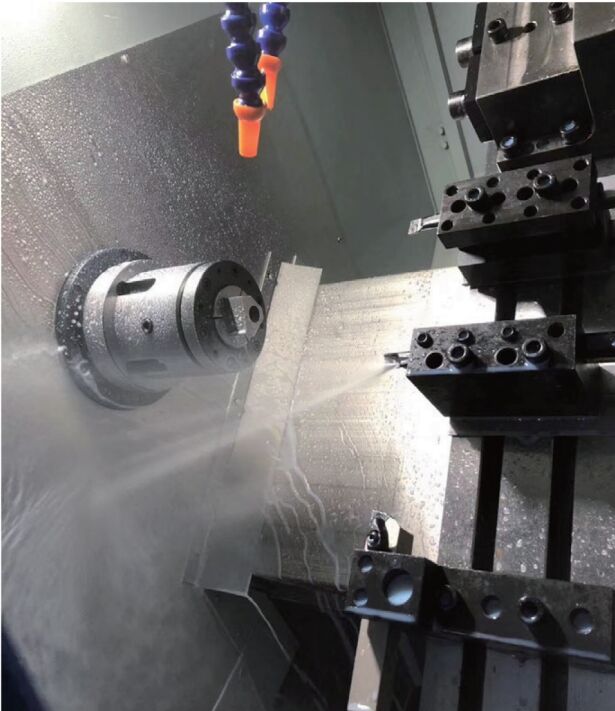

Product Details:
Product Parameters:
|
Item
|
Model
|
Units
|
H130
|
H160
|
H200
|
|
Capacity
|
Max.swing diameter (Disk)
|
mm
|
400
|
400
|
400
|
|
Max.turning diameter(Disk)
|
mm
|
380
|
380
|
380
|
|
X axis travel
|
mm
|
800
|
800
|
800
|
|
Z axis travel
|
mm
|
250
|
250
|
250
|
|
Spindle
|
Spindle nose
|
/
|
A2-4
|
A2-5
|
A2-6
|
|
Spindle bore diameter
|
mm
|
43
|
52
|
62
|
|
Max.bar through diameter
|
mm
|
35
|
45
|
51
|
|
X/Z axis
|
X/Z axis motor power
|
kw
|
1.3
|
1.3
|
1.3
|
|
X/Z axis rapid moving speed
|
m/min
|
25
|
25
|
25
|
|
Others
|
Net weight
|
kg
|
2400
|
2400
|
2500
|
|
Overall dimentions(LxWxH)
|
mm
|
2245×1580×1867
|
2245×1580×1867
|
2245×1580×1867
|
OUR Service:
- Ensure you receive a high quality machine
- Every parts need be inspected
- Over 100 production process control
- Over 200 inspection items
- Sample processing of each machine
- 72 hours trial run before delivery
Why Choose Us:
- Top quality sense, customers' requests come first
- 30 years + R & D history, the company was founded in 1993
- High-tech manufacturer with research anddesign capacity
- Stable and mature supplying system
- Young active sales and engineers for instant services(24 hours online)
- Upgrading on mechanism according to ergonomics and easy maintenance
- Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
FAQ:
Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
