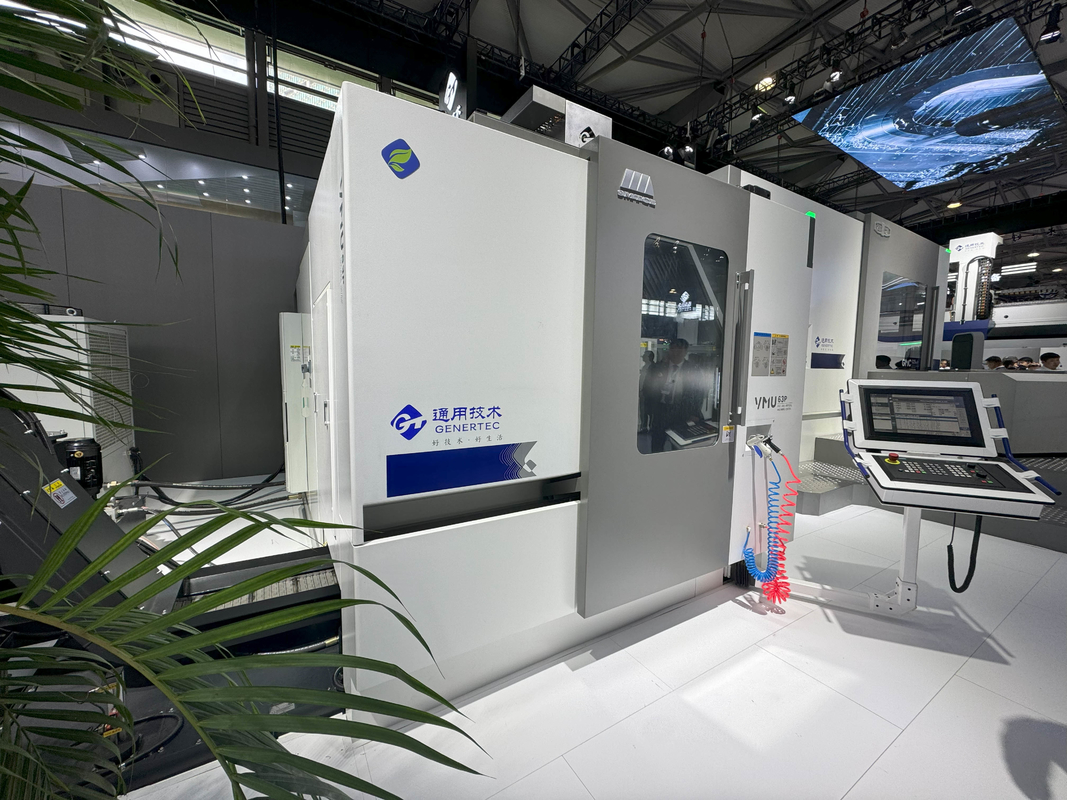

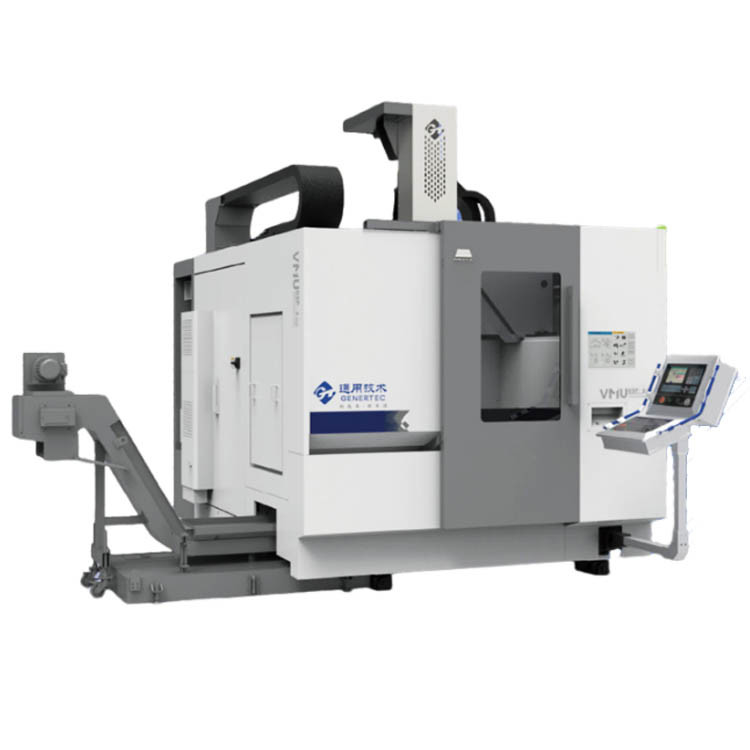

SMTCL 5 Axis Vertical Machining Center VMU80P Artificial Mineral Cast Stone Bed Column Machining Center
Product Details
| Brand Name: | SMTCL | Model Number: | VMU 80P |
|---|---|---|---|
| Name: | Vertical 5 Axis Machining Center | Control System: | SIEMENS GSK FANUC (optional) |
| Maximum Travel Of Skateboard -X Axis: | 800mm | Beam Maximum Travel -Y Axis: | 800mm |
| Maximum Spindle Travel -Z Axis: | 550mm | A-axis Travel: | ±130° |
| C-axis Travel: | N×360° | ||
| Highlight |
Column 5 Axis Machining Center,Vertical 5 Axis Machining Center,Vertical Machining Center VMU80P |
||
Product Description

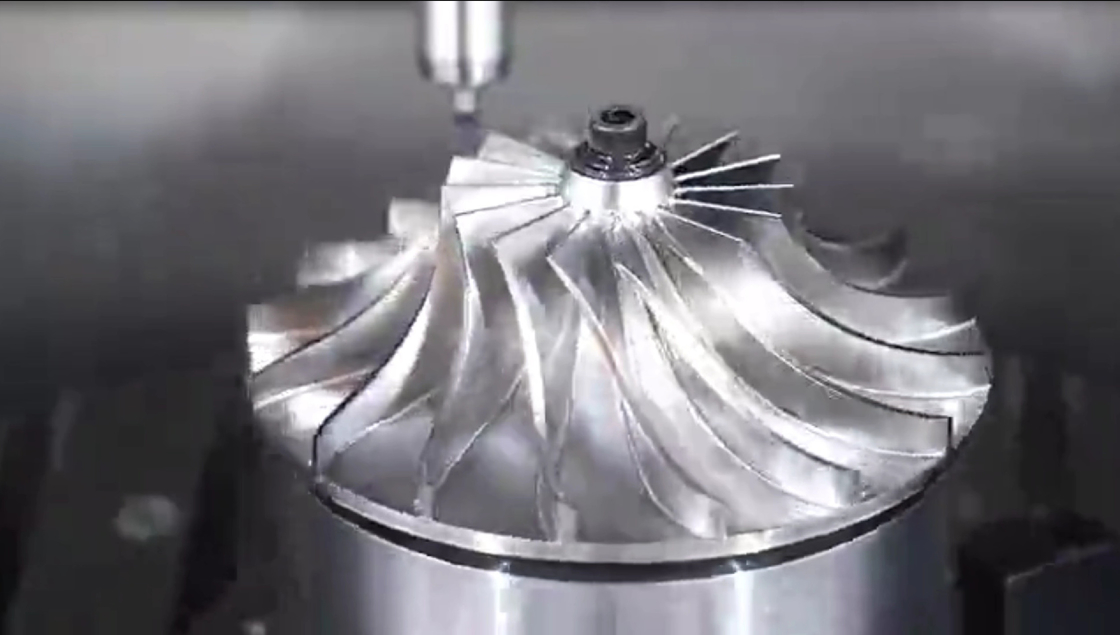

The product is suitable for the processing of complex shaped parts in energy, mold, automobile and other industries. It is a high-performance vertical five-axis machining center independently developed by General Technology Group. Product linear shaft fast moving speed up to 60m/min, acceleration up to 1g, rotating shaft driven by torque motor, speed over 50r/min, the machine dynamic performance is excellent. The column of the bed is made of artificial mineral casting stone material, which has excellent vibration suppression and thermal deformation resistance. The features of high speed, high precision and high rigidity, rich configuration and powerful five-axis linkage function can meet various needs of customers.
| Item | Unit | VMU80P | |
| Capacity | Maximum travel of skateboard -X axis | mm | 800 |
| Beam maximum travel -Y axis | mm | 800 | |
| Maximum spindle travel -Z axis | mm | 550 | |
| Distance from spindle end face to table | mm | 150-700 | |
| A-axis travel | ° | ±130 | |
| C-axis travel | ° | n×360 | |
| Worktable | Table size | mm | Φ800×560 |
| Max load on the table | kg | 1400 | |
| T-slot size | mm×pcs | 18×9 | |
| Spindle | Spindle taper | HSK-A63 | |
| Maximum speed | r/min | 18000 | |
| Output torque (100%/40%) | N.m | 83/107 | |
| Output power (100%/40%) | kw | 25/32 | |
| Feed | X-axis fast moving speed | m/min | 60 |
| Y-axis fast moving speed | m/min | 60 | |
| Z-axis fast moving speed | m/min | 60 | |
| A-axis fast moving speed | r/min | 50 | |
| C-axis fast moving speed | r/min | 65 | |
| A.T.C | Tool storage capacity | pc | 42 |
| Max tool length | mm | 300 | |
| Maximum tool weight | kg | 8 | |
| Max. tool disk dia. (full) | mm | Φ80 | |
| Max. tool disk dia. (adjacent) | mm | Φ125 | |
| Positioning accuracy | X/Y/Z | mm | 0.005 |
| A/C | Sec | 8 | |
| Repeatability positioning | X/Y/Z | mm | 0.003 |
| A/C | Sec | 5 | |
| Others | Net machine weight | kg | 19000 |
Ensure you receive a high quality machine
- Every parts need be inspected
- Over 100 production process control
- Over 200 inspection items
- Sample processing of each machine
- 72 hours trial run before delivery
- Top quality sense, customers' requests come first
- 30 years + R & D history, the company was founded in 1993
- High-tech manufacturer with research and design capacity
- Stable and mature supplying system
- Young active sales and engineers for instant services (24 hours online)
- Upgrading on mechanism according to ergonomics and easy maintenance
- Our structure design principle: easy maintenance & installation, low cost maintenance, not affect productio
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
starting on the machine's bill of lading date.
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
