Name: SMTCL 5 Axis Horizontal Machining Center HMU160 X/Y/Z Rapid Traverse 100m/min High Speed Machining Center
Brand: Shanghai HD M&E Tech Co., Ltd.
SKU: HMU160
Availability: InStock

Home > products > Five Axis Machining Center >

SMTCL 5 Axis Horizontal Machining Center HMU160 X/Y/Z Rapid Traverse 100m/min High Speed Machining Center

5 Axis Horizontal Machining Center

100m/min Machining Center

High Speed Five Axis Machining Center

Place of Origin:

China

Brand Name:

SMTCL/SYMG

Certification:

ISO certification

Model Number:

HMU160

Request A Quote

Product Details

Brand Name:

SMTCL

Model Number:

HMU160

Name:

Horizontal 5 Axis Machining Center

Control System:

SIEMENS FANUC (optional)

Maximum Travel Of Skateboard -X Axis:

1500mm

Beam Maximum Travel -Y Axis:

1000mm

Maximum Spindle Travel -Z Axis:

660mm

Maximum Rotating Diameter Of Axis C:

Φ1800mm

A-axis Travel:

±110°

C-axis Travel:

360°

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

The wooden case，Tin trunk ,Other seaworthy packing

Delivery Time

45-60 days

Payment Terms

L/C,T/T,Western Union

Supply Ability

50 sets per month

SMTCL 5 Axis Horizontal Machining Center HMU160 X/Y/Z Rapid Traverse 100m/min High Speed Machining Center

Get Best Price

Video

5 Axis Vertical Machining Center VMU30H High Precision Vertical CNC Milling Machine

Get Best Price

Video

Five-axis Machining Center VMU40H Max. Allowed Loading 300kg 5 Axis Linkage Vertical Machining Center

Get Best Price

Video

SMTCL Vertical 5 Axis Machining Center VMU63P Five Axis Linkage High Performance Vertical Machining Center

Get Best Price

+8613916455787

sales@huidijd.com

86-021-61195255

Contact Now

Product Description

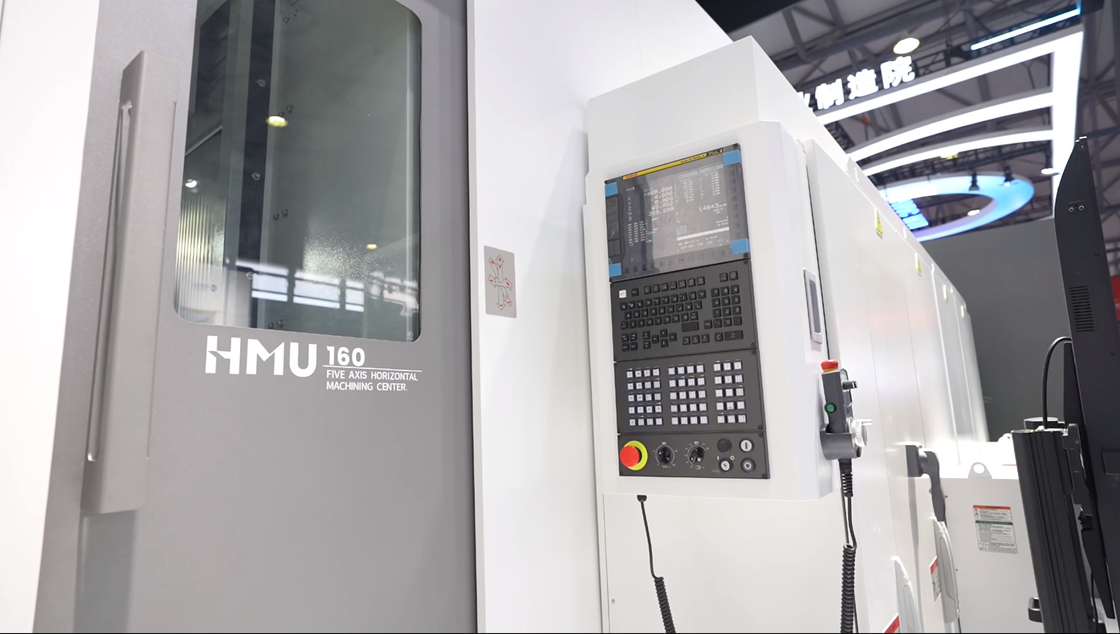

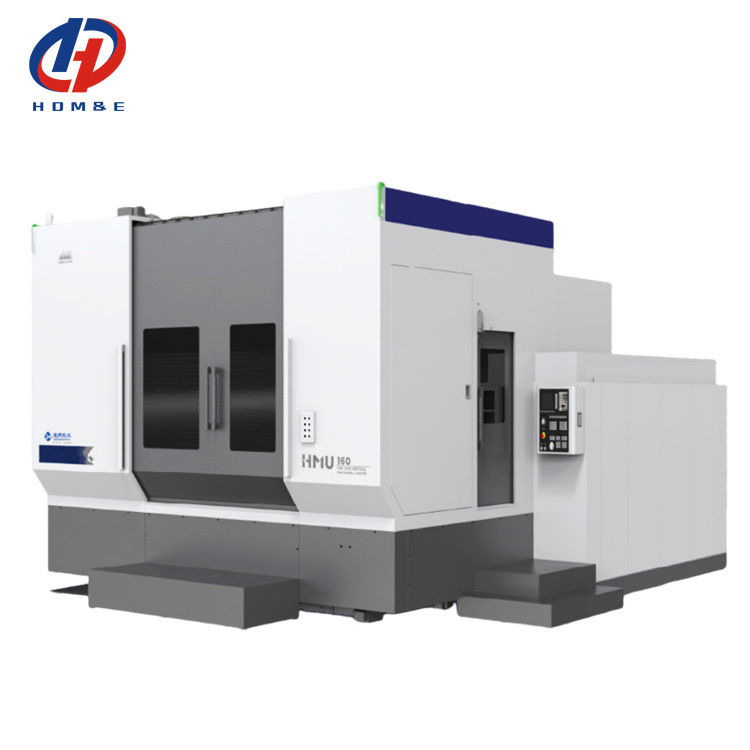

SMTCL 5 Axis Horizontal Machining Center HMU160 X/Y/Z Rapid Traverse 100m/min High Speed Machining Center 0

Product Description:

SMTCL 5 Axis Horizontal Machining Center HMU160 X/Y/Z Rapid traverse 100m/min High Speed Machining Center

HMU160 series products are high-performance horizontal five-axis machining centers independently developed for new energy vehicles and other industries. This series of products is equipped with fast speed up to 100m/min, acceleration 1G linear shaft, up to 40r/min torque motor direct drive rotation shaft, the whole machine dynamic performance is excellent. The linear axis with the positioning accuracy below 0.01mm and the rotating axis with the Angle positioning accuracy below 15sec can provide an effective guarantee for users to process high-precision parts. High speed, high precision, high efficiency, rich configuration, powerful five-axis linkage and automation functions can meet the efficient processing needs of customers for complex special-shaped parts, especially suitable for aluminum alloy subframe processing of new energy vehicles.

Product Details:

Product Paramenters:

Item		Unit	Specifications
Capacity	Maximum travel of skateboard -X axis	mm	1500
	Beam maximum travel -Y axis	mm	1000
	Maximum spindle travel -Z axis	mm	660
	Maximum rotating diameter of axis C	mm	Φ1800
	A-axis travel	°	±110
	C-axis travel	°	360
Worktable	Table size	mm	Φ580
	Max load on the table	kg	800
	T-slot size		M16
Spindle	Spindle taper		HSK-A100
	Maximum speed	r/min	12000
	Spindle drive mode		Motorized spindle
	Output torque (100%/S6 40%)	N.m	175/206
	Output power (100%/S6 40%)	kw	40/42
Feed	X-axis fast moving speed	m/min	100
	Y-axis fast moving speed	m/min	100
	Z-axis fast moving speed	m/min	100
	A-axis fast moving speed	r/min	50
	C-axis fast moving speed	r/min	40
A.T.C	Tool storage capacity	pc	40(expandable)
	Max tool length	mm	550
	Maximum tool weight	kg	20
	Max. tool disk dia. (full)	mm	Φ125
	Max. tool disk dia. (adjacent)	mm	Φ250
Positioning accuracy	X/Y/Z	mm	0.01
Positioning accuracy	A/C	Sec	15/10
Repeatability positioning	X/Y/Z	mm	0.006
Repeatability positioning	A/C	Sec	10/6
Others	Net machine weight	kg	25000

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:

◆ Top quality sense, customers' requests come first

◆ 30 years + R & D history, the company was founded in 1993

◆ High-tech manufacturer with research anddesign capacity

◆ Stable and mature supplying system

◆ Young active sales and engineers for instant services(24 hours online)

◆ Upgrading on mechanism according to ergonomics and easy maintenance

◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect productio

About Us :

Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Our Factory :

SMTCL 5 Axis Horizontal Machining Center HMU160 X/Y/Z Rapid Traverse 100m/min High Speed Machining Center 6

FAQ :

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
