Precision Heavy Duty Lathe Max.Swing Over Bed 1400mm CW61140 Manual Lathe

Brand Name: HD
Model Number: CW61140
Place of Origin: China
Certification: CE ISO
Minimum Order Quantity: 1 Set
Price: Negotiable
Supply Ability: 50 Sets per Month
Tags

Manual Lathe Machine

Horizontal Conventional Lathe Machine

Heavy Duty Manual Lathe

Product Details

Brand: HD Type: CW61140
Product Name: Heavy Manual Lathe Max.swing Diameter Over Bed: 1400mm
Max.swing Diameter Over Carriage: 1050mm Width Of Bed: 970mm
Max.length Of Workpiece: 1000mm-15000mm Spindle Bore Diameter: ф130mm
Highlight

Max.Swing Over Bed 1400mm

,

Floor type bed body

,

Guide rail width of 970mm

Product Description

Precision Heavy Duty Lathe Max.Swing Over Bed 1400mm CW61140 Manual Lathe 0

Product Description:

Precision Heavy Duty Lathe Max.Swing Over Bed 1400mm CW61140 Manual Lathe

This machine toolis a regular horizontal lathe, which adopts advanced processing and assembly technology, highprecision, good stability, high rigidity, high speed, large through-hole diameter, and wide range of use, t is desianed for tumina blackmetal, non-ferrous metal, and some non-metallic material parts with hard alloy and high-speed steel cutina tools. This machine toois suitable for rough and fine machining of various complex rotary surfaces, and can also perform cuting, boring, threading and othermachining.

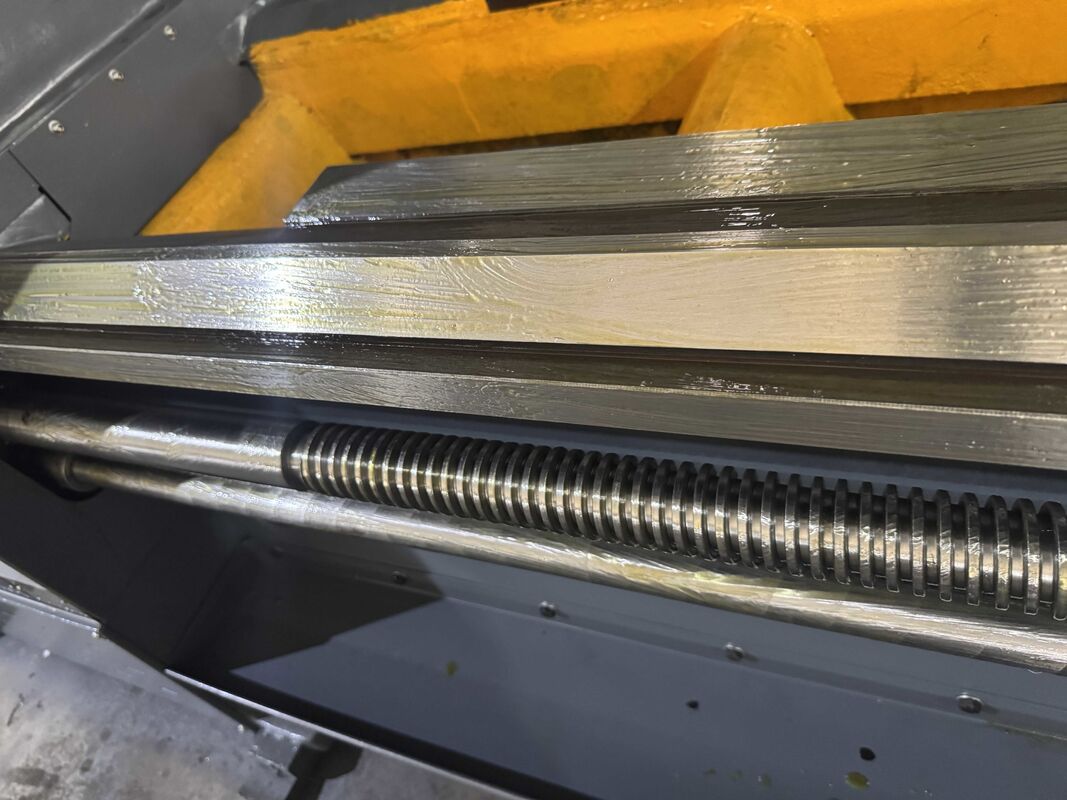

The main structure of this machine tool is a solid foor type bed body, plastic coated guide rall surace, good wear resistance, and guide railwidth of 970mm. The guide ral adopts medium frequency Quenching, processing length can reach up to 20 meters. The feed adopts theprinciple of mechanicaltransmission.

Product Details:

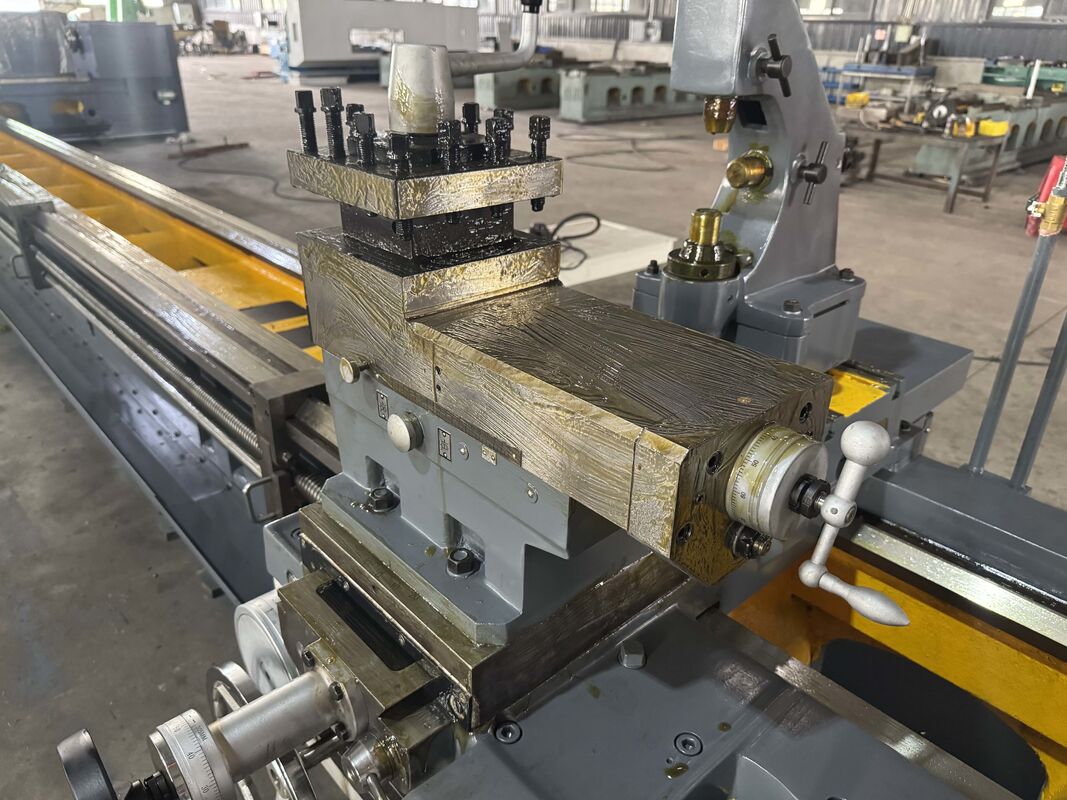

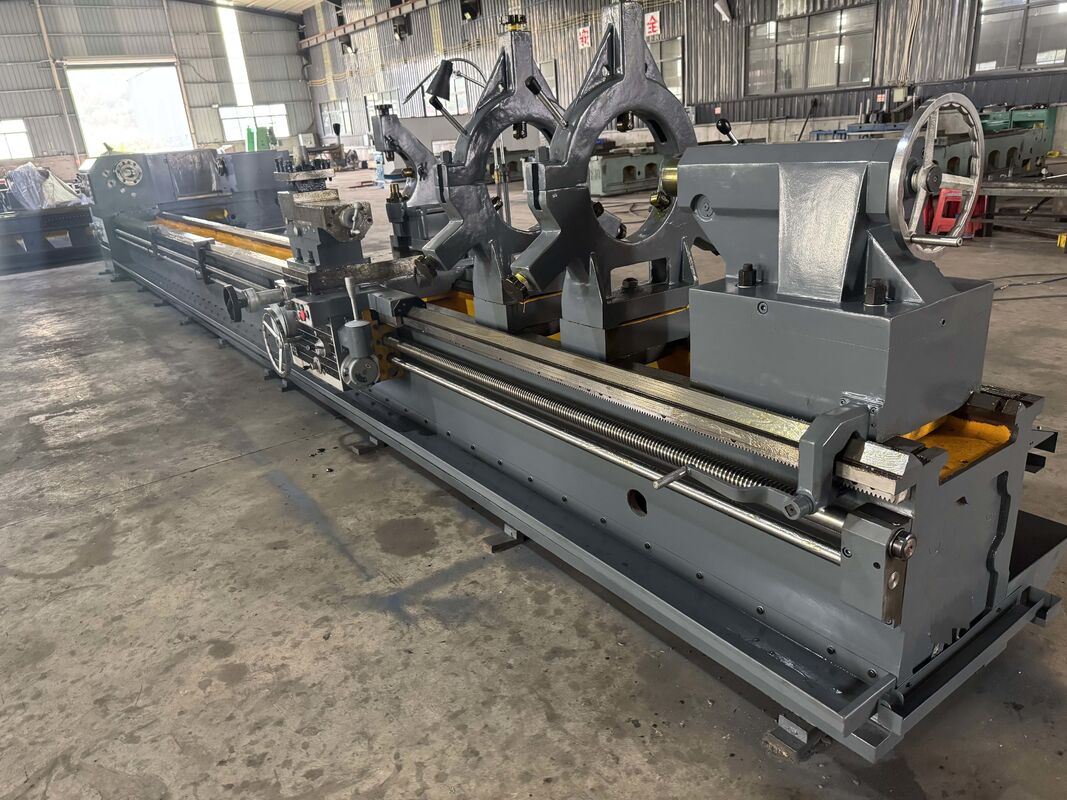

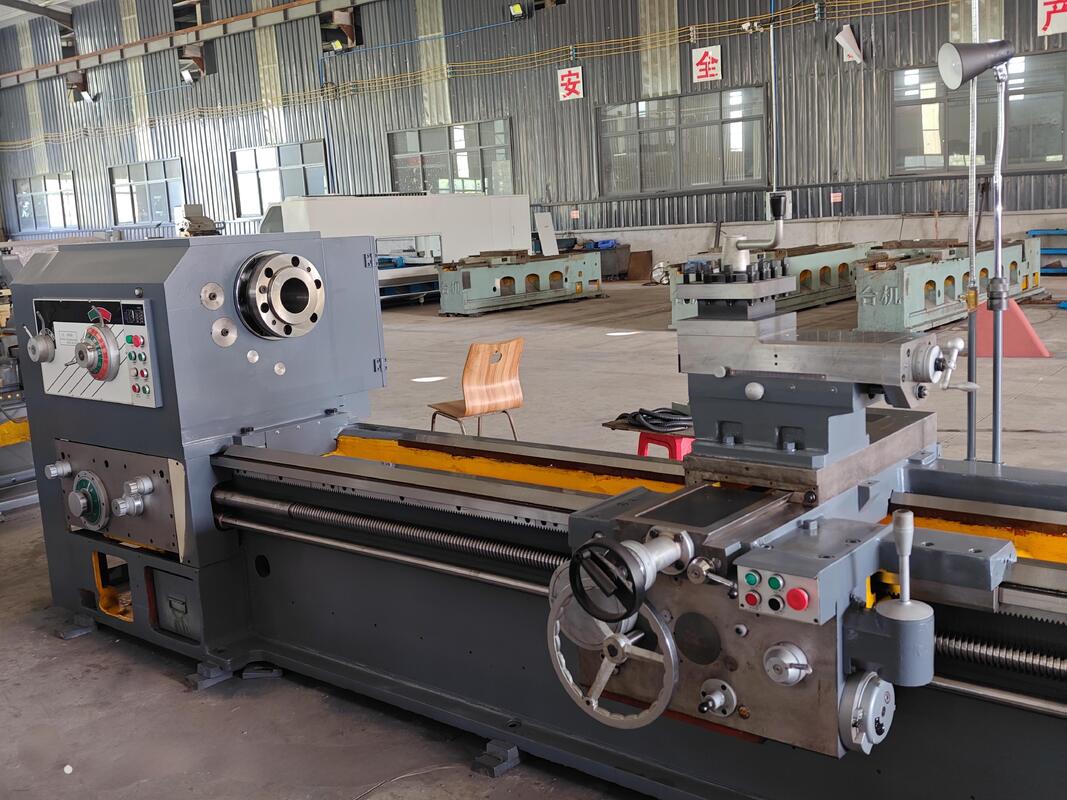

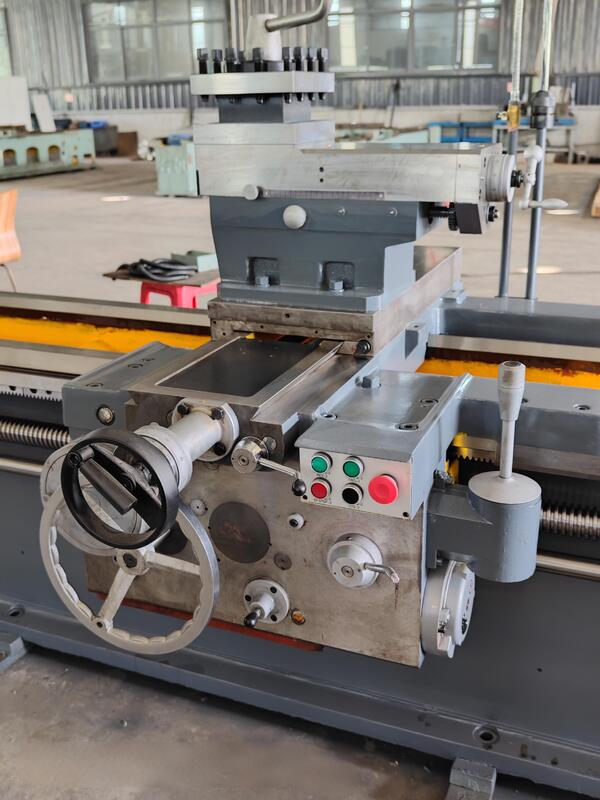

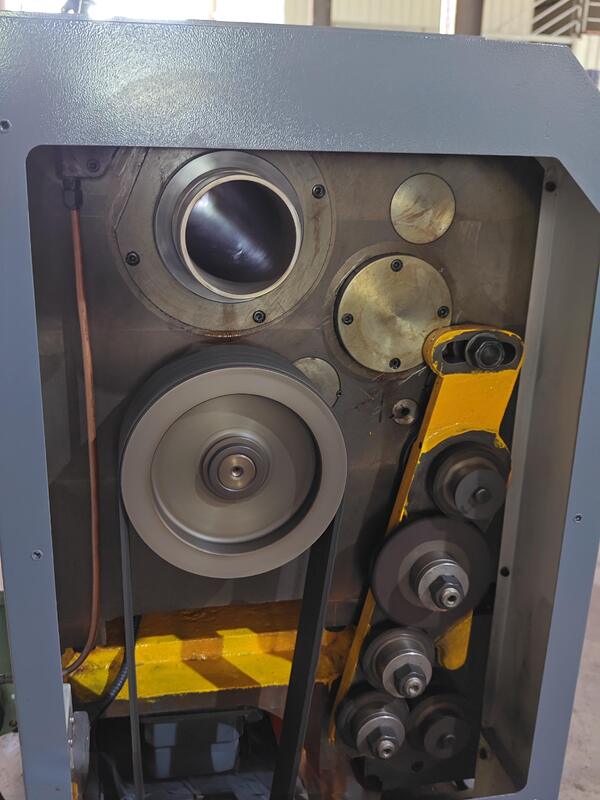

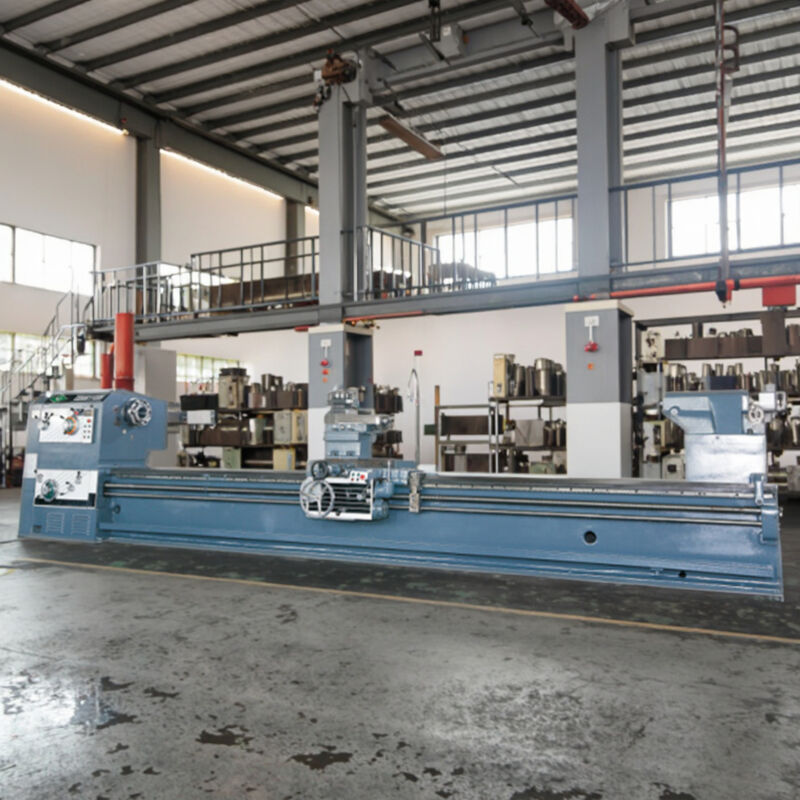

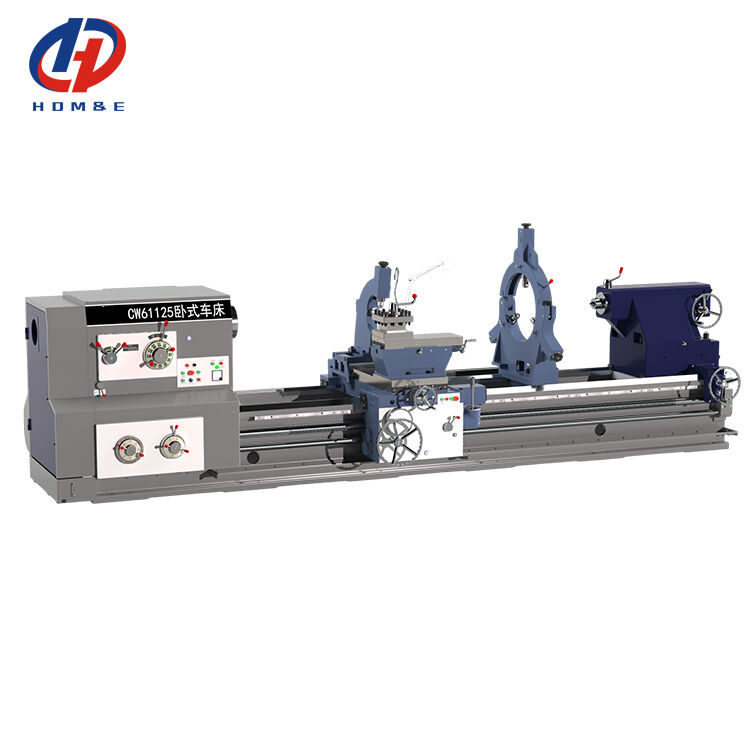

Precision Heavy Duty Lathe Max.Swing Over Bed 1400mm CW61140 Manual Lathe 1

Precision Heavy Duty Lathe Max.Swing Over Bed 1400mm CW61140 Manual Lathe 2Precision Heavy Duty Lathe Max.Swing Over Bed 1400mm CW61140 Manual Lathe 3

Precision Heavy Duty Lathe Max.Swing Over Bed 1400mm CW61140 Manual Lathe 4Precision Heavy Duty Lathe Max.Swing Over Bed 1400mm CW61140 Manual Lathe 5

Precision Heavy Duty Lathe Max.Swing Over Bed 1400mm CW61140 Manual Lathe 6Precision Heavy Duty Lathe Max.Swing Over Bed 1400mm CW61140 Manual Lathe 7

Precision Heavy Duty Lathe Max.Swing Over Bed 1400mm CW61140 Manual Lathe 8Precision Heavy Duty Lathe Max.Swing Over Bed 1400mm CW61140 Manual Lathe 9

Product Paramenters:

Project
Main parameter
Unit
CW61140



Plus work fan around
Max.swing over bed
mm
1400
Max.swing over carriage
mm
1050
Max.length of wordpiece
mm
1000/1500/2000/3000/4000/5000/6000/8000/10000/12000/15000
Max.cutting length
mm
850/1350/1850/2850/3850/4850/5850/6850/7850/9850/11850/14850
Two top max. weight bearing capabilities
kg
10000(20000)




Spindle
Spindle bore
mm
130
Taper hole in spindle
mm
1:20(140 Metric)
Main hole in spindle
ISO
A2-15
Diameter of the front bearing position of the spindle
mm
220
Number of types of spindle rotation and rotational speed
r/min
21 kinds
3.15-315
Number of spindle reversals and rotational speed
r/min
21 kinds
5-400
Power of main motor
kw
22(30)
Manual chuck diameter
mm
1000


Bed structure
Width of bed
mm
970
Bed structure
mm
Whole floor bed frame
Lateral feed
mm
730
Vertical feed
mm
1000-15000
Rapid horizontal/vertical movement
m/min
4/8







Enter to fanaround
Longitudinal feedes 64 Kinds
mm/(in/r)
0.1~12
Transverse feeds 64kinds
mm/(in/r)
0.05~6
64 feed rates on the upper tool rest
mm/(in/r)
0.025-3
Metric threads 56 kinds
mm
1~240
Whitworth threads 56kinds
tpi
30-1/4
Module threads 53 Kinds
mm
0.5~60
Diametral threads 24 kinds
D.P.
60-0.5
The ratio of the feed rate of the upper tool holder to the longitudinal feed rate
mm
1/4
Machine tool screw pitch
mm
12
Fast motor power
kw
1.5


Tailseat
Diameter of tailstock sleeve
mm
200(260)
Tail socket travel
mm
300
Tailstock sleeve taper hole
mm
Morse 20
Top socker taper(metric)
metric
Number 6






Tool carrier
Knife holder form
type
vertical 4 station
Cutting tool cross-sectional dimensions
type
45×45
Rotation angle of knife holder

±90°
Max. lateral travel of the lower knife holder
mm
500
Max. lateral travel of upper knife holder
mm
300
Quick vertical/horizontal movement speed of the tool holder
mm
3740/1870
Quick movement speed of small knife holder
mm/min
935
Cooling pump motor power
mm/min
0.125



Inspection items
Processing accuracy
kw
IT6/IT7
Processing roundness
level
0.008
Processing workpiece cylindricity
mm
0.03/300
Processing workpiece flatness
mm
0.033/500
Roughness
mm
Ra1.6
Spindle end face
mm
0.008
Machine tool standard accessories: spindle and tail frame top sleeve: Φ1000 four jaw chuck: Adjusting pad iron; Anchor bolt; Cool the water tank.
Note:3000mm and above 3000mm with 50-600mm center frame;Φ50-250mm tool holder

Optional accessories:Φ1250 four jaw chuck:Φ250-800mm center frame

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
Precision Heavy Duty Lathe Max.Swing Over Bed 1400mm CW61140 Manual Lathe 10
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
Precision Heavy Duty Lathe Max.Swing Over Bed 1400mm CW61140 Manual Lathe 11

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
