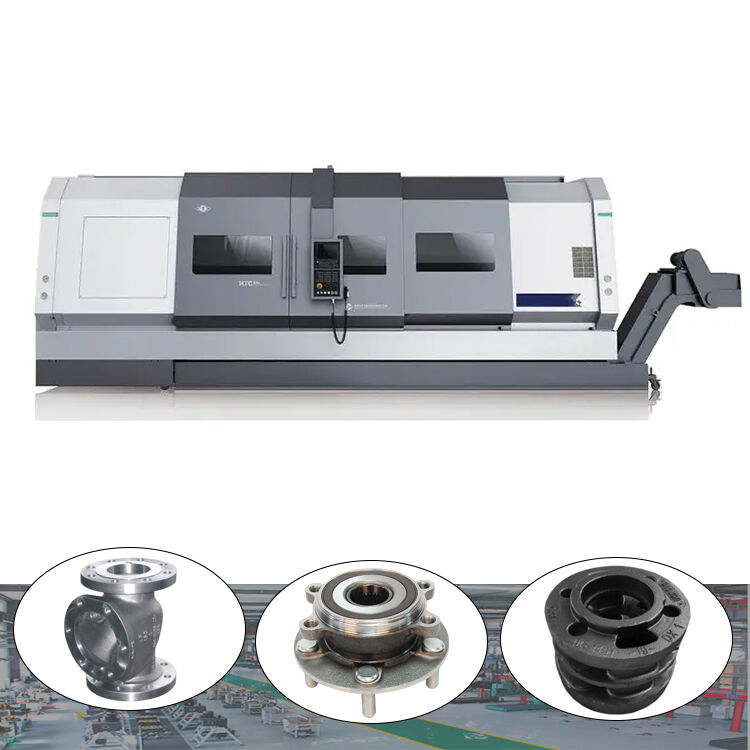

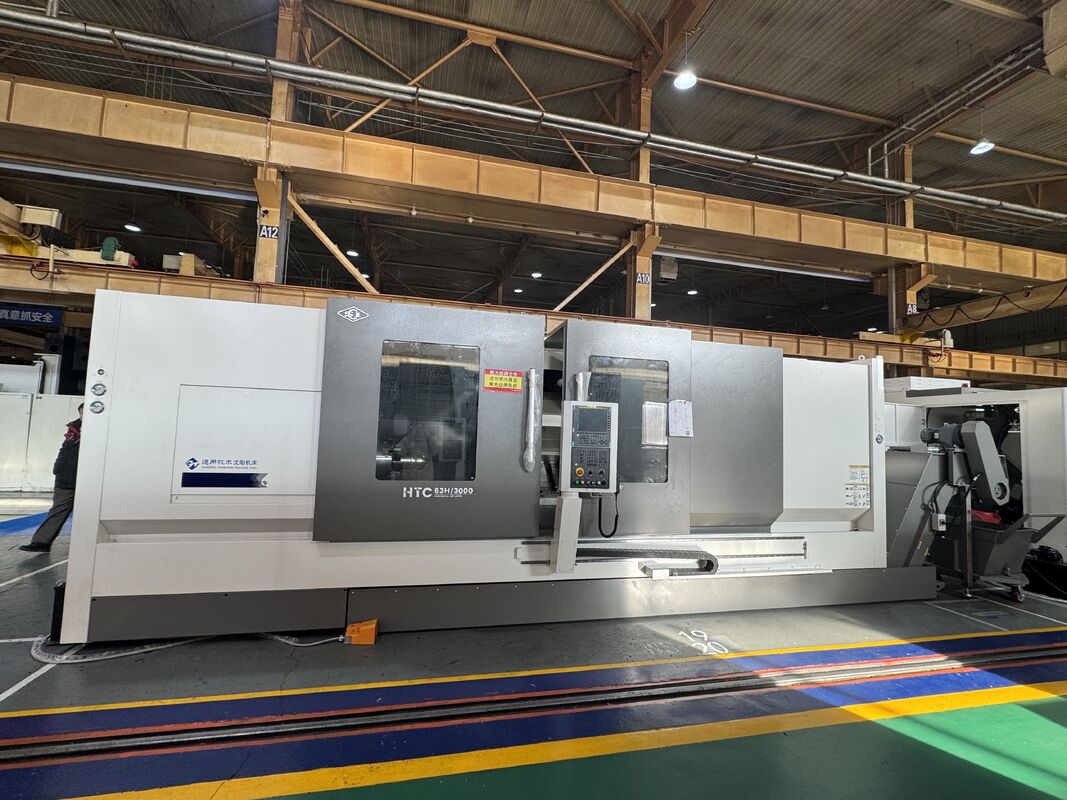

SMTCL HTC80H High Precision12-Station Horizontal Servo Tool Carriage Heavy CNC lathe
Product Details
| Product Name: | HTC80H | Maximum Cutting Diameter：: | 800/960 Mm |
|---|---|---|---|
| Maximun Cutting Length：: | 1000/1500/2000/3000/4000mm | Maximum Diameter Of Swing Over Bed：: | ∅1000 |
| Maximum Turning Diameter On The Slide：: | ∅800 | Spindle Hole Diameter：: | 140 Mm |
| Maximum Diameter Of Through Bar ：: | 122 Mm | Spindle Speed Range ：: | 20-1800r/min |
| Standard Chuck Diameter：: | 15" | Standard Tool Turret Type：: | 12-station Horizontal Servo Tool Carriage |
| Highlight |
12-Station Horizontal Servo Tool Carriage,high accuracy high efficiency,high rigidity |
||
Product Description
◆ High-precision spindle bearings
◆ Process standard quantification
◆ High-precision grating ruler
◆ System modular code application
◆ Complete functional conf iguration, enabling intelli gent production
◆ High-efficiency servo turret
◆ High-performance,heavy-duty cutting spindle
◆ High-quality cast iron body and other key castings
◆ Long-span headstock
◆ High-power and large-torque spindle
◆ High-rigidity tool carriage
High-precision screws and guide rails
High-precision spindle cylindrical roller bearings
High speed two axis
intelligent production
Different module configurations such as steady rest, sub-spindle, servo tailstock, and Y-axis can
be optional according to different workpiece requirements. It can realize multi-sequence processing of workpieces, and can also beequipped with workpiece measurement, tool
setter, automation modules, etc., to improve work efficiency.

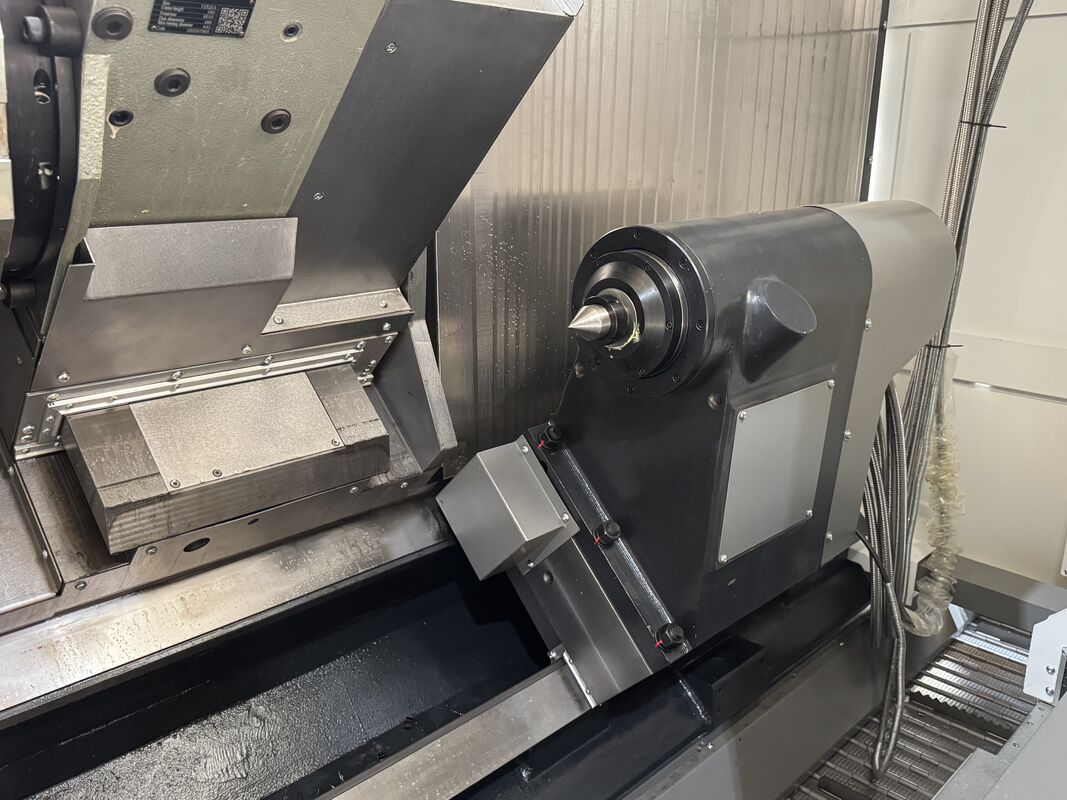

It is equipped with a small spindle structure tailstock, and internally installed tapered roller
bearings and angular contact ball bearings to improve the cutting rigidity of the tailstock end and ensure the cutting effect of long-axis parts.
The bed is a 45° inclined bed, with an optimized and reinforced rib structure inside. It is cast in one piece with high-quality castings, and the entire axis adopts a hard rail structure, which effectively improves dynamic stiffness. The joint between the bed and the headstock is scraped and ground by a double-rest surface, which further improves the cutting rigidity of the whole machine.
|
12-station horizontal servo tool carriage
|
OUR Service
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
