SMTCL High Rigidity Heavy CNC Lathe HTC80S Hard Rail Structure CNC Lathe

Get Best Price

Slant Bed CNC Lathe HTC63Q Maximum Cutting Length 3000mm Heavy Cutting Spindle CNC Horizontal Lathe

Get Best Price

+8613916455787

sales@huidijd.com

86-021-61195255

Contact Now

Product Description

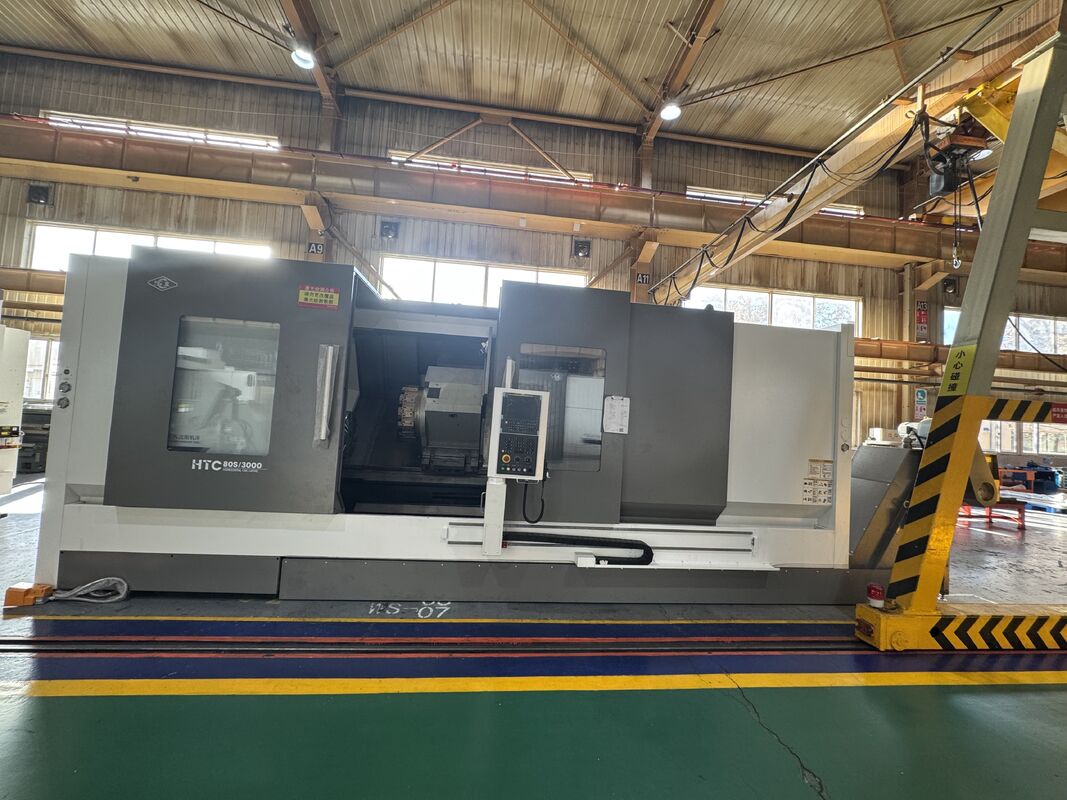

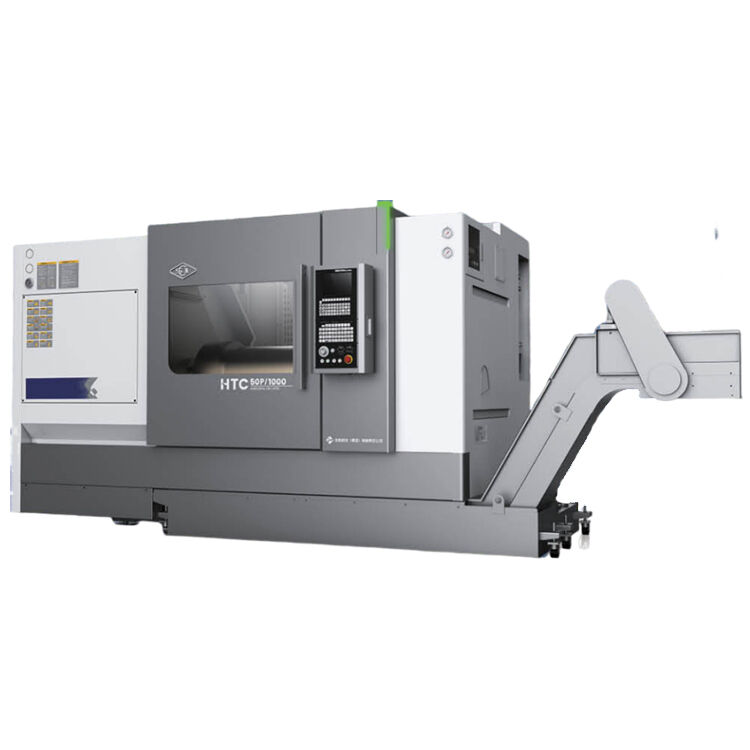

SMTCL High Rigidity Heavy CNC Lathe HTC80S Hard Rail Structure CNC Lathe 0

Product Description

^{SMTCL High Rigidity Heavy CNC Lathe HTC80S Hard Rail Structure CNC Lathe}

^{HTC80H/S series CNC horizontal lathe adopts hard rail structure, so the overall rigidity of the machine tool is strong. The spindle torque is large, and the through diameter is large, so it is suitable for machining various axis and disk parts, and it can effectively meet the parts machining demand of engineering machinery, automotive,metallurgy, casting and other industries.}

Product Features

1,High precision

◆ High-precision screw and guide rail
◆ High-precision spindle bearings
◆ Process standard quantification
◆ High-precision grating ruler

2,High efficiency
◆ System modular code application
◆ Complete functional conf iguration, enabling intelli gent production
◆ High-efficiency servo turret
◆ High-performance,heavy-duty cutting spindle

3,High rigidity
◆ High-quality cast iron body and other key castings
◆ Long-span headstock
◆ High-power and large-torque spindle
◆ High-rigidity tool carriage

Product Details

High-precision screws and guide rails

It uses high-quality imported C3-grade screws and H-grade guide rails, and is directly driven by servo motors to achieve excellent operating accuracy

High-precision spindle cylindrical roller bearings

It adopts high-quality imported P4 grade cylindrical roller bearings and cooperates with high-precision spindle to achieve excellent rotation accuracy.

High speed two axis

The two axis use imported screws and use pre-stretching technology to ensure fast and stable operation of the machine tool

Complete functional configuration, enabling

intelligent production

Different module configurations such as steady rest, sub-spindle, servo tailstock, and Y-axis can

be optional according to different workpiece requirements. It can realize multi-sequence processing of workpieces, and can also beequipped with workpiece measurement, tool

setter, automation modules, etc., to improve work efficiency.

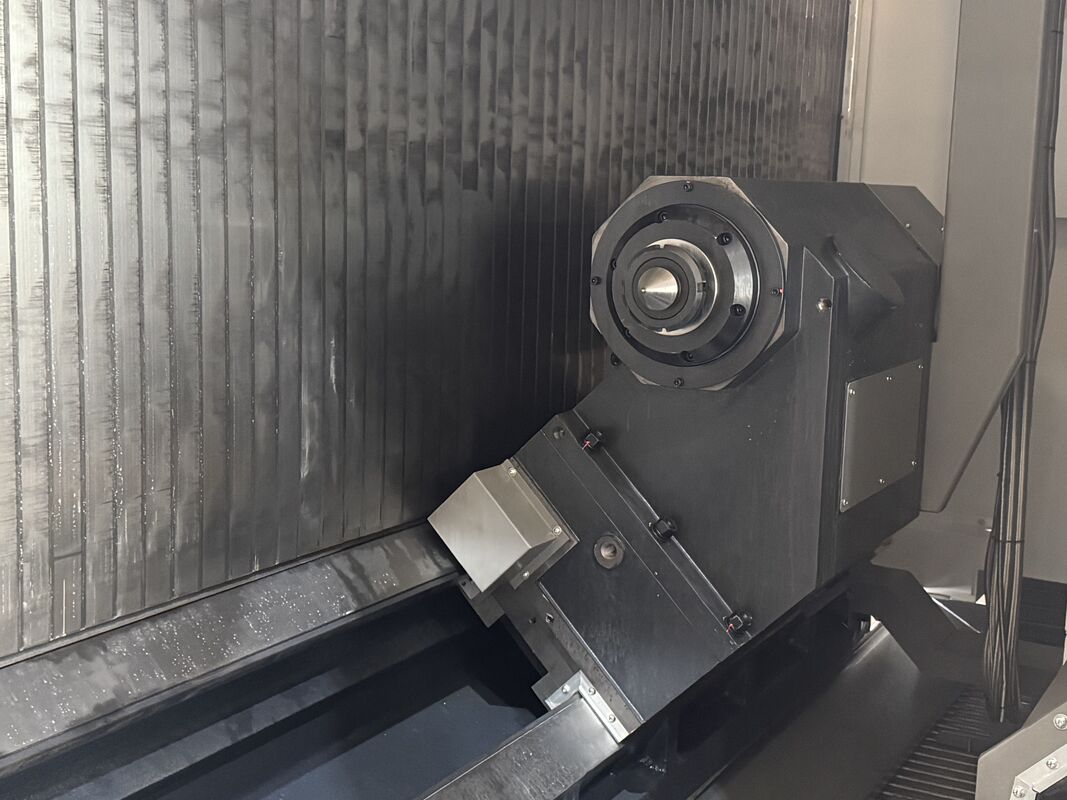

Small spindle tailstock

It is equipped with a small spindle structure tailstock, and internally installed tapered roller

bearings and angular contact ball bearings to improve the cutting rigidity of the tailstock end and ensure the cutting effect of long-axis parts.

High rigidity bed

The bed is a 45° inclined bed, with an optimized and reinforced rib structure inside. It is cast in one piece with high-quality castings, and the entire axis adopts a hard rail structure, which effectively improves dynamic stiffness. The joint between the bed and the headstock is scraped and ground by a double-rest surface, which further improves the cutting rigidity of the whole machine.

Product Paramenters

Items	Units	HTC80S series
Max.cutting dia.(shaft/disk)	mm	Φ800/Φ960
Maximum cutting length	mm	1000/1500/2000/3000/4000
Max.swing dia. over bed	mm	Φ1000
Max.swing dia.over bed gap	mm	Φ800
Spindle
Spindle nose model	-	A2-15
Front bearing inner dia.	mm	Φ240
Spindle taper and hole size		1:20;Φ190
Dia. of spindle hole Max.	mm	Φ180
Max.bar dia.	mm	Φ162

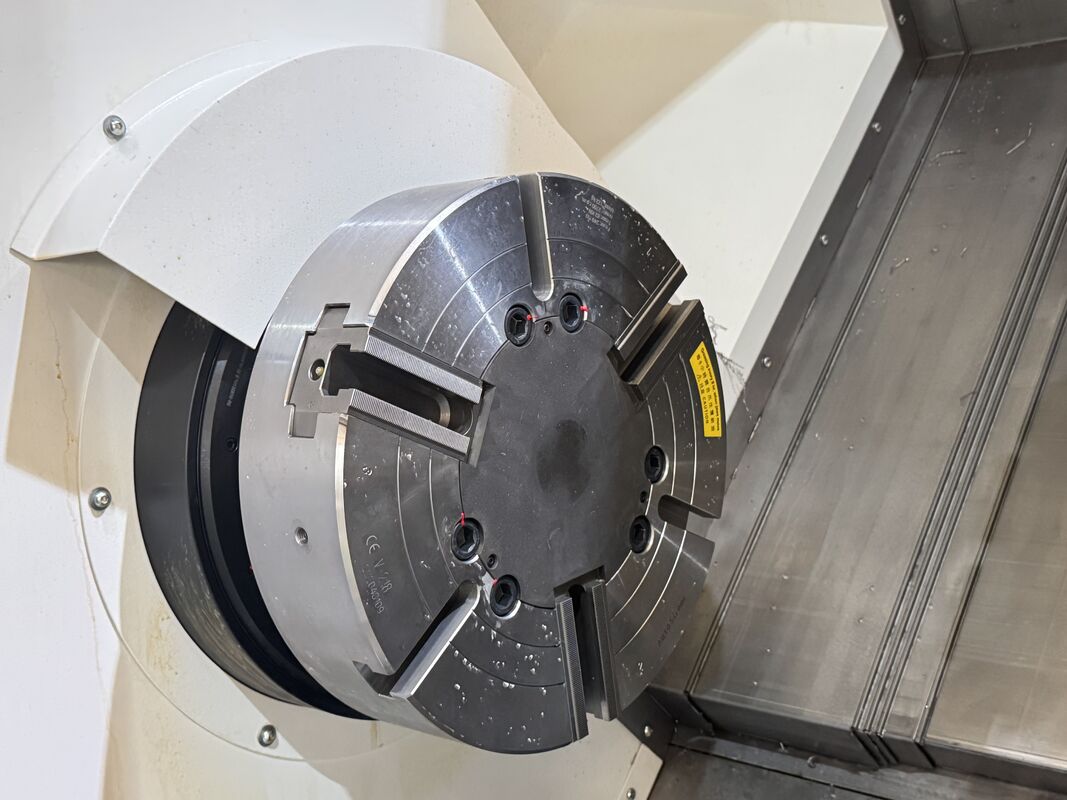

Standard chuck dia.	inch	18"
Spindle speed range	r/min	20-1500
Spindle max.torque	Nm	5400
Spindle speed series		Mechanical two gears
Main motor output power continuous/30 min.	kW	37/45
X/Z axis
X-axis rapid traverse speed	mm	12
Z-axis rapid traverse speed	mm	12
X-axis travel	mm	510
Z-axis travel	mm	1050/1550/2050/3050/4050
Tailstock
Tailstock travel	mm	850/1350/1850/2850/3850
Tailstock drive method		Saddle drag
Tailstock sleeve travel	mm	180
Tailstock sleeve dia.	mm	Φ230
Tailstock taper hole taper		Metric system 80
Tool turret

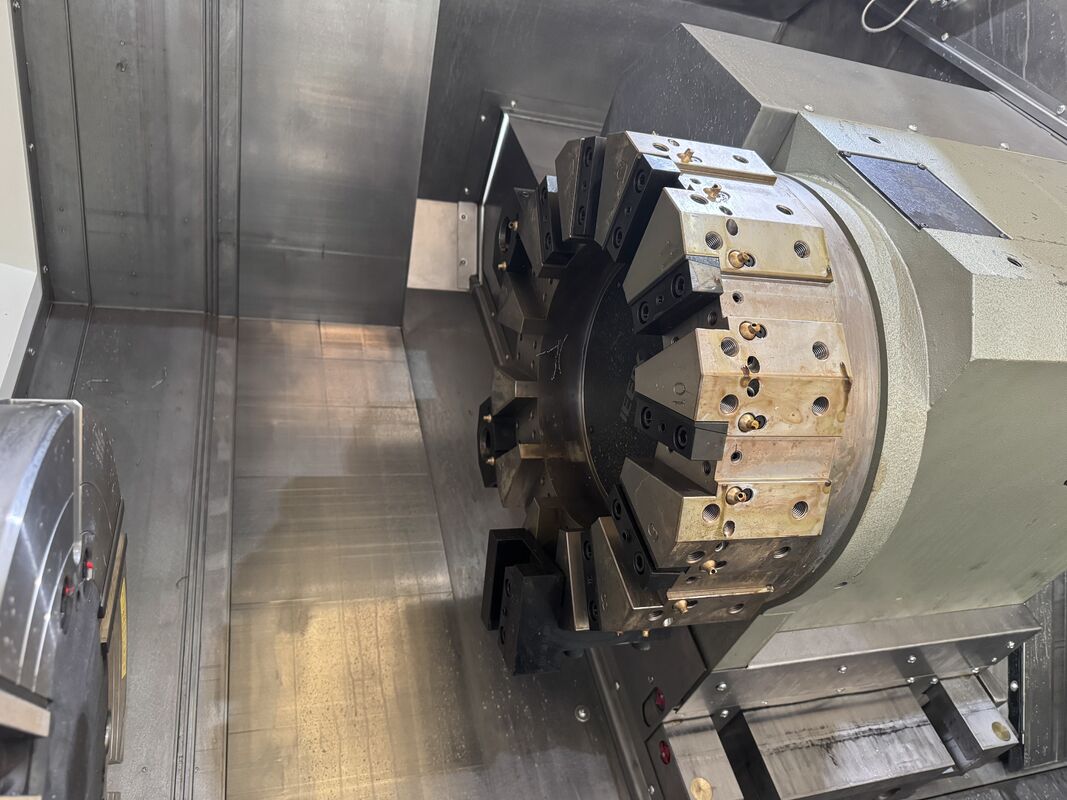

Tool turret form		12-station horizontal hydraulic tool carriage
Center height	mm	200
Tool size	mm	32×32
If could choose tool nearby	mm	yes
Maximum load capacity
Disc workpieces	kg	1400
Shaft workpieces	kg	5000
Others
Distance between spindle center and floor	mm	1214
Machine weight	kg	15500/18000/19500/21000/23500

OUR Service

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us
