Workpiece Sample:
Flange typecomponent
SMTCL TPX6113 Processing of pump body and valve body Precision Horizontal Boring and Milling Machine
Brand Name:
SMTCL
Model Number:
TPX6113
Place of Origin:
China
Certification:
ISO CE
Minimum Order Quantity:
1 Set
Supply Ability:
100 Set/Sets per Year
Product Details
| Brand: | SMTCL | Name: | Horizontal Boring And Milling Machine |
|---|---|---|---|
| Model: | TPX6113 | Worktable Size: | 1600mmX1400mm |
| Worktable Max.Load: | 8000 Kg | Max. Spindle Diameter: | 130mm |
| Max.spindle Torque: | 3136 N.m | Spindle Speed Range: | 4-800 R/min |
| Motor Power: | 15KW | Facing Head Diameter: | 750mm |
| X/Y/Z-Axis Travel: | 1600/1400/2000mm | ||
| Highlight |
Horizontal Boring and Milling Machine for pump body,Precision Boring Machine for valve body,SMTCL TPX6113 Boring Machine with warranty |
||
Product Description
Product Description
SMTCL TPX6113 Processing of pump body and valve body Precision Horizontal Boring and Milling Machine
The TPX series horizontal milling and boring machines are based on a classic design, suitable for rough and finished boring, capable of milling large and box type components.They excel at inner hold boring,cylindrical turning and grooving by radial feed of facing plate.A 4x90 optical positioning device allows for machining accuracy when turninglarge pieces.The precision digital read out measurement systems ensures accuracy of coordinates and lineation.
Product Features
High QualitySpindle
The three-layer mechanism ensures high rotational accuracy and thethree-point support provides high rigidity and accuracy.
User-friendly Layout
The hanging operation panelprovides flexible and convenient centralized operation. Hydraulic preselection controls speed and feed rate
Accurate & Stable Optical Aiming
The worktables 4×90 oplicalpositioning device ensures high posiioning accuracy and high precision turnover.
Electro-hydraulic Interlock
Al moving components feattre electro hydraulic intetlocks.Only one component moves while others are clamped automatically.
Product Details
Bed Our high quality castings feature polished and hardened guideways. The castings are internally reinforced to maximize rigidity and stability.
Control Panel Available in hanging or swing-arm arrangements, the control panel iseasy to use and reduces operator fatigue.
Internal Design Easy to install, steady,and precise with a fully-enclosed structure toprevent oil, coolant, and chip intrusion.

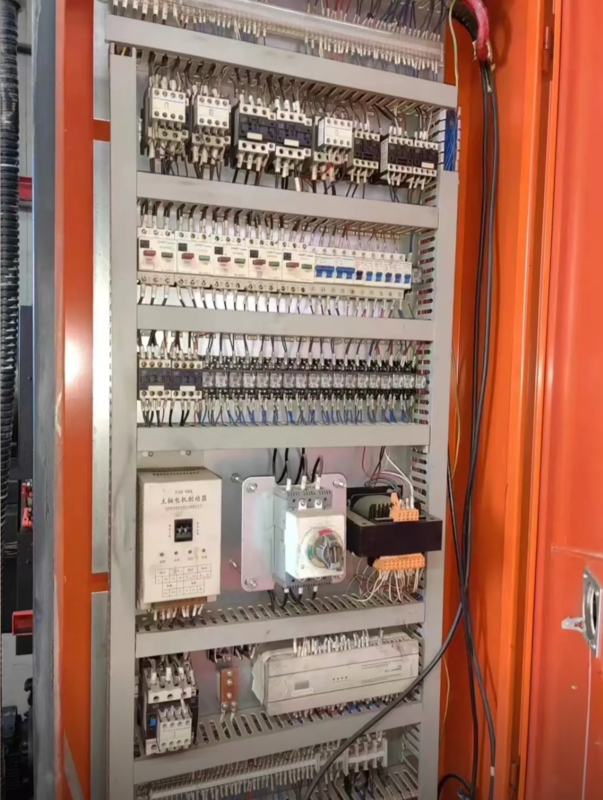

Control System PLC
Column Made of high quality castings with ground and hardened guideways, the optimized structural design easily supports the assembly
Protective Enclosure Welded high qualitysteel plates form an excellent protective cover.
Hydraulic System Pressure adjusted viarelief valve. Variable speed achieved via arotary valve.

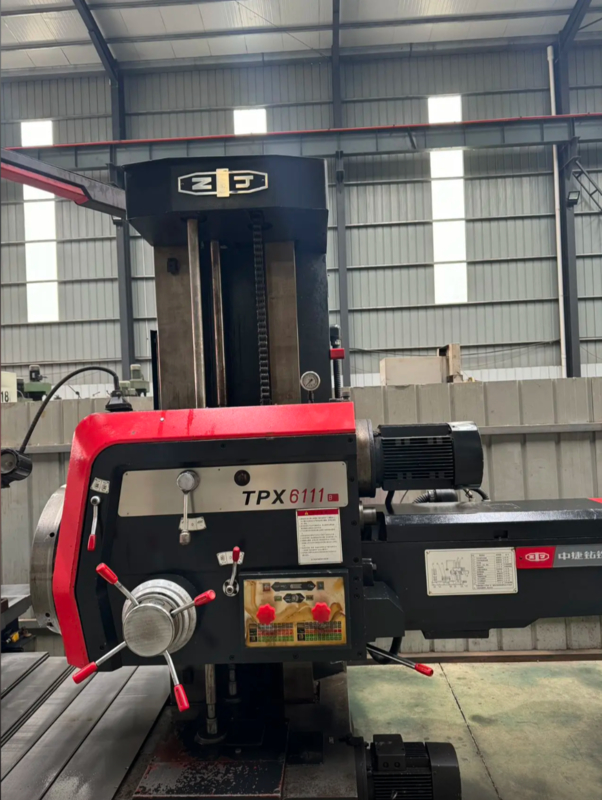

Headstock Primary speed is controlled via switches on the headstock itself, a variety of rotational speeds are possible
Product Paramenters
UR Service
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
Why Choose Us
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory
Exhibition
FAQ
Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
