SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine

Brand Name: SMTCL
Model Number: PBC110m
Place of Origin: CHINA
Certification: CE ISO certification
Minimum Order Quantity: 1
Supply Ability: 50 sets per month
Tags

Horizontal Boring And Milling Machine

Horizontal CNC Boring Machine

CNC Milling And Boring Machine

Product Details

Brand Name: SMTCL Model Number: PBC110m
CNC Or Not: CNC Key Word: Horizontal CNC Milling Boring Machine
Spindle Speed: 10-2000 R/min Workbench Dimension: 1000×1250 Mm
Maximum Load Of Workbench: 5 T Transverse Travel X Of Workbench: 2000 Mm
Vertical Travel Y Of Headstock: 1500 Mm Longitudinal TravelZ Of Column: 1200 Mm
Travel W Of Spindle: 550 Mm
Highlight

Spindle diameter 110mm

,

excellent heavy-duty cutting performance

,

suitable for large workpieces

Product Description

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine 0

Product Description:

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine
It is a general-purpose CNC horizontal milling and boring machine, and it is widely used in general machinery, engineering machinery, transportation and other industries.
Structural features:The machine tool is in a structure of T-shaped layout and single column side hanging box
Basic parts:Cast with high-strength cast iron material and resin sand process, with excellent stability and shock resistance
Spindle group:The spindle is driven by precision gear group meshing, with smooth operation and high accuracy
Guide rail:Y-axis and Z-axis adopt the two-linear & one-hard guide rail, taking into account both speed and rigidity
Drive:The X-axis and Z-axis adopt servo motor to drive the ball lead screw via the reduction gearbox, the Y-axis adopts the servo motor to directly drive the ball lead screw, and the B-axis is the classic double worm gear & worm structure.

Product Features:

1. Spindle diameter 110mm, torque 2800Nm, excellent heavy-duty cutting performance

2. Worktable load capacity 5 tons, X-axis travel 2 meters, suitable for large workpieces

3. Full closed-loop control, positioning accuracy 0.018mm, precise machining

4. Automatic tool change system, tool change time 7 seconds, significantly improved efficiency

5. Integral aged bed, high precision stability during continuous operation

Product Details:

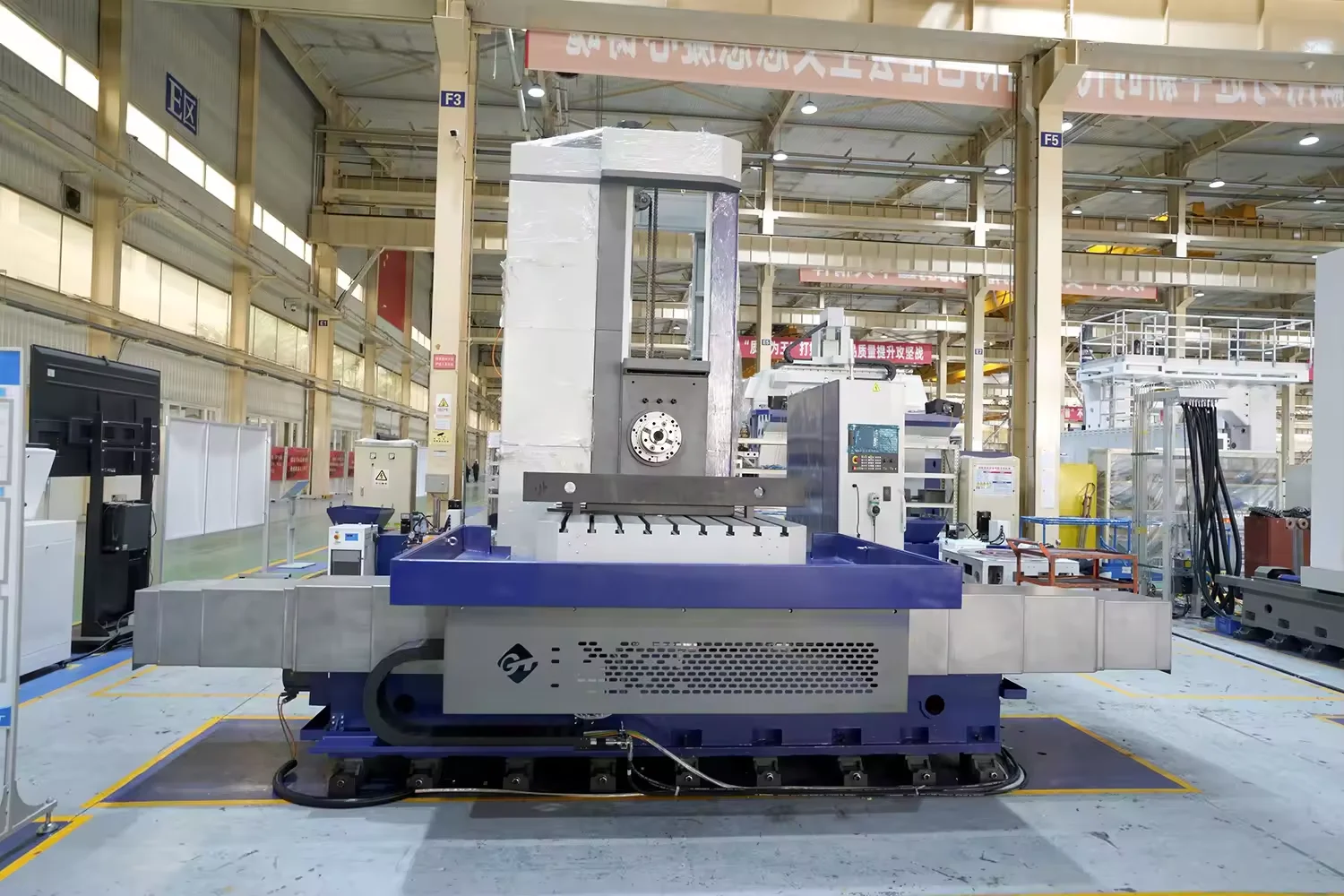

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine 1

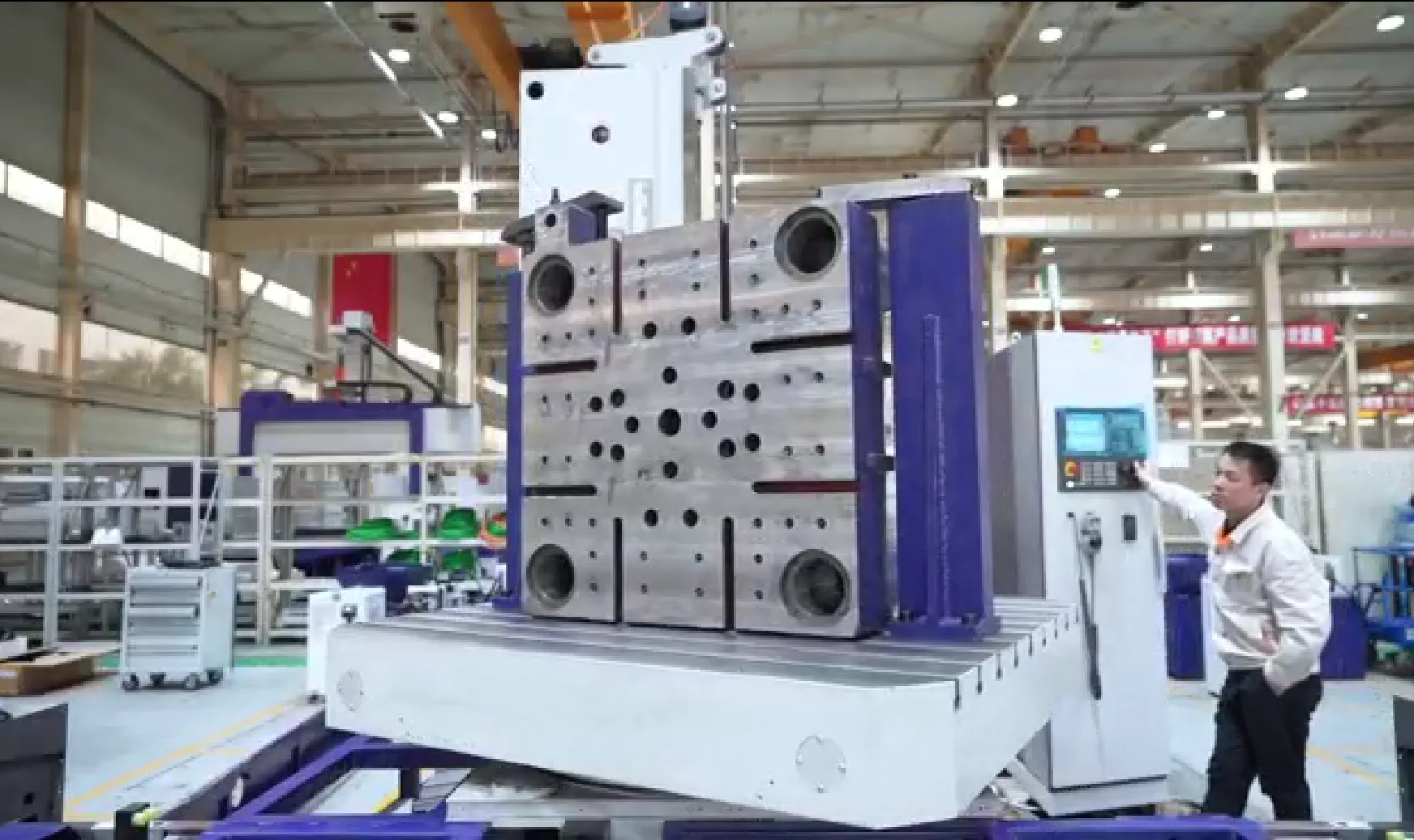

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine 2

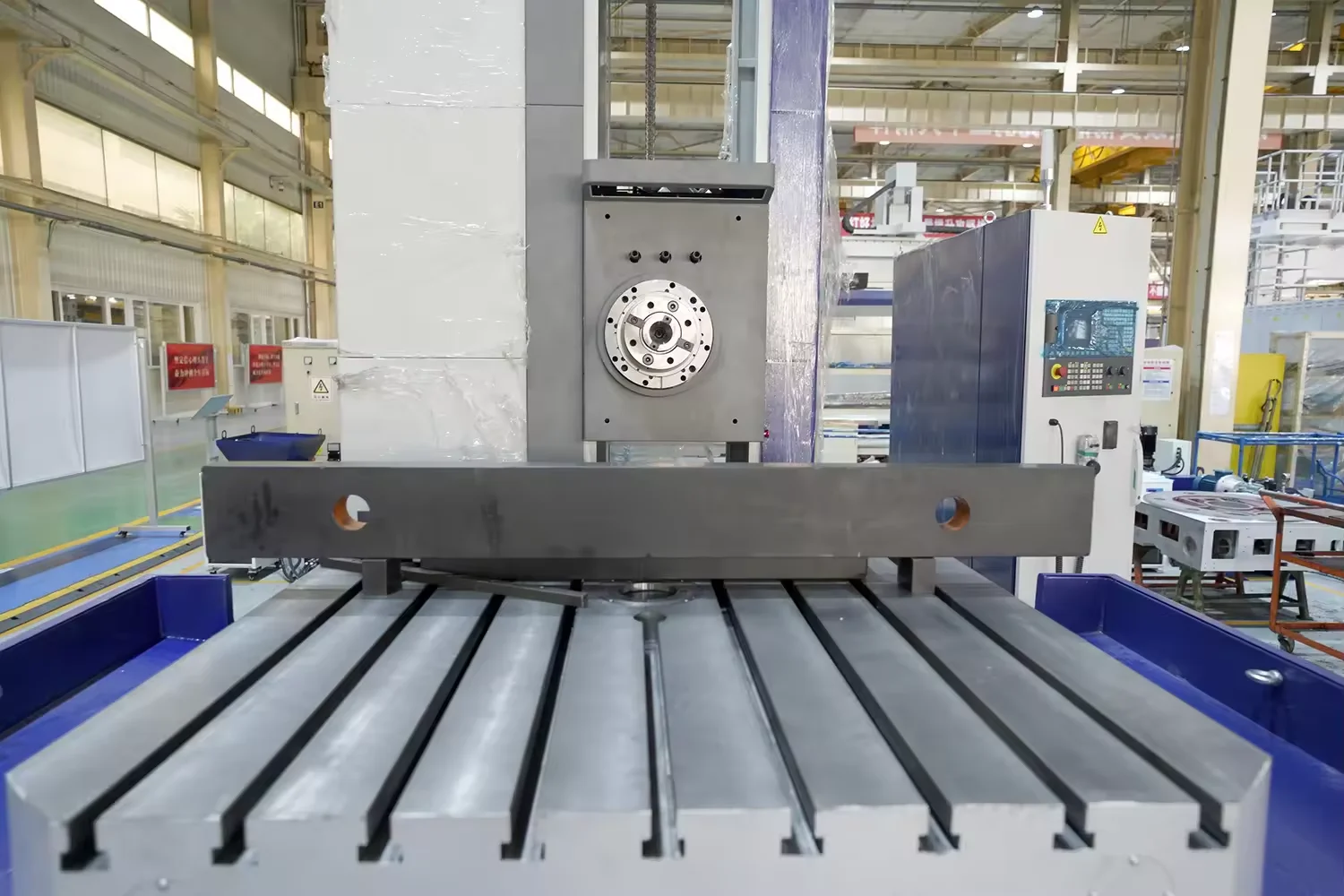

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine 3

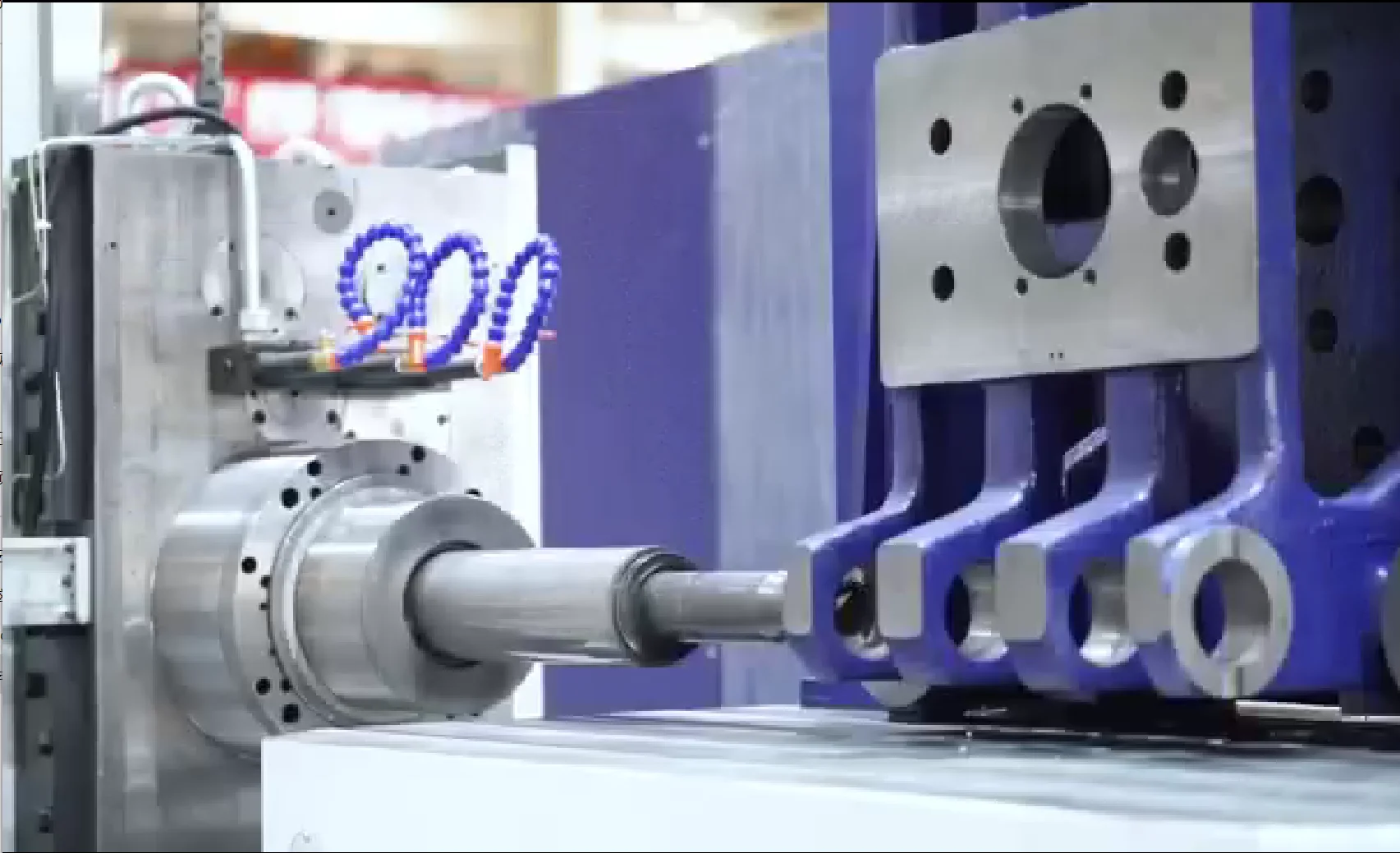

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine 4

SMTCL PBC110m General-purpose CNC Horizontal Milling and Boring Machine 5

Product Paramenters:
ltems
Unit
PBC 110m
PBC 110fm
Workbench dimension
mm
1000×1250/ 1250×1400
Maximum load of workbench
T
5
Spindle diameter
mm
φ110
Spindle taper hole

IS0 7:24 N0.50
Tool shank specification

JT50/BT50
Spindle speed
r/min
10-2500
10-2000
Facing head rotary speed
r/min

10-200
Power of main motor
kW
17/20.4
19.5/23.4
Maximum torque of spindle
Nm
1300/1600
X-axis stroke
mm
2000
Y-axis stroke
mm
1500
Z-axis stroke
mm
1200
Spindle stroke W
mm
550
Facing head sliding block stroke U
mm
-
140
Workbench rotation B
°
0.01×360°
Feeding speed
X,Y,Z
mm/min
1-6000
W
mm/min
1-2000
U
mm/min
-
1-1000
B
r/min
0-1
Rapid speed
X,Y,Z
m/min
10
W
m/min
2.4
U
m/min
-
2.4
B
r/min
2
Positioning accuracy
X,Y,Z
mm
0.018/0.015(grating scale)
0.018/0.015(grating scale)
W
mm
0.016
U
mm
-
0.032
B
''
12/8(gratingscale),
4×90°；6
12/8(gratingscale),
4×90°；6
Repositioning accuracy
X,Y,Z
mm
0.01
W

0.014
U
mm
-
0.018
B
''
6
CNC system

SIEMENS 828D
SIEMENS 828D
Standard configuration:
SIEMENS 828D
Cooling and chip removal
Centralized lubrication
Headstock oil cooler
Imported spindle bearings
Spindle blowing function
Workbench water tray
Y-direction armor protection
Guide rail protection
Operator protection
Air gun/water gun
Anchor cushion iron
Floodlight
Cabinet air conditioner
Optional configuration:
24/40/60 tool magazine
Accessory milling head
Workbench area protection
X/Y/-axis grating ruler
Spindle internal cooling
Pump station oil cooler
Adaptive control
Tool load abnormality detection
Energy saving package
SIMENS one
FANUC 0I/31I system
