SMTCL Heavy Duty CNC Boring Machine TK6511B SIEMENS Controller Horizontal Milling Boring Machine

Brand Name: SMTCL
Model Number: TK6511B
Place of Origin: CHINA
Certification: CE ISO certification
Minimum Order Quantity: 1
Supply Ability: 50 sets per month
Tags

Horizontal Boring And Milling Machine

Horizontal CNC Boring Machine

CNC Milling And Boring Machine

Product Details

Brand Name: SMTCL Model Number: TK6511B
CNC Or Not: CNC Key Word: Horizontal CNC Milling Boring Machine
Spindle Speed: 10-2500 R/min Workbench Dimension: 1000×1250 Mm
Maximum Load Of Workbench: 5 T Transverse Travel X Of Workbench: 2000/2500/3000 Mm
Vertical Travel Y Of Headstock: 1500/2000 Mm Longitudinal TravelZ Of Column: 1200/2000 Mm
Travel W Of Spindle: 550 Mm
Highlight

Strong processing capacity

,

High-precision guarantee

,

Advanced automation technology

Product Description

SMTCL Heavy Duty CNC Boring Machine TK6511B SIEMENS Controller Horizontal Milling Boring Machine 0

Product Description:

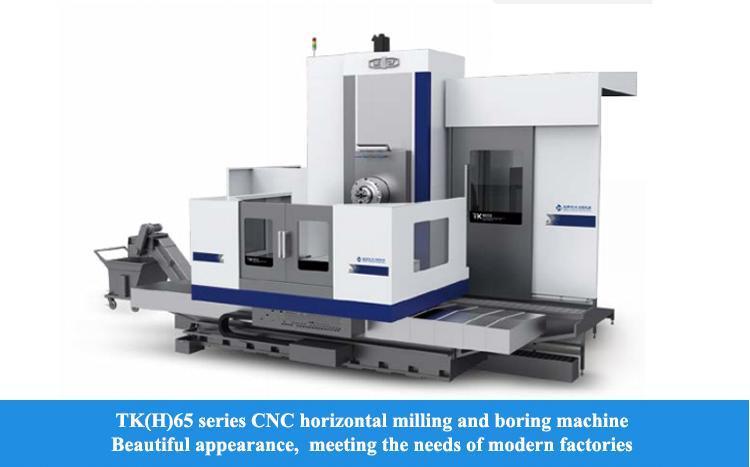

SMTCL Heavy Duty CNC Boring Machine TK6511B SIEMENS Controller Horizontal Milling Boring Machine
High-rigidity CNC horizontal milling and boring machine can meet the heavy cutting demand, and it is widely used in general machinery, engineering machinery, mining, electric power and other industries.
Structural features:The machine tool is in a structure of T-shaped layout and single column side hanging box
Basic parts:Cast with high-strength cast iron material and resin sand process, with excellent stability and shock resistance

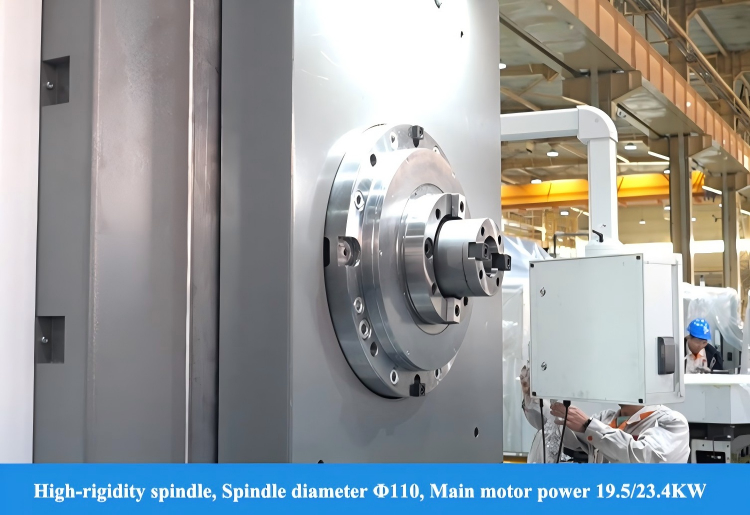

Spindle group:he spindle is driven by precision gear group meshing, with smooth operation and high accuracy

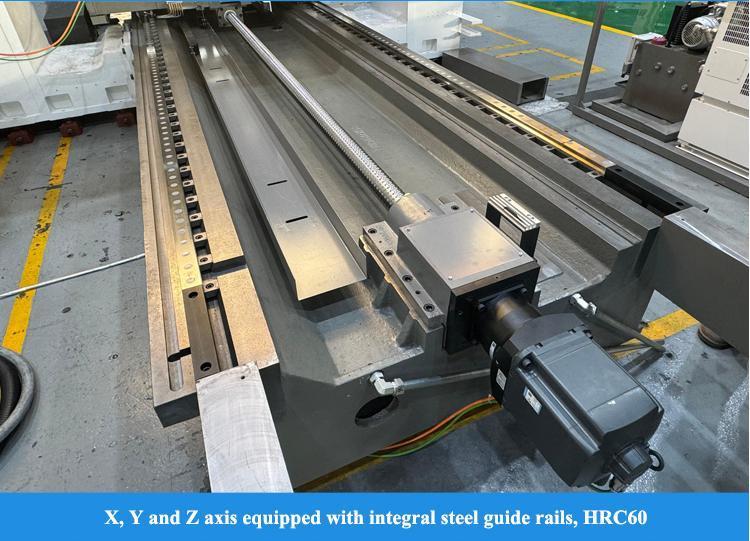

Guide rail:X-axis, Y-axis and Z-axis are equipped with the integrated steel-inserted guide rail to meet the rigid demand of heavy cutting
Drive:The X-axis and Z-axis adopt servo motor to drive the ball lead screw via the reduction gearbox,the Y-axis adopts the servo motor to directly drive the ball lead screw, and the B-axis is the classic double worm gear & worm structure

Product Features:

  1. Strong Machining Capacity: The worktable load capacity is up to 30,000 kg, enabling machining of large workpieces. Combined with the large-size worktable, it meets the needs of heavy machinery, energy equipment and other industries.​
  1. High Precision Guarantee: Adopting imported roller linear guides, lead screws and spindle bearings, each axis has strong transmission rigidity, with a positioning accuracy of 0.026/1000 mm, ensuring the machining of precision parts.​
  1. Efficient Cutting Performance: The milling spindle power is up to 49.2 kW and the torque reaches 4000 Nm. Combined with a high rotation speed of 1500 rpm, it realizes powerful and efficient cutting and shortens the machining cycle.​
  1. Advanced Automation Technology: Equipped with advanced CNC systems such as Siemens 828D, it features fully automatic head changing technology, with high automation level, reducing manual intervention and improving machining efficiency.​
  1. Stable and Reliable Structure: The column and top beam form a gantry frame. The symmetrical frame structure, combined with high-quality cast iron basic parts with reasonable rib arrangement, has strong rigidity and good stability, ensuring the long-term stable operation of the equipment.


Product Details:

SMTCL Heavy Duty CNC Boring Machine TK6511B SIEMENS Controller Horizontal Milling Boring Machine 1

Industry application:

SMTCL Heavy Duty CNC Boring Machine TK6511B SIEMENS Controller Horizontal Milling Boring Machine 2



Product Paramenters:
ltems
Unit
TK(H) 6511B
TK(H)P 6511B

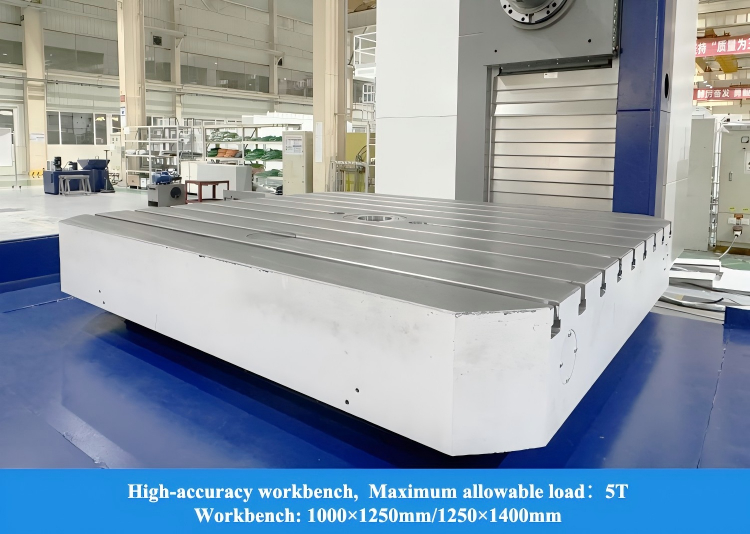

Workbench dimension
mm
1000×1250/ 1250×1400
Maximum load of workbench
T
5
Spindle diameter
mm
φ110
Facing head diameter
mm
-
φ630
Tool shank specification

JT50/BT50
Spindle speed
r/min
10-2500
Power of main motor
kW
19.5/23.4
Maximum torque of spindle
Nm
1300/1600
Transverse travel X of workbench
mm
2000/2500/3000
Vertical travel Y of headstock
mm
1500/2000
Longitudinal travelZ of column
mm
1200/2000
Travel W of spindle
mm
550
Travel U of facing head slide block
mm
-
140
Feeding speed
X,Y,Z
mm/min
1-6000
W
mm/min
1-2000
U
mm/min
-
1-1000
B
r/min
0-1.5
Rapid speed
X,Y,Z
m/min
10
W
m/min
2.4
U
m/min
-
2.4
B
r/min
2.5
Positioning accuracy
X,Y,Z
mm
X/Y:0.018/0.015(grating scale)
Z:0.016/0.013(grating scale)
W
mm
0.016
U
mm
-
0.032
B
''
8, 4×90°；6
Repositioning accuracy
X,Y,Z
mm
0.01
W
mm
0.014
U
mm
-
0.018
B
''
6

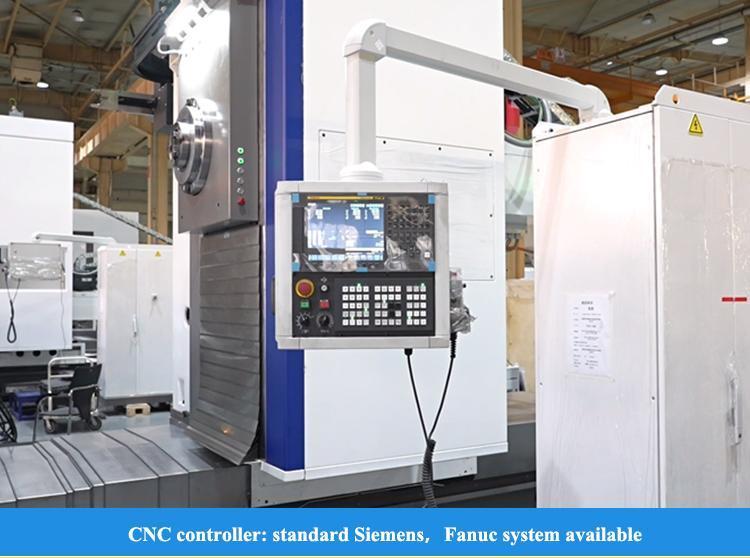

CNC system


SIEMENS 828D
Standard configuration:
SIEMENS 828D
Spindle blowing function
Guide rail protection
Cabinet air conditioner
Cooling and chip removal
Imported ball lead screw
Operator protection
Centralized lubrication
B-axis circular optical grating
Water gun/air gun Headstock oil cooler
Workbench water tray
Anchor cushion iron
Imported spindle bearings
Y-direction armor protection
Floodlight
Optional configuration:

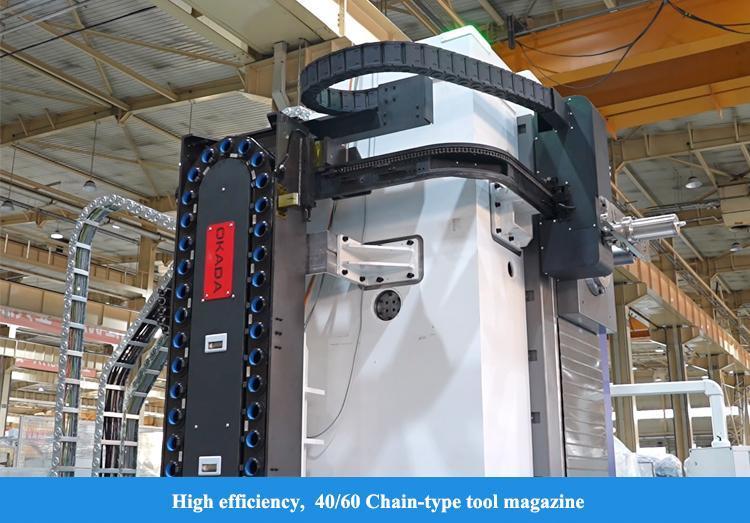

40/60 tool magazine
Pump station oil cooler
FANUC0I/31I system
Accessory milling head
Adaptive control
Workbench area protection
Tool load abnormality detection
X/Y/Z-axis grating ruler
Energy saving package
Spindle internal cooling
SIEMENS one
