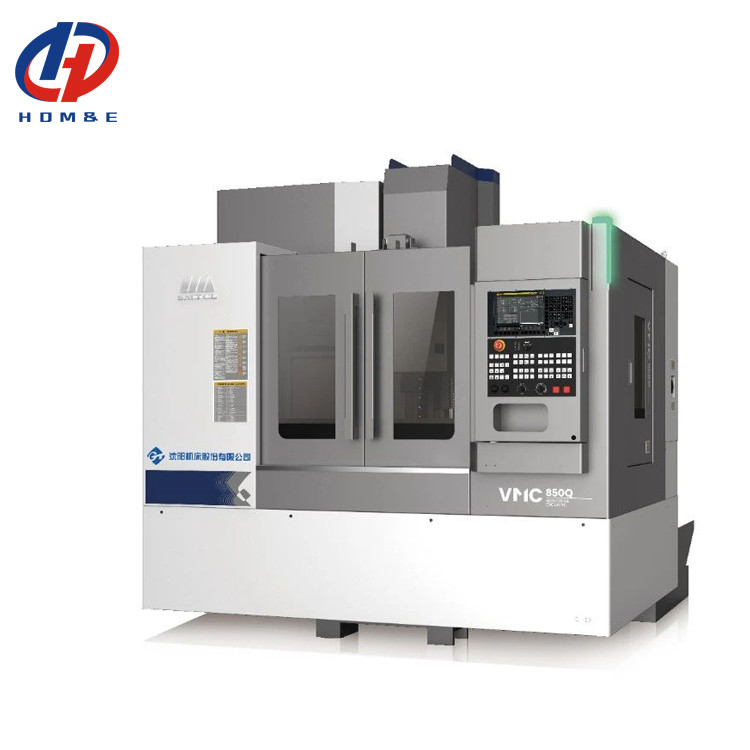

VMC850Q 3 Axis Vertical Machining Center CNC VMC Machine 4 Axis CNC Vertical Milling Center
Product Details
| Brand: | SMTCL | Type: | VMC850Q VMC1000Q VMC1100Q |
|---|---|---|---|
| Product Name: | Vertical Machining Center | Table Size (L×W): | 1200×500 |
| Max Load On The Table: | 600kg | X Axis Travel: | 1000mm |
| Y Axis Travel: | 500mm | Z Axis Travel: | 540mm |
| A.T.C: | 24 ATC With Robot Arm | ||
| Highlight |
VMC850Q Vertical Machining Center,3 Axis Vertical Machining Center,4 Axis Vertical Machining Center |
||
Product Description
Product Description:
1, High rigidity and high stability design
♦ High strength integral casting bed
♦ Three-axis P-class roller guide
♦ Long span herringbone column
Product Paramenters:
|
Item
|
Unit
|
VMC850Q
|
VMC1000Q
|
VMC1100Q
|
|
|
Capacity
|
X axis travel
|
mm
|
850
|
1000
|
1100
|
|
Y axis travel
|
mm
|
500
|
500
|
620
|
|
|
Z axis travel
|
mm
|
540
|
540
|
600
|
|
|
Spindle nose to table surface
|
mm
|
120-660
|
120-660
|
120-720
|
|
|
Spindle nose to column surface
|
mm
|
640
|
640
|
743
|
|
|
Worktable
|
Table size (L×W)
|
mm
|
1000×500
|
1200×500
|
1300×610
|
|
Max load on the table
|
kg
|
600
|
600
|
1000
|
|
|
T-slot size
|
mm
|
18×5
|
18×5
|
18×5
|
|
|
Spindle
|
Spindle speed
|
rpm
|
10000
|
10000
|
10000
|
|
Spindle taper/spindle shank
|
mm
|
7/24 taper
|
7/24 taper
|
7/24 taper
|
|
|
BT40
|
BT40
|
BT40
|
|||
|
Spindle motor
|
kw
|
7.5/11
|
7.5/11
|
11/15
|
|
|
Maximum output torque
|
N.m
|
35.8/70
|
35.8/70
|
52.5/95.5
|
|
|
Spindle drive type
|
|
Synchronous tooth belt
|
|||
|
Tools
|
Tool holder model
|
|
MAS 403 BT40
|
||
|
Pull stud model
|
|
MAS 403 P40T-I
|
|||
|
Feed rate
|
X,Y,Z rapid traverse
|
m/min
|
48/48/48
|
||
|
3 axes moter power(X/Y/Z)
|
kW
|
1.8/1.8/3
|
1.8/1.8/3
|
3/3/3
|
|
|
3 axes moter torque(X/Y/Z)
|
N·m
|
11/11/20
|
11/11/20
|
20/20/20
|
|
|
Max cutting feed rate
|
mm/min
|
1-20000
|
|||
|
A.T.C
|
Type
|
pc
|
ATC with robot arm
|
||
|
Mode
|
|
Nearest tool selection in bi-direction
|
|||
|
Capacity
|
Pcs
|
24
|
|||
|
Max tool length
|
mm
|
300
|
|||
|
Max tool weight
|
kg
|
7
|
|||
|
Max too disk dia.-Full
|
mm
|
80
|
|||
|
Max too disk dia.-Adjacent
|
mm
|
150
|
|||
|
Tool change time(T-T)
|
sec
|
2.5
|
|||
|
The height between table to ground
|
mm
|
900
|
900
|
950
|
|
|
Others
|
Overall dimensions
(L×WxH)
|
mm
|
2400×2975×2840
(Exclude chip conveyor)
|
2700×2975×2840
(Exclude chip conveyor)
|
2940×3450×3050
(Exclude chip conveyor)
|
|
Net machine weight
|
kg
|
5100
|
5400
|
6200
|
|
|
Total power requirment
|
KVA
|
18
|
18
|
25
|
|
|
Standard configuration:

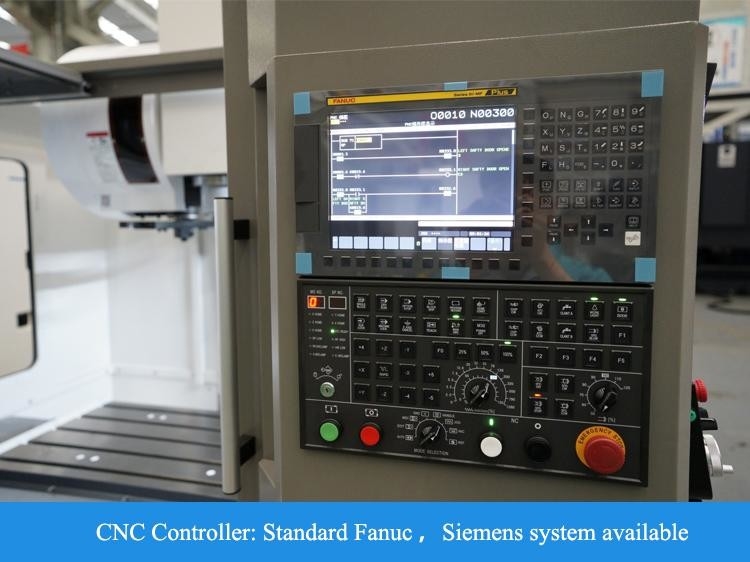

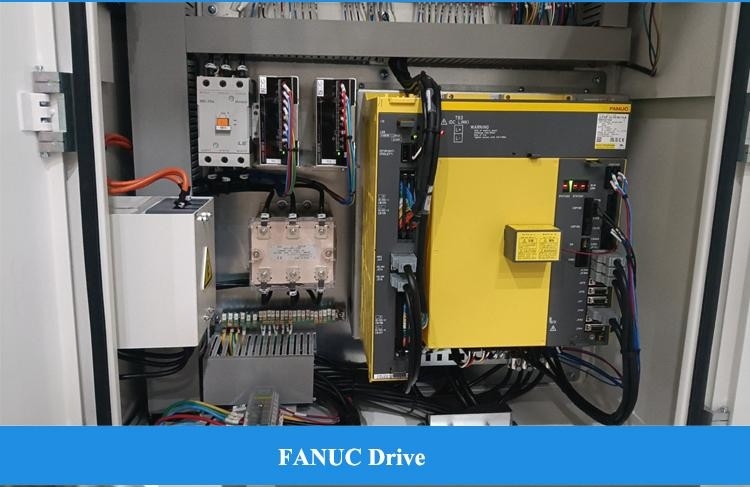

1. FANUC OI-MF TYPE(5)β control system

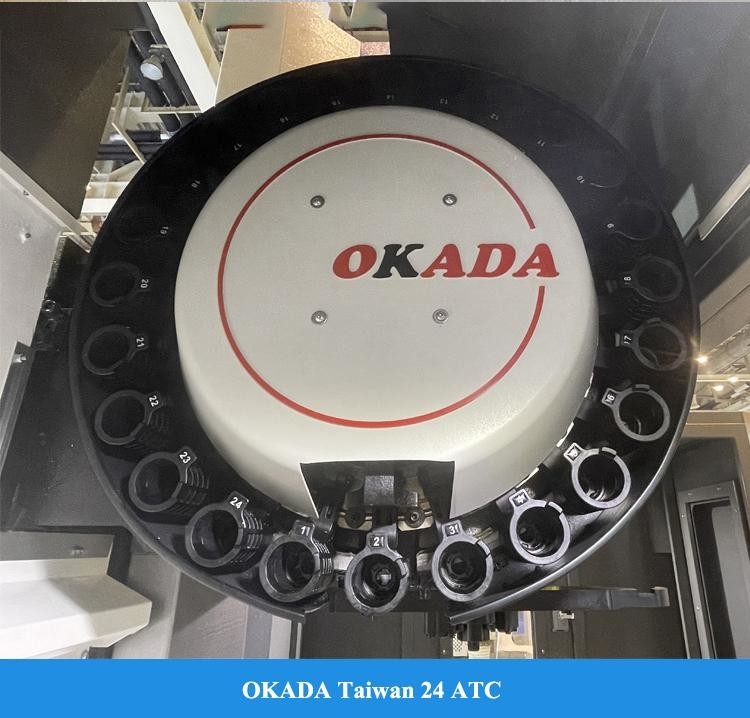

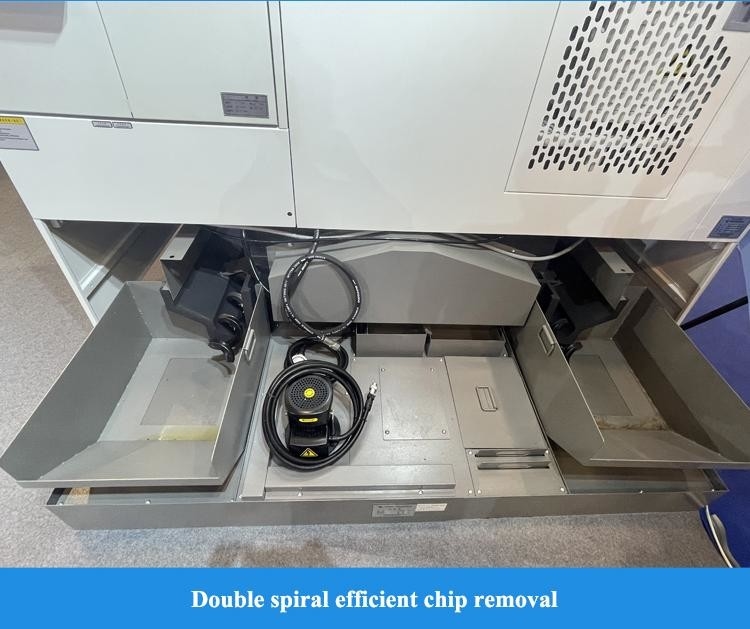

2. 10000 RPM spindle , belt connected 3. 24 disc manipulator tool magazine 4. Water tank + bed flushing chip 5. Clean air gun, working light, warning light |
Selective configuration:
1. Fanuc Oi-MF TAPE(l)β system

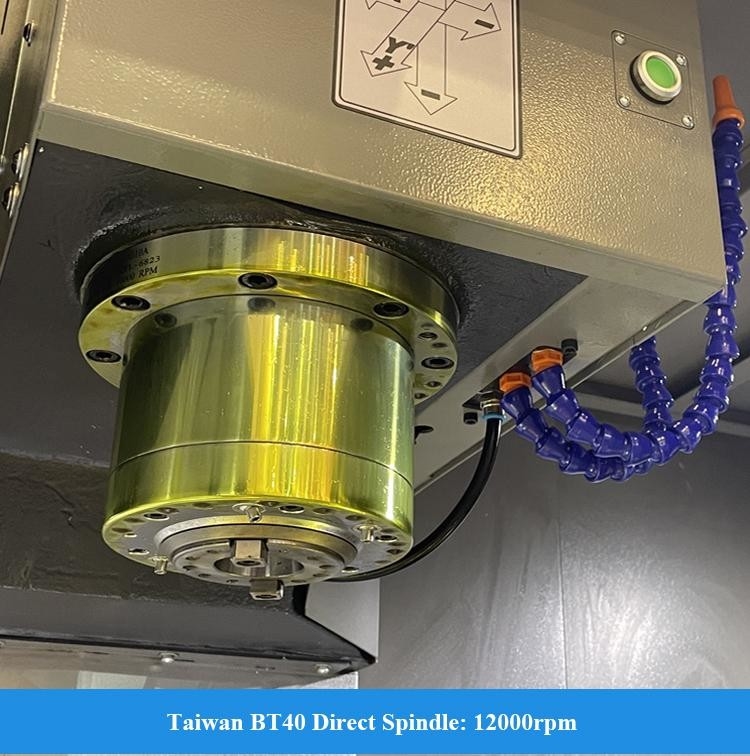

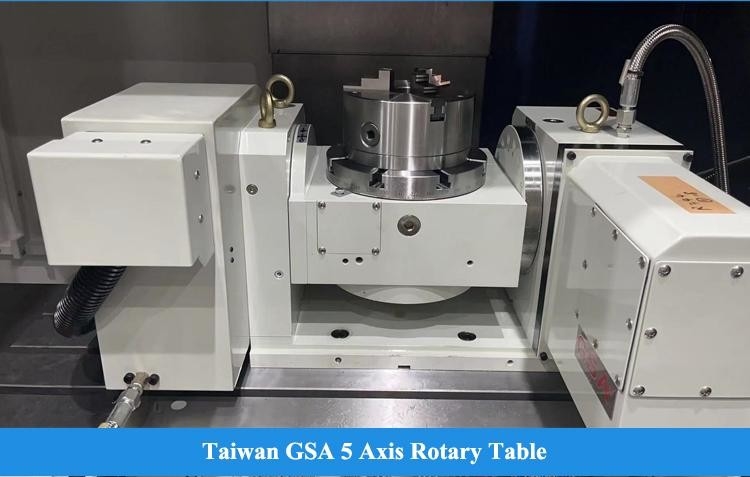

2. Fanuc Oi-MF TAPE(l)α system 3. Siemens 828D CNC system 4. Direct connection 12000 RPM mechanical spindle 5. 16000 RPM, 24000 motorized spindle 6. 4th axis turntable 7. Cooling inside 2MPa, 3MPa,5MPa,7MPa 8. Oil-water separator 9. Chain chip remover 10. Clean water gun 11. Tool and workpiece inspection 12. Automatic door 13. Safety door lock 14.Electric cabinet and air conditioning |
||||
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
Product Highlights
Product Description: VMC850Q 3 Axis Vertical Machining Center CNC VMC Machine 4 Axis CNC Vertical Milling Center This new generation VMC850Q vertical machining center adopts vertical frame layout, cross slide structure, high rigid herring column, inverted trapezoidal spindle box, low center of ...
