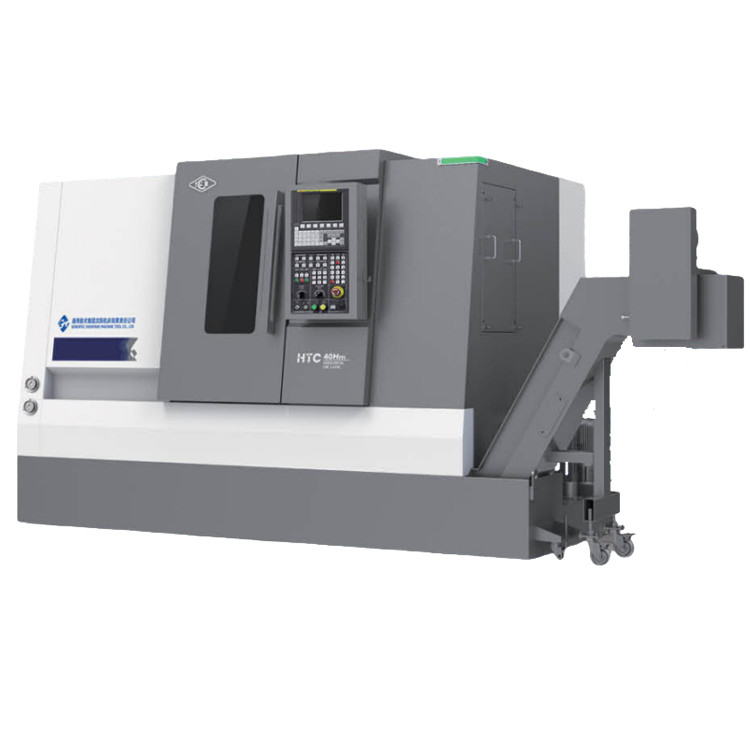

Hard Rail CNC Lathe HTC40S High Rigidity Large Span A2-8 Spindle Speed 4000r/min SMTCL Slant Bed CNC Lathe
Brand Name:
SMTCL
Model Number:
HTC40S
Place of Origin:
CHINA
Certification:
CE ISO certification
Minimum Order Quantity:
1
Supply Ability:
50 sets per month
Product Details
| Brand Name: | SMTCL | Model Number: | HTC40S |
|---|---|---|---|
| CNC Or Not: | CNC | Key Word: | Horizontal CNC Lathe |
| Max.cutting Length: | 1500mm | Max. Cutting Dia.: | 500mm |
| Max. Swiming Dia.over Bed: | 600mm | X Axis Travel: | 270mm |
| Z Axis Travel: | 1628mm | Spindle Speed: | 4000 R/min |
| Highlight |
Large Span CNC Lathe,High Rigidity CNC Lathe,4000r/min CNC Lathe |
||
Product Description
Product Description:

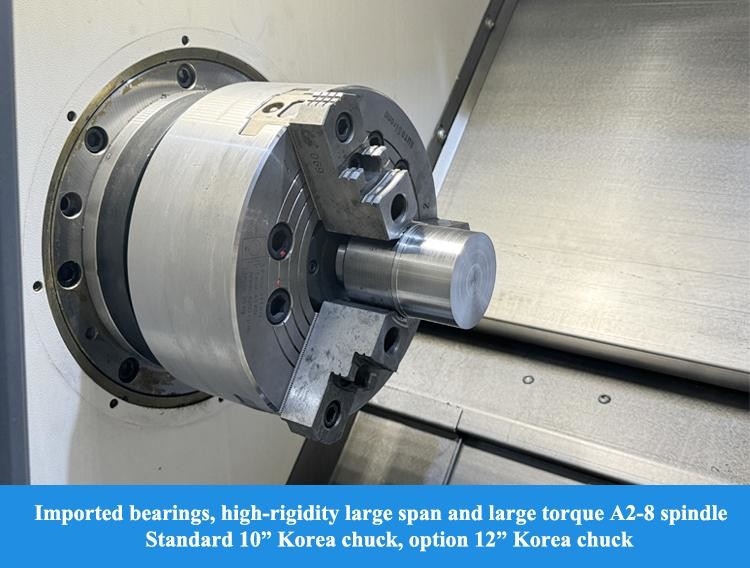

SMTCL Hard Rail CNC Lathe HTC40S High Rigidity Large Span A2-8 Spindle Speed 4000r/min Slant Bed CNC Lathe

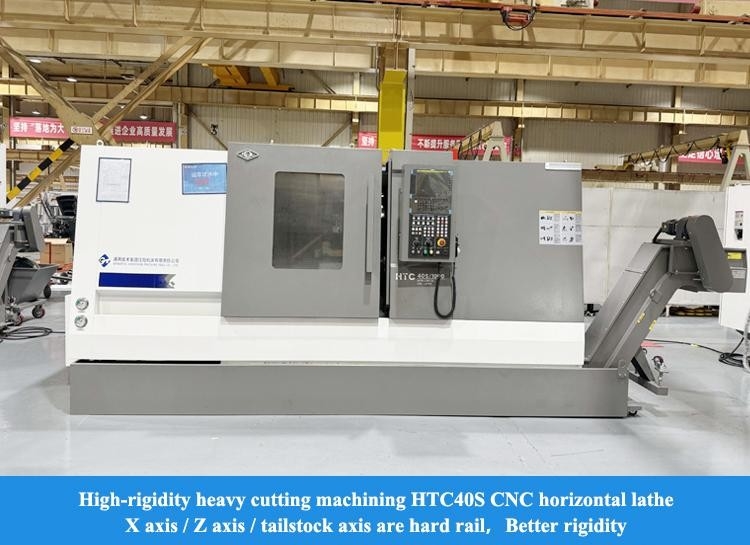

HTC40S CNC Lathe has unique advantages in its hardened guideway design. The hardened guideway has undergone special processing techniques and possesses super-strong rigidity, which can effectively bear heavy cutting loads.
During powerful machining processes, it has excellent stability, ensuring that the machining accuracy remains unaffected. The high-precision hardened guideway system enables the machine tool to have precise motion trajectories when operating. Whether it is the processing of shaft or disc parts, it can demonstrate outstanding performance and is widely applicable to the mechanical processing fields with high requirements for precision and stability.
During powerful machining processes, it has excellent stability, ensuring that the machining accuracy remains unaffected. The high-precision hardened guideway system enables the machine tool to have precise motion trajectories when operating. Whether it is the processing of shaft or disc parts, it can demonstrate outstanding performance and is widely applicable to the mechanical processing fields with high requirements for precision and stability.
Product Features:
1,High precision
◆ High-precision screw and guide rail
◆ High-precision spindle bearings
◆ Quantification of process standards
◆ High-precision grating ruler
◆ High-precision spindle bearings
◆ Quantification of process standards
◆ High-precision grating ruler
2,High efficiency
System modular code application
◆ Complete functional conf iguration, enabling intelli gent production
◆ High-efficiency se rvo turret
◆ High-performance,heavy-duty cutting spindle
System modular code application
◆ Complete functional conf iguration, enabling intelli gent production
◆ High-efficiency se rvo turret
◆ High-performance,heavy-duty cutting spindle
3,High rigidity

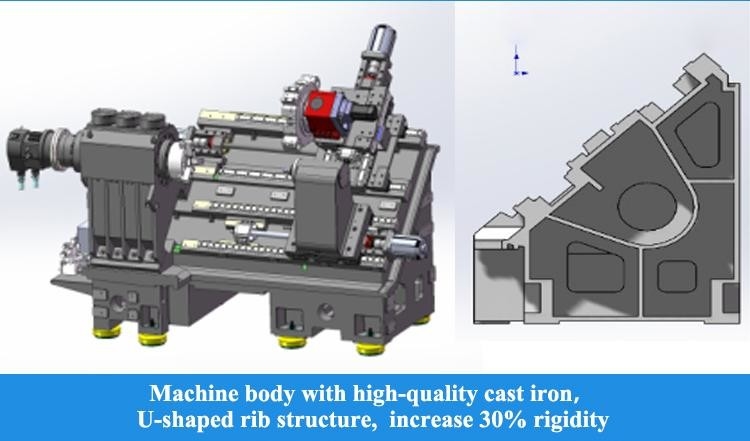

◆ High-quality cast iron bed, etc.
◆ Key castings: long-span bedside box
◆ High power and high torque spindle
◆ High rigidity tool turret
◆ High-quality cast iron bed, etc.
◆ Key castings: long-span bedside box
◆ High power and high torque spindle
◆ High rigidity tool turret
Product Details:
Rapid moving speed: 30m/min
The servo motor is directly connected to the ball screw through a coupling, reducing intermediate links and achieving gapless transmission. The X and Z-axis guide rails adopt imported linear rollingguide rails to ensure high rigidity, good dynamic performance and accuracy, increase operating speed and improve production efficiency.
Split Servo Tailstock
The tailstock can be moved in an optional servodriven manner, which can precisely control and flexibly adjust the tailstock moving speed and working clamping force according to processing requirements, allowing the tailstock to quickly approach the workpiece and tighten without impact , and can provide real-time feedback on the tightening position.improve production
replacement efficiency. It adopts an upper and lower split tailstock ,easy to adjustment accuracy and improve maintenance efficiency.
Double fixed pre-tensioned structure
X axis develops a double fixed support structure and uses a pre-stretched screw to effectively offset pre-stretch deformation and temperature risedeformation. It cooperates with a special sealing structure to reduce the temperature rise of the screw, thereby achieving high precision and high precision of machine tool feed stability
Y axis configuration
Optional Y-axis configuration, combinedwith BMT powered turret, high-precision C -axis structure and a variety of poweredtool holders, can realize complex surface processing with once installation.
High precision ball screw
It uses high-quality imported C3-grade screw and H-grade guide rail, and is directly driven by servo motor to achieve excellent operating accuracy.
Anti-bending saddle
The guide rail span is reasonably enlarged,the motion system structure is optimized,and the main body of the bed saddle isdesigned in an arc shape to ensure theoverall rigidity of important components.

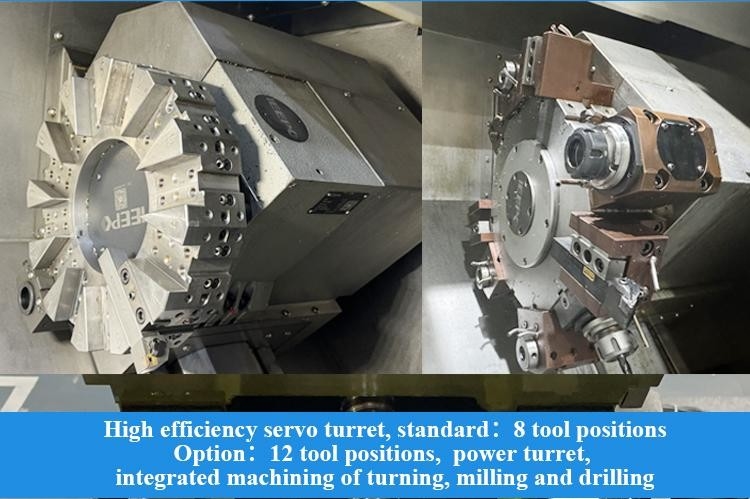

Efficient servo powered turret
Standard BMT interface, high rigidityconnection; the tool is driven by DIN1809 interface, which has reliable transmission and low failure rate;the drive motor is side-mounted and compact in structure; it is equipped with high-precision C axis and brake device to achieve high-efficiency integrated processing of turning, milling anddrilling.
Internal cooling tool holder
Optional internal cooling tool holder and water outlet from the tool center realize efficient chip removal during inner hole machining and ensure processing quality
Driven tool milling capability
Workpiece material: HT200
Tool model: Ф20 square shoulder
milling cutter
Cooling status: water cooling
Tool model: Ф20 square shoulder
milling cutter
Cooling status: water cooling
Driven tool drilling capacity
Workpiece material: HT200
Tool model: Ф16 twist drill
Cooling status: water cooling
Workpiece material: HT200
Tool model: Ф16 twist drill
Cooling status: water cooling
Product Paramenters:
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
SMTCL and SYMG group is our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
FAQ:
Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
