CNC Lathe Small Size Parts Processing T5.1-500Q Precision Metal SMTCL CNC Slant Bed Lathe

Brand Name: SMTCL
Model Number: T5.1-500Q
Place of Origin: China
Certification: CE ISO
Minimum Order Quantity: 1 Set
Price: Negotiable
Supply Ability: 50 Sets per Month
Tags

CNC Lathe Machine

High Precision Horizontal CNC Lathe

CNC Turning Center

Product Details

Product Name: Slant Bed Cnc Lathe Machine Max. Swing Diameter (mm): 420 Mm
Max Cutting Dia: 280 Mm Max. Length Of Workpiece (mm): 500 Mm
Max. Spindle Speed (r.p.m): 4500 R/min Spindle Bore: 65 Mm

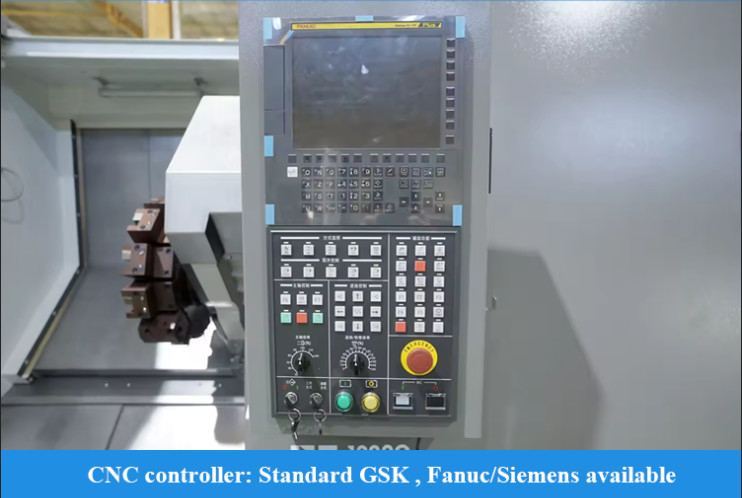

Tool Turret Type: Horizontal 8 Positions Servo Turret CNC Control System: FANUC GSK Siemens Optional
Highlight

Small Size Parts Processing CNC Lathe

,

SMTCL CNC Lathe

,

Precision Metal CNC Lathe

Product Description

CNC Lathe Small Size Parts Processing T5.1-500Q Precision Metal SMTCL CNC Slant Bed Lathe 0

Product Description:

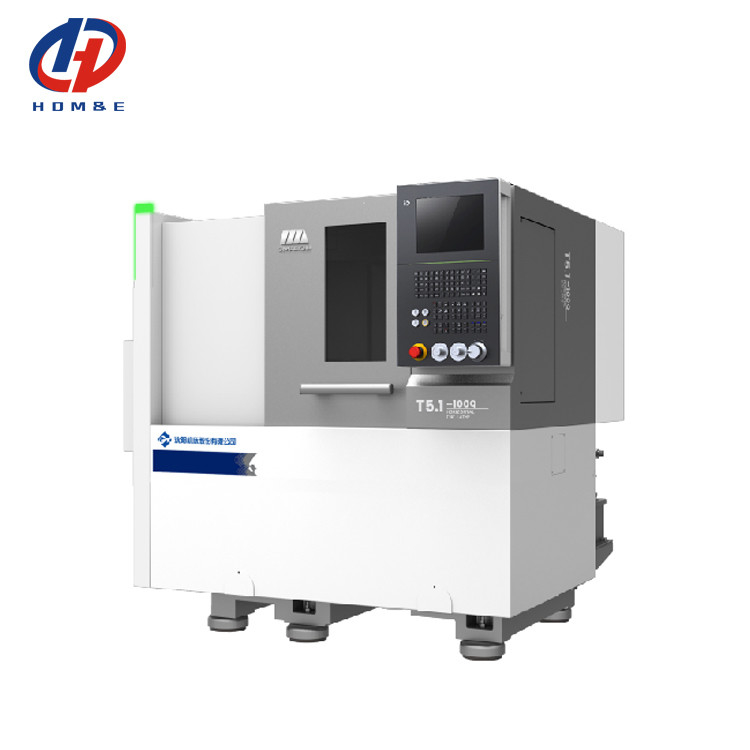

SMTCL CNC Lathe Small Size Parts Processing T5.1-500Q Precision Metal CNC Slant Bed Lathe

T5.1 - 500Q is a general-purpose CNC horizontal lathe with an inclined bed design. Its bed has high
rigidity, which can ensure the stability of machining. Equipped with a high-precision spindle, it can achieve precise machining with high machining precision. This machine tool is also equipped with an advanced CNC system that is easy to operate and rich in functions. It supports multi-axis linkage and can efficiently complete the processing of complex parts, and is suitable for the manufacturing of parts in various industries.

Product Features:
1,High Precision
♦ C3 pre-drawn lead screw
♦ Error compensation technology
♦ Process standard quantification
2, High Efficiency
♦ Two axes high and fast moving speed

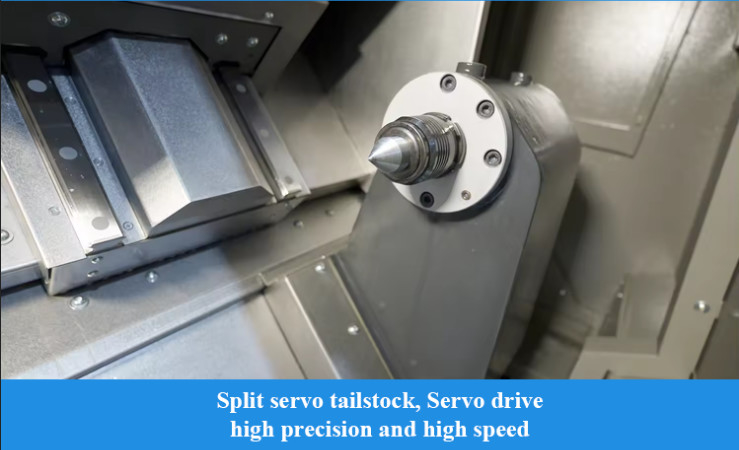

♦ Split servo tail

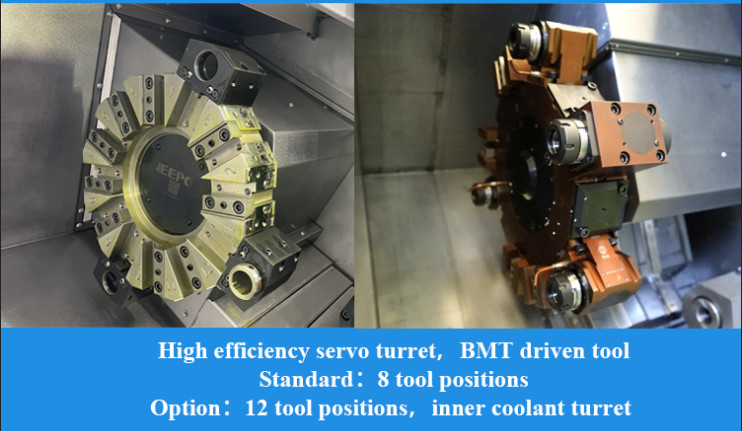

♦ High efficiency servo cutter tower
3,High Rigidity

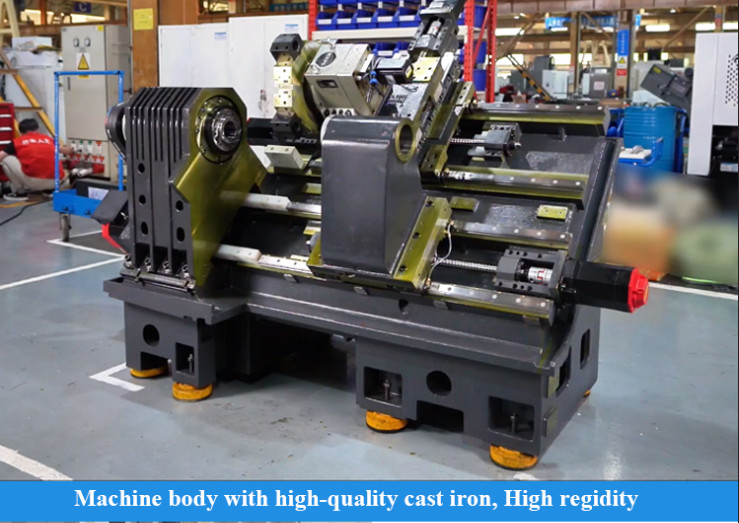

♦ High-quality cast iron bed and other key castings
♦ Large span double row cylindrical roller spindle bearing
♦Anti-bending saddle structure
Product Details:
CNC Lathe Small Size Parts Processing T5.1-500Q Precision Metal SMTCL CNC Slant Bed Lathe 1

Product Paramenters:

Item
Unit
T5.1-100Q
T5.1-500Q
Max. turning diameter
mm
Φ160
Φ280
Max. turning length
mm
160
500
Max.swing diameter over bed
mm
Φ420
Φ420
Max.swing diameter over cross slide
mm
Φ160
Φ280

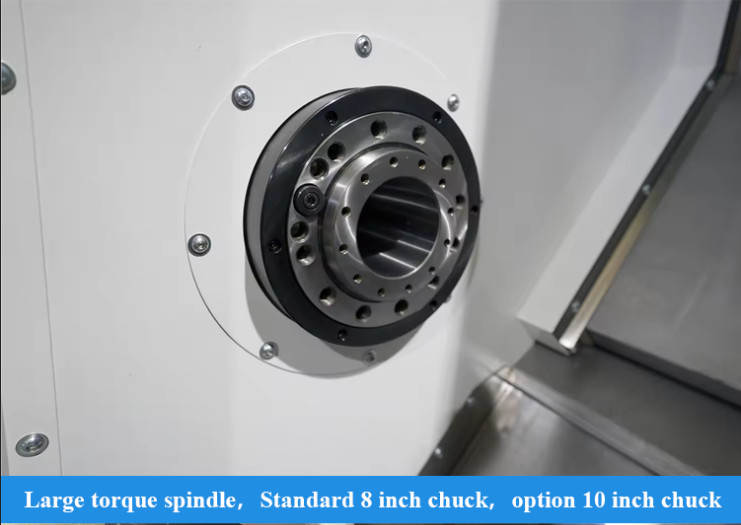

Spindle
Type of spindle nose

A2-5
A2-6
Inner diameter of front bearing
mm
90
100
Taper of spindle bore

1:20；Φ62
1:20；Φ70
Spindle bore
mm
Φ56
Φ65
Max. through bar diameter
mm
Φ44
Φ50
Standard chuck diameter
inch
6
8
Max. spindle speed
r/min
5000
4500
Spindle rated torque
Nm
35(2000r/min)
110(769r/min)
Max. spindle torque
Nm
70(1500r/min)
180(576r/min)
Main motor output power continuous /15 minutes
kW
7.5/11
9/11
Two axis
Rapid traverse of X/Z axis
m/min
30
30
X axis travel
mm
145
160
Z axis travel
mm
205
560
Tailstock
Tailstock travel
mm
-
300(Machine body)
Quill travel
mm
-
100
Quill diameter
mm
-
Φ80
Tailstock quill taper
Morse
-
MT-5
Turret
Turret form

Horizontal 8 positions servo turret
Horizontal 8 positions servo turret
Center height of turret
mm
63
80
Turret rotation repeat positioning accuracy
Sec.
±1.6
±1.6
Whether the cutter can be selected nearby

yes
yes
Other
Distance from spindle center to bed bottom
mm
926
936
Machine net weight
kg
2600
3500
Total power supply capacity
kVA
23
23
Overall dimensions (L ×W×H)
mm
1750×1650×1650
2295×1680×1650

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
CNC Lathe Small Size Parts Processing T5.1-500Q Precision Metal SMTCL CNC Slant Bed Lathe 2
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
CNC Lathe Small Size Parts Processing T5.1-500Q Precision Metal SMTCL CNC Slant Bed Lathe 3

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
