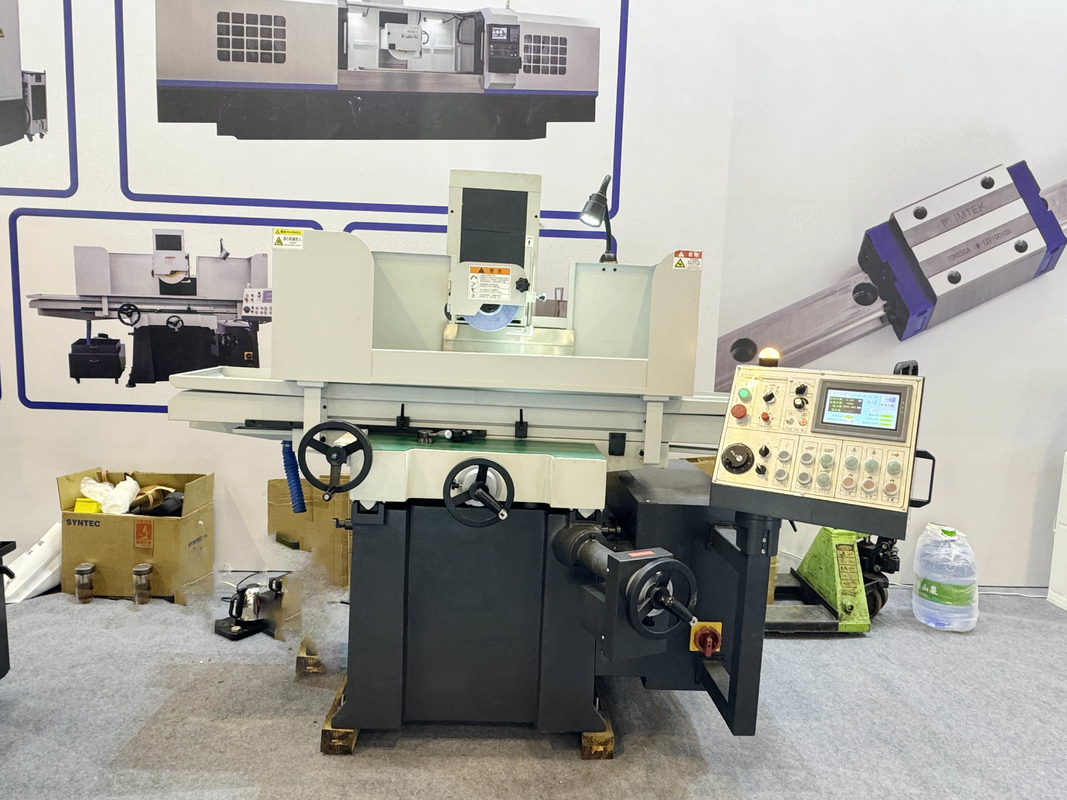

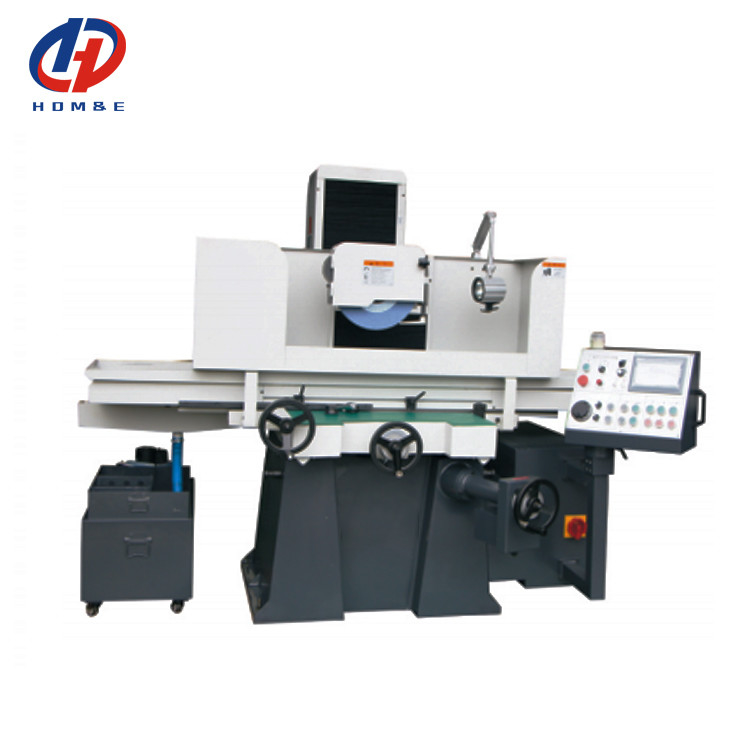

Saddle Surface Grinder HDM-6030 AHR/AHD/MSI Program Control Saddle Moving Surface Grinding Machine
Product Details
| Brand: | HD | Type: | HDM-6030 |
|---|---|---|---|
| Product Name: | Horizontal CNC Surface Grinding Machine | Table Size (L×W): | 600×300mm |
| Max. Movement Of The Table: | 700×340mm | Max. Distance From Table To Spindle Center: | 540mm |
| Max Load On The Table: | 300kg | ||
| Highlight |
MSI Saddle Surface Grinder,HDM-6030AHR Saddle Surface Grinder,Program Control Saddle Surface Grinder |
||
Product Description
Product Description:
Saddle-type grinding machine is an advanced grinding equipment. Its saddle structure is ingeniously designed, which can effectively carry and stabilize the grinding head and related components. This grinding machine exhibits high-precision characteristics during the machining process and can accurately grind various workpieces. Its transmission system is stable and reliable, ensuring the efficient operation of the grinding machine through reasonable layout and high-quality components. The saddle-type grinding machine can be used to process materials with different hardness and is widely applied in fields such as aerospace and precision machinery manufacturing to meet the high-precision grinding requirements of complex parts.
1,The high precision horizontal axis rectangular table surface grinding machine adopts the layout of cross table, the structure of the column and grinding head is compact, the vertical feed sensitivity is high, and the accuracy of the horizontal guide rail is guaranteed.
2,The horizontal feed of the table uses a plastered guide rail, driven by oil pressure, to obtain a smooth and continuous feed, so that high finish grinding is possible.
3,The longitudinal movement of the worktable is controlled in two ways: Ordinary transmission control type and servo transmission control type. The ordinary transmission cannot achieve precise positioning in the front and back directions, while the servo can achieve precise positioning.
4,The grinding head adopts high precision angular contact bearing, which has high stiffness and rotation accuracy.

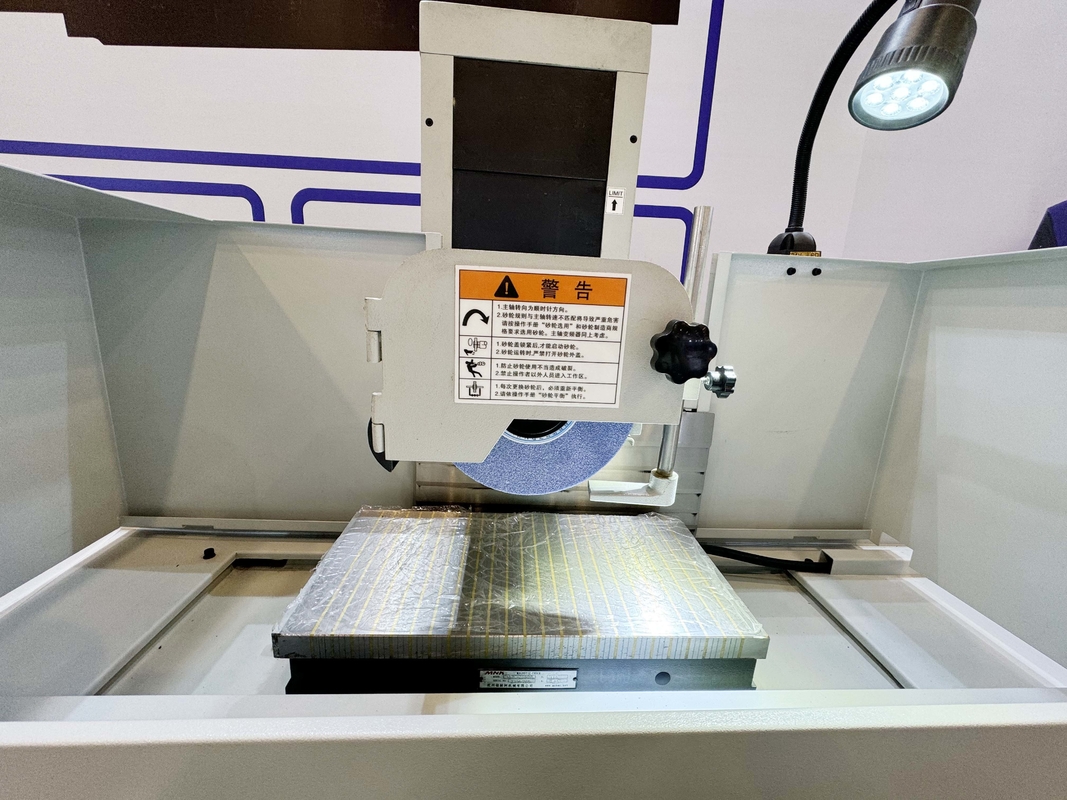

5,The machine adopts a semi-closed cover shell, which can completely cover the entire working area, effectively prevent the splash of coolant and iron filings, and can be connected to the suction and dust removal device.

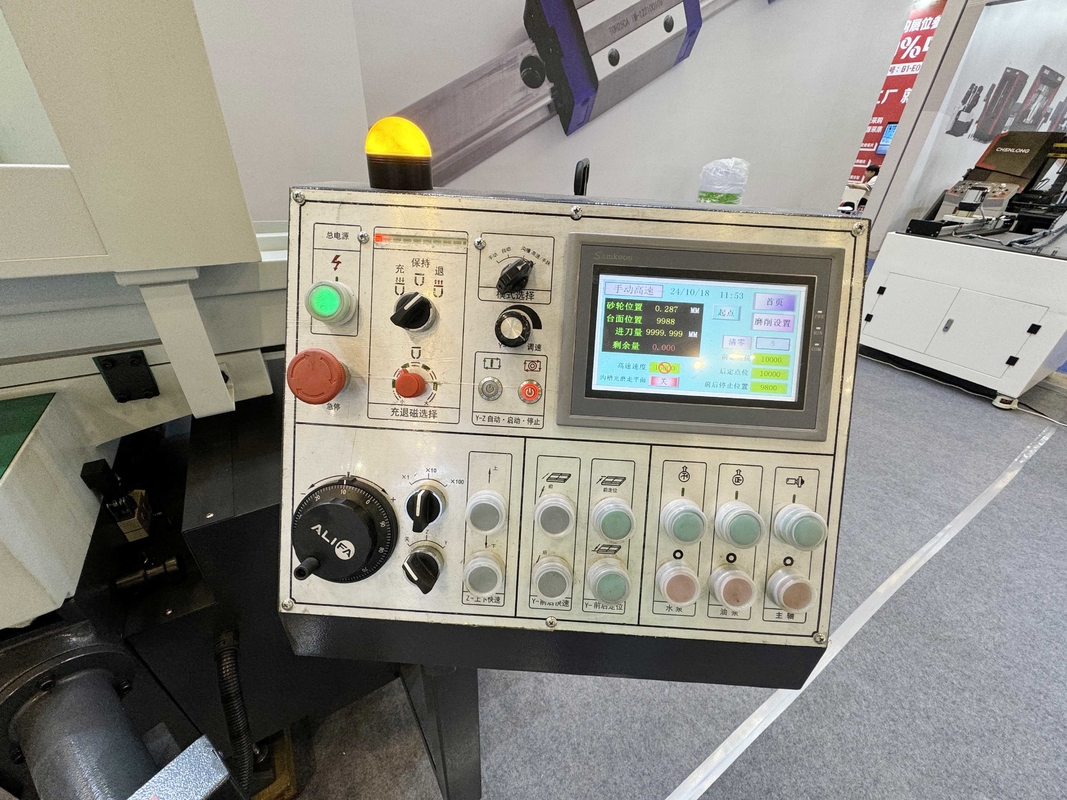

6,Machine tool control options can use Japan Mitsubishi PLC and Taiwan new generation and Germany Siemens control system, graphical menu operation is simple, high degree of automation
Product Paramenters:
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
