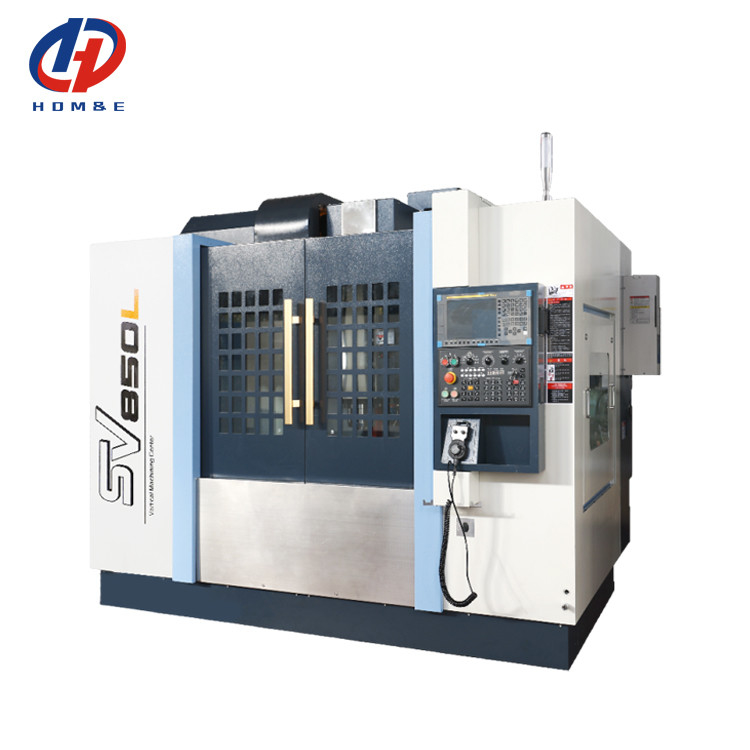

High Rigidity 3 Axis Vertical Machining Center SV850L CNC VMC Vertical Milling Center

Brand Name: HD
Model Number: SV850L
Place of Origin: China
Certification: CE ISO
Minimum Order Quantity: 1 Set
Price: Negotiable
Supply Ability: 50 Sets per Month
Tags

High Precision CNC Vertical Machining Center

3 Axis CNC Vertical Machining Center

3 Axis CNC Milling machine

Product Details

Brand: HD Type: SV850L
Product Name: Vertical Machining Center Table Size (L×W): 1000×500
Max Load On The Table: 500kg X Axis Travel: 800mm
Y Axis Travel: 500mm Z Axis Travel: 500mm
A.T.C: 24 ATC With Robot Arm
Highlight

3 Axis Vertical Machining Center

,

High Rigidity Vertical Machining Center

,

CNC VMC Vertical Machining Center

Product Description

High Rigidity 3 Axis Vertical Machining Center SV850L CNC VMC Vertical Milling Center 0

Product Description:

SV850L Vertical Machining Center High Efficiency High Rigidity Cost-effective Machining Center
Mainly used for milling products processing, can complete complex parts milling, drilling, expanding, reaming, boring, tapping and two-dimensional three-dimensional surface, bevel accurate processing, the main industry has automotive manufacturing, electronic communications, precision parts and aerospace and other fields.
Product Features:

1,The main large parts of the machine tool: base, workbench, column, bed saddle, spindle box are made of high-quality resin sand modeling, high strength high-quality cast iron, with perfect heat treatment process to eliminate residual stress, and layout of enough reinforcement plate, to ensure that the machine has enough strength, rigidity and high stability;

2,Using Taiwan original heavy duty linear guide rail, strong rigidity, good dynamic accuracy;

3,Three-axis transmission using Taiwan grinding double nut ball screw, compact structure, smooth movement, high precision:

4,High rigidity of Taiwan spindle, using grease lubrication, can make the spindle bearing get constant and reliable lubrication;

5,The base adopts casting large water tray structure, good waterproof performance.

Product Details:

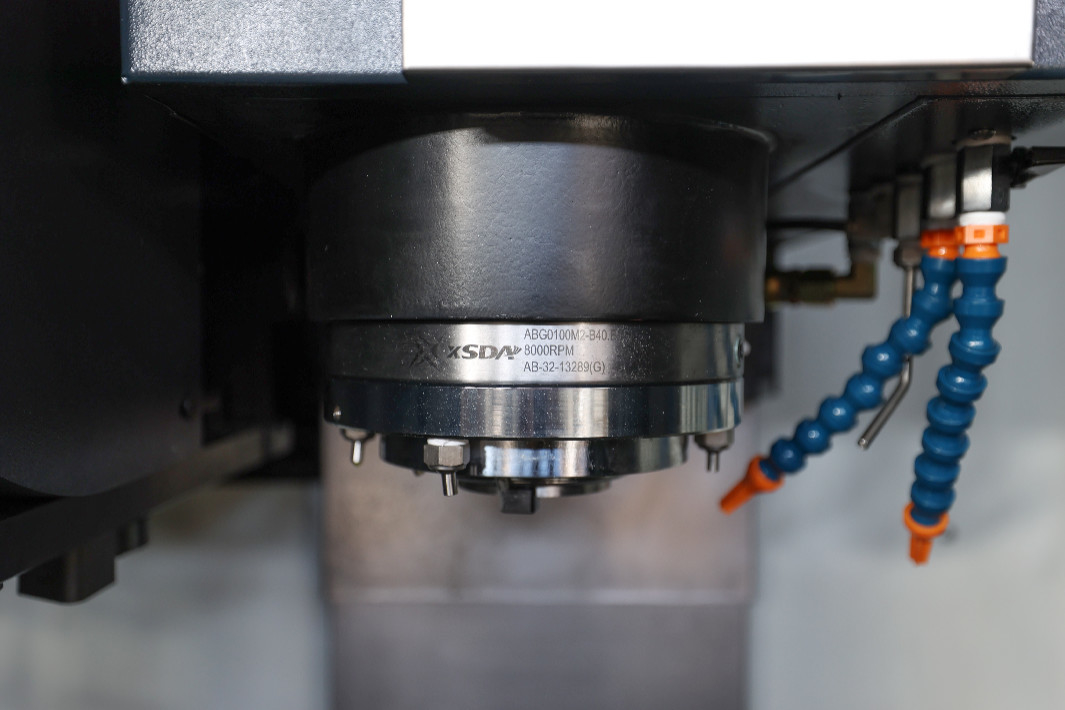

High precision spindle
1, high precision NSK bearing, high precision, to ensure processing accuracy;
2,internal and external
cooling cycle specifications;
3, Forward and reverse maze design;
4, high tension four claw;
5, air curtain protection function

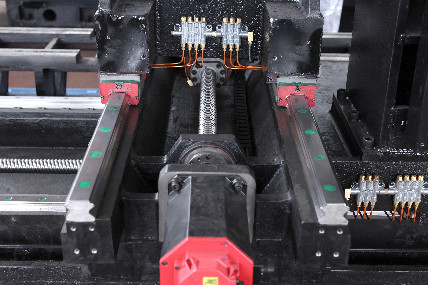

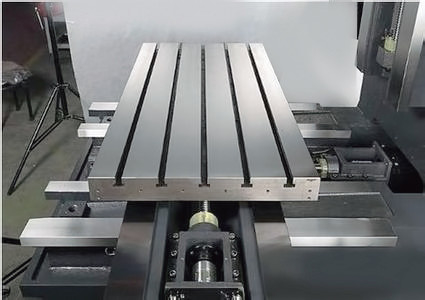

Three-axis screw/guide
1, using Taiwan precision ball screw, high precision, long service life;
2, the use of Taiwan precision linear guide, static and static friction, high sensitivity, high speed no vibration, low speed no crawling, high positioning accuracy
3, matching the precision displacement oiler to ensure the lubrication effect of the axial feed mechanism

Machine column
1. the use of herringbone structure, smooth cutting;
2. knife library horizontal support design to ensure reasonable rigidity and strengthening;
3. ensure the machine tool processing accuracy is stable and durable.

Machine tool bed
1. the bed is made of high-quality cast iron, artificial aging treatment, eliminate stress, effectively inhibit the cutting force caused by machine deformation and vibration;
2. the layout is reasonable, the reinforcement adopts the field structure, the machine tool has strong rigidity;

Drive system

1. The three-axis feed adopts advanced servo control;

2. mechanical transmission using direct transmission;

3. transmission components optional precision coupling, extrusion resistance, temperature rise

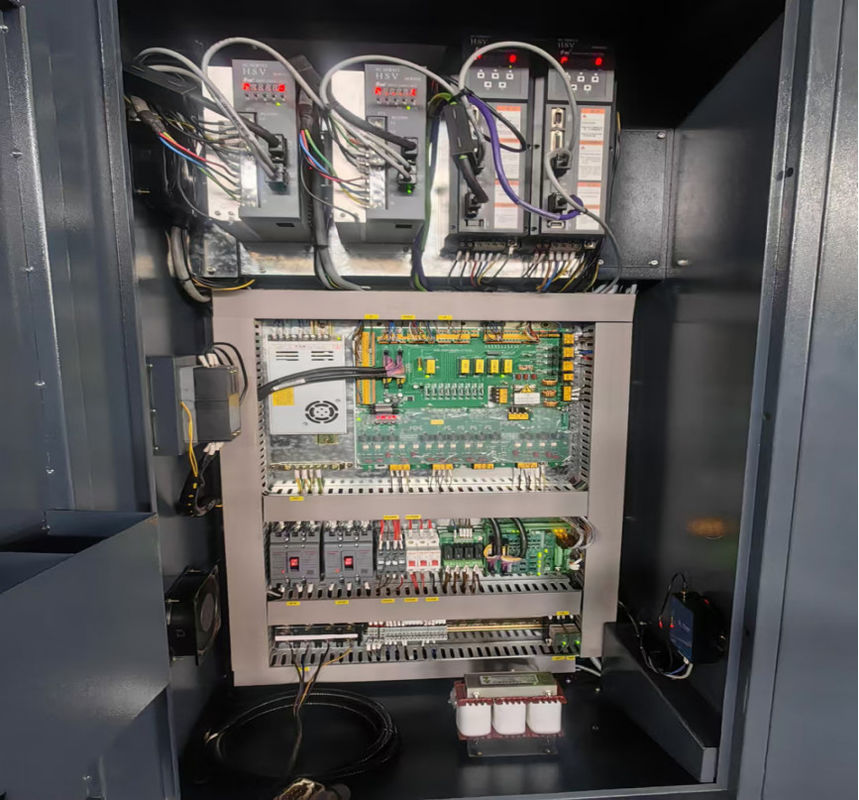

Standard electrical design
1.The electrical design of the machine tool meets the electrical standards
2.the safe power circuit, there are overcurrent, short circuit protection, machine tool related actions have the corresponding interlock, to protect the equipment and human body
3.the electrical system has a self-diagnosis function, operation and maintenance personnel can observe the running status of each part of the machine tool at any time according to the display
4.the standard configuration of the electric cabinet adopts a fully enclosed structure, and is equipped with axial fan, in order to achieve the purpose of dust and cooling, and reserve a certain space in the electrical cabinet to facilitate the expansion of functions
5.the machine tool with transformer, only external supply three-phase (380v) four-wire (including ground wire) can be.

Standard external protection
1, pneumatic system, pneumatic twin can filter impurities and moisture in the air source, prevent impure gas damage and corrosion of machine parts. The solenoid valve group is controlled by PLC program to ensure that the spindle loosening tool, the spindle center blowing, the spindle clamping tool and other actions can be completed quickly and accurately.
2, machine tool protection, machine tools with safety standards of protection room, not only to prevent coolant splash, but also to ensure safe operation, pleasant appearance. Each guide rail of the machine tool has a protective cover to prevent chips and coolant from entering the inside of the machine tool, so that the guide rail and ball screw are protected from wear and corrosion.

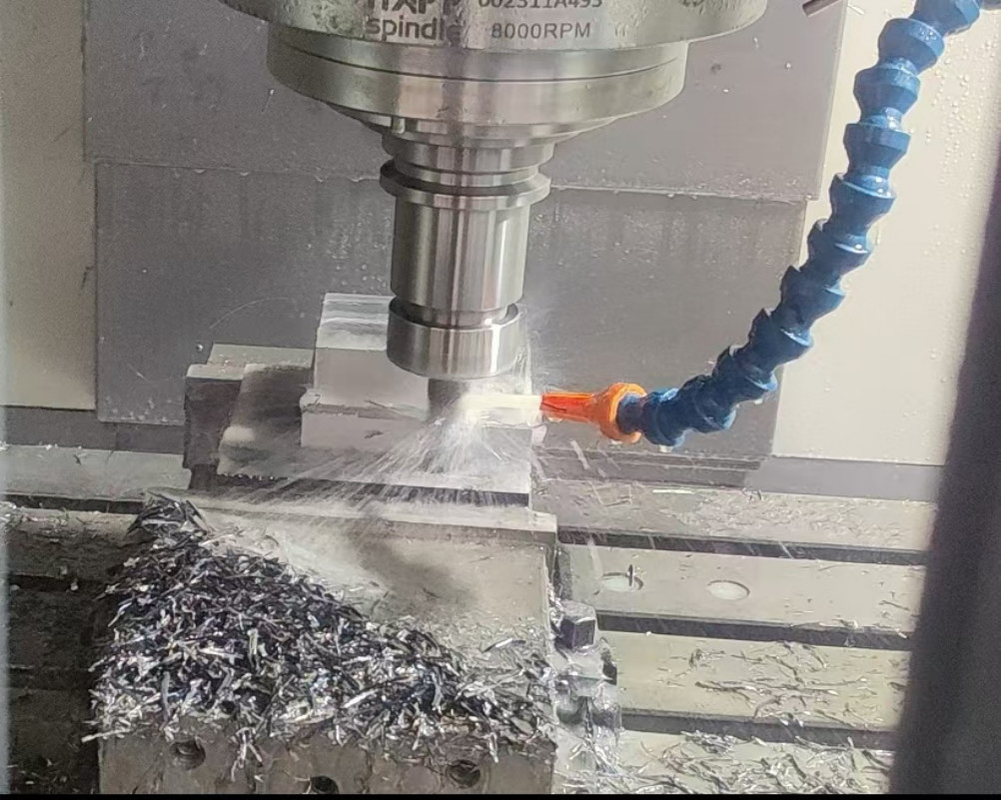

 Industry application:


Tapping for M2

Tapping on the M20 steel plate

Drilling holes with a 50 U-drill

Milling the side surface with a 16-millimeter milling cutter

Mercedes-Benz parts

Round-square table

Needle-shaped parts

Product Paramenters:

Item
Unit
SV850L
Table size (L×W)
mm
1000×500
T-slot size
mm
18x5x100
X axis travel
mm
800
Y axis travel
mm
500
Z axis travel
mm
500
Distance from spindle nose to
table
mm
100-600
Distance from spindle center to guide rail surface
mm
580
Max.table load weight
kg
500
Spindle speeds
rpm
60-8000
Spindle taper

BT40
Rapid traverse X,Y,Z
m/min
36/36/24
Max.cutting feedrate
mm/min
1-5000
Guider rail mode

Three-axis linear guide rails / Two linear guide rails and one hardened guide rail
tool storage capacity

24T
tool changer

Disc type
Max.tool diameter
mm
φ80(150)
Max.tool length
mm
200
Max. tool weight
kg
8
Tool change time
S
2.3
Setting accuracy
mm
±0.005
Reset accuracy
mm
±0.003
Spindle motor
kw
7.5/11.0
Air pressure
kg/cm2
6
Power requirement
KVA
15
Machine weight
kg
4800
Shape dimension(L×W×H)
mm
2400×2100x2350
Standard configuration:
1,Fully sealed protective cover
2,Rigid tapping
3,Three axis automatic lubrication device
4,Electric box air conditioning constant temperature
5,Cutting liquid cooling device
6,The system supports U disk transmission
7,LED working light
8,Three-color warning light
9,Three axle slide retractable guard
10,Tool box and anchor screws
11,Operation manual
12,Maintenance manual
13,Processing air blowing device
Optional accessories:
1,CNC turntable
2,Directly connected spindle
3,Spindle oil cooling
4,Spindle center discharge
5,Chip convey

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:

High Rigidity 3 Axis Vertical Machining Center SV850L CNC VMC Vertical Milling Center 1

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
High Rigidity 3 Axis Vertical Machining Center SV850L CNC VMC Vertical Milling Center 2

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight

Product Highlights

Product Description: SV850L Vertical Machining Center High Efficiency High Rigidity Cost-effective Machining Center Mainly used for milling products processing, can complete complex parts milling, drilling, expanding, reaming, boring, tapping and two-dimensional three-dimensional surface, bevel ...
