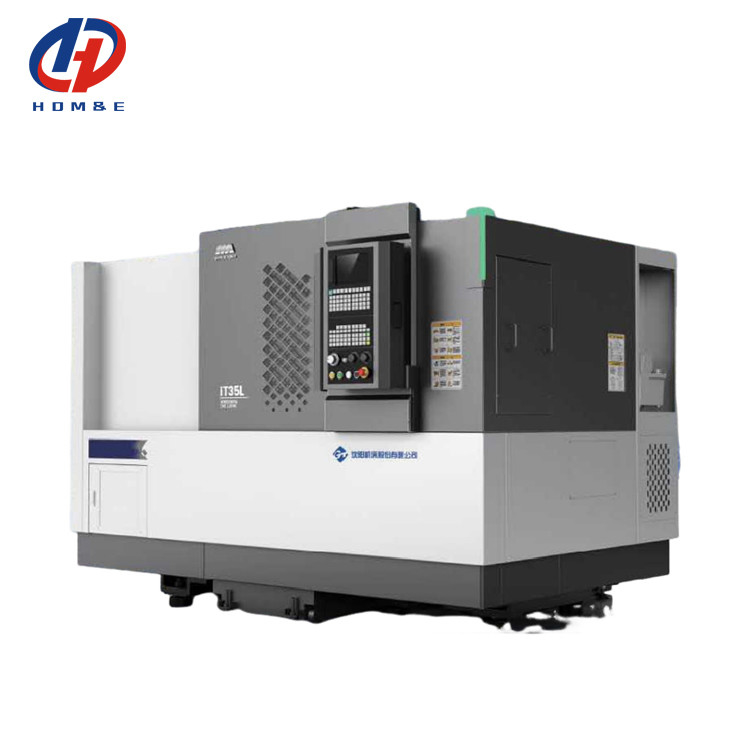

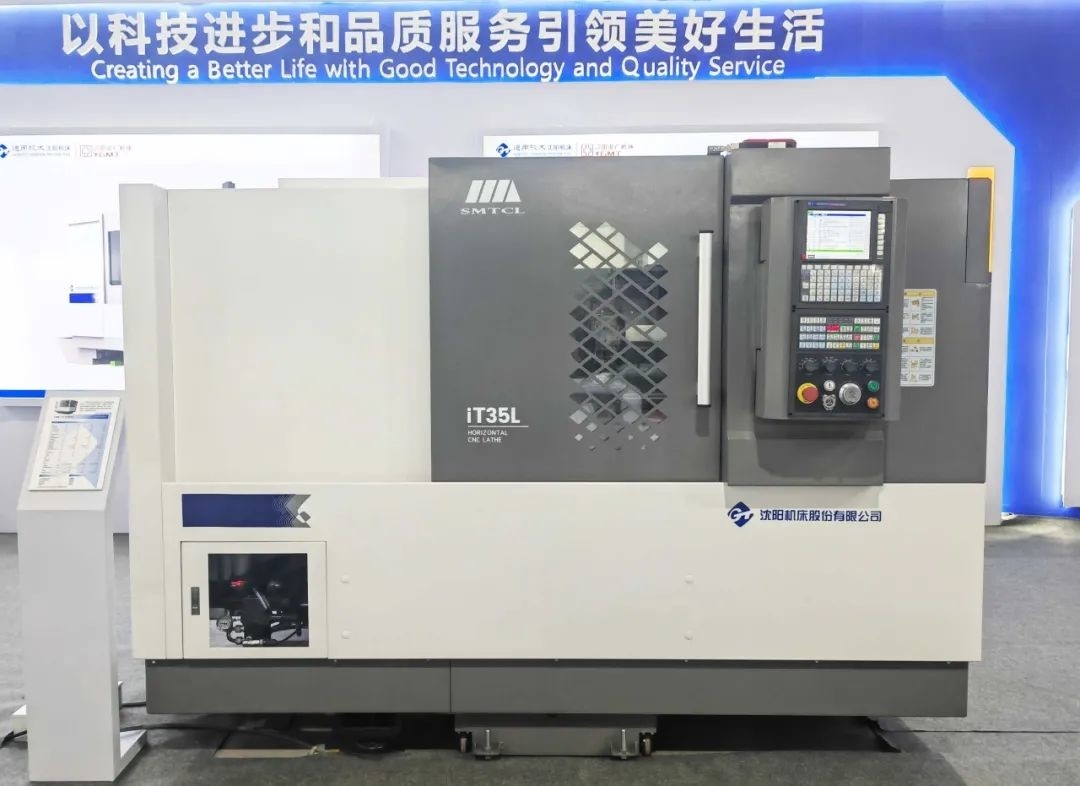

CNC Lathe IT35L Metal Horizontal CNC Lathe Machine Max. Swing Over Bed 580mm SMTCL Slant Bed CNC Lathe
Product Details
| Brand Name: | SMTCL | Model Number: | IT35L |
|---|---|---|---|
| CNC Control System: | GSK | CNC Or Not: | CNC |
| Key Word: | Slant Bed CNC Lathe | Max. Turned Length (mm): | 500 |
| Max. Spindle Speed (r.p.m): | 4000 R.p.m | Travel (X Axis)(mm): | 260 |
| Travel (Z Axis)(mm): | 510 | Maximum Turning Diameter: | Φ360 |
| Maximum Turning Length: | 500 | Maximum Swing Over Bed: | Φ580 |
| Max Swing Over Slide: | Φ330 | ||
| Highlight |
Metal Horizontal CNC Lathe,IT35L CNC Lathe,Slant Bed CNC Lathe |
||
Product Description
Product Description:
IT35 is a high-performance machine tool product. It adopts advanced design concepts and manufacturing processes and has excellent stability and precision. This machine tool has a compact structure and a small floor area, suitable for various production environments. The IT35 is equipped with a powerful spindle system that can provide high speed and large torque to meet different processing needs. Its high-precision guide rails and lead screws ensure the smoothness and accuracy of movement. In terms of the control system, the IT35 adopts an advanced numerical control system, which is easy to operate and has flexible programming. It can realize high-precision processing of complex parts. At the same time, this machine tool also has an efficient automatic tool change system, which greatly shortens the processing time and improves production efficiency.
Product Features:
1,High Rigidity
♦ Finite element analysis to optimize the whole machine structure

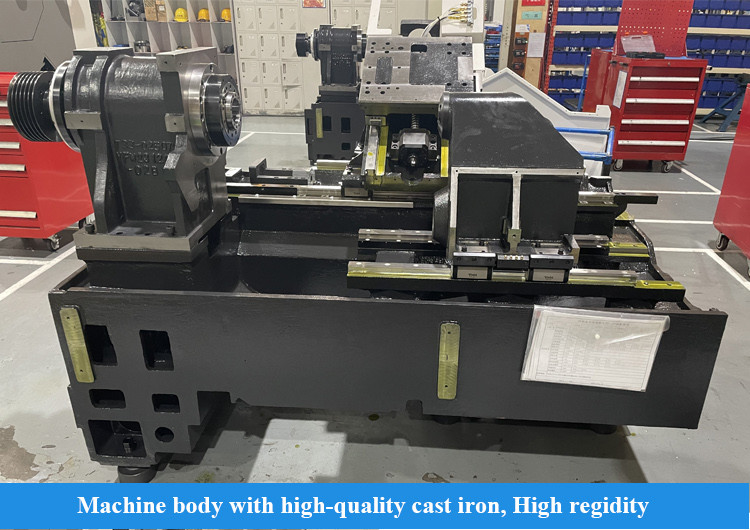

♦ The bed is made of high quality castings with reasonable bar layout

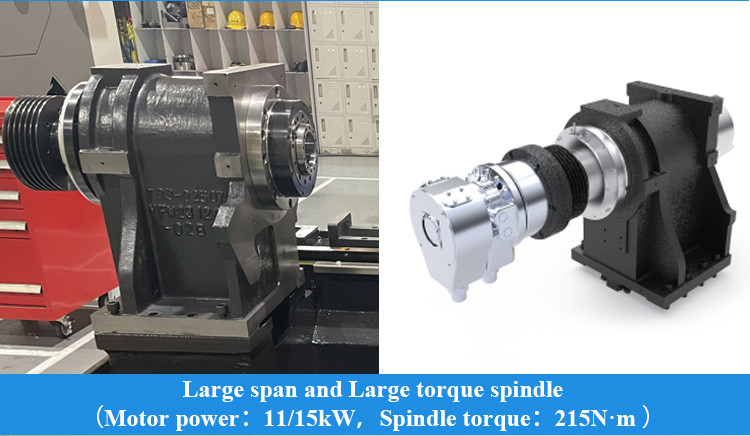

♦ Configuration of large span, large torque spindle, improve cutting rigidity
♦ Precision scraping process, improve the connection rigidity
|
Item
|
Unit
|
Specification
|
|||
|
IT35
|
IT35L
|
IT50
|
|||
|
Maximum turning diameter
|
mm
|
Φ360
|
Φ360
|
Φ500
|
|
|
Maximum turning length
|
mm
|
350
|
500
|
500
|
|
|
Maximum swing over bed
|
mm
|
Φ580
|
Φ580
|
Φ580
|
|
|
Max swing over slide
|
mm
|
Φ360
|
Φ330
|
Φ320
|
|
|
Spindle
|
spindle nose
|
|
A2-6
|
A2-6
|
A2-8
|
|
front bearing dia.
|
mm
|
100
|
100
|
120
|
|
|
spindle taper and hole size
|
|
1:20;Φ70
|
1:20;Φ70
|
1:20;Φ90
|
|
|
dis.of spindle hole
|
mm
|
Φ65
|
Φ65
|
Φ80
|
|
|
max dia. Of bar
|
mm
|
Φ50
|
Φ50
|
Φ65
|
|
|

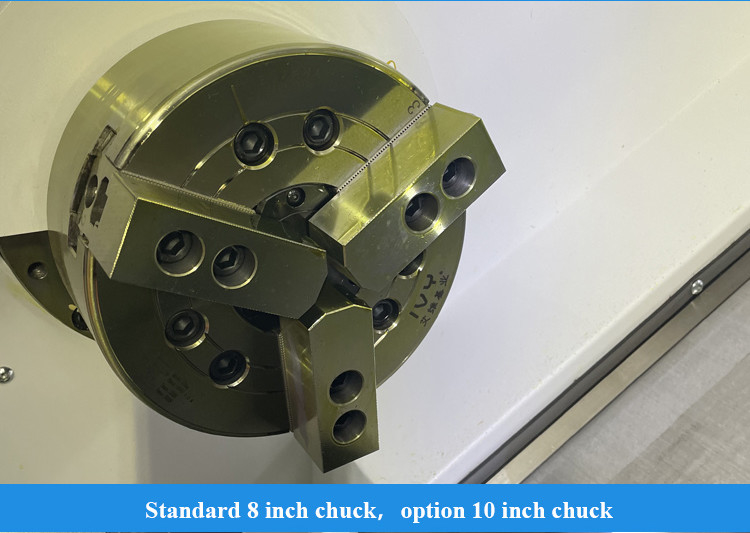

chuck size
|
inch
|
8
|
8
|
10
|
|
|
spindle speed
|
r/min
|
4000
|
4000
|
3500
|
|
|
spindle rated torque
|
Nm
|
158(666r/min)
|
158(666r/min)
|
243(588r/min)
|
|
|
max spindle torque
|
Nm
|
215(666r/min)
|
215(666r/min)
|
300(588r/min)
|
|
|
max motor output power continous/30min
|
kW
|
11/15
|
11/15
|
15/18.5
|
|
|

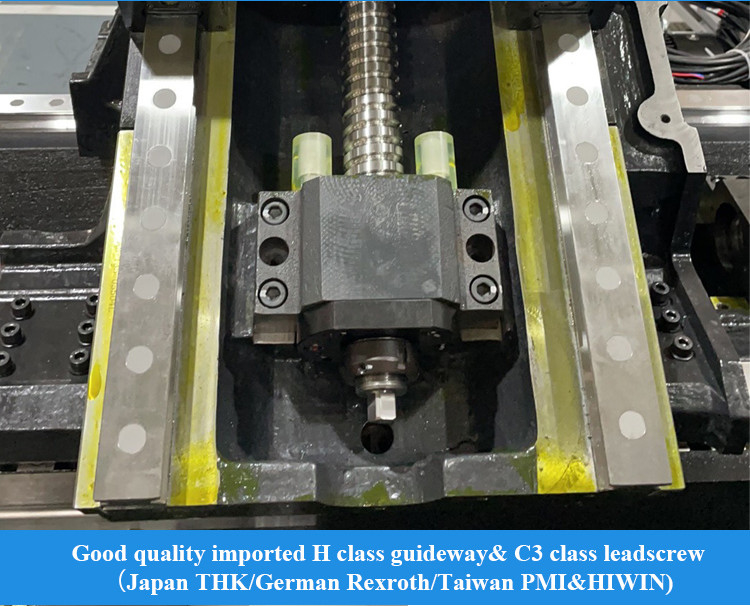

Feeding
|
X/Z rapid traverse
|
m/min
|
30
|
30
|
24
|
|
x axis travel
|
mm
|
200
|
200
|
260
|
|
|
z axis travel
|
mm
|
350
|
510
|
505
|
|
|

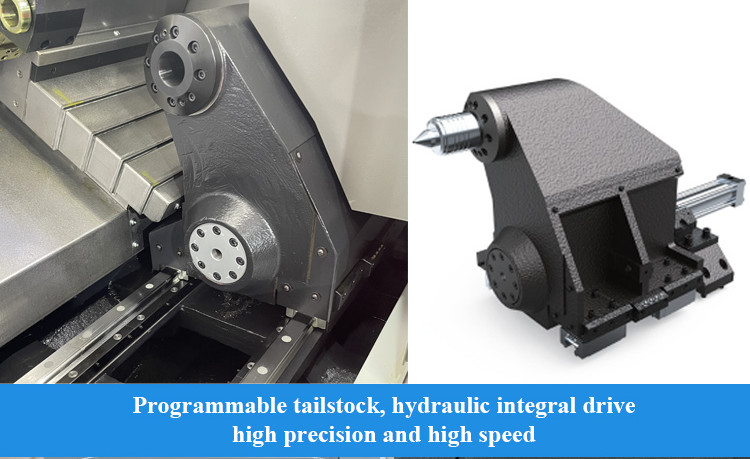

Tailstock
|
tailstock travel
|
mm
|
NO
|
400
|
400
|
|
tailstock taper
|
morse
|
NO
|
MT-5
|
MT-5
|
|
|

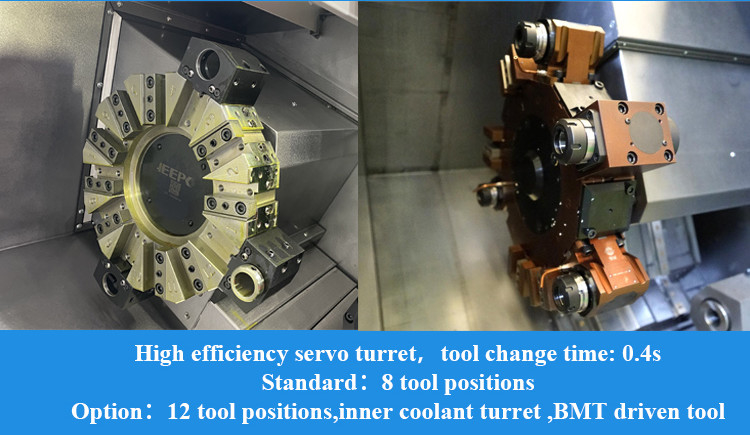

Turret
|
turret type
|
|
Horizontal 8 station servo turret
|
Horizontal 8 station servo turret
|
Horizontal 8 station servo turret
|
|
center height
|
mm
|
80
|
80
|
100
|
|
|
rotary positioning
|
Sec.
|
±1.6
|
±1.6
|
±1.6
|
|
|
Other
|
weight
|
kg
|
3300
|
3600
|
3700
|
|
overall dimensions(L*W*H)
|
mm
|
2330×1675×1760
|
2550×1675×1760
|
2550×1675×1820
|
|
|
Standard configuration:
1,GSK988TA controller
2,Solid chuck&cylinder Chinese brand 3,8 positions turret 4,Hydraulic station Chinese brand 5,Chip box |
Selective configuration:
1,Side conveyor
2,Rear conveyor 3,Special chuck 4,Special cylinder 5,Special turret |
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
