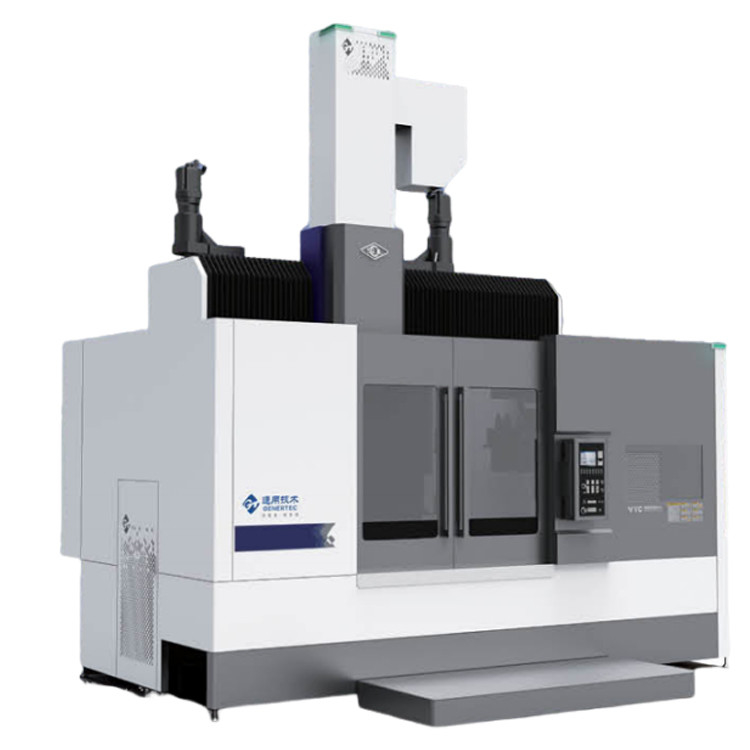

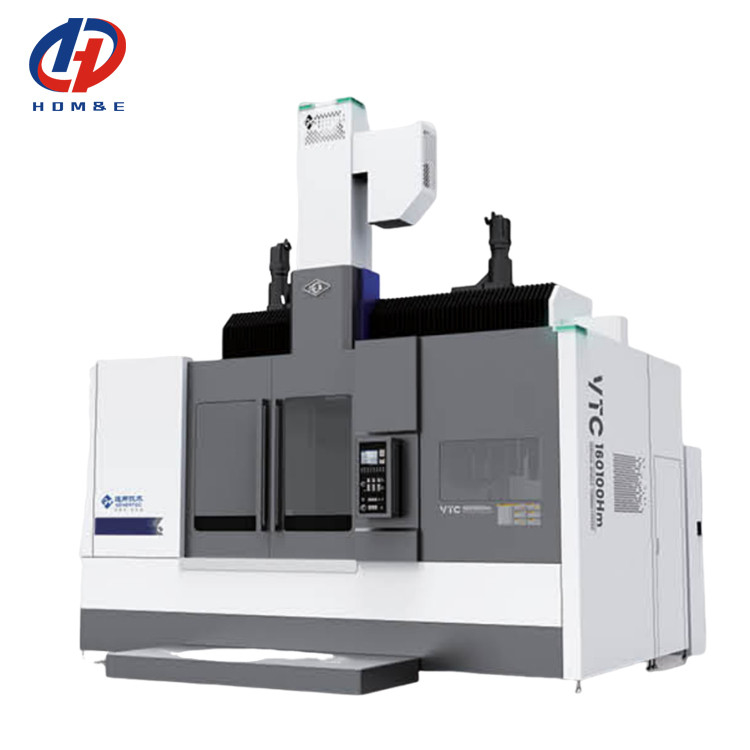

Name: Heavy Duty CNC Vertical Lathe VTC125100Q/H High Rigid Hard Rail SMTCL CNC Vertical Turning Lathe
Brand: Shanghai HD ME Tech Co., Ltd.
SKU: VTC125100Q/H
Availability: InStock

Brand Name: SMTCL

Model Number: VTC125100Q/H

Place of Origin: CHINA

Certification: CE ISO certification

Minimum Order Quantity: 1

Supply Ability: 50 sets per month

High Precision Horizontal CNC Lathe

CNC Turning Center

Product Details

Brand Name:	SMTCL	Model Number:	VTC125100Q/H
Key Word:	Heavy CNC Vertical Lathe	Diameter Of Workbench:	Φ1250
Max.swing Diameter:	Φ1600	Max.cutting Diameter:	Φ1400
Max. Workpiece Height:	1000
Highlight	CNC Vertical Turning Lathe , Heavy Duty CNC Vertical Turning Lathe , High Rigid Hard Rail

Product Description

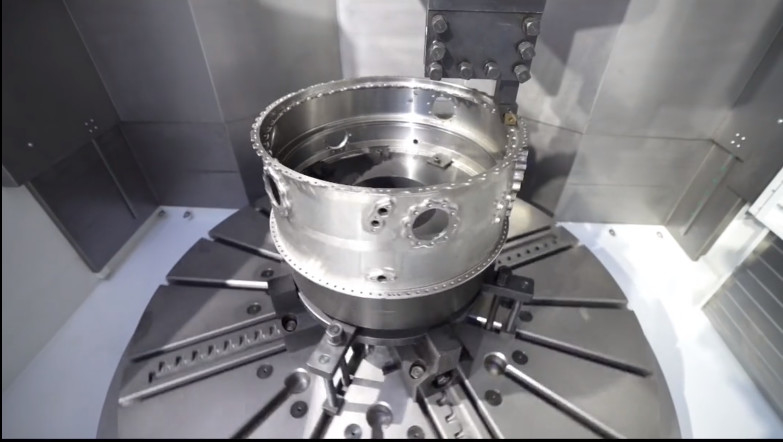

Heavy Duty CNC Vertical Lathe VTC125100Q/H High Rigid Hard Rail SMTCL CNC Vertical Turning Lathe 0

Product Description:

SMTCL Heavy Duty CNC Vertical Lathe VTC125100Q/H High Rigid Hard Rail CNC Vertical Turning Lathe

VTC-Q series CNC vertical lathe is cost-effective, easy to operate, with high rigidity, large torque and stability, supporting domestic high-quality functional parts, widely used in pump valve, general industry, construction machinery and other industries processing.

VTC-H series CNC vertical lathe is a new generation of products independently developed on the basis of fully digesting and absorbing foreign advanced technology, combined with the advantages of our CNC vertical lathe technology. With excellent rigidity, stability and processing accuracy, supporting imported high-quality functional parts, widely used in aviation, wind power, new energy, automotive, bearing and other industries processing, to provide customers with excellent experience.

Product Features:

1,high rigidity

◆ High rigid casting structure

◆ High rigid ram structure

◆ High rigid hard rail structure

◆ High rigid host structure

2,High precision and high efficiency

◆ Spindle high-precision transmission mechanism

◆ Double spindle indexing mechanism

◆ Automatic tool change system

3,High stability

◆ Symmetrical layout

◆ Beam double drive lifting structure

◆ Cross roller bearing

4,The machine structure advantage

◆ Modular turning and milling

◆ Layout advantage

◆ Control advantage

Product Details:

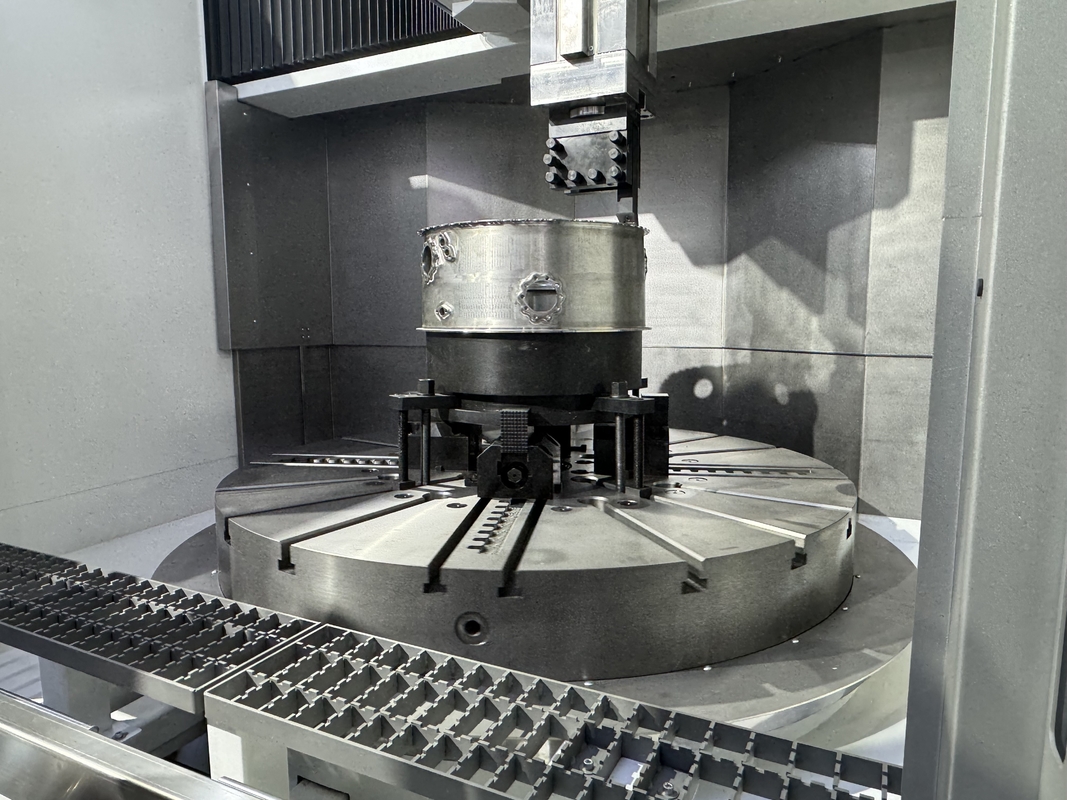

Heavy Duty CNC Vertical Lathe VTC125100Q/H High Rigid Hard Rail SMTCL CNC Vertical Turning Lathe 1

High rigidity casting structure

VTC series castings are made of box cast iron structure integrated molding, after heat treatment to release internal stress, design thick reinforcement, low center of gravity, good shock absorption, important joint surface are special scraping treatment, to ensure that in heavy cutting can still adhere to the accuracy and stability of the machine tool.

Heavy Duty CNC Vertical Lathe VTC125100Q/H High Rigid Hard Rail SMTCL CNC Vertical Turning Lathe 2

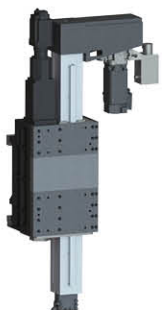

High rigidity ram structure

The ram is forged steel structure, the surface is quenched, the cutter clamp is tensioned by T-key, the lower end is positioned by tooth disk, and the track joint surface is scraped, with high positioning accuracy. At the same time, the cross section of the ram body is increased by 44% compared with the previous generation.

Heavy Duty CNC Vertical Lathe VTC125100Q/H High Rigid Hard Rail SMTCL CNC Vertical Turning Lathe 3

High rigid hard rail structure

The two axes adopt high rigidity hard rail structure, the track surface is professionally treated, and attached with low friction coefficient wear plate, strong rigidity, good accuracy retention, with excellent cutting ability, more suitable for heavy duty cutting.

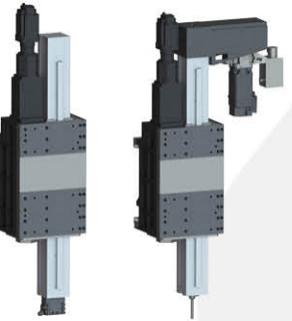

Heavy Duty CNC Vertical Lathe VTC125100Q/H High Rigid Hard Rail SMTCL CNC Vertical Turning Lathe 4

High rigid host structure

The main structure is mainly designed for the high rigidity and heavy load processing requirements. The thickness of the column and the span of the guide rail are increased to strengthen the rigidity of the support. The lower lever of the ram can effectively resist the cutting torque and improve the machining stability.

Heavy Duty CNC Vertical Lathe VTC125100Q/H High Rigid Hard Rail SMTCL CNC Vertical Turning Lathe 5

Turning and milling modularization

With integrated turn-milling configuration, the skateboard structure is compatible with the turning ram structure and the turning ram structure, easy to replace and strong modularity.

Heavy Duty CNC Vertical Lathe VTC125100Q/H High Rigid Hard Rail SMTCL CNC Vertical Turning Lathe 6

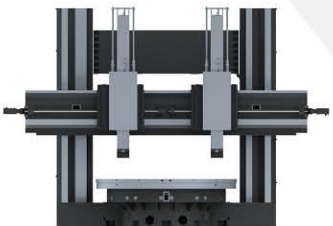

Layout advantage

Modular structure design, can choose single ram and double ram, increase the processing efficiency.

Heavy Duty CNC Vertical Lathe VTC125100Q/H High Rigid Hard Rail SMTCL CNC Vertical Turning Lathe 7

Spindle high precision transmission mechanism

The main drive is upgraded from belt drive to gear transmission, which can provide accurate segmentation and positioning accuracy, with turn-milling composite function, high stability, and the internal design of the spindle constant temperature cooling device to prevent the axial movement caused by excessive temperature change.

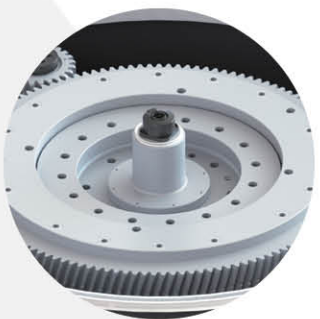

Heavy Duty CNC Vertical Lathe VTC125100Q/H High Rigid Hard Rail SMTCL CNC Vertical Turning Lathe 8

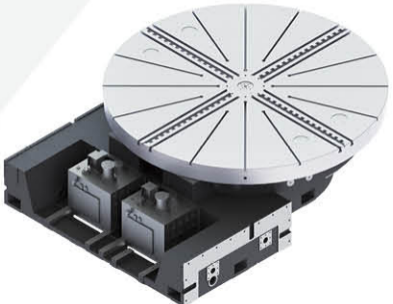

Double spindle indexing mechanism

The table main drive uses two main motors to drive the table rotation. Through the CNC system to achieve synchronous control of the two main motors, so that the indexing movement of the machining more stable and accurate, to achieve the turning speed control function and C-axis anti-backlash function, to achieve a high level of quality surface quality.

Heavy Duty CNC Vertical Lathe VTC125100Q/H High Rigid Hard Rail SMTCL CNC Vertical Turning Lathe 9

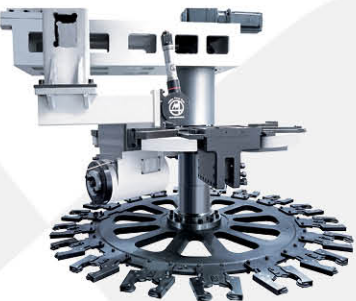

Automatic tool change system

Hanging disk tool store, according to the user's processing needs, to achieve fast automatic tool change, shorten the processing auxiliary time, improve production efficiency. A variety of turning tool clips are available through T-head and clamping.

Product Paramenters:

ltems	UNIT	VTC 10080Q/H	VTC 125100Q/H	VTC 160100Q/H
Diameter of workbench	mm	Φ1000	Φ1250	Φ1600
Max.swing diameter	mm	Φ1400	Φ1600	Φ2000
Max.cutting diameter	mm	Φ1100	Φ1400	Φ1800
Maximum workpiece height	mm	800	1000	1200
Maximum torque of workbench	N.m	14337/14472	15480/15626	22960
Maximum speed of workbench	r/min	400/600	370/400	254/300
Rated power of main motor	kw	37/41	37/41	37/41
Ram
Size of ram body section	mm×mm	200×200	200×200	240×240
Beam
Beam lift movement	mm	fixed	fixed	800
X/Z axis
X-axis travel	mm	-50-+750	-50-+875	-50-+1055
Z-axis travel	mm	800	1000	1000
X-axis rapid traverse speed	m/min	12	12	12
Z-axis rapid traverse speed	m/min	8/10	8/10	10
Tool holder
Turning tool rod dimensions	mm	40×40	40×40	40×40
Positioning accuracy
X axis	mm/1000mm	0.025	0.025	0.03/0.025
Z axis	mm/1000mm	0.025	0.025	0.03/0.025
Repeated positioning accuracy
X axis	mm	0.01/0.008	0.01/0.008	0.01/0.008
Z axis	mm	0.01/0.008	0.01/0.008	0.01/0.008
Machine weight	kg	23000	25000	26000
Standard configuration			Selective configuration
Siemens 828D system			Fanuc System
Lubrication equipment			Raised column
Chip box			Oil mist collector
Hydraulic equipment			Tool detection
Manual four jaw chuck			Grating scale
Safety plate			Job detection
Side flushing chip			High pressure water tank
Tricolour light			Pneumatic door
Water gun floodlight			Chip cleaner
Cross roller bearing			Oil-water separation
Door lock			Magnetic chuck
Oil cooler			Tool magazine
Semi-enclosed protection			Full defense

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Our Factory:

Heavy Duty CNC Vertical Lathe VTC125100Q/H High Rigid Hard Rail SMTCL CNC Vertical Turning Lathe 11

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?

Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?

We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?

Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?

We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?

T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight

Product Highlights

Product Description: SMTCL Heavy Duty CNC Vertical Lathe VTC125100Q/H High Rigid Hard Rail CNC Vertical Turning Lathe VTC-Q series CNC vertical lathe is cost-effective, easy to operate, with high rigidity, large torque and stability, supporting domestic high-quality functional parts, widely used in ...
