Horizontal CNC Lathe IT35L Horizontal 8 Station Servo Turret FANUC Drive SMTCL Slant Bed CNC Lathe
Product Details
| Brand Name: | SMTCL | Model Number: | IT35L |
|---|---|---|---|
| CNC Control System: | GSK | CNC Or Not: | CNC |
| Key Word: | Slant Bed CNC Lathe | Max. Turned Length (mm): | 500 |
| Max. Spindle Speed (r.p.m): | 4000 R.p.m | Travel (X Axis)(mm): | 260 |
| Travel (Z Axis)(mm): | 510 | Maximum Turning Diameter: | Φ360 |
| Maximum Turning Length: | 500 | Maximum Swing Over Bed: | Φ580 |
| Max Swing Over Slide: | Φ330 | ||
| Highlight |
Horizontal 8 Station CNC Lathe,Metal Slant Bed CNC Lathe,IT35L Horizontal CNC Lathe |
||
Product Description
Product Description:

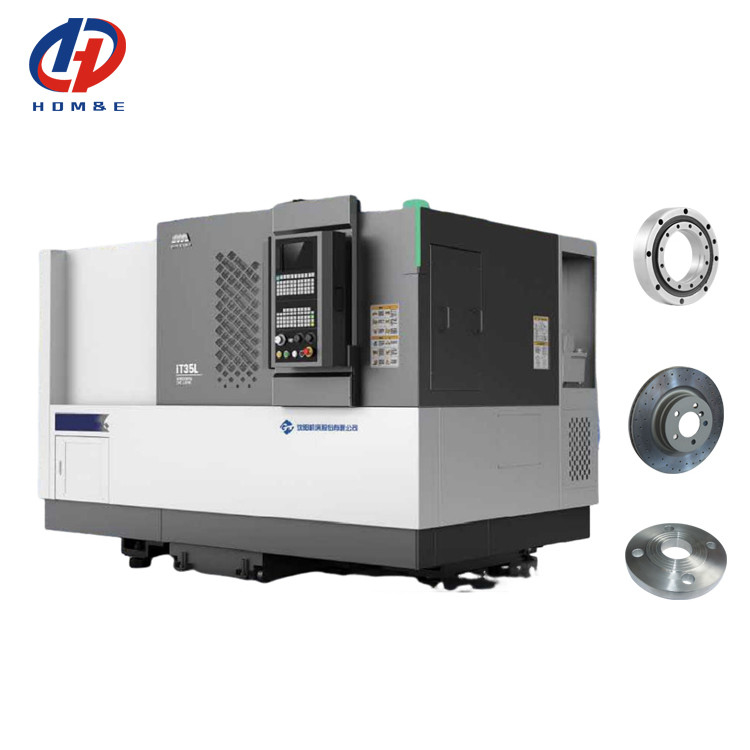

SMTCL Horizontal CNC Lathe IT35L Horizontal 8 Station Servo Turret FANUC Drive Metal Slant Bed CNC Lathe
IT35 series is a numerically controlled lathe with excellent performance. It adopts advanced design concepts and manufacturing processes, with a compact structure and is durable. It has high-precision processing capabilities and can achieve precision processing of complex parts. The spindle speed is high and the cutting efficiency is outstanding. The operation is
simple and it is equipped with an intelligent control system, which is convenient for operators to get started quickly. It is widely used in industries such as automobiles, electronics, and machinery, and can meet the diverse processing needs of different customers. Shenyang Machine Tool IT35 provides strong support for enterprise production and processing with its stable performance and reliable quality.
Product Features:
1,High Rigidity
♦ Finite element analysis to optimize the whole machine structure

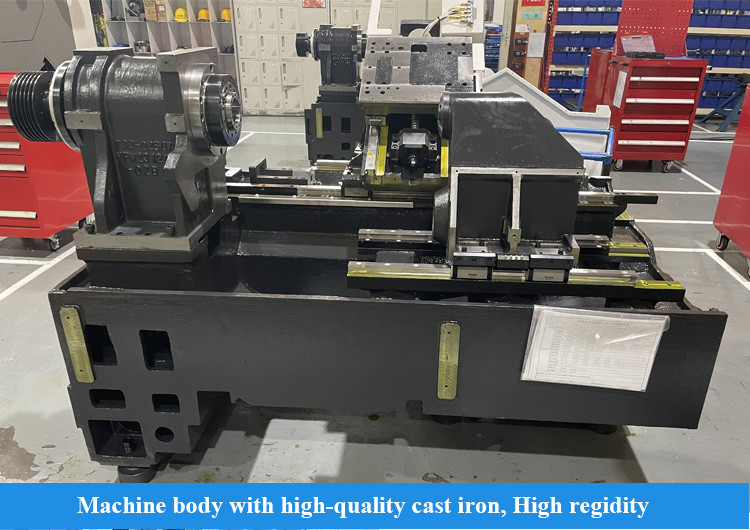

♦ The bed is made of high quality castings with reasonable bar layout
♦ Configuration of large span, large torque spindle, improve cutting rigidity
♦ Precision scraping process, improve the connection rigidity
|
Item
|
Unit
|
Specification
|
|||
|
IT35
|
IT35L
|
IT50
|
|||
|
Maximum turning diameter
|
mm
|
Φ360
|
Φ360
|
Φ500
|
|
|
Maximum turning length
|
mm
|
350
|
500
|
500
|
|
|
Maximum swing over bed
|
mm
|
Φ580
|
Φ580
|
Φ580
|
|
|
Max swing over slide
|
mm
|
Φ360
|
Φ330
|
Φ320
|
|
|
Spindle
|
spindle nose
|
|
A2-6
|
A2-6
|
A2-8
|
|
front bearing dia.
|
mm
|
100
|
100
|
120
|
|
|
spindle taper and hole size
|
|
1:20;Φ70
|
1:20;Φ70
|
1:20;Φ90
|
|
|
dis.of spindle hole
|
mm
|
Φ65
|
Φ65
|
Φ80
|
|
|
max dia. Of bar
|
mm
|
Φ50
|
Φ50
|
Φ65
|
|
|

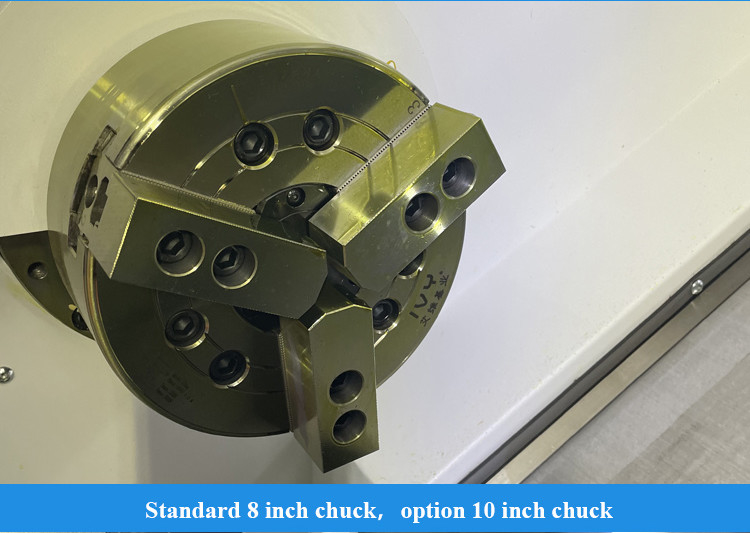

chuck size
|
inch
|
8
|
8
|
10
|
|
|
spindle speed
|
r/min
|
4000
|
4000
|
3500
|
|
|
spindle rated torque
|
Nm
|
158(666r/min)
|
158(666r/min)
|
243(588r/min)
|
|
|
max spindle torque
|
Nm
|
215(666r/min)
|
215(666r/min)
|
300(588r/min)
|
|
|
max motor output power continous/30min
|
kW
|
11/15
|
11/15
|
15/18.5
|
|
|

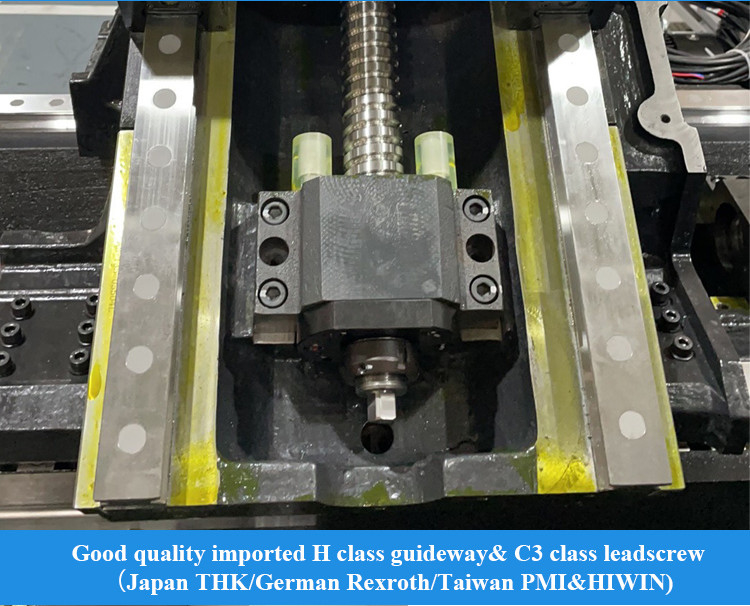

Feeding
|
X/Z rapid traverse
|
m/min
|
30
|
30
|
24
|
|
x axis travel
|
mm
|
200
|
200
|
260
|
|
|
z axis travel
|
mm
|
350
|
510
|
505
|
|
|

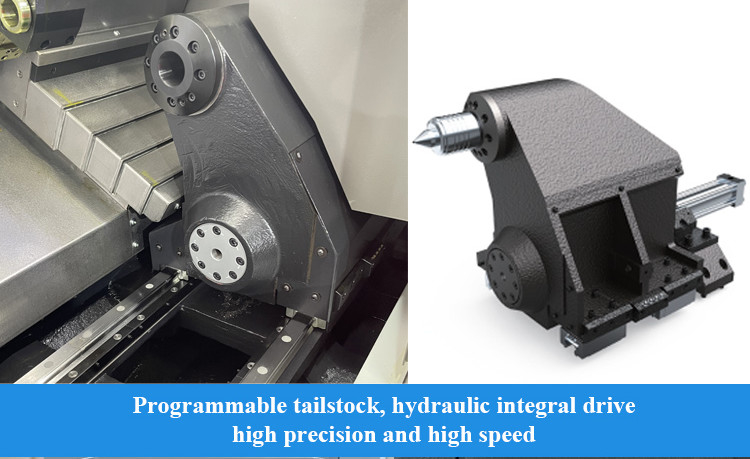

Tailstock
|
tailstock travel
|
mm
|
NO
|
400
|
400
|
|
tailstock taper
|
morse
|
NO
|
MT-5
|
MT-5
|
|
|

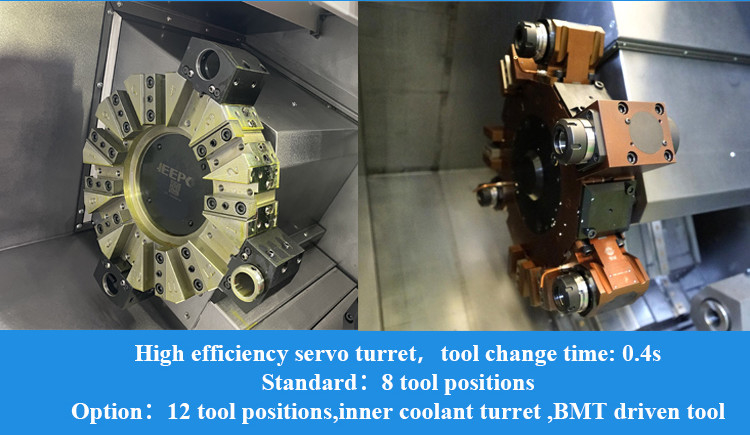

Turret
|
turret type
|
|
Horizontal 8 station servo turret
|
Horizontal 8 station servo turret
|
Horizontal 8 station servo turret
|
|
center height
|
mm
|
80
|
80
|
100
|
|
|
rotary positioning
|
Sec.
|
±1.6
|
±1.6
|
±1.6
|
|
|
Other
|
weight
|
kg
|
3300
|
3600
|
3700
|
|
overall dimensions(L*W*H)
|
mm
|
2330×1675×1760
|
2550×1675×1760
|
2550×1675×1820
|
|
|

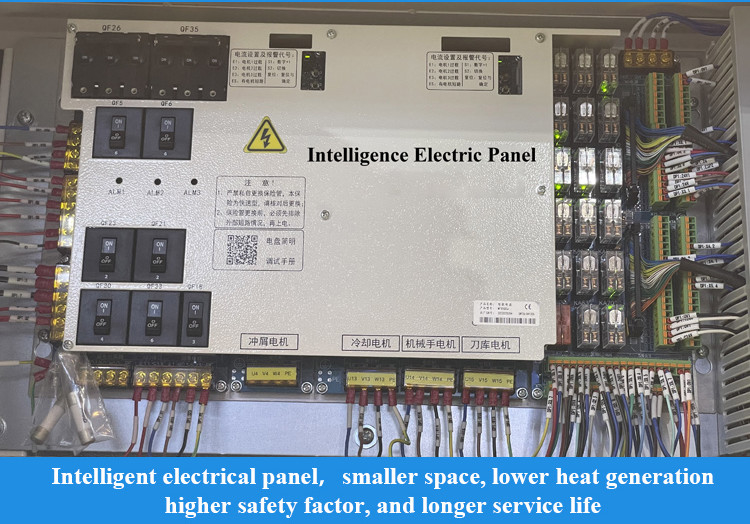

Standard configuration:

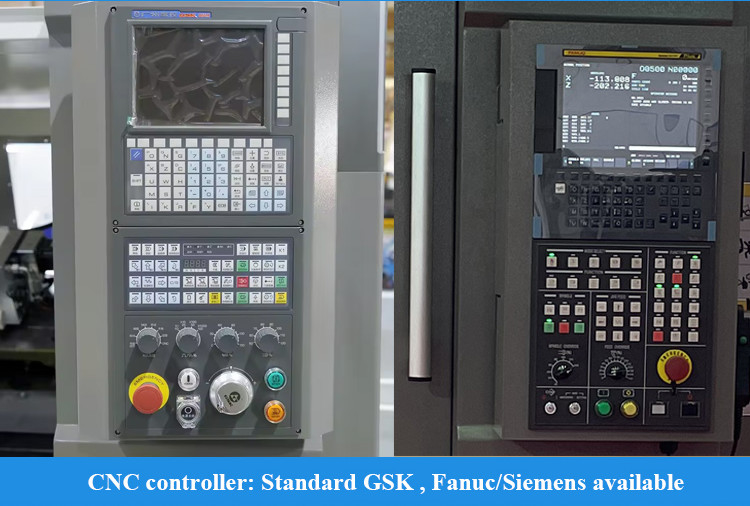

1,GSK988TA controller
2,Solid chuck&cylinder Chinese brand 3,8 positions turret 4,Hydraulic station Chinese brand 5,Chip box |
Selective configuration:
1,Side conveyor
2,Rear conveyor 3,Special chuck 4,Special cylinder 5,Special turret |
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
