Product Description:

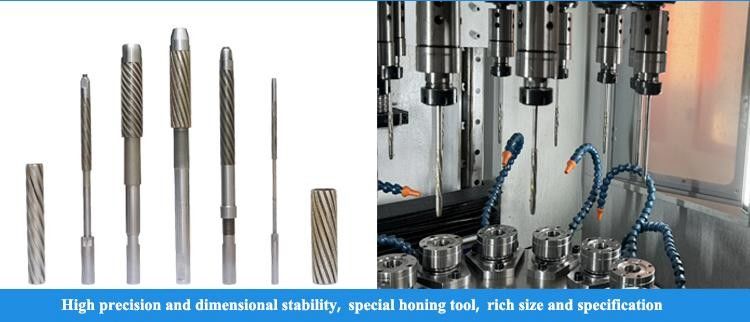

The honing machine uses the honing rod to rub back and forth on the inner hole wall of the workpiece, and removes burrs and bumps on the wall with the help of the cutting action of abrasive. The radial force and tangential force of the honing rod on the hole wall work together to realize the finishing of the hole wall.
By adjusting the feed and speed of the honing rod, the machining size and surface roughness can be precisely controlled.
Product Features:
|
Main technical specifications
|
Unit
|
HDHJ3089
|
|
Machine features
|
|
8-axis 9-station
|
|
Number of spindle
|
Pcs
|
8
|
|
Number of worktable transposition
|
Pcs
|
9
|
|
Worktable positioning method
|
|
splitter
|
|
Worktable drive power
|
kw
|
0.37
|
|
Worktable diameter
|
mm
|
450
|
|
Worktable rotation time for one station
|
s
|
1.1
|
|
Distance from spindle end face to table surface
|
mm
|
660
|
|
Main body weight
|
T
|
2.2
|
|
Dimension of mainframe(L*W*H)
|
mm
|
1470×1060×2500
|
|
Max. honing diameter
|
mm
|
35
|
|
Max. honing depth
|
mm
|
150
|
|
Spindle drive type
|
|
servo motor
|
|
Max. spindle speed
|
r/min
|
870
|
|
Spindle reciprocating drive power
|
kw
|
2.3
|
|
Max. spindle travel
|
mm
|
700
|
|
Max. spindle reciprocating speed
|
m/min
|
20
|
|
Control system
|
|
Nanjing CNC/Siemens PLC
|
Industry application:
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
