Auto Vertical Grinding Machine HDM4100 Vertical Spindle Surface Grinder Precision Vertical Grinding Machine
Product Details
| Brand Name: | HD | Model Number: | HDM4100 |
|---|---|---|---|
| Key Word: | Vertical Grinding Machine | ||
| Highlight |
Auto Vertical Grinding Machine,HDM4100 Vertical Grinding Machine,Precision Vertical Grinding Machine |
||
Product Description
Product Description:

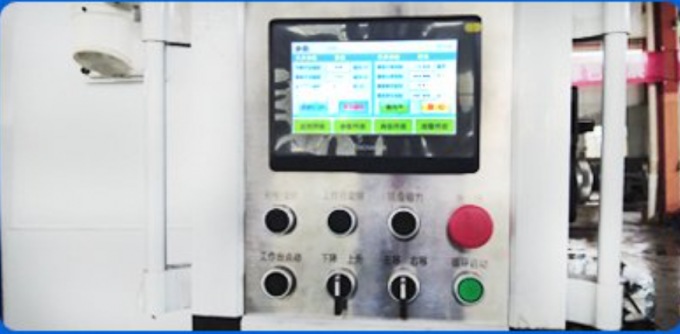

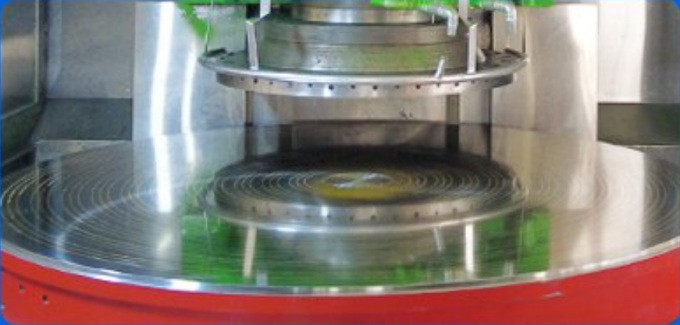

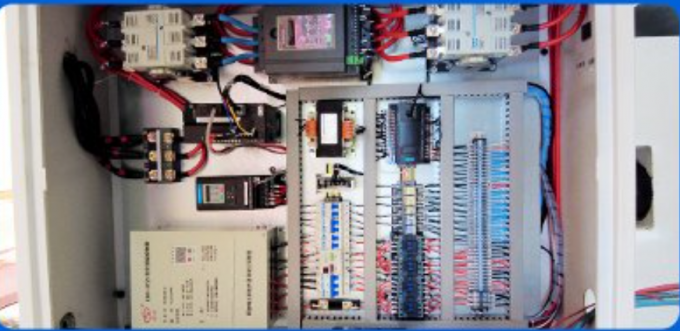

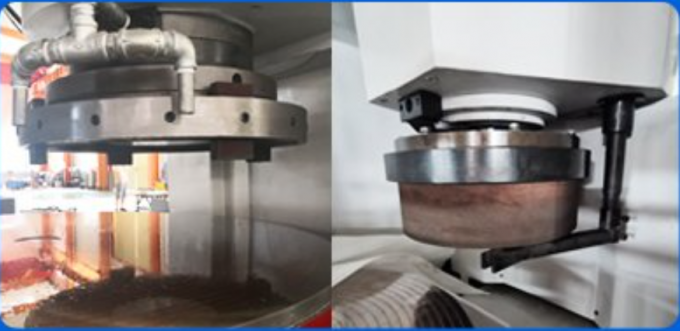

HDM4100 vertical axis rotary table surface grinder is a super-efficient surface grinder that grinds the end face of the grinding wheel. It is a surface grinder controlled by HDM-PLC, with 4-vertical axis rotary table and 100-table diameter 1000mm. The layout of the machine tool is as follows: the worktable adopts a circular electromagnetic worktable to carry the workpiece for rotation.

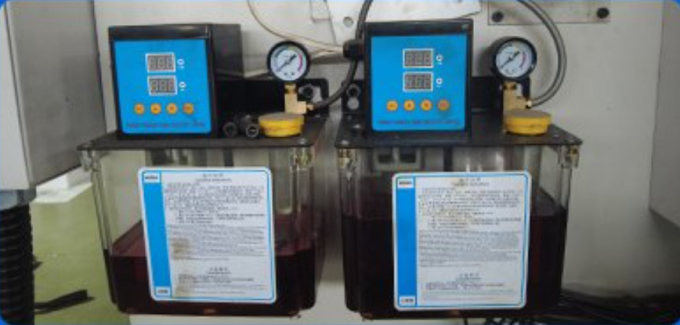

Product Features:
This machine has the characteristics of strong rigidity and high stability. It can grind large and discontinuous surfaces on the end faces of round or rectangular workpieces, and has the obvious characteristics of high efficiency. The grinding materials can include various carbon steels, alloy steels, refractory bricks, ceramics, crystals, stones and glass. The grinding range is a plane within φ1000×400mm.
This machine is widely used in various industrial fields such as refractory materials, air conditioner cylinders, magnetic materials, automobiles, tractors, bearings, valves, saw blades and glass.

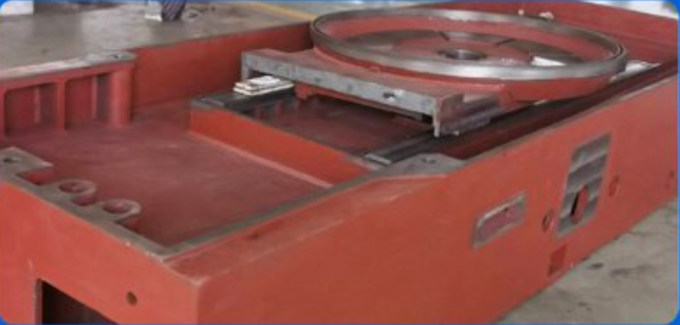

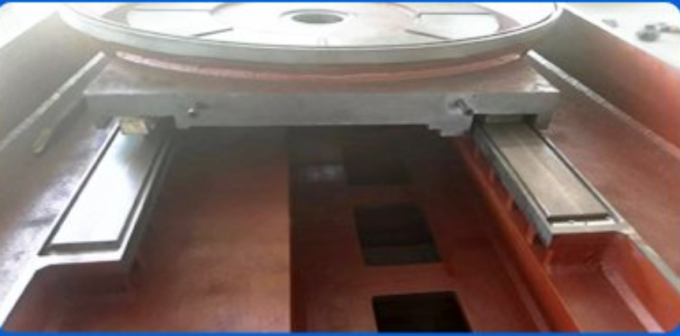

has high precision, stable operation and maximum avoiding water on guide rail
|
Parameter
|
Unit
|
HDM440
|
HDM450
|
HDM475
|
HDM480
|
HDM4100
|
|
Maximum size of grinding workpiece (diameter × height)
|
mm
|
500×300
|
500×300
|
780×300
|
800×300
|
1000×400
|
|
Electromagnetic worktable suction range
|
|
80-120N/ cm2
|
||||
|
Sand tile size
(Thickness × width × length)
|
mm
|
80×25×150
|
80×25×150
|
80×25×150
|
80×25×150
|
80×25×150
|
|
Worktable speed
|
r/min
|
24
|
24
|
24
|
10-20
|
10-20
|
|
Worktable rotating motor power
|
kw
|
2.2
|
2.2
|
2.2
|
2.2
|
3.7
|
|
Grinding head spindle speed
|
r/min
|
1400
|
1400
|
980
|
980
|
740
|
|
Grinding head motor power
|
kw
|
11
|
11
|
25
|
30
|
45
|
|
Grinding head lift AC servo
|
|
6Nm
|
6Nm
|
10Nm
|
10Nm
|
10Nm
|
|
vertical feed of grinding head
|
mm
|
0.001-0.03
|
0.001-0.03
|
0.001-0.03
|
0.001-0.03
|
0.001-0.03
|
|
Grinding head vertical feed rate
|
|
×1×10×100
|
×1×10×100
|
×1×10×100
|
×1×10×100
|
×1×10×100
|
|
Total machine power
|
kw
|
15
|
15
|
32
|
32
|
50
|
|
Machine weight
|
T
|
2
|
2
|
6
|
6
|
7
|
|
Machine tool dimensions
|
mm
|
1760×950×2200
|
1760×950×2200
|
2450×1180×2230
|
2450×1180×2230
|
3010×1390×2230
|
|
This form is for reference only. Consult the online sales manager for details
|
||||||
Industry application:
OUR Service:

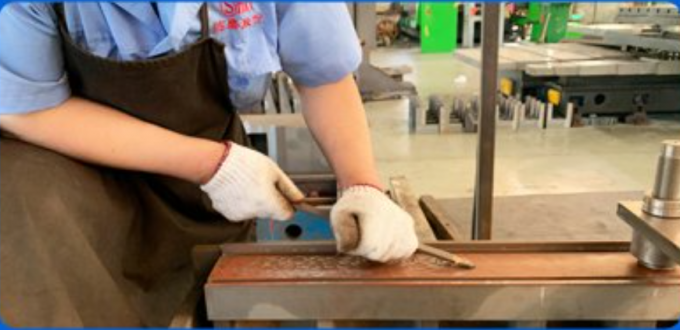

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
