Place of Origin:
China
Brand Name:
SMTCL
Certification:
CE ISO
Model Number:
VMC850Q
Video
Video
Product Description:
"The machining center is a versatile machine tool that can perform a variety of machining operations, such as milling, drilling, boring, tapping, etc. The machining center is usually composed of machine tool body, CNC system, tool library, workbench and tool.
The machining center adopts numerical control technology to control the movement trajectory and working parameters of the machine tool through pre-programming to realize the precision machining of the workpiece. It can automatically change the tool according to the processing requirements, automatically clamp the workpiece, automatically adjust the position of the tool and the workpiece, etc., to achieve continuous processing and automatic production.
The machining center has the characteristics of high precision, high efficiency and high automation, and is suitable for complex shape, multi-sided machining and high-precision workpiece processing. It is widely used in aerospace, automotive, electronics, mold manufacturing and other fields, becoming one of the indispensable equipment in modern manufacturing."
1, High rigidity and high stability design
♦ High strength integral casting bed
♦ Three-axis P-class roller guide
♦ Long span herringbone column
Product Paramenters:
|
Item
|
Unit
|
VMC850Q
|
VMC1000Q
|
VMC1100Q
|
|
|
Capacity
|
X axis travel
|
mm
|
850
|
1000
|
1100
|
|
Y axis travel
|
mm
|
500
|
500
|
620
|
|
|
Z axis travel
|
mm
|
540
|
540
|
600
|
|
|
Spindle nose to table surface
|
mm
|
120-660
|
120-660
|
120-720
|
|
|
Spindle nose to column surface
|
mm
|
640
|
640
|
743
|
|
|
Worktable
|
Table size (L×W)
|
mm
|
1000×500
|
1200×500
|
1300×610
|
|
Max load on the table
|
kg
|
600
|
600
|
1000
|
|
|
T-slot size
|
mm
|
18×5
|
18×5
|
18×5
|
|
|
Spindle
|
Spindle speed
|
rpm
|
10000
|
10000
|
10000
|
|
Spindle taper/spindle shank
|
mm
|
7/24 taper
|
7/24 taper
|
7/24 taper
|
|
|
BT40
|
BT40
|
BT40
|
|||
|
Spindle motor
|
kw
|
7.5/11
|
7.5/11
|
11/15
|
|
|
Maximum output torque
|
N.m
|
35.8/70
|
35.8/70
|
52.5/95.5
|
|
|
Spindle drive type
|
|
Synchronous tooth belt
|
|||
|
Tools
|
Tool holder model
|
|
MAS 403 BT40
|
||
|
Pull stud model
|
|
MAS 403 P40T-I
|
|||
|
Feed rate
|
X,Y,Z rapid traverse
|
m/min
|
48/48/48
|
||
|
3 axes moter power(X/Y/Z)
|
kW
|
1.8/1.8/3
|
1.8/1.8/3
|
3/3/3
|
|
|
3 axes moter torque(X/Y/Z)
|
N·m
|
11/11/20
|
11/11/20
|
20/20/20
|
|
|
Max cutting feed rate
|
mm/min
|
1-20000
|
|||
|
A.T.C
|
Type
|
pc
|
ATC with robot arm
|
||
|
Mode
|
|
Nearest tool selection in bi-direction
|
|||
|
Capacity
|
Pcs
|
24
|
|||
|
Max tool length
|
mm
|
300
|
|||
|
Max tool weight
|
kg
|
7
|
|||
|
Max too disk dia.-Full
|
mm
|
80
|
|||
|
Max too disk dia.-Adjacent
|
mm
|
150
|
|||
|
Tool change time(T-T)
|
sec
|
2.5
|
|||
|
The height between table to ground
|
mm
|
900
|
900
|
950
|
|
|
Others
|
Overall dimensions
(L×WxH)
|
mm
|
2400×2975×2840
(Exclude chip conveyor)
|
2700×2975×2840
(Exclude chip conveyor)
|
2940×3450×3050
(Exclude chip conveyor)
|
|
Net machine weight
|
kg
|
5100
|
5400
|
6200
|
|
|
Total power requirment
|
KVA
|
18
|
18
|
25
|
|
|
Standard configuration:

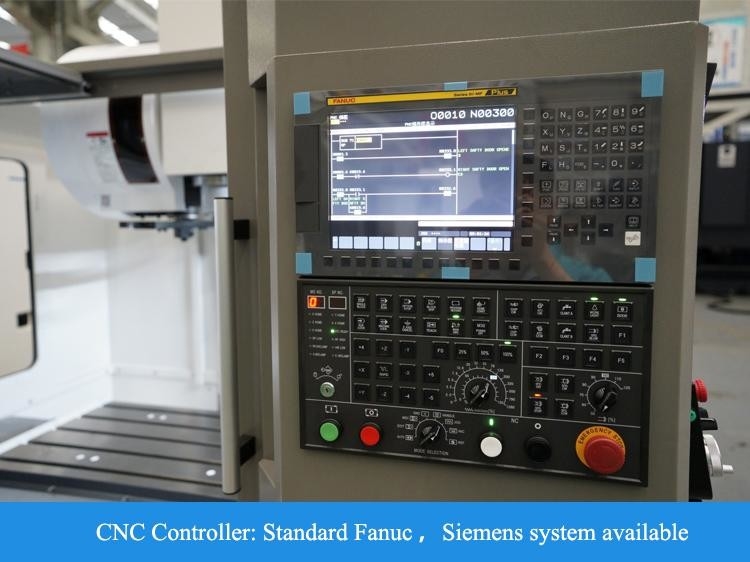

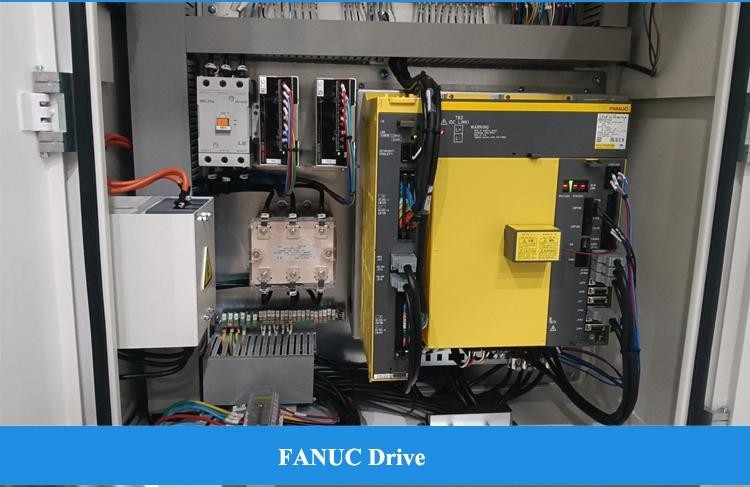

1. FANUC OI-MF TYPE(5)β control system

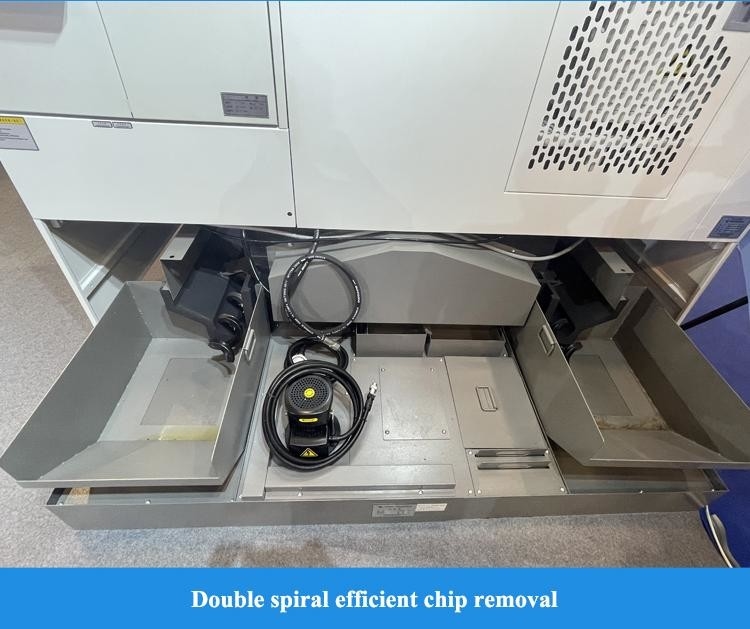

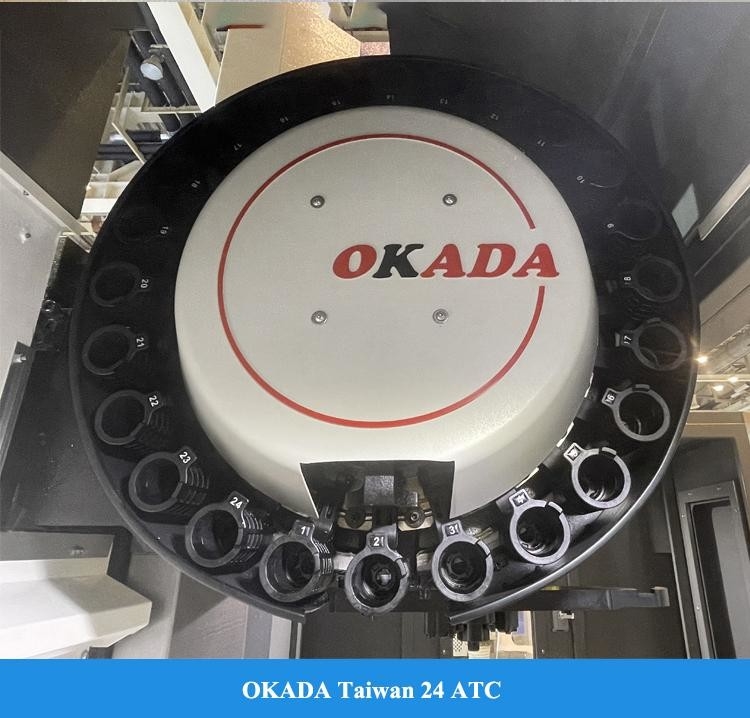

2. 10000 RPM spindle , belt connected 3. 24 disc manipulator tool magazine 4. Water tank + bed flushing chip 5. Clean air gun, working light, warning light |
Selective configuration:
1. Fanuc Oi-MF TAPE(l)β system

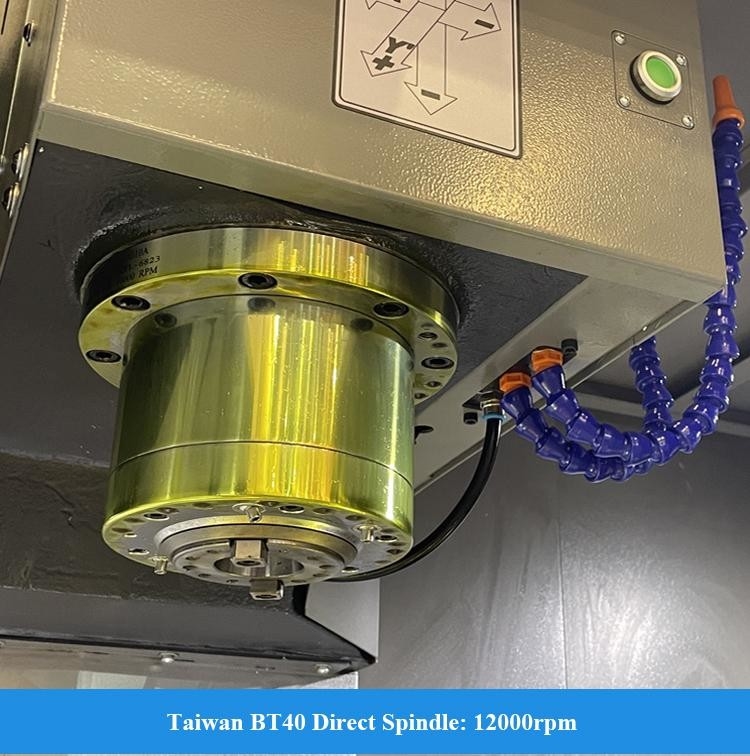

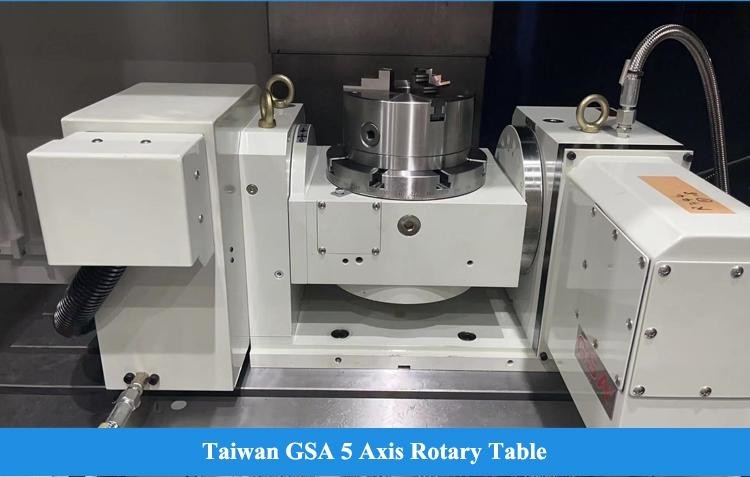

2. Fanuc Oi-MF TAPE(l)α system 3. Siemens 828D CNC system 4. Direct connection 12000 RPM mechanical spindle 5. 16000 RPM, 24000 motorized spindle 6. 4th axis turntable 7. Cooling inside 2MPa, 3MPa,5MPa,7MPa 8. Oil-water separator 9. Chain chip remover 10. Clean water gun 11. Tool and workpiece inspection 12. Automatic door 13. Safety door lock 14.Electric cabinet and air conditioning |
||||
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
