CNC Lathe High Precision Small Parts Processing T5.1-100Q SMTCL Metal Slant Bed CNC Lathe
Product Details
| Brand Name: | SMTCL | Model Number: | T5.1-100Q |
|---|---|---|---|

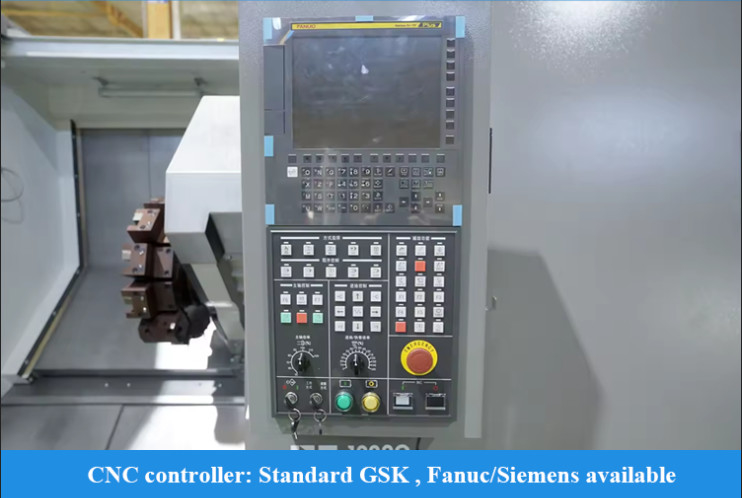

| CNC Control System: | GSK/FANUC/SIEMENS | CNC Or Not: | CNC |
| Key Word: | Slant Bed Lathe CNC Machine | Max. Swing Over Bed: | Φ420 |
| Max. Swing Over Slide: | Φ160 | Max. Turned Length: | 160 Mm |
| Travel (X Axis): | 145 Mm | Travel (Z Axis): | 205 Mm |
| X/Z Rapid Traverse: | 30 M/min | Max. Spindle Speed: | 5000 R.p.m |
| Tool Post Stations: | Horizontal 8 Station Servo Turret | ||
| Highlight |
High Precision CNC Lathe,Small Parts Processing CNC Lathe,Metal Slant Bed CNC Lathe |
||
Product Description
Product Description:

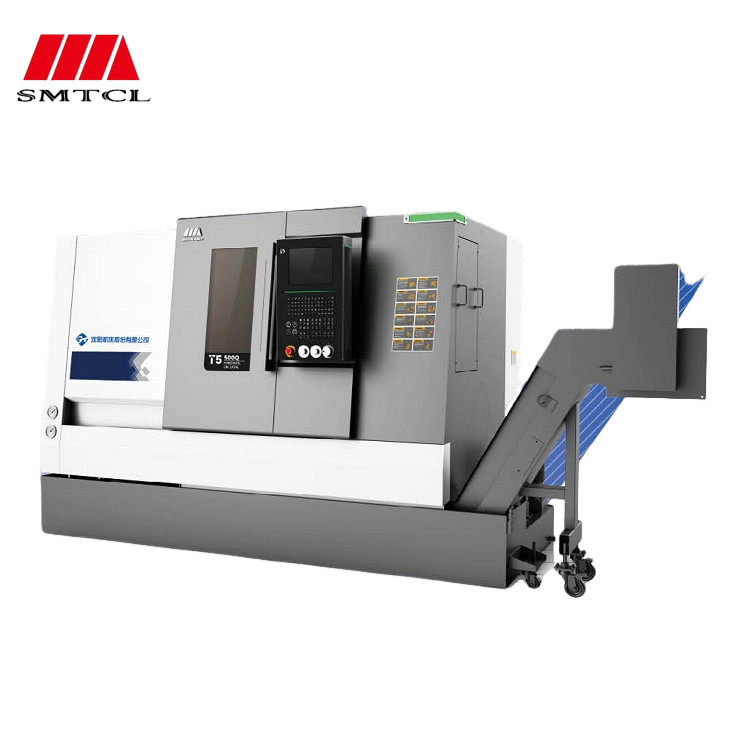

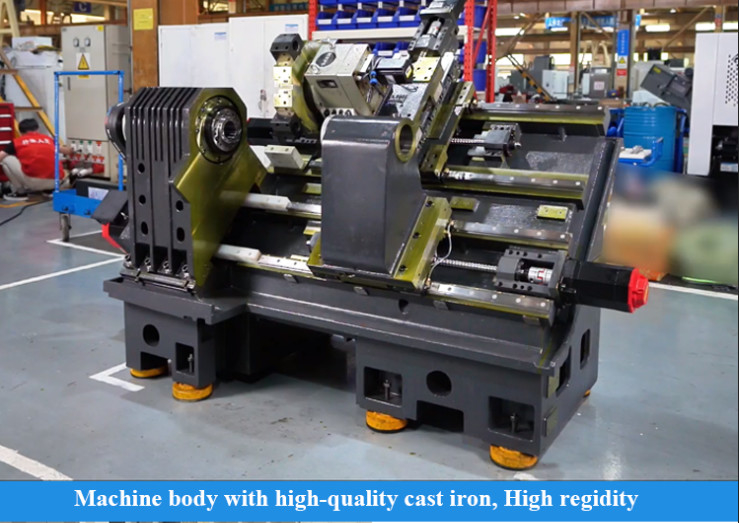

SMTCL CNC Lathe High Precision Small Parts Processing T5.1-100Q Metal Slant Bed CNC Lathe

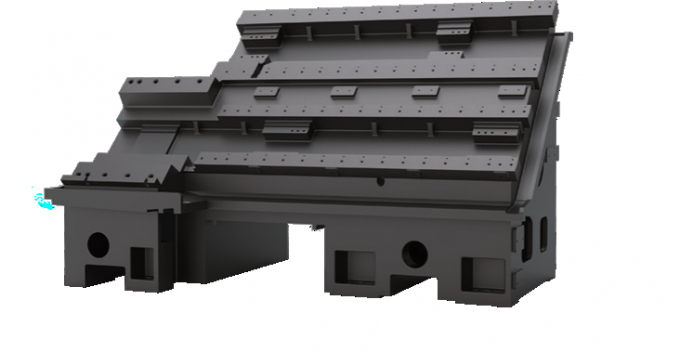

Product Features:
1,High Precision
|
Item
|
Unit
|
T5.1-100Q
|
Remarks
|
|
|
Max. turning diameter
|
mm
|
160
|
|
|
|
Max. turning length
|
mm
|
160
|
Different fixture parameters change
|
|
|
Max.swing diameter over bed
|
mm
|
Φ420
|
|
|
|
Max.swing diameter over cross slide
|
mm
|
Φ160
|
|
|
|

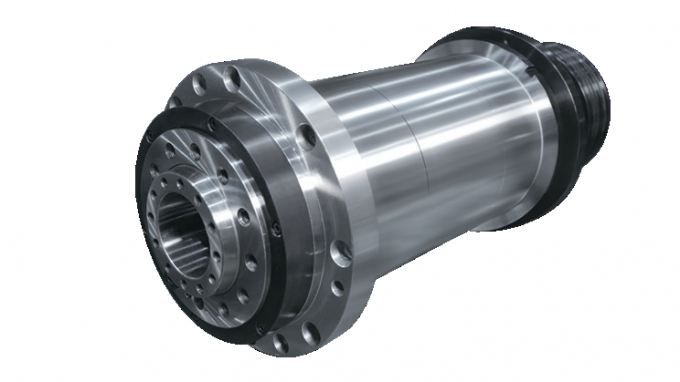

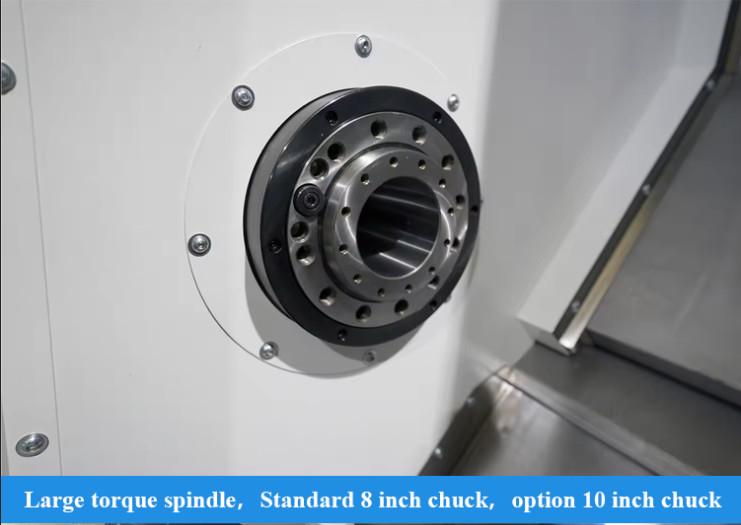

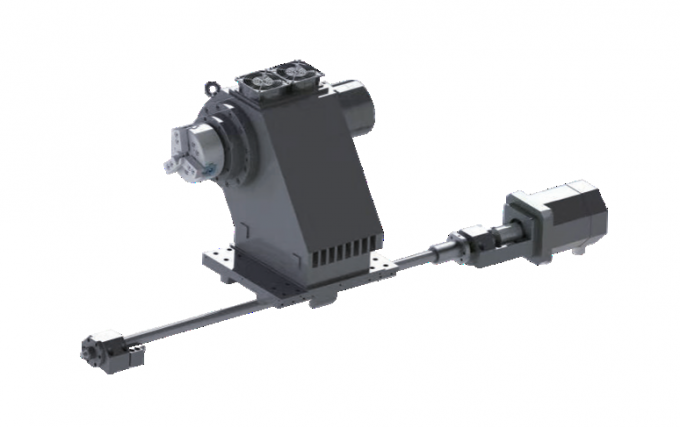

Spindle
|
Type of spindle nose
|
|
A2-5
|
|
|
Inner diameter of front bearing
|
mm
|
Φ90
|
|
|
|
Taper of spindle bore
|
|
1:20；Φ62
|
|
|
|
Spindle bore
|
mm
|
Φ65
|
|
|
|
Max. through bar diameter
|
mm
|
Φ44
|
|
|
|
Standard chuck diameter
|
inch
|
6
|
|
|
|
Max. spindle speed
|
r/min
|
5000
|
Subject to chuck and fixture restrictions
|
|
|
Spindle rated torque
|
Nm
|
35(2000r/min)
|
|
|
|
Max. spindle torque
|
Nm
|
70(1500r/min)
|
|
|
|

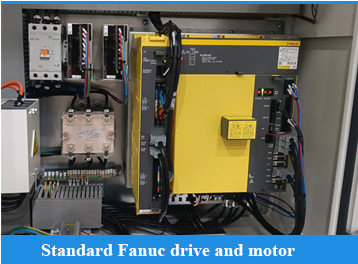

Main motor output power continuous /30 minutes
|
kW
|
7.5/11
|
Mechanical spindle
|
|
|

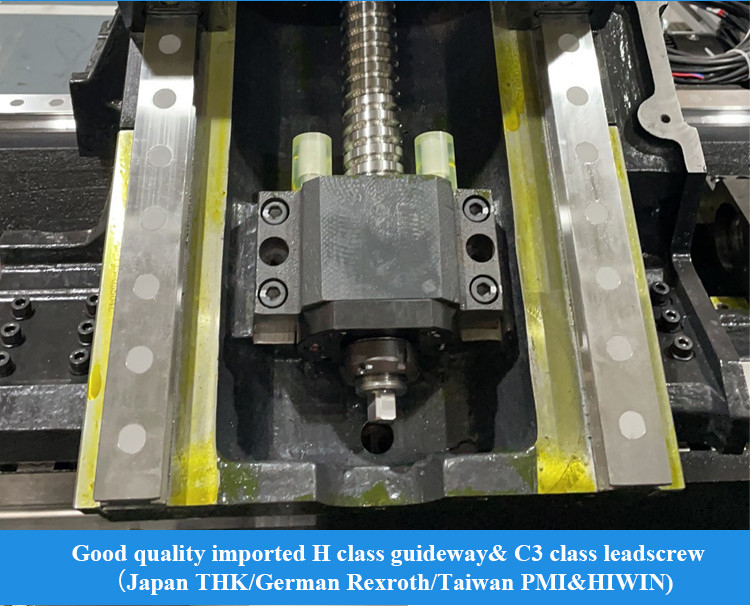

Two axis
|
Rapid traverse of X/Z axis
|
m/min
|
30
|
|
|
X axis travel
|
mm
|
145 |
|
|
|
Z axis travel
|
mm
|
205 |
|
|
|

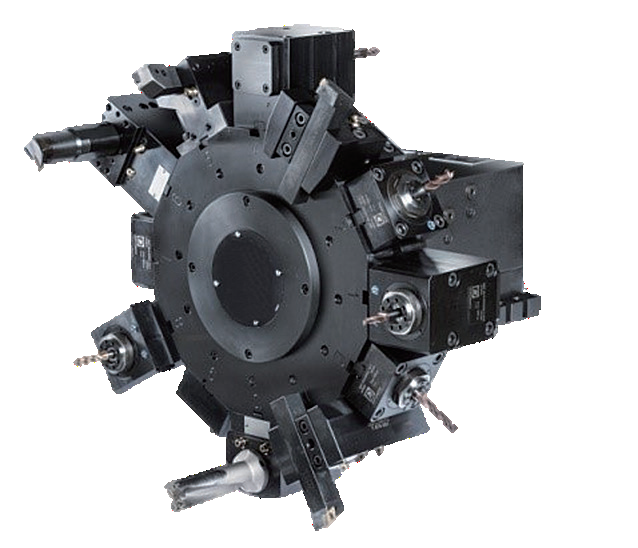

Turret
|
Turret form
|
|

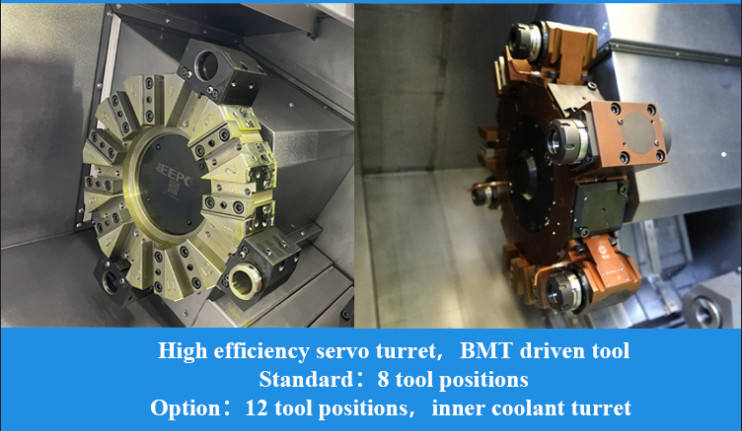

Horizontal 8 positions servo turret
|
|
|
Center height of turret
|
mm
|
80 |
|
|
|
Turret rotation repeat positioning accuracy
|
Sec.
|
±1.6
|
|
|
|
Whether the cutter can be selected nearby
|
|
yes
|
|
|
|

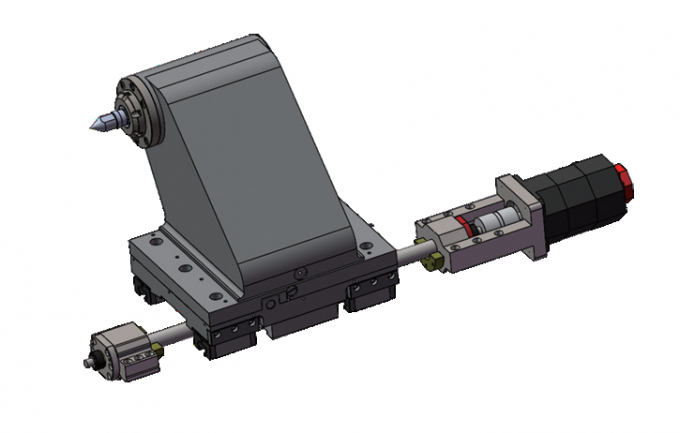

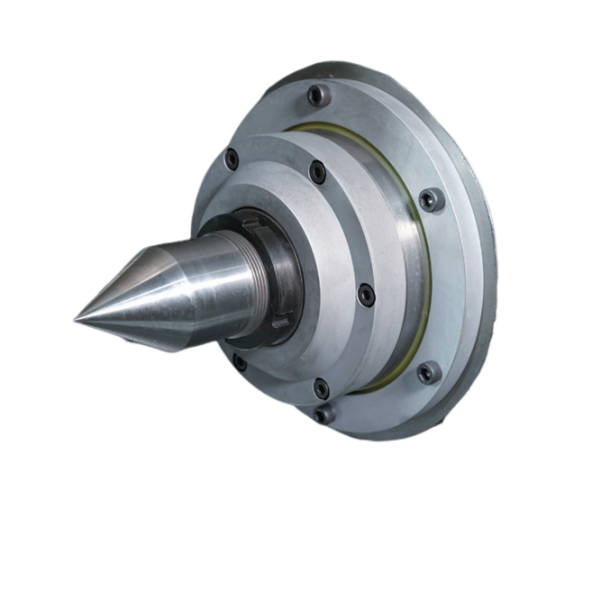

Other
|
Distance from spindle center to bed bottom
|
mm
|
926 |
|
|
Machine net weight
|
kg
|
2600
|
|
|
|
Total power supply capacity
|
kVA
|
23
|
|
|
|
Overall dimensions (Length X width X height)
|
mm
|
1750×1650×1650
|
Overall dimension
|
|
Industry application:
OUR Service:
1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
