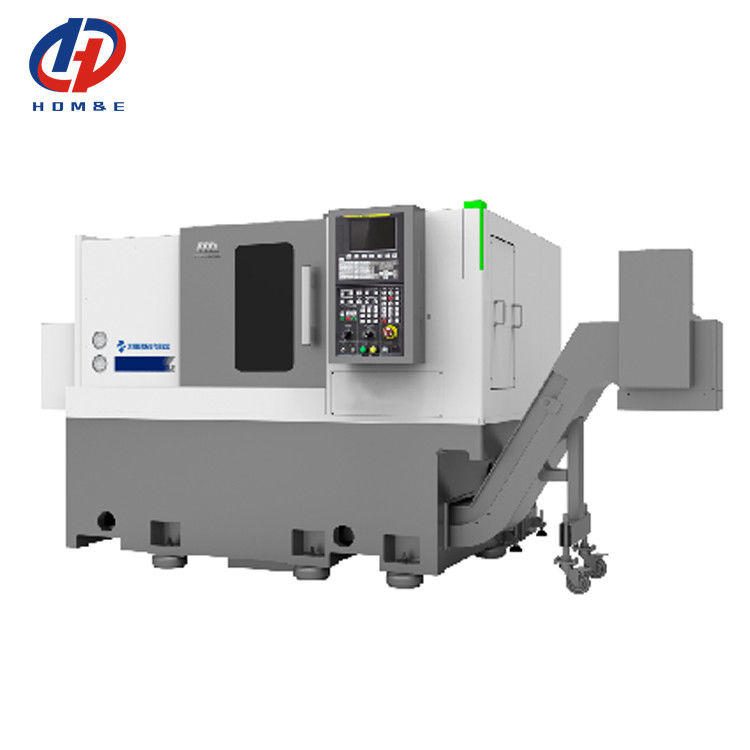

Precision Metal Turning Lathe Machine HTC30H Automobile Bearing Processing SMTCL CNC Lathe
Brand Name:
SMTCL
Model Number:
HTC 30H
Place of Origin:
CHINA
Certification:
CE ISO certification
Minimum Order Quantity:
1
Supply Ability:
50 sets per month
Product Details
| Brand Name: | SMTCL | Model Number: | HTC 30H |
|---|---|---|---|
| CNC Or Not: | CNC | Key Word: | Horizontal CNC Turning Center |
| Max.cutting Length: | 500mm | Max. Cutting Dia.: | 300mm |
| Max. Swiming Dia.over Bed: | 420mm | X Axis Travel: | 160mm |
| Z Axis Travel: | 560mm | Spindle Speed: | 4500 R/min |
| Highlight |
HTC 30H CNC Lathe Machine,Precision Metal Turning Lathe Machine,Automobile Bearing Processing CNC Lathe Machine |
||
Product Description
Product Description:

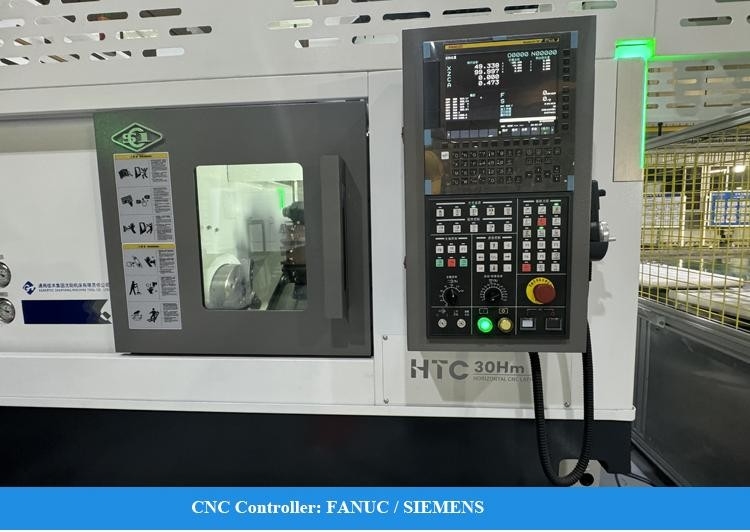

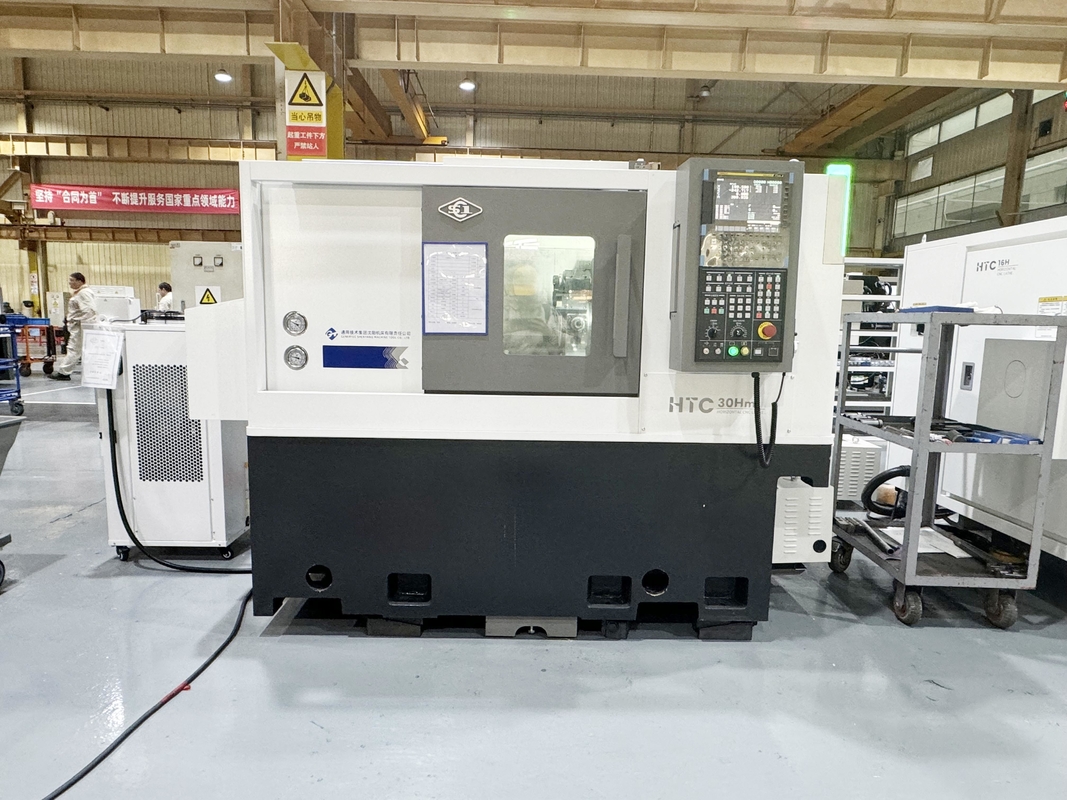

SMTCL Precision Metal Turning Lathe Machine HTC 30H Automobile Bearing Processing CNC Lathe Machine
The new generation HTC-H/S CNC lathes are optimized through professional design and analysis software. Assembled, verified and improved with advanced manufacturing and testingtechnology. They have good cutting performance and can meet processing various rotary parts.
HTC 30H CNC lathes occupy a small area and are suitable for high-precision processing of various small-sized parts, effectively meeting the processing of automobiles, bearings, hardware, medical and other industries.
HTC 30H CNC lathes occupy a small area and are suitable for high-precision processing of various small-sized parts, effectively meeting the processing of automobiles, bearings, hardware, medical and other industries.
Product Features:
1,High Efficiency
◆ High rapid traverse speed of two axis◆ Split servo tailstock
◆ High-efficiency servo tool holder
◆ Optional sub-spindle multi-sequence integrated processing
2,High Precision
◆ High-precision pre-stretched screw
◆ Error compensation technology
◆ Quantification of process standards
◆ Strict inspection standards
◆ Error compensation technology
◆ Quantification of process standards
◆ Strict inspection standards
3,High Rigidity
◆ High-quality cast iron bed and other key castings

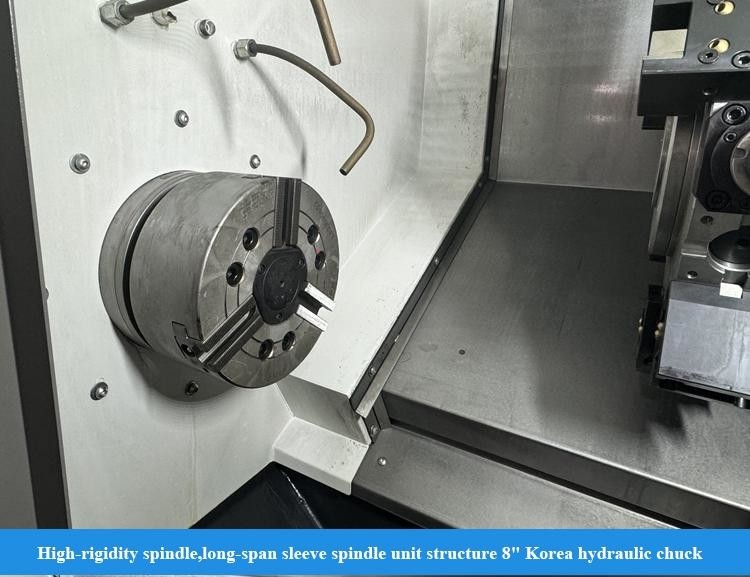

◆ Large span spindle unit
◆ Arc-shaped anti-bending bed gap
◆ Small spindle structure tailstock
◆ Large span spindle unit
◆ Arc-shaped anti-bending bed gap
◆ Small spindle structure tailstock
Product Details:
Rapid moving speed: 30m/min
The servo motor is directly connected to the ball screw through a coupling, reducing intermediate links and achieving gapless transmission. The X and Z-axis guide rails adopt imported linear rollingguide rails to ensure high rigidity, good dynamic performance and accuracy, increase operating speed and improve production efficiency.
Split Servo Tailstock
The tailstock can be moved in an optional servodriven manner, which can precisely control and flexibly adjust the tailstock moving speed and working clamping force according to processing requirements, allowing the tailstock to quickly approach the workpiece and tighten without impact , and can provide real-time feedback on the tightening position.improve production
replacement efficiency. It adopts an upper and lower split tailstock ,easy to adjustment accuracy and improve maintenance efficiency.
Double fixed pre-tensioned structure
X axis develops a double fixed support structure and uses a pre-stretched screw to effectively offset pre-stretch deformation and temperature risedeformation. It cooperates with a special sealing structure to reduce the temperature rise of the screw, thereby achieving high precision and high precision of machine tool feed stability
Y axis configuration
Optional Y-axis configuration, combinedwith BMT powered turret, high-precision C -axis structure and a variety of poweredtool holders, can realize complex surface processing with once installation.

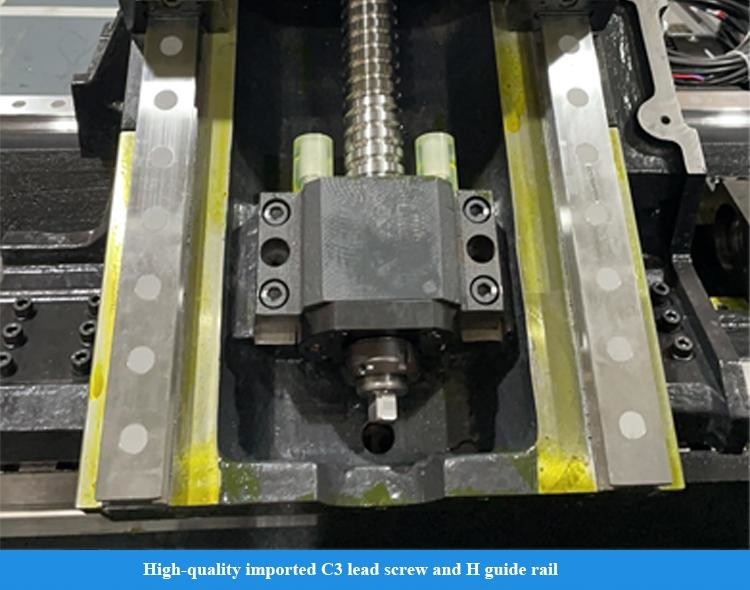

High precision ball screw
It uses high-quality imported C3-grade screw and H-grade guide rail, and is directly driven by servo motor to achieve excellent operating accuracy.
Anti-bending saddle
The guide rail span is reasonably enlarged,the motion system structure is optimized,and the main body of the bed saddle isdesigned in an arc shape to ensure theoverall rigidity of important components.

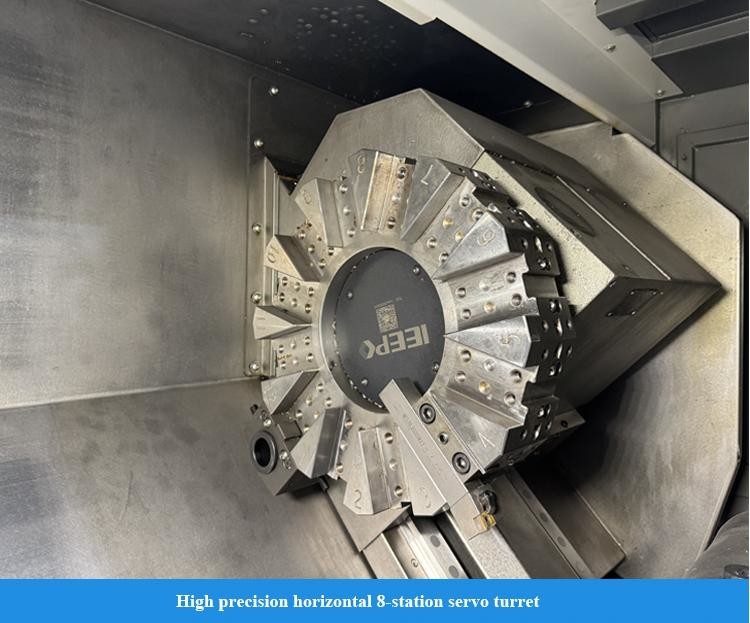

Efficient servo powered turret
Standard BMT interface, high rigidityconnection; the tool is driven by DIN1809 interface, which has reliable transmission and low failure rate;the drive motor is side-mounted and compact in structure; it is equipped with high-precision C axis and brake device to achieve high-efficiency integrated processing of turning, milling anddrilling.
Internal cooling tool holder
Optional internal cooling tool holder and water outlet from the tool center realize efficient chip removal during inner hole machining and ensure processing quality
Driven tool milling capability
Workpiece material: HT200
Tool model: Ф20 square shoulder
milling cutter
Cooling status: water cooling
Tool model: Ф20 square shoulder
milling cutter
Cooling status: water cooling
Driven tool drilling capacity
Workpiece material: HT200
Tool model: Ф16 twist drill
Cooling status: water cooling
Workpiece material: HT200
Tool model: Ф16 twist drill
Cooling status: water cooling
Product Paramenters:
|
Project
|
Unit
|
HTC 30H
|
|
Max. cutting dia.
|
mm
|
Φ300
|
|
Max.cutting length
|
mm
|
500
|
|
Max. swiming dia.over bed
|
mm
|
Φ420
|
|
Max. swiming dia.on slide
|
mm
|
Φ280
|
|
Spindle
|
|
|
|
Spindle nose model
|
|
A2-6
|
|
Front bearing inner dia.
|
mm
|
100
|
|
Spindle taper and hole size
|
|
1:20;Φ70
|
|
Dia. of spindle hole
|
|
Φ65
|
|
Max.bar dia.
|
mm
|
Φ50
|
|
Standard chuck dia.
|
inch
|
8
|
|
Spindle speed range
|
r/min
|
4500
|
|
Rated spindle torque
|
N·m
|
100(769r/min)
|
|
Spindle Max. torque
|
N·m
|
180(576r/min)
|
|
Main motor output power continuous/15 min.
|
kW
|
9/11
|
|
X/Z axis
|
|
|
|
X/Z axis rapid movement
|
m/min
|
30
|
|
X axis travel
|
mm
|
160
|
|
Z axis travel
|
mm
|
560
|
|
Tailstock
|
|
|
|
Tailstock travel
|
mm
|
300
|
|
Tailstock drive method
|
|
Saddle drag
|
|
Tailstock sleeve travel
|
mm
|
100
|
|
Tailstock sleeve dia.
|
mm
|
Φ100
|
|
Tailstock taper hole taper
|
Morse
|
MT-5
|
|
Turret
|
|
|
|
Turret typle
|
|
Horizontal 8-station servo turret
|
|
Center height
|
mm
|
80
|
|
Turret indexing repeat positioning accuracy
|
Sec.
|
±1.6
|
|
If could choose tool nearby
|
|
yes
|
|
Others
|
|
|
|
Distance between spindle center and floor
|
mm
|
936
|
|
Machine tool net weight
|
kg
|
3500
|
|
Total electrical capacity
|
KVA
|
23
|
|
Overall dimensions(LxWxH)
|
mm
|
2295×1680×1650
|
|
Note: The parameters provided in the table are for reference only. If there is any change, please refer to the actual product.
|
||
