Place of Origin:
CHINA
Brand Name:
SMTCL
Certification:
CE ISO certification
Model Number:

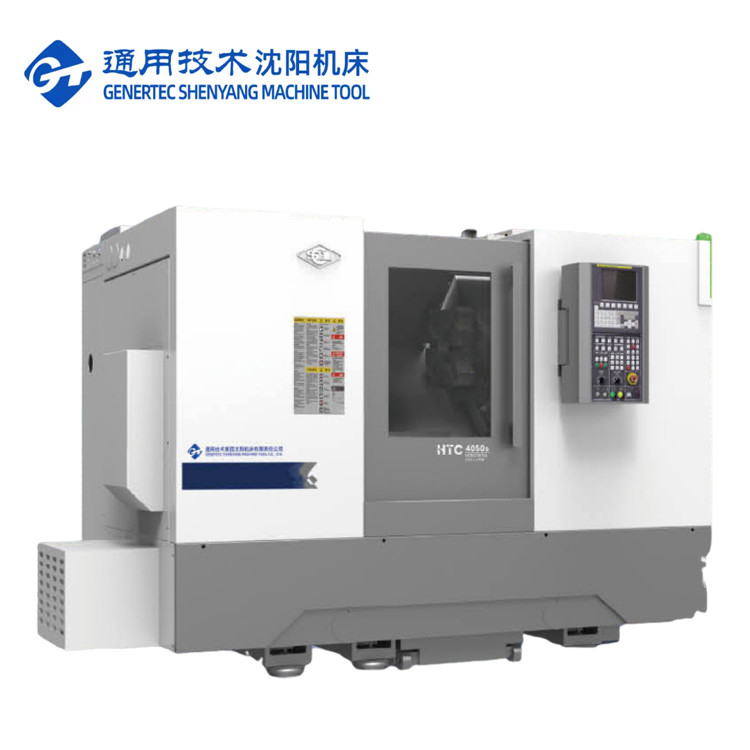

HTC 4050s
Video
Video
Video
Product Description:
|
Items
|
Units
|
HTC4050s
|
|
Maximum swing diameter over bed
|
mm
|
Φ600
|
|
Maximum cutting length
|
mm
|
500
|
|
Maximum cutting diameter
|
mm
|
Φ400
|
|
Maximum swing diameter over cross slide
|
mm
|
Φ320
|
|
Spindle nose type and code
|
-
|
A2-8
|
|
Spindle bore diameter
|
mm
|
Φ80
|
|
Spindle speed range
|
r/min
|
50-4000
|
|
30 minutes / continuous
|
kW
|
18.5/15
|
|

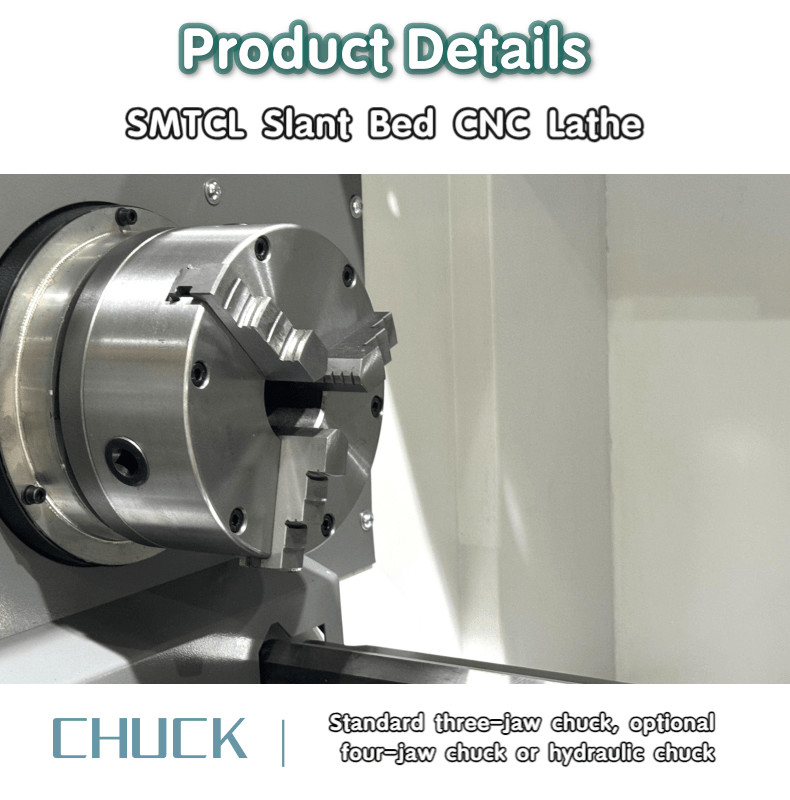

Chuck diameter/type
|
inch
|
8"
|
|
X-axis rapid traverse speed
|
m/min
|
30
|
|
Z-axis rapid traverse speed
|
m/min
|
30
|
|
X-axis travel
|
mm
|
210
|
|
Z-axis travel
|
mm
|
550
|
|

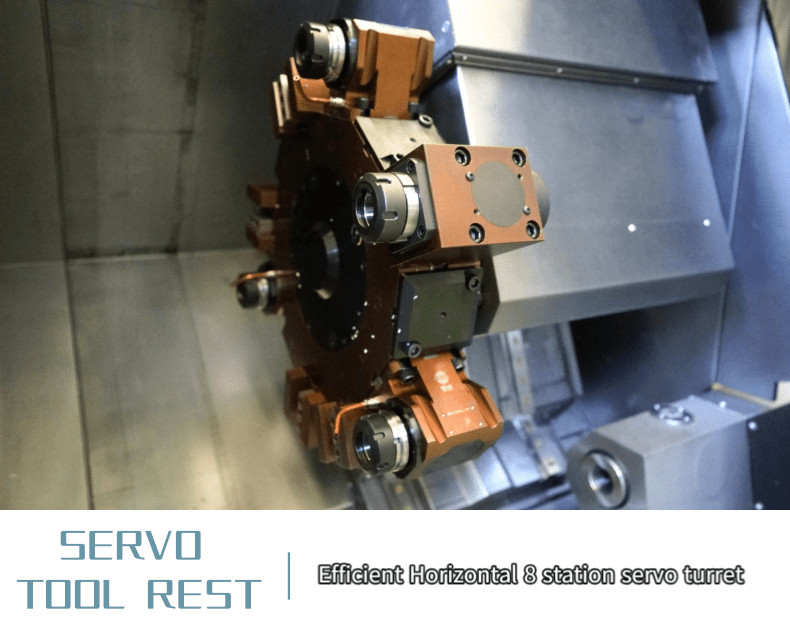

Tool size
|
|
Horizontal 8-position servo tool post
|
|
Cylindrical turning tool
|
mm
|
25*25
|
|

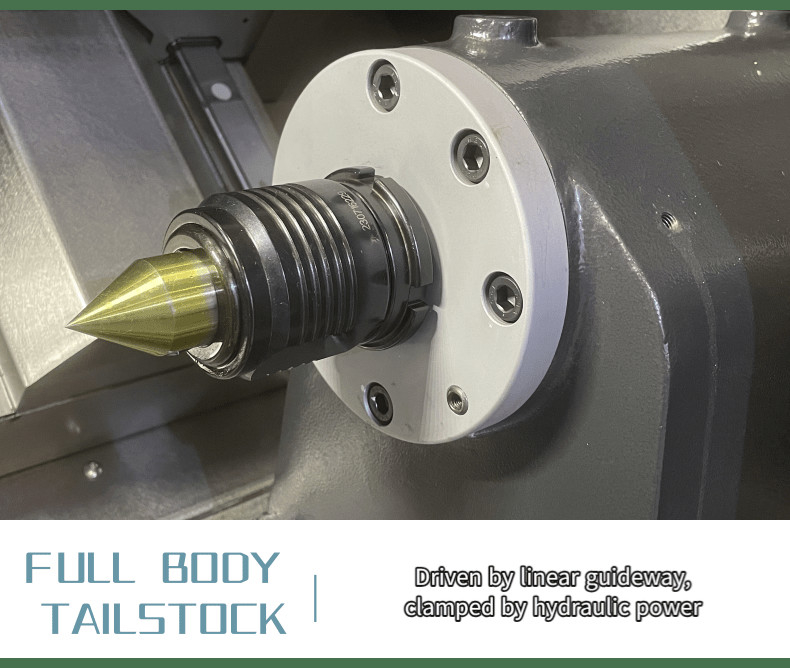

Tailstock travel
|
mm
|
350
|
|
Tailstock sleeve travel
|
mm
|
100
|
|
Tailstock spindle taper
|
morse
|
5# hydraulic tailstock, manual locking
|
|
Boring tool bar diameter
|
mm
|
Φ40/Φ32/Φ25/Φ20
|
|
Whether cutter head is able to select cutter handily
|
-
|
yes
|
|
Disc workpieces
|
kg
|
200
|
|
Shaft workpieces
|
kg
|
500
|
|
Machine weight
|
kg
|
4200
|
|
Overall dimension (L*W*H)
|
mm
|
2940*1810*1975
|
Industry application:
Workpiece samples
OUR Service:
1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
