CNC Lathe And Milling Machine HTC4050s High Accuracy 0.003mm Torno CNC Lathe Machine

Brand Name: SMTCL
Model Number: HTC 4050s
Place of Origin: CHINA
Certification: CE ISO certification
Minimum Order Quantity: 1
Supply Ability: 50 sets per month
Tags

CNC Lathe Machine

High Precision Horizontal CNC Lathe

CNC Turning Center

Product Details

Brand Name: SMTCL Model Number: HTC 4050s
CNC Or Not: CNC Key Word: Slant Bed CNC Lathe
Max. Spindle Speed (r.p.m): 4000 R.p.m Travel (X Axis)(mm): 210
Travel (Z Axis)(mm): 550 Maximum Turning Diameter: Φ600
Maximum Turning Length: 500 Maximum Swing Over Bed: Φ600
Max Swing Over Slide: Φ320
Highlight

High Accuracy CNC Lathe Machine

,

HTC4050s CNC Lathe Machine

,

0.003mm CNC Lathe Machine

Product Description

CNC Lathe And Milling Machine HTC4050s High Accuracy 0.003mm Torno CNC Lathe Machine 0

Product Description:

SMTCL Lathe And Milling Machine HTC4050s High Accuracy 0.003mm Combo Torno CNC Lathes Machine
The product serves numerous purposes and functions
The product has made“breakthrough"in precise machining at u level
The accuracy is compressed to 60% of the national requirement and repeated positioningaccuracy reaches 0.003mm.
The product takes a“leading position” in the industry in terms of cutting indicatorsThe product features enhancement of five key indicators of main motor,servo spindle motor,tool pan, tool post and spindle speed,and higher machining capacity
Product Details:
CNC Lathe And Milling Machine HTC4050s High Accuracy 0.003mm Torno CNC Lathe Machine 1
Overall sleeve spindle
The product features single-spindle headstock, adopts overallspindle unit, reduces power lossof mechanical transmission, andfeatures fast and stable startup,low temperature rise, smallthermal deformation and highaccuracy.
CNC Lathe And Milling Machine HTC4050s High Accuracy 0.003mm Torno CNC Lathe Machine 2
Integral tiltingmachine tool body
The product adopts 45°integral body and optimizedrib-shaped design, andbrings better chip removaleffect and higherrigidity.

CNC Lathe And Milling Machine HTC4050s High Accuracy 0.003mm Torno CNC Lathe Machine 3
High-rigidityservo tool post The product is upgradedto 100 center high servotool post, and featuresstrengthened heavy cuttingperformance, high toolchanging positioningaccuracy and tool change inforward/reverse directions.
CNC Lathe And Milling Machine HTC4050s High Accuracy 0.003mm Torno CNC Lathe Machine 4
Multiple tailstockcon figurations
The product adopts slidingguiderail tailstock, and canbe configured with hydraulictailstock and servo tailstock tomeet different demands.

CNC Lathe And Milling Machine HTC4050s High Accuracy 0.003mm Torno CNC Lathe Machine 5

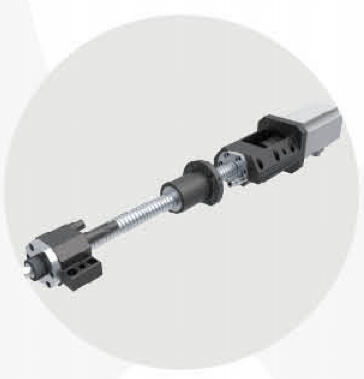

High-rigidity2-axis feeding X-axis and Z-axis adopt servomotor for driving, and directcoupling with ball lead screwis realized through elastic shaftcoupling, guiderail of two axesadopts roller guiderail, so that theload carrying capacity is higherand heavy cutting performanceof machine tool is strengthened.
CNC Lathe And Milling Machine HTC4050s High Accuracy 0.003mm Torno CNC Lathe Machine 6
Higher spindle torque
The product is configuredwith standard 15/18.5kwmain motor, the spindletorque is 284Nm, and themaximum optional spindletorque is 500Nm.
Product Paramenters:
Items
Units
HTC4050s
Maximum swing diameter over bed
mm
Φ600
Maximum cutting length
mm
500
Maximum cutting diameter
mm
Φ400
Maximum swing diameter over cross slide
mm
Φ320
Spindle nose type and code
-
A2-8
Spindle bore diameter
mm
Φ80
Spindle speed range
r/min
50-4000
30 minutes / continuous
kW
18.5/15
Chuck diameter/type
inch
8"
X-axis rapid traverse speed
m/min
30
Z-axis rapid traverse speed
m/min
30
X-axis travel
mm
210
Z-axis travel
mm
550
Tool size

Horizontal 8-position servo tool post
Cylindrical turning tool
mm
25*25
Tailstock travel
mm
350
Tailstock sleeve travel
mm
100
Tailstock spindle taper
morse
5# hydraulic tailstock, manual locking
Boring tool bar diameter
mm
Φ40/Φ32/Φ25/Φ20
Whether cutter head is able to select cutter handily
-
yes
Disc workpieces
kg
200
Shaft workpieces
kg
500
Machine weight
kg
4200
Overall dimension (L*W*H)
mm
2940*1810*1975

Industry application:

Workpiece samples

1.Outer ball cage, inner ball cage, rotor shaft, differential housing,
2. Tooth shaft, camshaft, turbocharger rotor shaft, half shaft,
3. Plate roller, piston rod, cross shaft, steering shaft.

CNC Lathe And Milling Machine HTC4050s High Accuracy 0.003mm Torno CNC Lathe Machine 7

OUR Service:

1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
CNC Lathe And Milling Machine HTC4050s High Accuracy 0.003mm Torno CNC Lathe Machine 8
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
SMTCL and SYMG group is our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
CNC Lathe And Milling Machine HTC4050s High Accuracy 0.003mm Torno CNC Lathe Machine 9
Exhibition:

CNC Lathe And Milling Machine HTC4050s High Accuracy 0.003mm Torno CNC Lathe Machine 10

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
