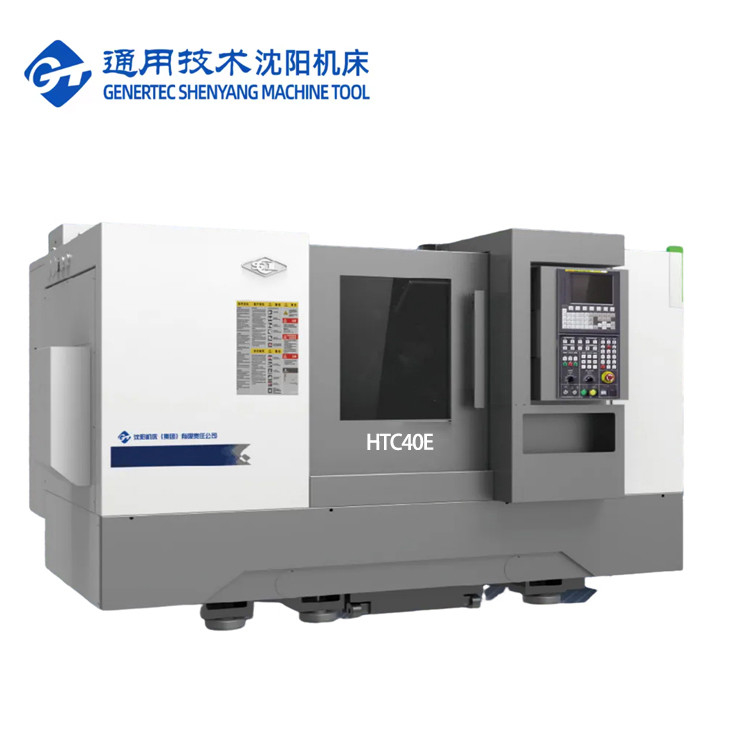

Quality CNC Turning Center HTC40E SMTCL Slant Bed CNC Lathe Machine For Metal factory

CNC Turning Center HTC40E SMTCL Slant Bed CNC Lathe Machine For Metal

Name: CNC Turning Center HTC40E SMTCL Slant Bed CNC Lathe Machine For Metal
Brand: Shanghai HD ME Tech Co., Ltd.
SKU: HTC 40E/300
Availability: InStock

Brand Name: SMTCL

Model Number: HTC 40E/300

Place of Origin: CHINA

Certification: CE ISO certification

Minimum Order Quantity: 1

Supply Ability: 50 sets per month

High Precision Horizontal CNC Lathe

CNC Turning Center

Product Details

Brand Name:	SMTCL	Model Number:	HTC 40E/300

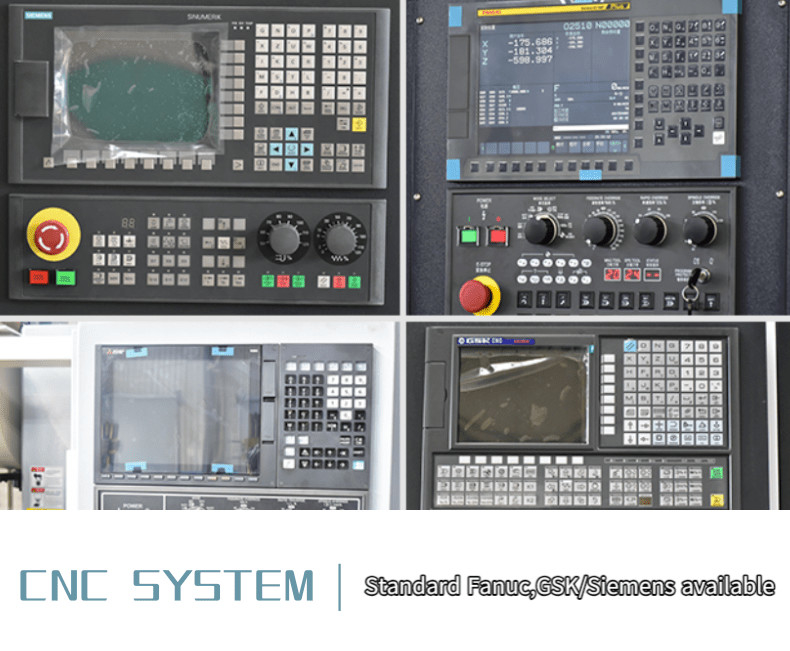

CNC Control System:	GSK	CNC Or Not:	CNC
Key Word:	Slant Bed Lathe CNC Machine	Max. Turned Length (mm):	300
Max. Spindle Speed (r.p.m):	4500 R.p.m	Travel (X Axis)(mm):	200
Travel (Z Axis)(mm):	320	Maximum Turning Diameter:	Φ360
Maximum Turning Length:	300	Maximum Swing Over Bed:	Φ500
Max Swing Over Slide:	Φ320
Highlight	HTC40E CNC Turning Center Milling Machine , Metal CNC Turning Center Milling Machine , SMTCL CNC Turning Center

Product Description

CNC Turning Center HTC40E SMTCL Slant Bed CNC Lathe Machine For Metal 0

Product Description:

SMTCL CNC Turning Center Milling Machine HTC40E CNC Lathe Machine For Metal Slant Bed Lathe

High cost-performance ratio,Sliding rail power upgrade, "high", "large", "on", from the inherent strength. Integral high rigidity spindle, integral inclined bed, hardened sliding guide rail, guide rail tail seat. HTC 40E horizontal CNC lathe is suitable for processing all kinds of shaft and disk parts, effectively filling the processing needs of football cage, automobile mandrels, motor gear shaft, valve tappet and other parts.

Product Features:

1,High rigidity Rigidity is raised by 50% throughenlargement of bearing, increase of spindlespan, shortening of belt pulley overhangand new sliding tailstock structure.

2,Low malfunction rate The machine tool adopts modularizeddesign for enhancement of overall stability,and reduces malfunction rate by 55% incomparison with the last generation ofproducts.

3,Low loss Hu m a n - oriented design an dreasonable layout reduce loss ratesuch as tool (cutter), oil product andelectricity consumption by 11%.

Product Details:

CNC Turning Center HTC40E SMTCL Slant Bed CNC Lathe Machine For Metal 1

Overall sleeve spindle

The product features single-spindle headstock, adopts overallspindle unit, reduces power lossof mechanical transmission, andfeatures fast and stable startup,low temperature rise, smallthermal deformation and highaccuracy.

CNC Turning Center HTC40E SMTCL Slant Bed CNC Lathe Machine For Metal 2

Overall tilting machine tool bed HTC40E adopts integral bed of 30 ° angle of obliquity,so that force bearing ismore stable during cuttingoperation. Bed materialadopts high density castiron, and features highstrength and good shockabsorption.

CNC Turning Center HTC40E SMTCL Slant Bed CNC Lathe Machine For Metal 3

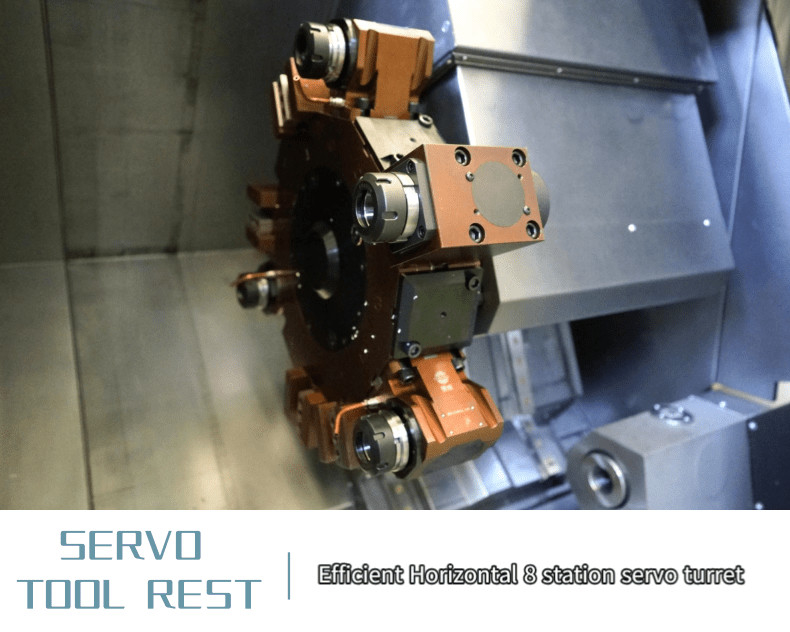

Servo tool post The product adopts servomotor driving for indexing,features high accuracy andhigh reliability and is able tomeet the requirements onhigh performance and fasttool change.

CNC Turning Center HTC40E SMTCL Slant Bed CNC Lathe Machine For Metal 4

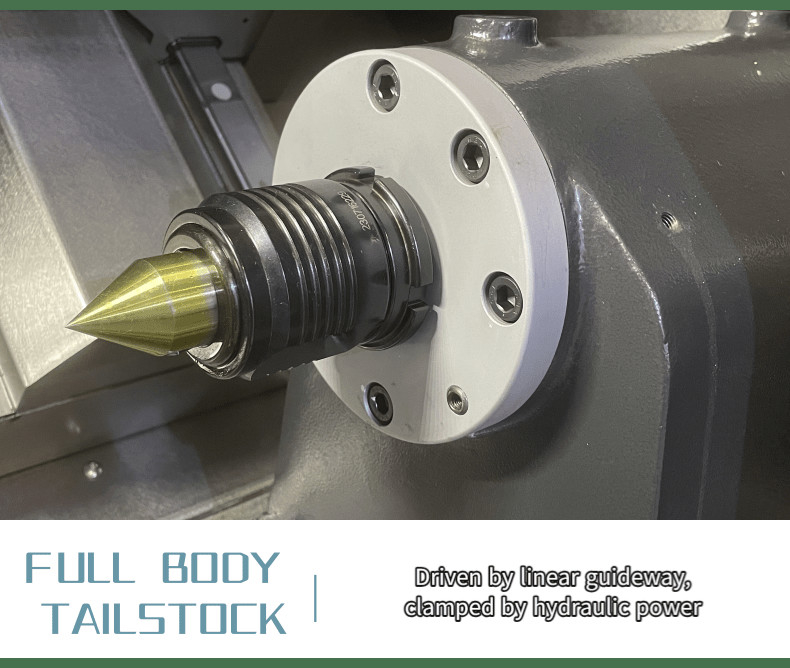

Guide rail tailstock

HTC40E tailstock is configuredwith sliding guide railintegrated with machine toolbed, telescoping sleeve andmanual locking and featuresgood rigidity.

CNC Turning Center HTC40E SMTCL Slant Bed CNC Lathe Machine For Metal 5

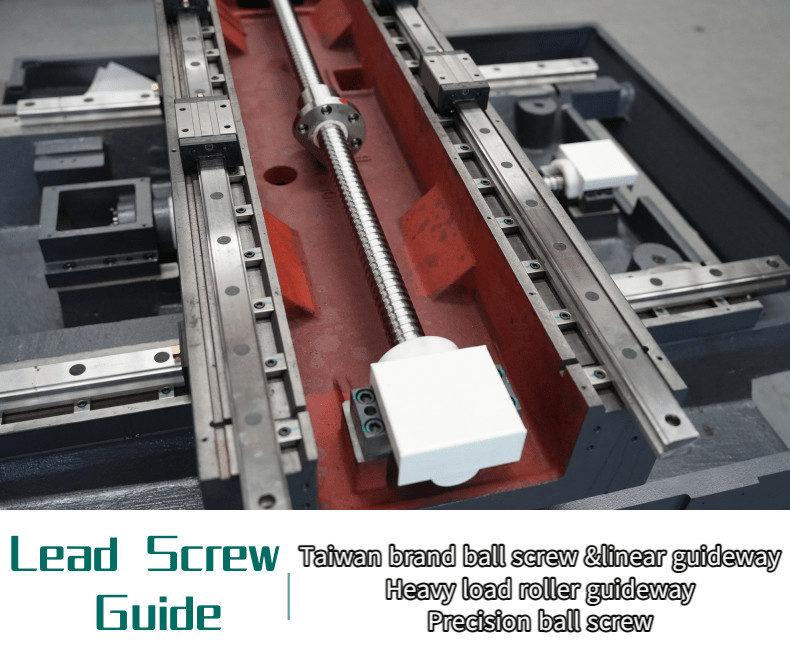

2-axis feeding X-axis and Z-axis adopt servomotor for driving, directcoupling with ball lead screwis realized through elastic shaftcoupling, guide rail of twoaxes adopt rolling guide rail,so that machining precision,rapid traverse speed andproduction efficiency have beensubstantially enhanced.

CNC Turning Center HTC40E SMTCL Slant Bed CNC Lathe Machine For Metal 6

lntegrated spindle encoder The special spindle encoderhas cancelled synchronousbelt drive mechanism sothat malfunction rate hasbeen effectively reduced.

Product Paramenters:

Items	Units	HTC40E
Length specification	mm	300
Maximum swing diameter over bed	mm	Φ500
Maximum cutting length	mm	300
Maximum cutting diameter	mm	Φ360
Maximum swing diameter over cross slide	mm	Φ320
Spindle nose type and code	-	A2-6
Spindle bore diameter	mm	Φ65
Maximum bar stock passing diameter	mm	Φ50
Headstock
Spindle speed range	r/min	50-4500
Maximum output torque of spindle	Nm	177
30 minutes / continuous	kW	15/11
Chuck

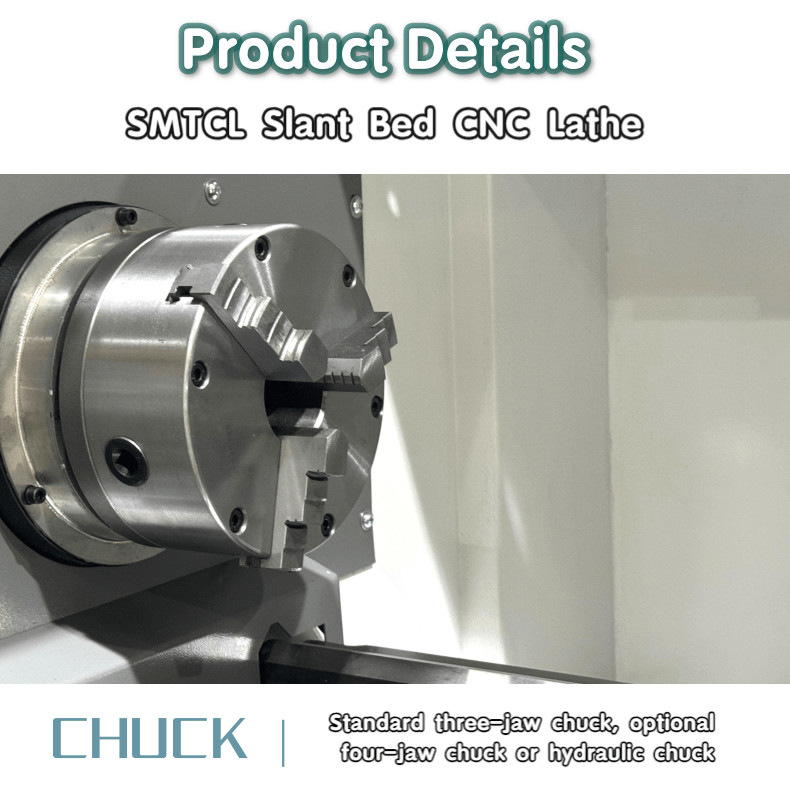

Chuck diameter/type	inch	8"
X-axis rapid traverse speed (rolling guide rail)	m/min	30
Z-axis rapid traverse speed (rolling guide rail)	m/min	30
X-axis travel	mm	200
Z-axis travel	mm	320
Standard tool post type
Tool size		Horizontal 8-position
Cylindrical turning tool	mm	25X25
Boring tool bar diameter	mm	Φ40/Φ32/Φ25/Φ20
Whether cutter head is able to select cutter handily	-	yes
Maximum load capacity
Disc workpieces	kg	200
Machine weight	kg	3400
Overall dimension (LWH)	mm	240019001850

Industry application:

Workpiece samples

1.Outer ball cage, inner ball cage, rotor shaft, differential housing,

2. Tooth shaft, camshaft, turbocharger rotor shaft, half shaft,

3. Plate roller, piston rod, cross shaft, steering shaft.

CNC Turning Center HTC40E SMTCL Slant Bed CNC Lathe Machine For Metal 7
