Precision Slant Bed CNC Lathe IT35L High Cost Performance SMTCL CNC Lathe For Metal
Product Details
| Brand Name: | SMTCL | Model Number: | IT35L |
|---|---|---|---|

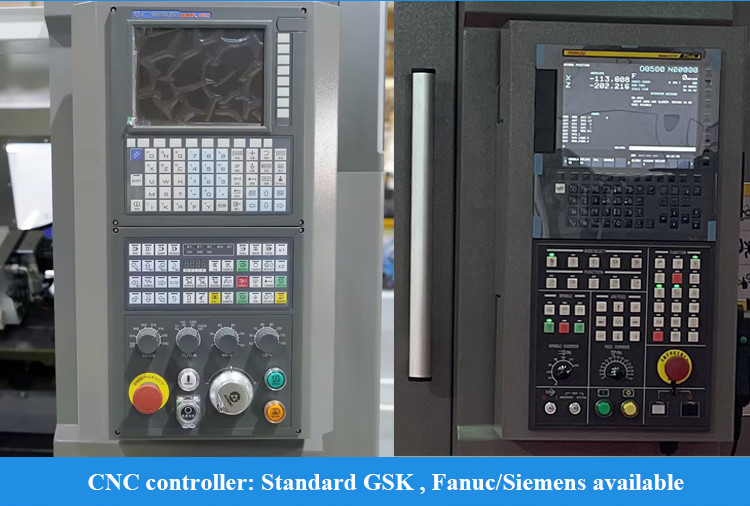

| CNC Control System: | GSK | CNC Or Not: | CNC |
| Key Word: | Slant Bed Lathe CNC Machine | Max. Turned Length (mm): | 500 |
| Max. Spindle Speed (r.p.m): | 4000 R.p.m | Travel (X Axis)(mm): | 260 |
| Travel (Z Axis)(mm): | 510 | Maximum Turning Diameter: | Φ360 |
| Maximum Turning Length: | 500 | Maximum Swing Over Bed: | Φ580 |
| Max Swing Over Slide: | Φ330 | ||
| Highlight |
Precision CNC Lathes,High Cost Performance CNC Lathe,Horizontal 8 station servo turret |
||
Product Description
Product Description:

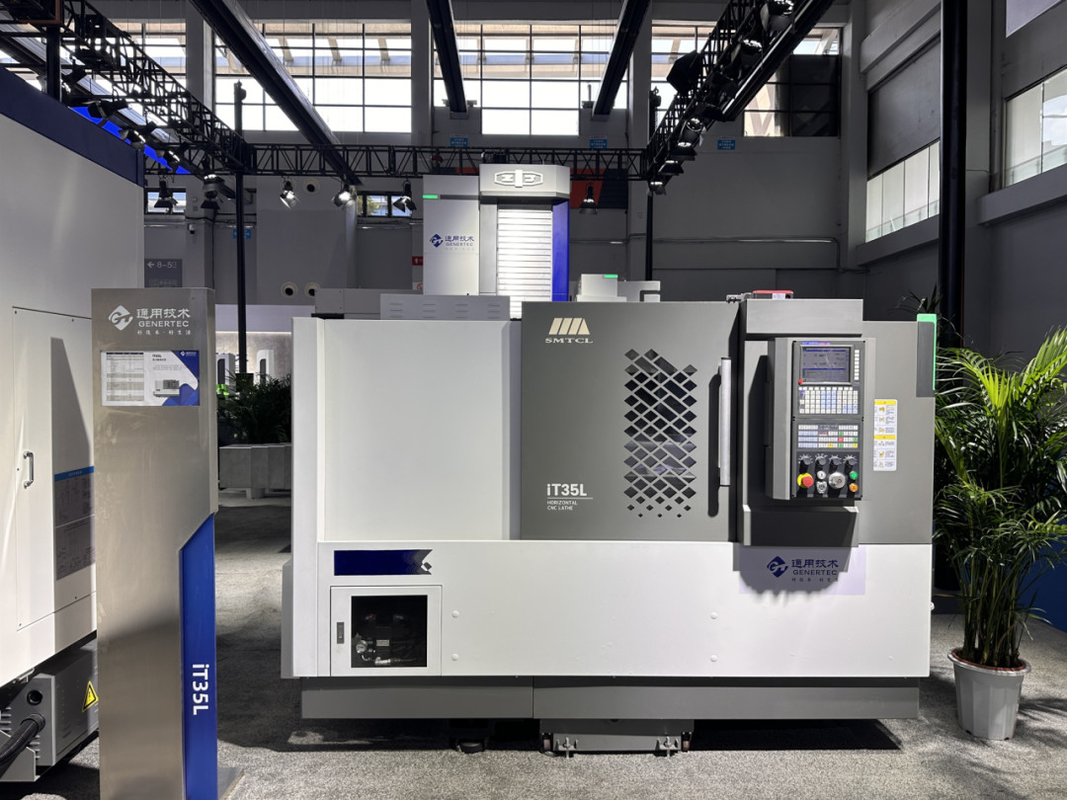

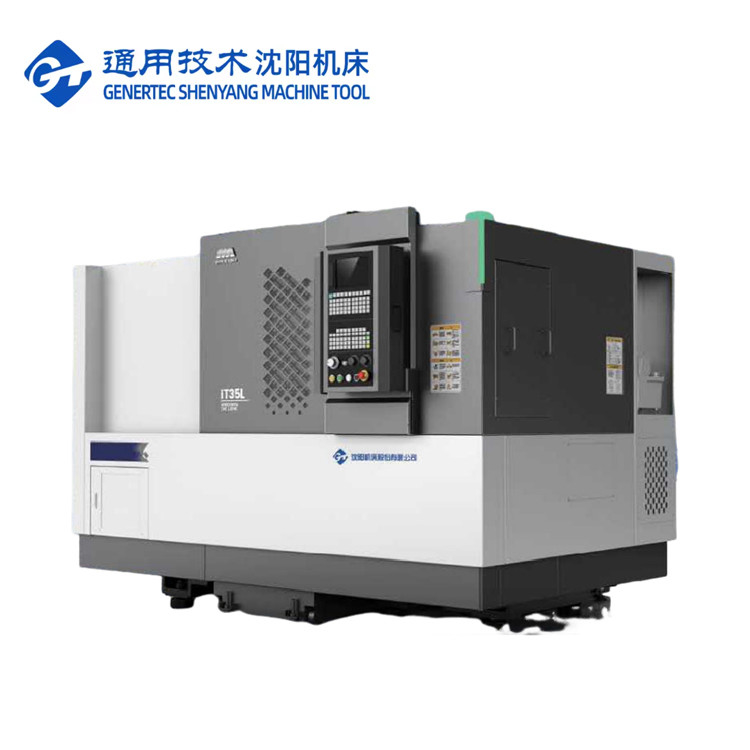

SMTCL Precision Slant Bed CNC Lathe IT35L High Cost Performance CNC Lathe For Metal
Slant Bed CNC Lathe is a kind of CNC lathe with a inclined design. This design makes the workpiece more stable during the turning process, reduces vibration and deformation, and improves the machining accuracy and surface quality. The lathe is usually used to process long and thin shaft workpieces, such as threaded rods, bearings, etc. It uses computer numerical control technology, can automatically complete the workpiece processing task, has the characteristics of high efficiency, accuracy and reliability. In general, Slant Bed CNC Lathe has the characteristics of high efficiency, accuracy and reliability, and is widely used in machinery manufacturing, automobile industry, aerospace and other fields.
Product Features:
1,High Rigidity
♦ Finite element analysis to optimize the whole machine structure

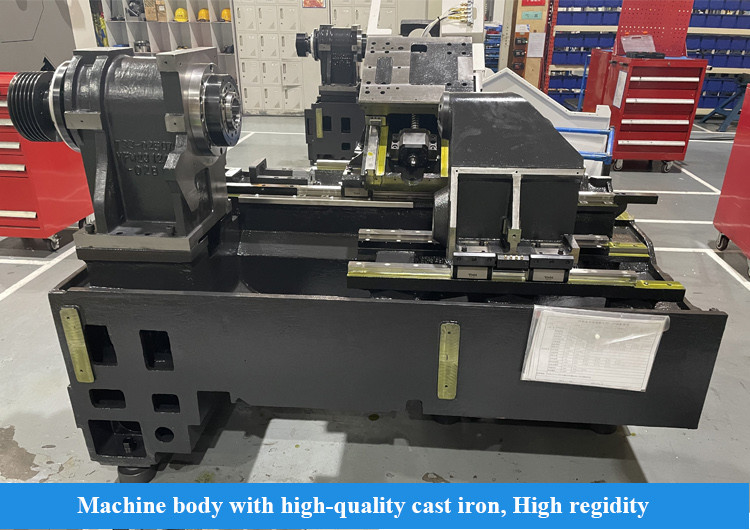

♦ The bed is made of high quality castings with reasonable bar layout

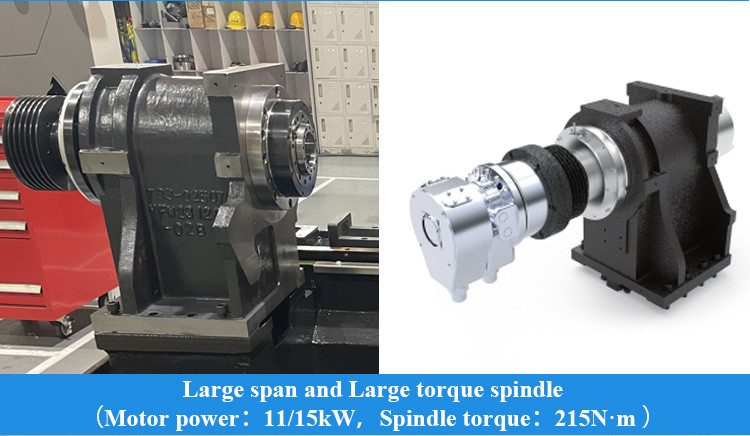

♦ Configuration of large span, large torque spindle, improve cutting rigidity
♦ Precision scraping process, improve the connection rigidity
|
Item
|
unit
|
specification (IT 35L)
|
||
|
Maximum turning diameter
|
mm
|
Φ360
|
||
|
Maximum turning length
|
mm
|
500
|
||
|
Maximum swing over bed
|
mm
|
Φ580
|
||
|
Max swing over slide
|
mm
|
Φ330
|
||
|
Spindle
|
|
|||
|
spindle nose
|
mm
|
A2-6
|
||
|
front bearing dia
|
mm
|
100
|
||
|
spindle taper and hole size
|
mm
|
1:20；Φ70
|
||
|
dis.of spindle hole
|
mm
|
Φ65
|
||
|
max dia. Of bar
|
mm
|
Φ50
|
||
|

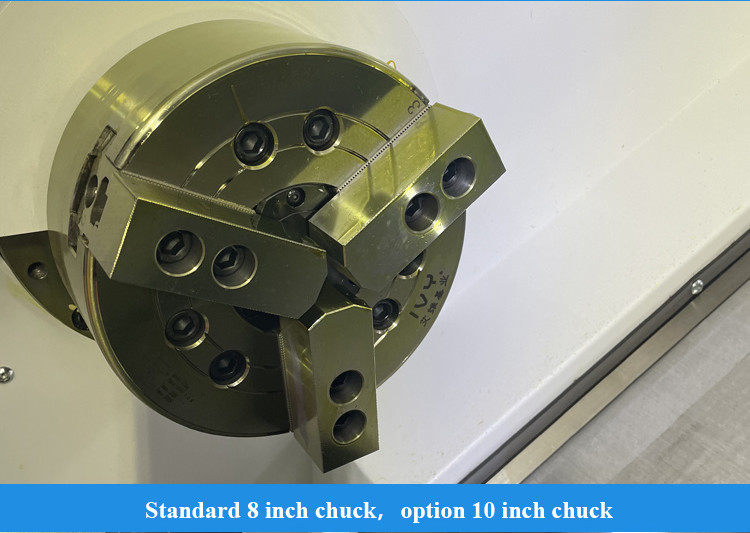

chuck size
|
inch
|
8
|
||
|
spindle speed
|
r/min
|
4000
|
||
|
spindle rated torque
|
Nm
|
158(666r/min)
|
||
|
max spindle torque
|
Nm
|
215(666r/min)
|
||
|
max motor output power continous/30min
|
kW
|
11/15
|
||
|
Feeding
|
|
|||
|
X/Z max speed
|
m/min
|
30
|
||
|
x axis travel
|
mm
|
200
|
||
|
z axis travel
|
mm
|
510
|
||
|

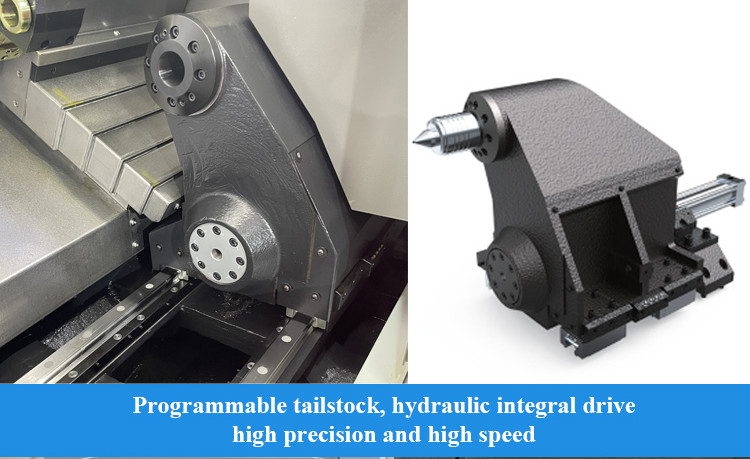

Tailstock
|
|
|
||
|
tailstock travel
|
mm
|
400
|
||
|
tailstock taper
|
morse
|
MT-5
|
||
|

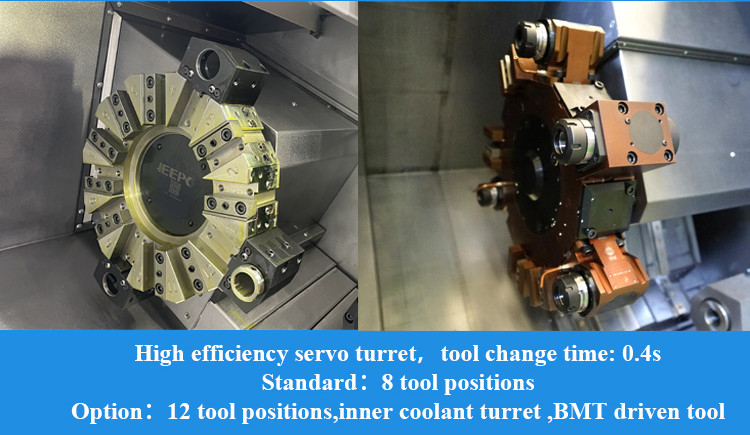

Turret
|
|
|||
|
turret type
|
|
Horizontal 8 station servo turret
|
||
|
center height
|
mm
|
80
|
||
|
rotary positioning
|
SEC.
|
±1.6
|
||
|
Other
|
|
|||
|
weight
|
KG
|
3600
|
||
|
overall dimensions
(L*W*H) |
mm
|
2550×1675×1760
|
||
Industry application:
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
