SMTCL Horizontal 5 Axis Machining Center HMU160 Machining Of Complex Parts High Speed 5 Axis Machining Center

SMTCL Horizontal 5 Axis Machining Center HMU160 Machining Of Complex Parts High Speed 5 Axis Machining Center

Complex Parts 5Axis Machining Center

5 Axis Horizontal Machining Center

High precision and high efficiency

Place of Origin:

China

Brand Name:

SMTCL/SYMG

Certification:

ISO certification

Model Number:

HMU160

Contact Us
Request A Quote
Product Details
Brand Name:
SMTCL
Model Number:
HMU160
Name:
Horizontal 5 Axis Machining Center
Control System:
SIEMENS GSK FANUC (optional)
Maximum Travel Of Skateboard -X Axis:
1500mm
Beam Maximum Travel -Y Axis:
1000mm
Maximum Spindle Travel -Z Axis:
660mm
Maximum Rotating Diameter Of Axis C:
Φ1800mm
A-axis Travel:
±110°
C-axis Travel:
360°
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
The wooden case,Tin trunk ,Other seaworthy packing
Delivery Time
45-60 days
Payment Terms
L/C,T/T,Western Union
Supply Ability
50 sets per month
Product Description

SMTCL Horizontal 5 Axis Machining Center HMU160 Machining Of Complex Parts High Speed 5 Axis Machining Center 0

Product Description:

HMU 160 High Speed High Performance Horizontal Five-axis Machining Centers

The product is suitable for the processing of complex shaped parts in new energy vehicles and other industries. It is a high-performance horizontal five-axis machining center independently developed by General Technology Group. The product linear shaft fast moving speed of 100m/min, acceleration of 1g, rotating shaft driven by torque motor, speed over 40r/min, the machine dynamic performance is excellent. High-speed, high-precision, high-stiffness characteristics, rich configuration, can be applied to new energy vehicles aluminum alloy subframe processing and other fields, will play an excellent production performance in the field of new energy vehicles.

Product Details:

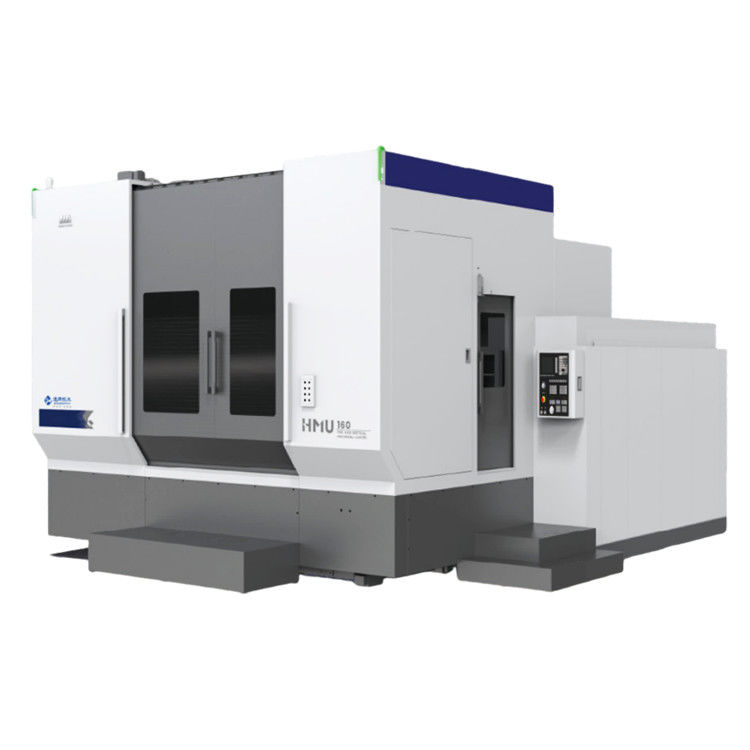

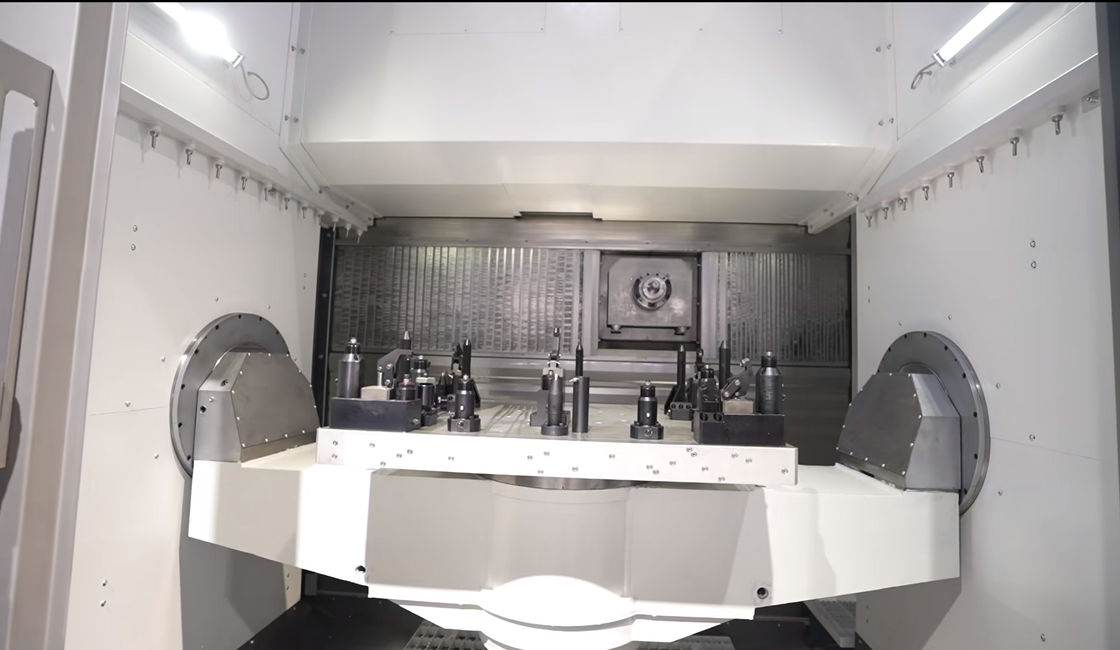

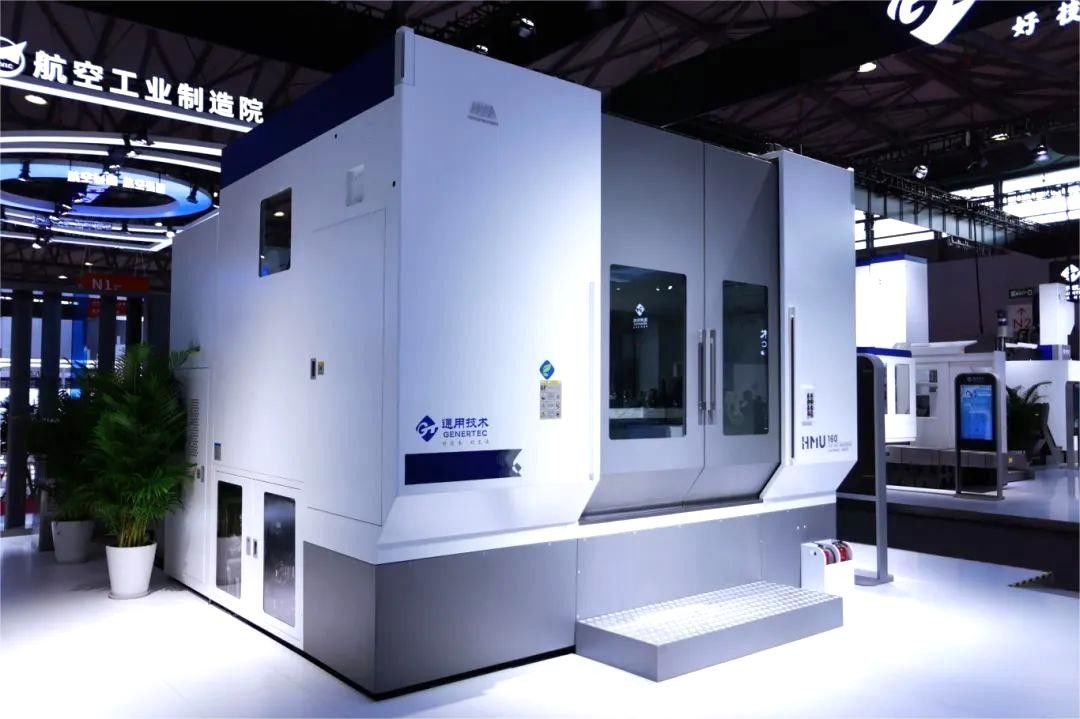

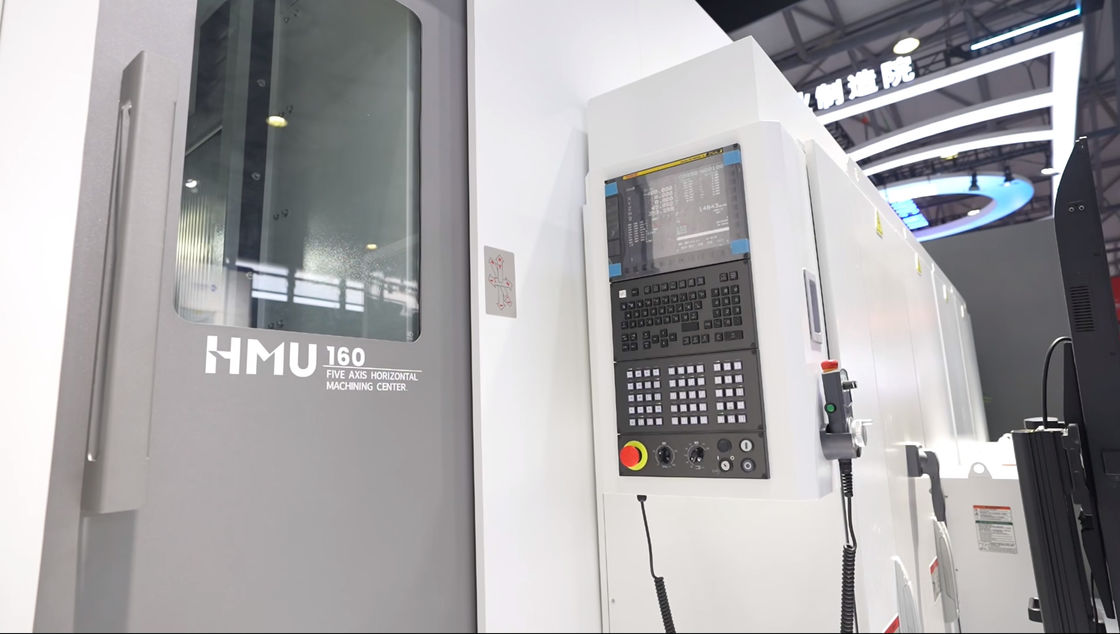

SMTCL Horizontal 5 Axis Machining Center HMU160 Machining Of Complex Parts High Speed 5 Axis Machining Center 1SMTCL Horizontal 5 Axis Machining Center HMU160 Machining Of Complex Parts High Speed 5 Axis Machining Center 2SMTCL Horizontal 5 Axis Machining Center HMU160 Machining Of Complex Parts High Speed 5 Axis Machining Center 3SMTCL Horizontal 5 Axis Machining Center HMU160 Machining Of Complex Parts High Speed 5 Axis Machining Center 4
Product Paramenters:
Item
Unit
Specifications
Capacity
Maximum travel of skateboard -X axis
mm
1500
Beam maximum travel -Y axis
mm
1000
Maximum spindle travel -Z axis
mm
660
Maximum rotating diameter of axis C
mm
Φ1800

A-axis travel
°
±110
C-axis travel
°
360
Worktable
Table size
mm
Φ580
Max load on the table

kg
800
T-slot size

M16
Spindle
Spindle taper

HSK-A100
Maximum speed
r/min
12000
Spindle drive mode

Motorized spindle
Output torque (100%/S6 40%)
N.m
175/206
Output power (100%/S6 40%)
kw
40/42
Feed
X-axis fast moving speed
m/min
100
Y-axis fast moving speed
m/min
100
Z-axis fast moving speed
m/min
100
A-axis fast moving speed
r/min
50
C-axis fast moving speed
r/min
40
A.T.C
Tool storage capacity
pc
40(expandable)
Max tool length
mm
550
Maximum tool weight
kg
20
Max. tool disk dia. (full)
mm
Φ125
Max. tool disk dia. (adjacent)
mm
Φ250
Positioning accuracy
X/Y/Z

mm
0.01
A/C
Sec
15/10
Repeatability positioning
 X/Y/Z

mm
0.006
A/C
Sec
10/6
Others
Net machine weight
kg
25000
