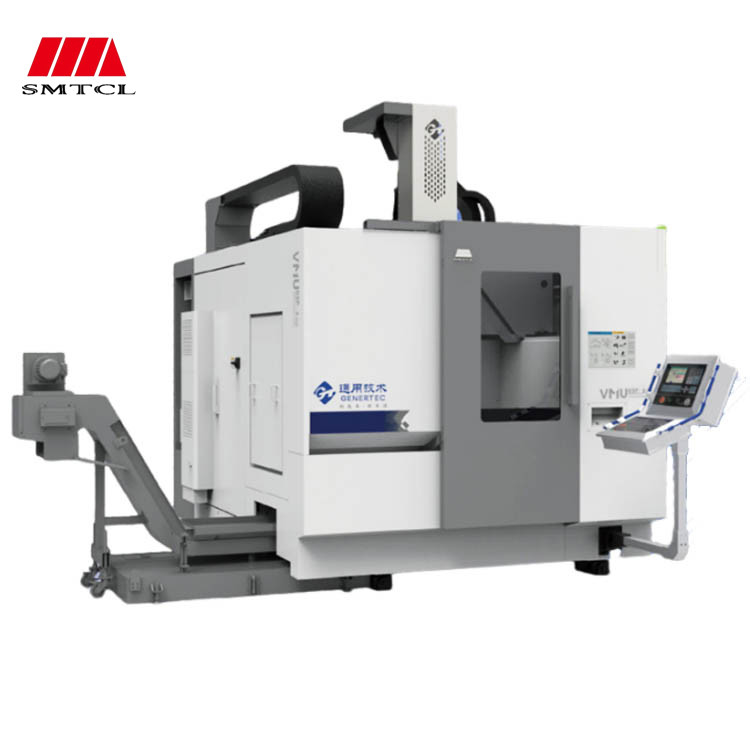

SMTCL Vertical 5 Axis Machining Center VMU63P Five Axis Linkage High Performance Vertical Machining Center
Product Details
| Brand Name: | SMTCL | Model Number: | VMU63P |
|---|---|---|---|
| Name: | Vertical 5 Axis Machining Center | Control System: | SIEMENS GSK FANUC (optional) |
| Maximum Travel Of Skateboard -X Axis: | 650mm | Beam Maximum Travel -Y Axis: | 650mm |
| Maximum Spindle Travel -Z Axis: | 500mm | A-axis Travel: | ±130° |
| C-axis Travel: | N×360° | ||
| Highlight |
Five axis Linkage Axis Machining Center,High Performance Axis Machining Center,VMU63P Vertical Machining Center |
||
Product Description
VMU 63P High performance Vertical Five-axis Machining Center
|
Item
|
Unit
|
Specifications
|
|
|
Capacity
|
Maximum travel of skateboard -X axis
|
mm
|
650
|
|
Beam maximum travel -Y axis
|
mm
|
650
|
|
|
Maximum spindle travel -Z axis
|
mm
|
500
|
|
|
Distance from spindle end face to table
|
mm
|
150-650
|
|
|
|
A-axis travel
|
°
|
±130
|
|
C-axis travel
|
°
|
n×360
|
|
|
Worktable
|
Table size
|
mm
|
Φ650×560
|
|
Max load on the table
|
kg
|
1000
|
|
|
T-slot size
|
mm×pcs
|
18×7
|
|
|
Spindle
|
Spindle taper
|
|
HSK-A63
|
|
Maximum speed
|
r/min
|
18000
|
|
|
Output torque (100%/40%)
|
N.m
|
83/107
|
|
|
Output power (100%/40%)
|
kw
|
25/32
|
|
|
Feed
|
X-axis fast moving speed
|
m/min
|
60
|
|
Y-axis fast moving speed
|
m/min
|
60
|
|
|
Z-axis fast moving speed
|
m/min
|
60
|
|
|
A-axis fast moving speed
|
r/min
|
50
|
|
|
C-axis fast moving speed
|
r/min
|
65
|
|
|
A.T.C
|
Tool storage capacity
|
pc
|
36
|
|
Max tool length
|
mm
|
300
|
|
|
Maximum tool weight
|
kg
|
8
|
|
|
Max. tool disk dia. (full)
|
mm
|
Φ80
|
|
|
Max. tool disk dia. (adjacent)
|
mm
|
Φ125
|
|
|
Positioning accuracy
|
X/Y/Z
|
mm
|
0.005
|
|
A/C
|
Sec
|
8
|
|
|
Repeatability positioning
|
X/Y/Z
|
mm
|
0.003
|
|
A/C
|
Sec
|
5
|
|
|
Others
|
Net machine weight
|
kg
|
16500
|
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect productio
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
