Name: 5 Axis Vertical Machining Center VMU30H High Precision Vertical CNC Milling Machine
Brand: Shanghai HD M&E Tech Co., Ltd.
SKU: HMU160
Availability: InStock

Home > products > Five Axis Machining Center >

5 Axis Vertical Machining Center VMU30H High Precision Vertical CNC Milling Machine

VMU30H 5 Axis Vertical Machining Center

5 Axis CNC Milling Machine

Place of Origin:

China

Brand Name:

SMTCL/SYMG

Certification:

ISO certification

Model Number:

HMU160

Request A Quote

Product Details

Brand Name:

SMTCL

Model Number:

VMU30H

Name:

Vertical 5 Axis Machining Center

Control System:

SIEMENS FANUC (optional)

Table Size:

Φ320mm

Max Load On The Table:

70kg

Maximum Travel Of Skateboard -X Axis:

400mm

Beam Maximum Travel -Y Axis:

500mm

Maximum Spindle Travel -Z Axis:

300mm

A-axis Travel:

±120°

C-axis Travel:

N×360°

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

The wooden case，Tin trunk ,Other seaworthy packing

Delivery Time

45-60 days

Payment Terms

L/C,T/T,Western Union

Supply Ability

50 sets per month

SMTCL 5 Axis Horizontal Machining Center HMU160 X/Y/Z Rapid Traverse 100m/min High Speed Machining Center

Get Best Price

Video

5 Axis Vertical Machining Center VMU30H High Precision Vertical CNC Milling Machine

Get Best Price

Video

Five-axis Machining Center VMU40H Max. Allowed Loading 300kg 5 Axis Linkage Vertical Machining Center

Get Best Price

Video

SMTCL Vertical 5 Axis Machining Center VMU63P Five Axis Linkage High Performance Vertical Machining Center

Get Best Price

+8613916455787

sales@huidijd.com

86-021-61195255

Contact Now

Product Description

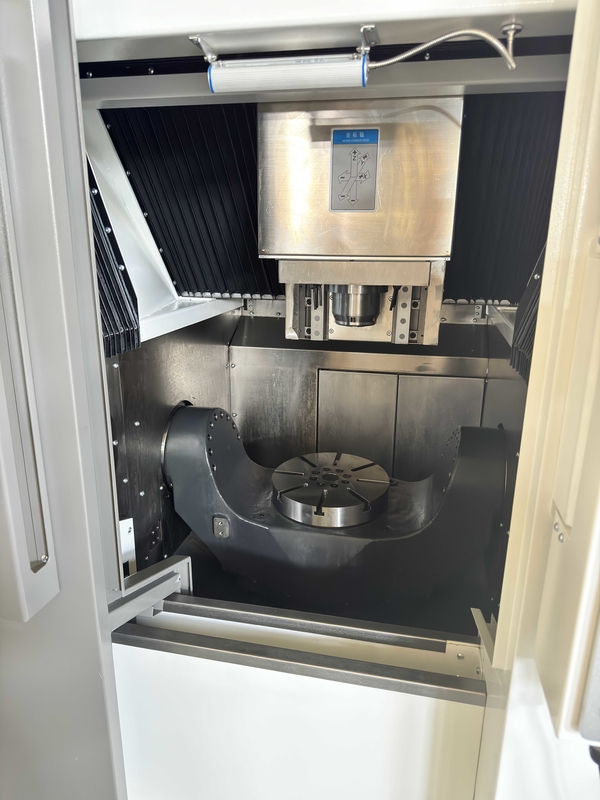

5 Axis Vertical Machining Center VMU30H High Precision Vertical CNC Milling Machine 0

Product Description:

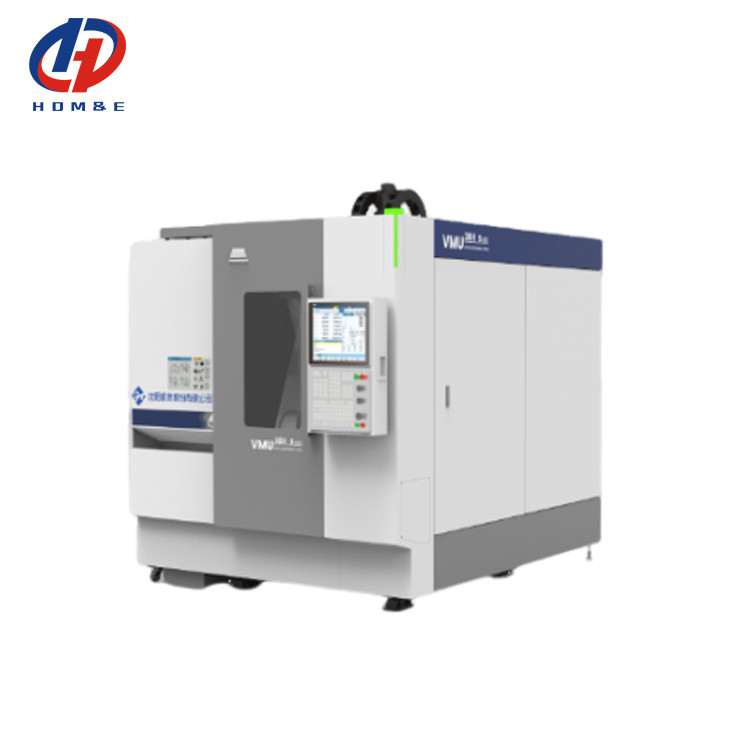

5 Axis Vertical Machining Center VMU30H High Precision Vertical 5 Axis CNC Milling Machine

It provides complete solutions for five-axis machining, turn-milling and composite machining, suitable for aerospace, energy equipment, automobile manufacturing, Marine manufacturing, 3C (computer, communication, consumer electronics) fields.

Product Details:

Industry application:

Product Paramenters:

Item		Unit	VMU30H
Worktable	Table size	mm	Φ320
	Max load on the table	kg	70
	T-slot size	mm×pcs	14×8

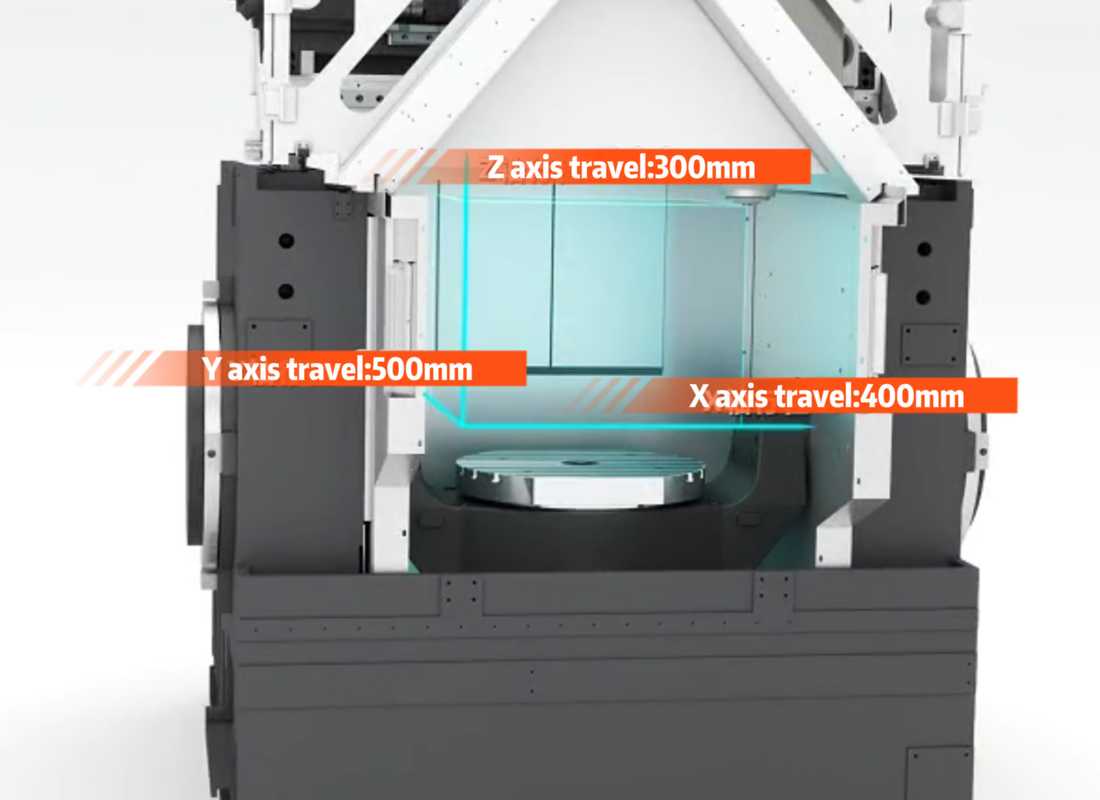

Capacity	Maximum travel of skateboard -X axis	mm	400
	Beam maximum travel -Y axis	mm	500
	Maximum spindle travel -Z axis	mm	300
	Distance from spindle end face to table	mm	130-430
	A-axis travel	°	±120
	C-axis travel	°	n×360
Spindle	Spindle taper		HSK-E40
	Maximum speed	r/min	30000
	Output torque (S1/S6)	N.m	5/8.5
	Motor power (S1/S6)	kw	9/11
	Driven mode		Motor spindle
Feed	X-axis rapid traverse	m/min	18
	Y-axis rapid traverse	m/min	18
	Z-axis rapid traverse	m/min	18
	A-axis speed	rpm	55
	C-axis speed	rpm	80
Tool magazine	Type		Disc-type on horizontal
	Select mode		Magazine tool pusher
	Capacity	pcs	20
	Max tool length	mm	200
	Maximum tool weight	kg	5
	Max. diameter of tool disk	mm	Φ50
	Tool change time	s	3-4
Positioning accuracy	X/Y/Z	mm	0.006
Positioning accuracy	A/C	Sec	8
Repeatability positioning	X/Y/Z	mm	0.004
Repeatability positioning	A/C	Sec	5
Height of worktable surface to foundation base		Mm	850
Machine weight		kg	5500
Over dimension(LWH)		mm	200025002450

Item
Positioning accuracy	X axis	0.006mm
	Y axis	0.006mm
	Z axis	0.006mm
	A axis	8 sec
	C axis	8 sec
Repeatability accuracy	X axis	0.004mm
	Y axis	0.004mm
	Z axis	0.004mm
	A axis	5 sec
	C axis	5 sec

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:

◆ Top quality sense, customers' requests come first

◆ 30 years + R & D history, the company was founded in 1993

◆ High-tech manufacturer with research anddesign capacity

◆ Stable and mature supplying system

◆ Young active sales and engineers for instant services(24 hours online)

◆ Upgrading on mechanism according to ergonomics and easy maintenance

◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect productio

About Us :

Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Our Factory :

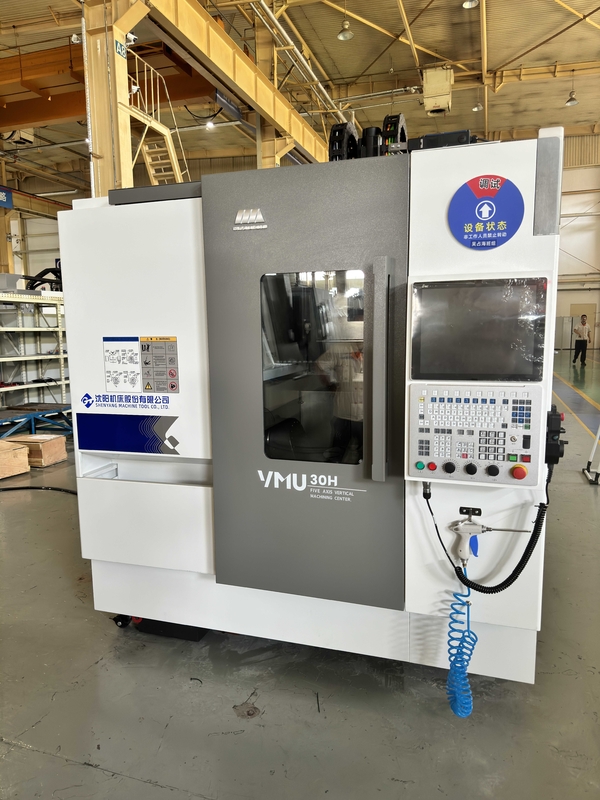

5 Axis Vertical Machining Center VMU30H High Precision Vertical CNC Milling Machine 7

FAQ :

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
