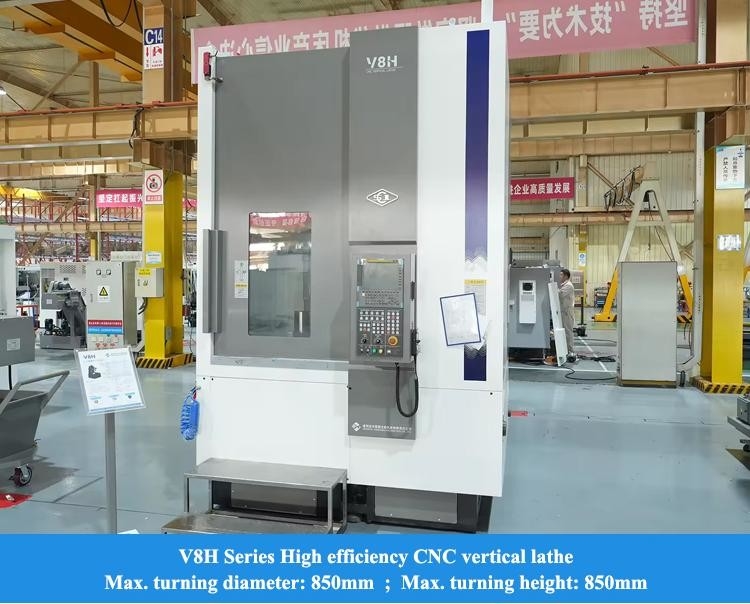

Large Metal Vertical CNC Lathe V8H Max.cutting Height 850mm Fanuc CNC Milling Vertical Lathe
Product Details
| Brand Name: | SMTCL | Model Number: | V8H |
|---|---|---|---|
| Name: | Vertical Cnc Lathe Machine | Control System: | SIEMENS GSK FANUC (optional) |
| Max.cutting Diameter: | Φ850 | Max.swing Diameter: | Φ1000 |
| Max.cutting Height: | 850 | X Axis Travel: | 480 |
| Z Axis Travel: | 850 | Turret: | Horizontal 8 Positions Servo Turret |
| Highlight |
SMTCL Vertical CNC Lathe,V8H Metal SMTCL Vertical CNC Lathe,Vertical CNC Lathe |
||
Product Description

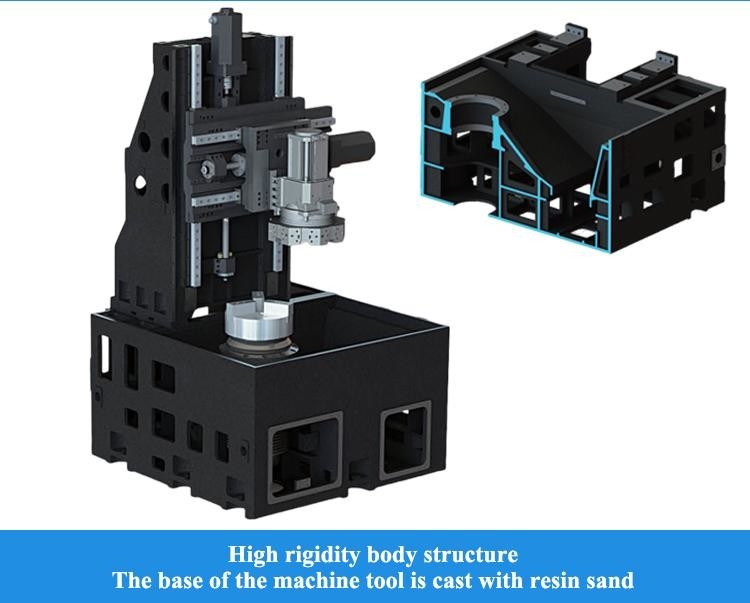

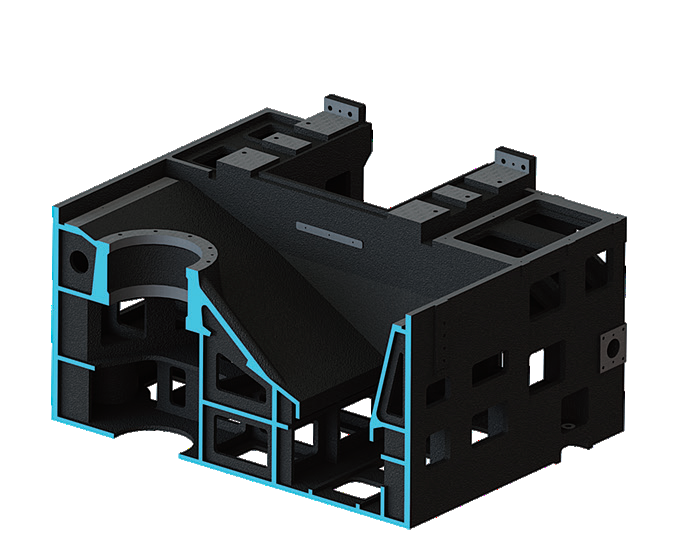

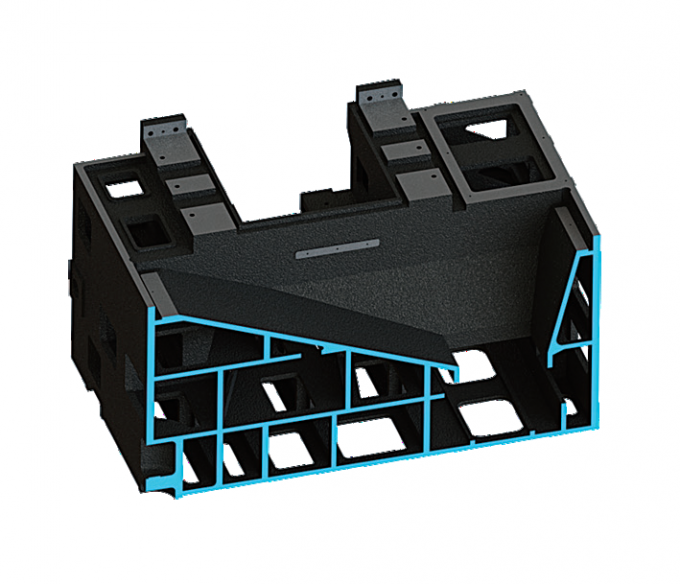

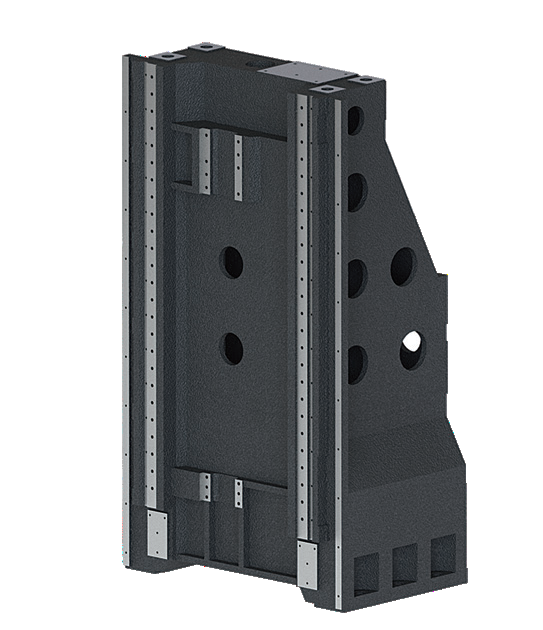

High rigidity body structure
Whole body casting made by resin
sand to reach low gravity,anti-
vibration. Main contact surfaces
all solved by scretch way, can keep
the precision and stability during
heavy duty cutting

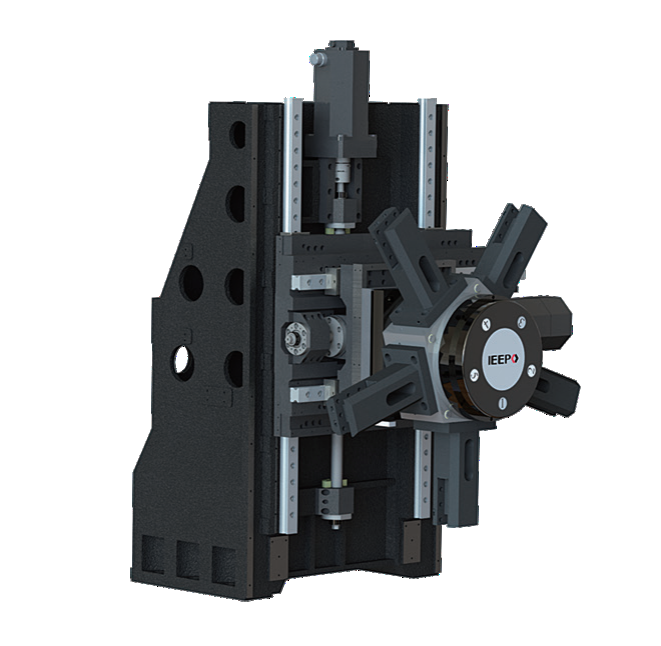

transshape, more suitable to
vertical turret and integrated
turret.

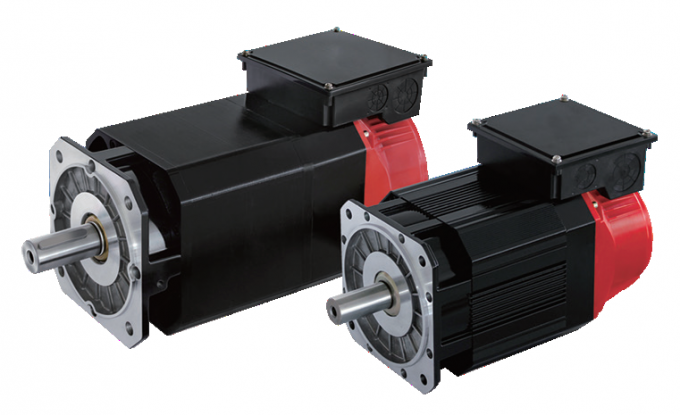

or high speed&low torque, satisfy customer’s high
speed and big torque request.
|
Item
|
Unit
|
V 8H
|
|
Accuracy grade
|
|
IT6
|
|
Technical parameters
|
||
|
Max.cutting diameter
|
mm
|
Φ850
|
|
Max.swing diameter
|
mm
|
Φ1000
|
|
Max.cutting height
|
mm
|
850
|
|

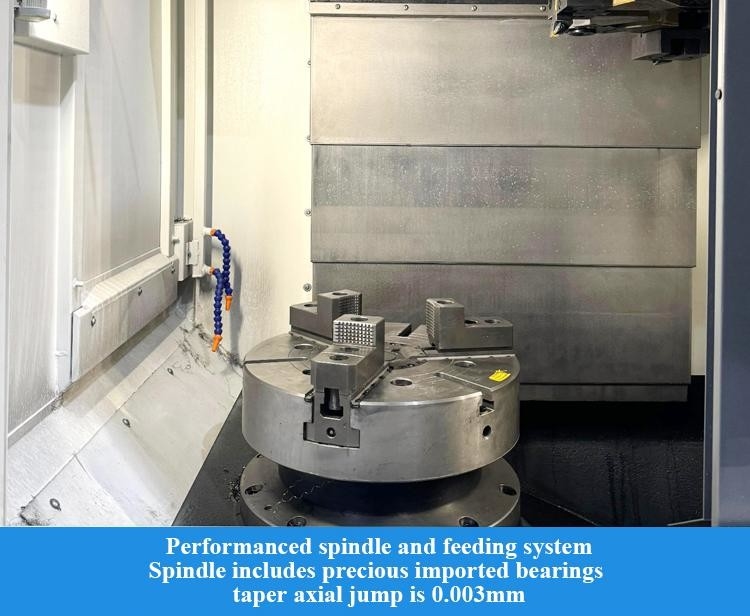

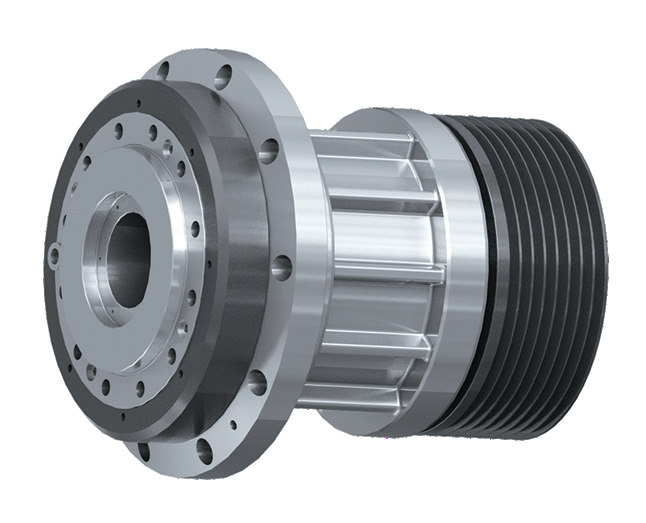

Spindle
|
||
|
Spindle nose and taper
|
|
A2-11(A2-15)
|
|
Standard chuck size
|
Inch
|
21(☆ 24,☆ 32)
|
|
Max.spindle speed
|
r/min
|
1500
|
|
Rated spindle torque
|
N.m
|
1400
|
|
Main motor output power continous/30min
|
KW
|
22/30
|
|
X/Z axis
|
||
|
X axis rapid traverse
|
m/min
|
18
|
|
Z axis rapid traverse
|
m/min
|
18
|
|
X axis travel
|
mm
|
480
|
|
Z axis travel
|
mm
|
850
|
|

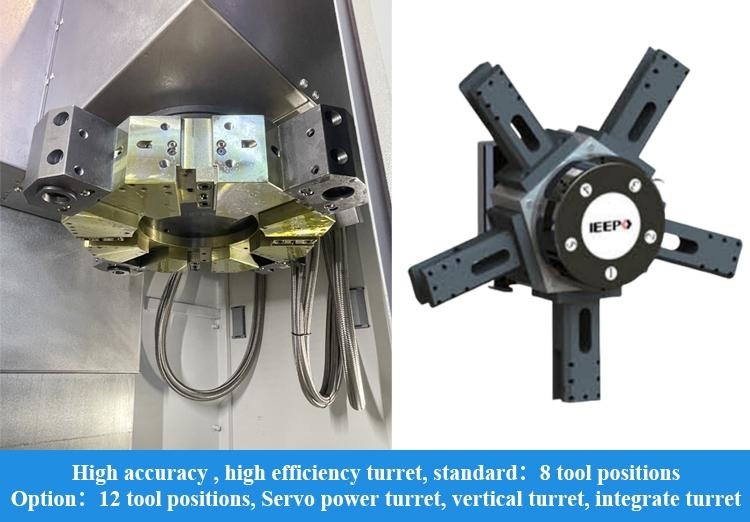

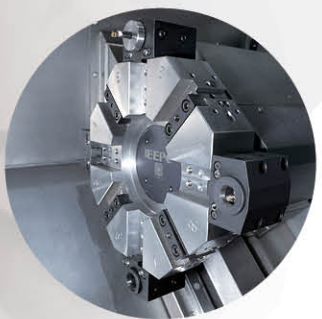

Turret
|
||
|
Type
|
|
Horizontal 8 positions servo turret
|
|
Center height
|
mm
|
160
|
|
Turret rotary repeat positioning
|
''
|
±1.6
|
|
Positioning
|
||
|
X axis
|
mm
|
0.008
|
|
Z axis
|
mm
|
0.01
|
|
Repeat positioning
|
||
|
X axis
|
mm
|
0.006
|
|
Z axis
|
mm
|
0.006
|
|
Machine weight
|
kg
|
10500
|
|
Machine dimensions(Without conveyor)
|
mm
|
2632×2110×3652
|
|
Standard configuration
|

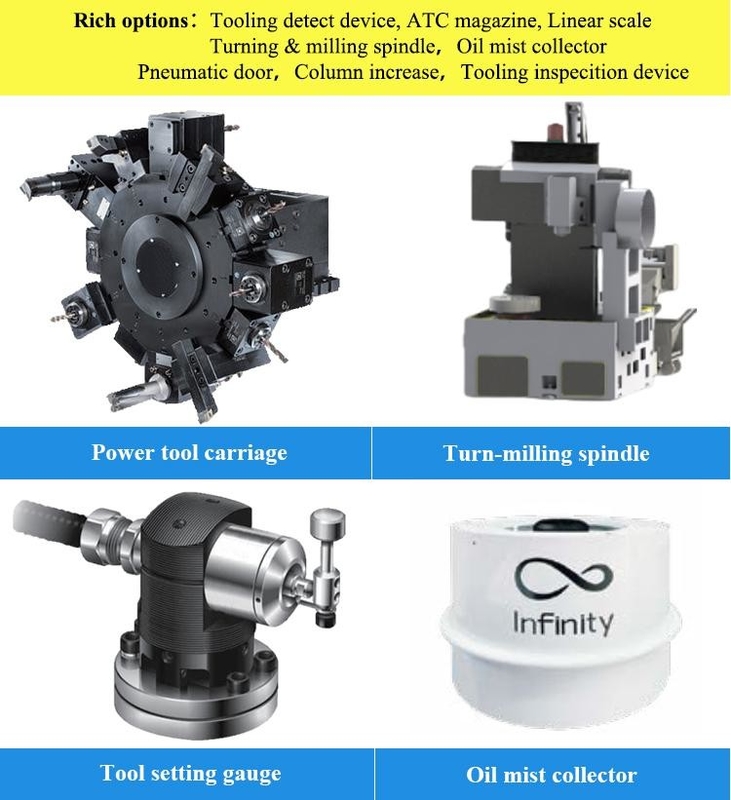

Selective configuration
|
|

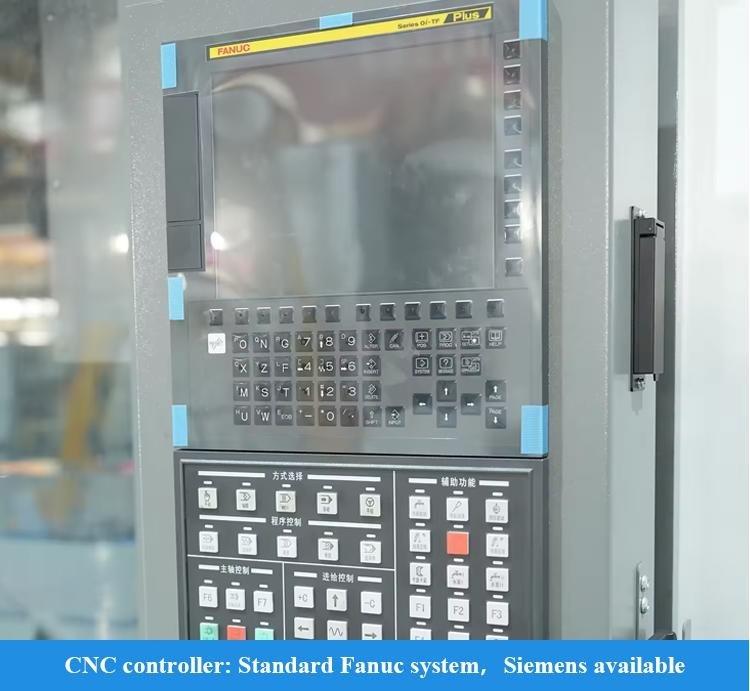

10.4" Fanuc System
|
Power tool rest
|
|
Lubrication equipment
|
Raised column
|
|
Hydraulic chuck (with soft claw)& rotary cylinder
|
Vertical tool rest
|
|
Hydraulic equipment
|

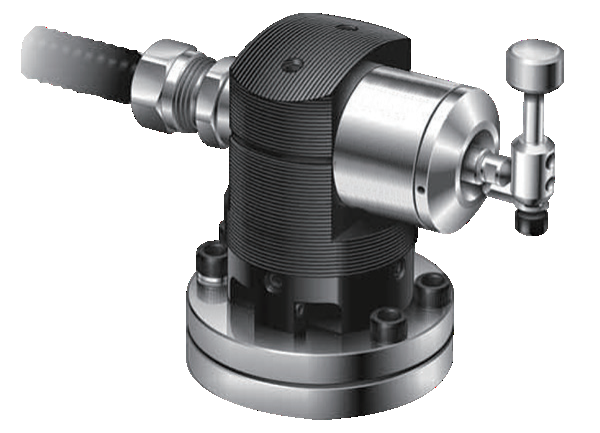

Tool detection
|
|
Roller guide
|
Turning and milling spindle
|
|
Safety plate
|
Test cylinder
|
|
Chain chip extractor
|
Oil mist collector
|
|
Tricolour light
|
Pneumatic door
|
|
Side flushing chip
|
Grating scale
|
|
Floodlight
|
Oil-water separation
|
|
Foot switch
|
High pressure water tank
|
|
Door lock
|
ATC Knife library
|
|
Water gun
|
Magnetic scraper chip remover
|
|
|
Tailstage
|
