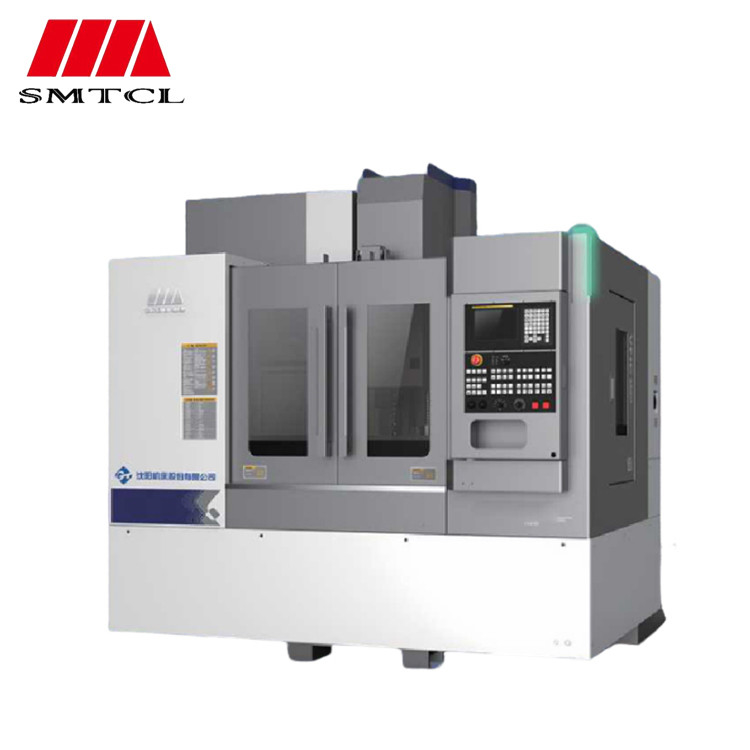

SMTCL CNC Vertical Machining Center VMC1000Q Metal Drilling Boring Tapping 3 Axis Cnc Milling Machine
Brand Name:
SMTCL/SYMG
Model Number:
VMC 1000Q
Place of Origin:
China
Certification:
ISO certification
Minimum Order Quantity:
1 Set
Price:
Negotiable
Supply Ability:
50 sets per month
Product Details
| Type:: | VERTICAL | CNC Control System:: | FANUC, Siemens,GSK |
|---|---|---|---|
| Feed Speed(mm/min):: | 1 - 10000 Mm/min | Positioning Accracy (mm)u:: | 0.006 |
| Repeatability (X/Y/Z) (mm):: | 0.004 | Spindle Motor Power(kW):: | 11/15 |
| Tool Magazine Capacity:: | 24 | Table Size (L×W): | 1150x500mm |
| Brand Name:: | SYMG,SMTCL | X Axis Travel: | 1000mm |
| Y Axis Travel: | 500mm | Z Axis Travel: | 540mm |
| Highlight |
High-precision Vertical Machining Center,CNC Vertical Milling Machine,Good accuracy and accuracy retention |
||
Product Description
Product Description:
SMTCL CNC Vertical Machining Center VMC1000Q Metal Drilling Boring Tapping 3 Axis Cnc Milling Machine
VMC-Q series machine tools are the new generation general vertical machining center through independent R&D for industrial areas such as general machinery, automobile, and so on. Through professional design and analysis software for scientific and reasonable analysis and optimization, as well as advanced manufacturing and testing technology for verification and improvement, the equipment has good cutting performance, which can satisfy the requirements of drilling and milling of various parts and provide the customers with the best processing experience.
FEATURES AT A GLANCE:

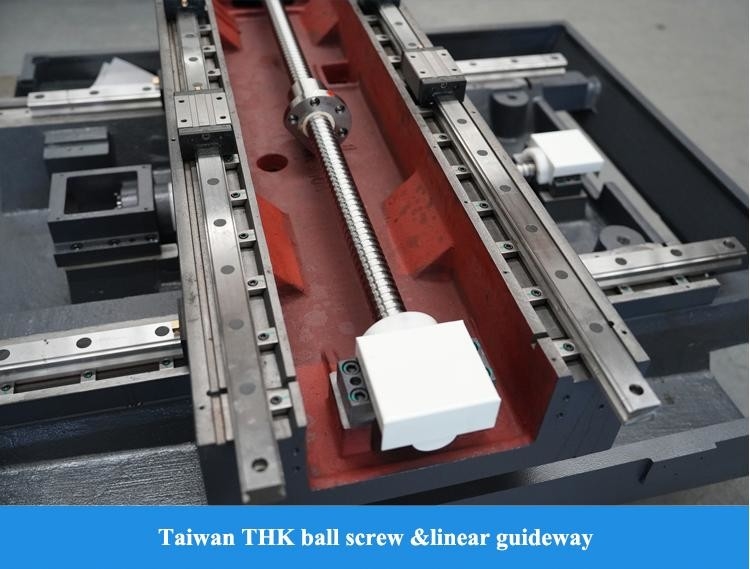

A Lead screw: pre-drawn The three-axis lead screw adopts the installation method of fixed two ends, and with 40 large diameter high precision ball screw, the best speed response and positioning accuracy can be obtained by pre-stretching treatment.
B Guide rail: roller Roller linear guide rail is selected for three axes to increase bearing capacity and enhance the overall rigidity and reliability of the machine tool. Linear guide has small vibration at high speed and no crawling at low speed to ensure machining accuracy.
C Spindle: 10000 RPM 10000 RPM high speed spindle, bearing imported P4 special bearings, with high precision, high rigidity; The main shaft has passed the dynamic balance correction test before leaving the factory.
D Headstock: high rigidity High rigidity structure spindle box design, improve the cutting resistance of the machine tool and effectively reduce the vibration of the spindle, to ensure the machining accuracy and surface finish of the parts.
E Pillar: herringbone type Classic "human" type structure, solid and stable, effectively maintain the processing stability and load-bearing capacity at high speed displacement.
F Bed: large incline Large tilt Angle bed, effectively promote the removal of debris. The interior of the bed adopts box-type structure design, which is strong and reliable, effectively improving the rigidity and stability of the product.
PRODUCT SPECIFICATIONS:
Main technical specifications
Main Technical Parameters
Standard

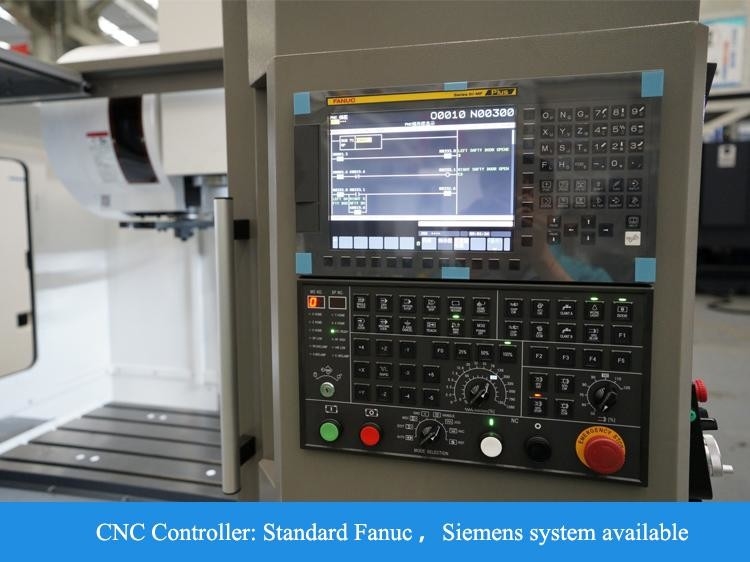

1. FANUC OI-MF TYPE(5)β control system
2. 10000 RPM spindle , belt connected

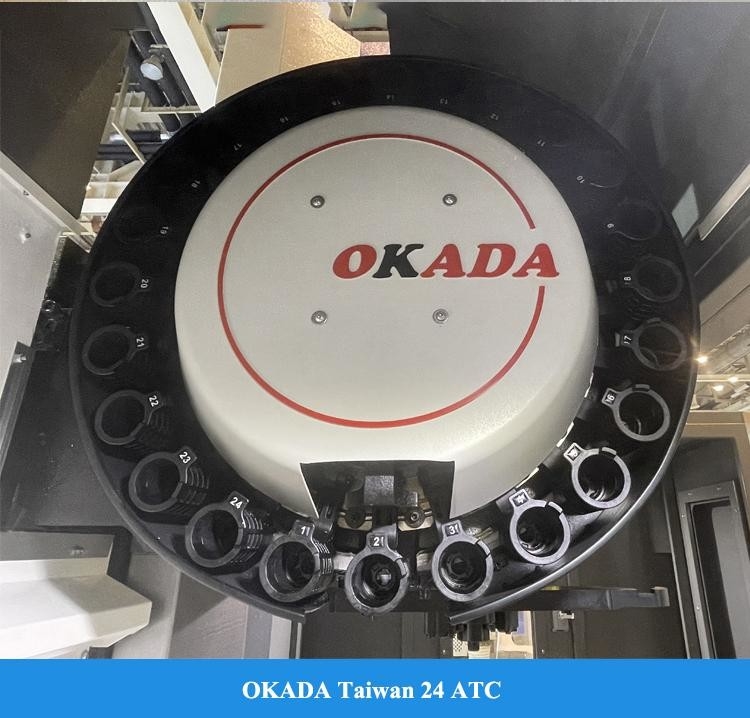

3. 24 disc manipulator tool magazine
4. Water tank + bed flushing chip
5. Clean air gun, working light, warning light
Optional
1. Fanuc Oi-MF TAPE(l)β system
2. Fanuc Oi-MF TAPE(l)α system
3. Siemens 828D CNC system

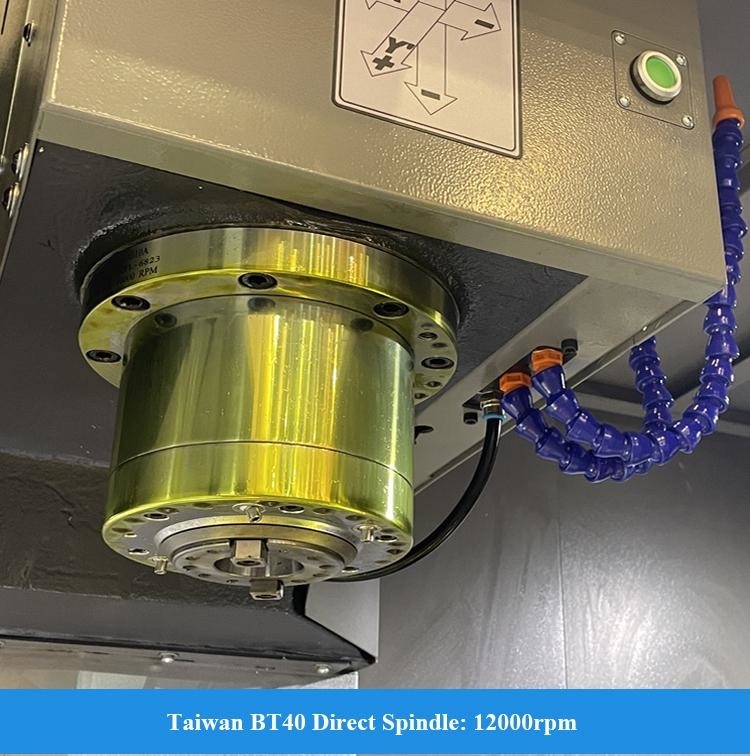

4. Direct connection 12000 RPM mechanical spindle
5. 16000 RPM, 24000 motorized spindle

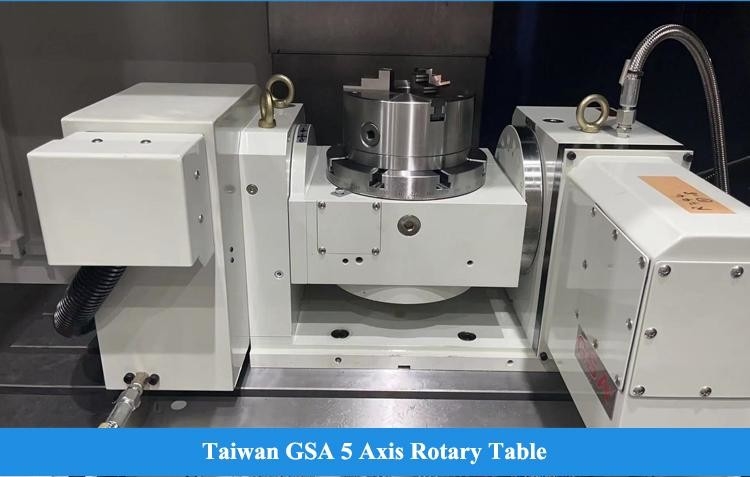

6. 4th axis turntable
7. Cooling inside 2MPa, 3MPa,5MPa,7MPa
8. Oil-water separator

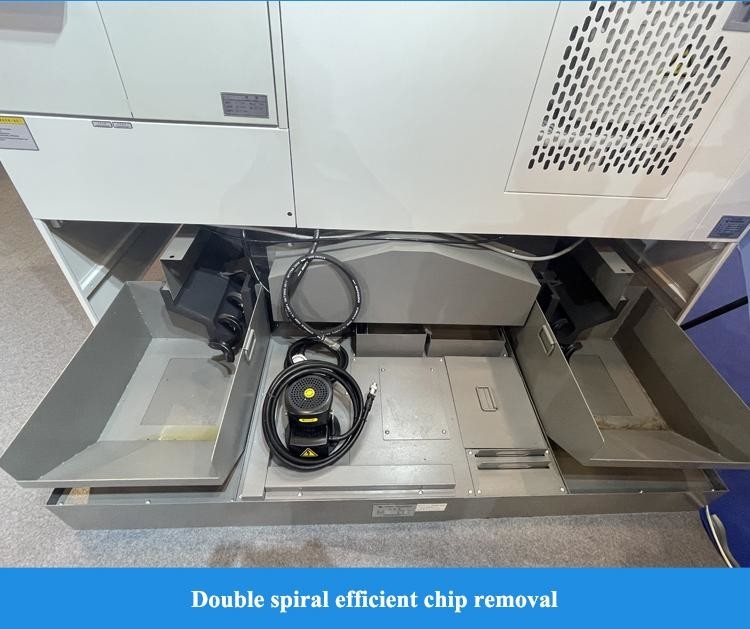

9. Chain chip remover
10. Clean water gun
11. Tool and workpiece inspection
12 . automatic door
13. Safety door lock
14. Electric cabinet and air conditioning
Main accuracy
The accuracy of the machine implements the acceptance standard GB/T18400.2-2010 Acceptance standard for machine tool positioning accuracy and repeated positioning accuracy GB/T18400.4-2010
Main configuration
Main configuration of machine tool and list of purchased parts
Why Choose Us :
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
Exhibition:
FAQ:
Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
