Place of Origin:
CHINA
Brand Name:
SMTCL
Certification:
CE ISO certification
Model Number:
V2 V4
![]()
Product Description:
Product Features:
![]()
A,Nitrogen balance
|
Item
|
Unit
|
V2S
|
V4C
|
V4S
|
|
Machining capacity
|
||||
|
Maximum swing diameter over bed
|
mm
|
Φ500
|
Φ650
|
Φ720
|
|
Maximum cutting height
|
mm
|
350
|
500
|
650
|
|
Maximum cutting diameter
|
mm
|
Φ330
|
Φ500
|
Φ600
|
|
Spindle
|
||||
|
Spindle nose type
|
|
A2-8
|
A2-8
|
A2-11
|
|
Spindle speed range
|
r/min
|
50-3000
|
50-2500
|
50-2500
|
|
Output power of main motor
|
KW
|
15/18.5
|
15/18.5
|
22/30
|
|
Maximum output torque of spindle
|
Nm
|
472 β motor
530 α motor
|
549 β motor
715 α motor
|
1160 β motor
1169 α motor
|
|
Chuck diameter
|
inch
|
10‘’
|
12‘’
|
15‘’
|
|
Feeding
|
||||
|
X-axis rapid traverse speed
|
m/min
|
30
|
18
|
18
|
|
Z-axis rapid traverse speed
|
r/min
|
30
|
18
|
18
|
|
Travel
|
||||
|
x-axis travel
|
mm
|
200
|
300
|
300
|
|
Z-axis travel
|
mm
|
400
|
520
|
690
|
|

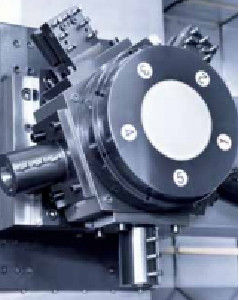

Tool post
|
||||
|
Tool post type
|
|
Horizontal 8-position
|
Horizontal 8-position
|
Horizontal 8-position
|
|
Tool size
|
|
25*25/Φ40
|
25*25/Φ50
|
25*25/Φ50
|
|
Accuracy
|
||||
|
Machining accuracy
|
|
IT6
|
IT6-IT7
|
IT6-IT7
|
|
Surace roughness of workpiece machined
|
|
Ra1.25
|
Ra1.6
|
Ra1.6
|
|
Positioning accuracy
|
||||
|
X-axis
|
mm
|
0.008
|
0.008
|
0.008
|
|
Z-axis
|
mm
|
0.008
|
0.008
|
0.008
|
|
Positioning repeatability
|
||||
|
X-axis
|
mm
|
0.004
|
0.005
|
0.005
|
|
Z-axis
|
mm
|
0.005
|
0.005
|
0.005
|
|
Maximum load capacity
|
||||
|
Disks (including chuck and fixture}
|
kg
|
300
|
350
|
400
|
|
Machine weight
|
||||
|
Main unit
|
kg
|
4500
|
6800
|
7300
|
|
Overall dimension
|
||||
|
L×W×H
|
mm
|
2000*1370*2275
|
2260*1780*2880
|
2260*1780*3060
|
Industry application:
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
![]()
![]()
