SMTCL High Precision Metal Lathe Milling Machine Combo Vertical CNC Lathe
Brand Name:
SMTCL
Model Number:
V2 V4
Place of Origin:
CHINA
Certification:
CE ISO certification
Minimum Order Quantity:
1
Supply Ability:
50 sets per month
Product Details
| Brand Name: | SMTCL | Model Number: | V2 V4 |
|---|---|---|---|
| CNC Or Not: | CNC | Key Word: | Vertical CNC Lathe |
| Spindle Nose Type: | A2-8 | Output Power Of Main Motor: | 15/18.5KW |
| Maximum Swing Diameter Over Bed: | Φ500 /Φ650 Mm | Maximum Cutting Height: | 350/500mm |
| Highlight |
High Precision Vertical CNC Turning Center,Vertical CNC Lathe V2,Heavy Duty Lathe Milling Machine Combo |
||
Product Description
Product Description:
V2/4 Series High Precision vertical CNC Lathe
CNC vertical lathe is a machine tool for machining workpieces, which is characterized by a spindle perpendicular to the work surface. It uses a numerical control system to control the movement of the tool to achieve accurate machining operation. CNC vertical lathe is usually composed of machine tool body, workbench, spindle, tool holder, CNC system and so on. The machine body is usually composed of a bed, column and beam, providing stable support and rigidity. The workbench is a platform for holding workpieces and can be lifted and rotated as needed. The spindle is the shaft used to install the tool, and the speed and feed speed can be controlled by the CNC system. The tool holder is a part used to fix the tool, which can realize the feed and rewind of the tool. Numerical control system is the core part of controlling the whole lathe operation, which can control the moving track and machining parameters of the tool through the program. CNC vertical lathe has the advantages of high precision, high efficiency and strong flexibility. It can perform a variety of machining operations, such as turning, milling, drilling, etc. Through the programming of numerical control system, the machining of complex shapes can be realized, and the machining precision and production efficiency can be improved. CNC vertical lathes are widely used in aerospace, automobile manufacturing, mold processing and other fields.Product Features:

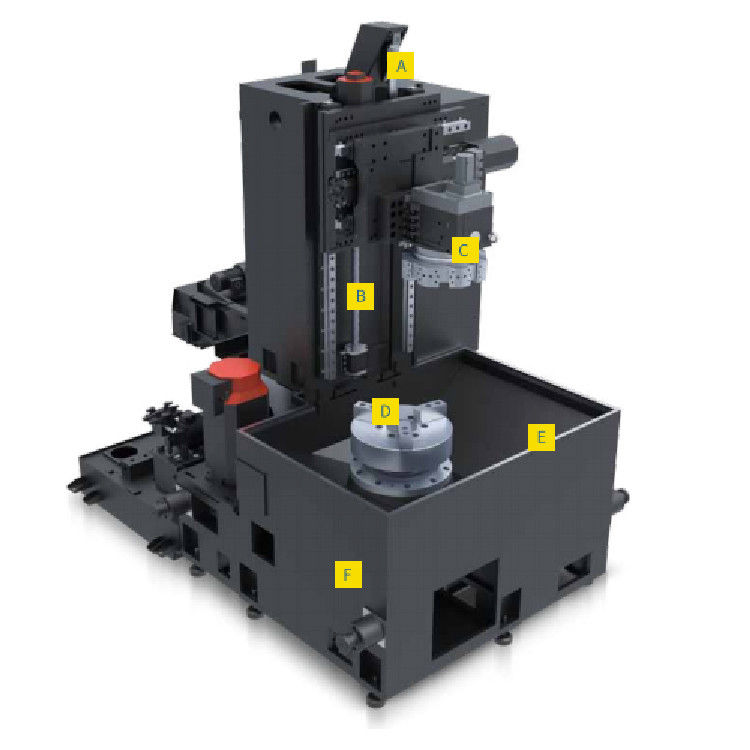

A,Nitrogen balance
Independentnitrogenbalancemechanismprovides assurance of Z-axis fastmotion and features environmentalprotectionandenergy-saving
B,Compact structure
The structureofmainunitiscompactand foorarea isreduced
C,High-speed two axes
Machiningefciencyisefectivelyenhanced

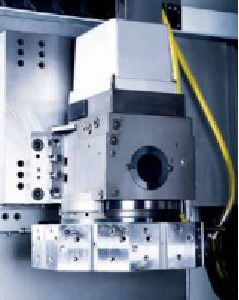

D,lntegral spindle
High-rigidity spindleensuressmoother cutting,anddouble-labyrinthwaterproofstructureensures reliabilityofspindle

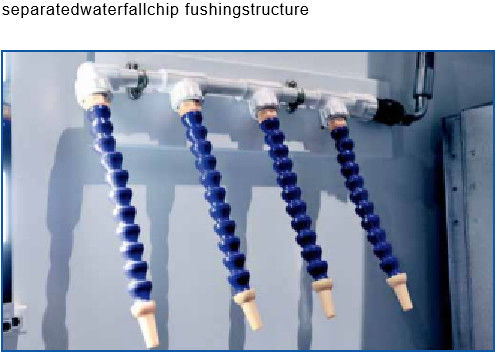

E,Large chip discharge angle
chipdischargeangle is enlargedtoensure smooth chipdischarge
F,lntegralbe
Bed isanalyzed and optimized to enhancethe rigidityofmachinetool.
Product Details:
V2 Series CNC vertical lathe
The productfeatures compact and robust high rigidity structure and applies to machining of automotive components such as small-sizebrake disc and flywheel as well as electric motor and water pump housing. The product can be used for soft/hard turning of small sizebearing and is able to realize replacement of grinding by turning.
V4 Series CNC vertical lathe
The product features perfect combination of high machining performance and low floor area occupation, and applies to machining ofautomotive components such as wheel hub, brake disc and flywheel, etc.The product can also be used for soft/hard turning of bearingand is able to realize replacement of grinding by turning. The product is able to realize turning of brake disc after installation of auiliaryshaft, substantially enhancing efficiency and machining accuracy
Product Paramenters:
|
Item
|
Unit
|
V2S
|
V4C
|
V4S
|
|
Machining capacity
|
||||
|
Maximum swing diameter over bed
|
mm
|
Φ500
|
Φ650
|
Φ720
|
|
Maximum cutting height
|
mm
|
350
|
500
|
650
|
|
Maximum cutting diameter
|
mm
|
Φ330
|
Φ500
|
Φ600
|
|
Spindle
|
||||
|
Spindle nose type
|
|
A2-8
|
A2-8
|
A2-11
|
|
Spindle speed range
|
r/min
|
50-3000
|
50-2500
|
50-2500
|
|
Output power of main motor
|
KW
|
15/18.5
|
15/18.5
|
22/30
|
|
Maximum output torque of spindle
|
Nm
|
472 β motor
530 α motor
|
549 β motor
715 α motor
|
1160 β motor
1169 α motor
|
|
Chuck diameter
|
inch
|
10‘’
|
12‘’
|
15‘’
|
|
Feeding
|
||||
|
X-axis rapid traverse speed
|
m/min
|
30
|
18
|
18
|
|
Z-axis rapid traverse speed
|
r/min
|
30
|
18
|
18
|
|
Travel
|
||||
|
x-axis travel
|
mm
|
200
|
300
|
300
|
|
Z-axis travel
|
mm
|
400
|
520
|
690
|
|

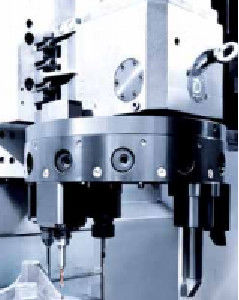

Tool post
|
||||
|
Tool post type
|
|
Horizontal 8-position
|
Horizontal 8-position
|
Horizontal 8-position
|
|
Tool size
|
|
25*25/Φ40
|
25*25/Φ50
|
25*25/Φ50
|
|
Accuracy
|
||||
|
Machining accuracy
|
|
IT6
|
IT6-IT7
|
IT6-IT7
|
|
Surace roughness of workpiece machined
|
|
Ra1.25
|
Ra1.6
|
Ra1.6
|
|
Positioning accuracy
|
||||
|
X-axis
|
mm
|
0.008
|
0.008
|
0.008
|
|
Z-axis
|
mm
|
0.008
|
0.008
|
0.008
|
|
Positioning repeatability
|
||||
|
X-axis
|
mm
|
0.004
|
0.005
|
0.005
|
|
Z-axis
|
mm
|
0.005
|
0.005
|
0.005
|
|
Maximum load capacity
|
||||
|
Disks (including chuck and fixture}
|
kg
|
300
|
350
|
400
|
|
Machine weight
|
||||
|
Main unit
|
kg
|
4500
|
6800
|
7300
|
|
Overall dimension
|
||||
|
L×W×H
|
mm
|
2000*1370*2275
|
2260*1780*2880
|
2260*1780*3060
|

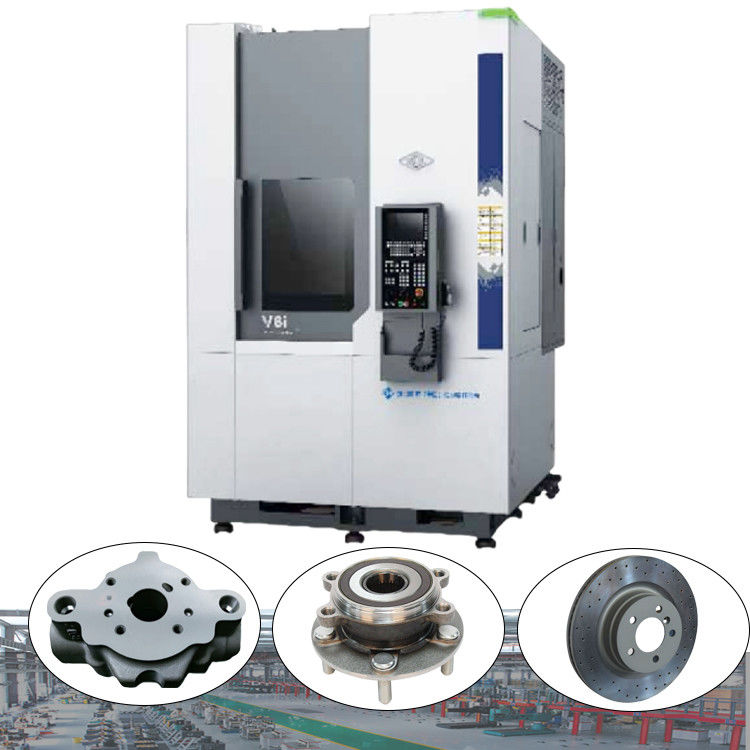

Industry application:
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
Exhibition:
FAQ:
Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
