SMTCL Moving-Beam Gantry Machining Center Mechanical Ship Industry 4 Axis Gantry Milling Machine
Product Details
| Features: | Heavy Boring And Milling Machine | Brand Name: | SMTCL |
|---|---|---|---|
| Model Number: | GMC2560WRS | CNC Or Not: | CNC |
| Key Word: | Gantry Machining Center | Control System: | SIEMENS GSK FANUC (optional) |
| Application: | Metal Gantry Machining Center | ||
| Highlight |
Mechanical Ship Industry Gantry Machining Center,Moving-Beam Gantry Machining Center,Gantry 4 Axis Cnc Milling Machine |
||
Product Description
Product Description:

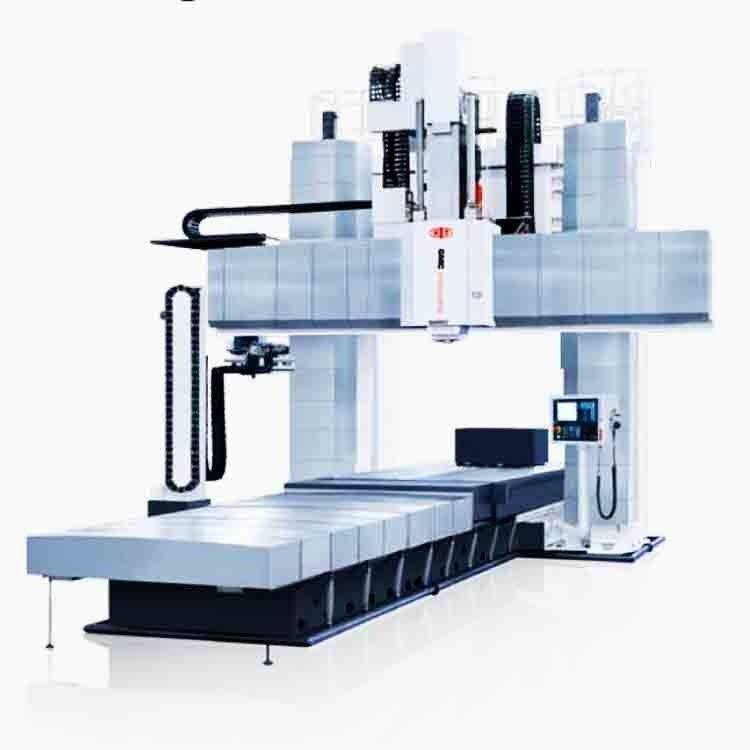

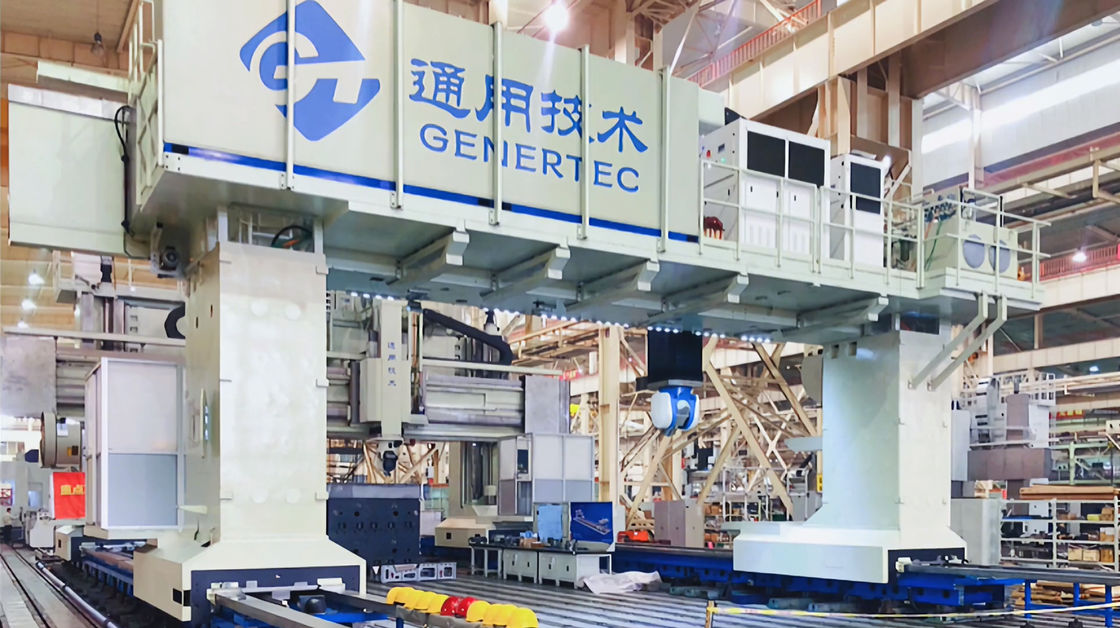

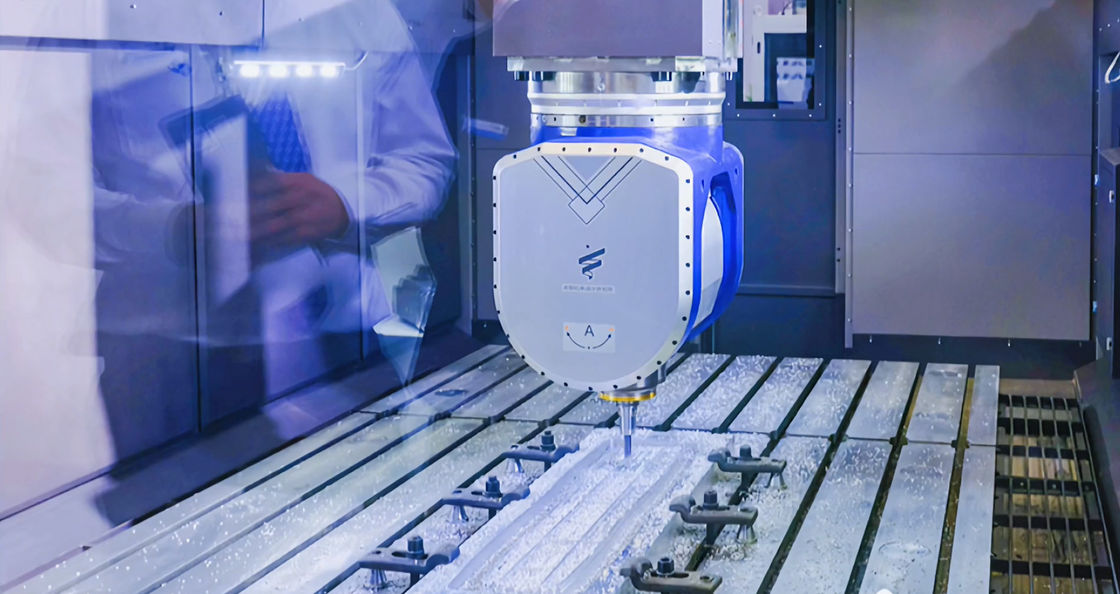

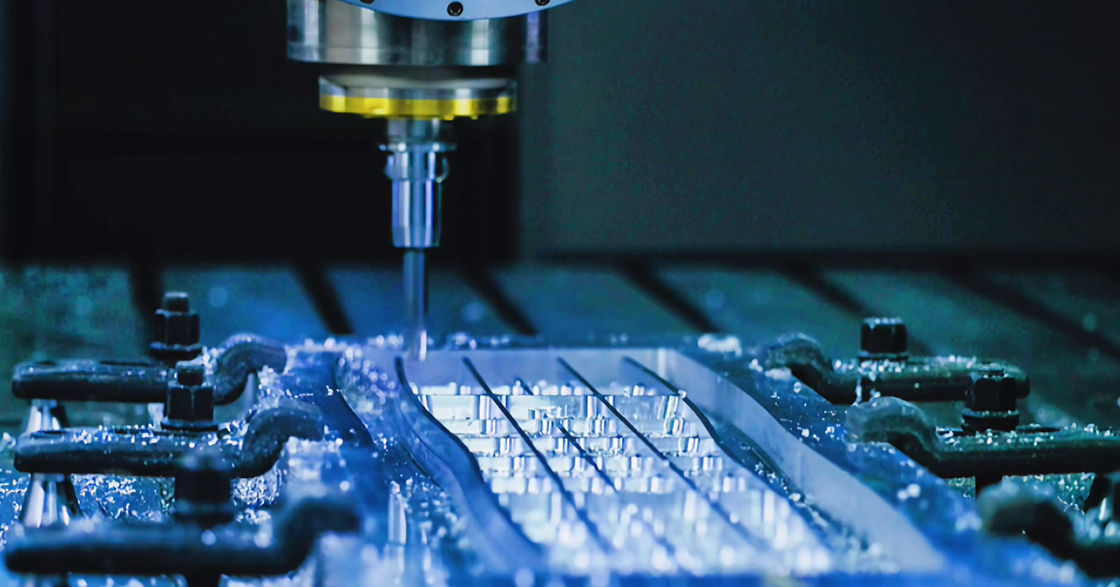

The moving-beam gantry machining center is a mature product of ourcompany, features extensive scope of application and high machiningcapability; the product is able to complete machining of multiple proceduresof components after one time of fixture and is an ideal equipment formachining large-size components for industries such as heavy-dutymachinery, ship and steel/iron, etc. lts main motion modes are: workbench moves along bed to form X-axis;sliding plate moves along crossbeam to form Y-axis; ram moves along slidingplate vertically to form Z-axis; and crossbeam moves along column verticallyto form W-axis. w-axis adopts double-motor driving large guiderail ball lead screw, andfeatures high driving capacity and safety performance; crossbeam liftingadopts hydraulic cylinder clamping, ram and sliding plate feature clampingmechanism and excellent accuracy maintenance. The machine tool can be configured with vertical and horizontal tool magazineand multiple full-automated accessory milling heads, and provides completesolution to customers.
|
Item
|
unit
|
GMV 2560WRS
|
GMV 3060WRS
|
||
|
Workbench
|
Dimension of workbench
|
mm
|
2500×6000
|
3000×6000
|
|
|
Distance between two columns
|
mm
|
3050
|
3550
|
||
|
Load capacity of workbench
|
kg
|
25000
|
25000
|
||
|
T-shaped groove width
|
mm×pcs
|
28×11
|
28×15
|
||
|
Machining
range |
Maximum gantry travel-X-axis
|
mm
|
6200
|
6200
|
|
|
Maximum slide travel-Y axis
|
mm
|
3700
|
4200
|
||
|
Maximum ram travel-Z axis
|
mm
|
1500
|
1500
|
||
|
Maximum travel of cross beam-W-axis
|
mm
|
1500/2000
|
1500/2000
|
||
|
Distance from spindle nose to workbench-Maximum
|
mm
|
3000/3500
|
3000/3500
|
||
|
|
Distance from spindle nose to workbench-Minimum
|
mm
|
0
|
0
|
|
|
Spindle
|
Taper hole(7:24)
|
|
BT50
|
BT50
|
|
|
Speed range
|
r/min
|
40-3000
|
40-3000
|
||
|
Output torque (rated/30min)
|
N.m
|
3000/3600
|
3000/3600
|
||
|
Spindle motor power(frated/30min)
|
kW
|
58/69
|
58/69
|
||
|
Section size of rectangle ram
|
mm
|
500×500
|
500×500
|
||
|
Feeding
|
Feed speed range
|
mm/min
|
1-6000
|
1-6000
|
|
|
Rapid motion X-axis
|
m/min
|
12
|
12
|
||
|
Rapid motion Y-axis
|
m/min
|
12
|
12
|
||
|
Rapid motion Z-axis
|
m/min
|
12
|
12
|
||
|
Rapid motion W-axis
|
m/min
|
2
|
2
|
||
|
Positioning
accuracy of the machine |
X-axis
|
mm
|
0.003
|
0.003
|
|
|
Y-axis
|
mm
|
0.025
|
0.03
|
||
|
Z axis
|
mm
|
0.025
|
0.025
|
||
|
Repeatability
accuracy |
X-axis
|
mm
|
0.018
|
0.018
|
|
|
Y-axis
|
mm
|
0.015
|
0.08
|
||
|
Z axis
|
mm
|
0.012
|
0.012
|
||
|
Total electric capacity
|
KVA
|
210
|
210
|
||
|
Floor spacerequired bythe machine (L*W*H)(forrelerence)
|
mm
|
20500×9600×9300
|
20500×10100×9300
|
||
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
4. Sample processing of each machine
5. 72 hours trial run before delivery

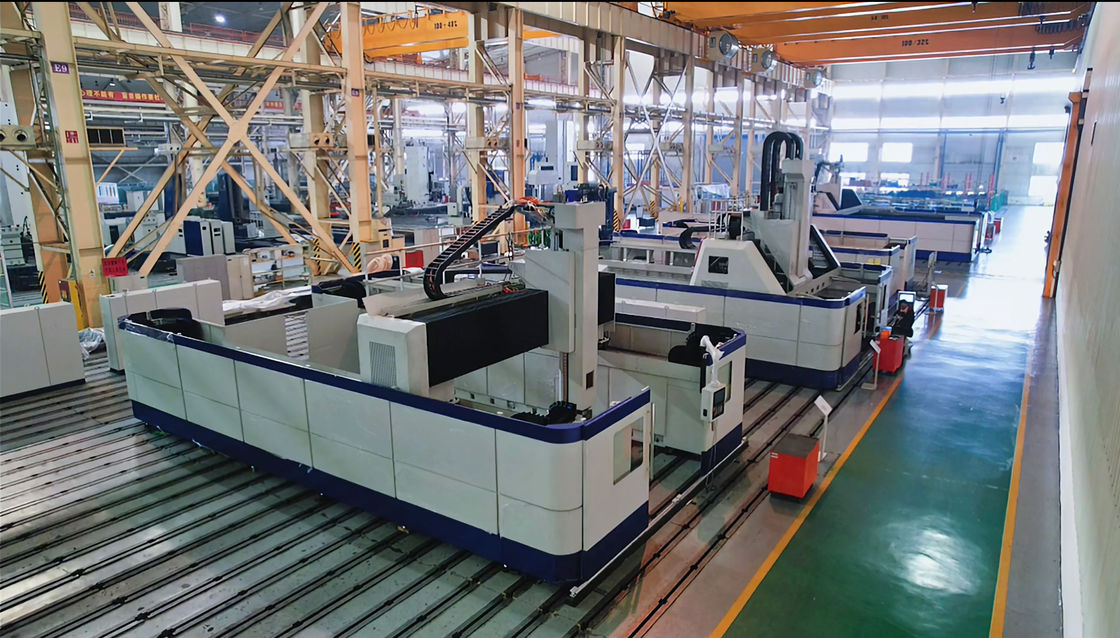

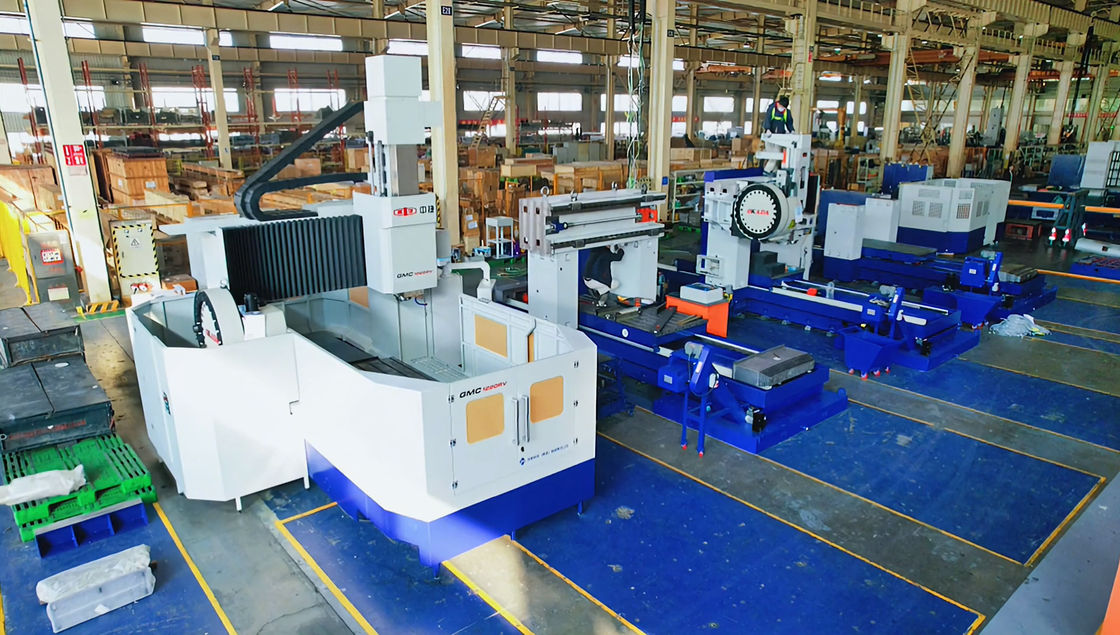

◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
