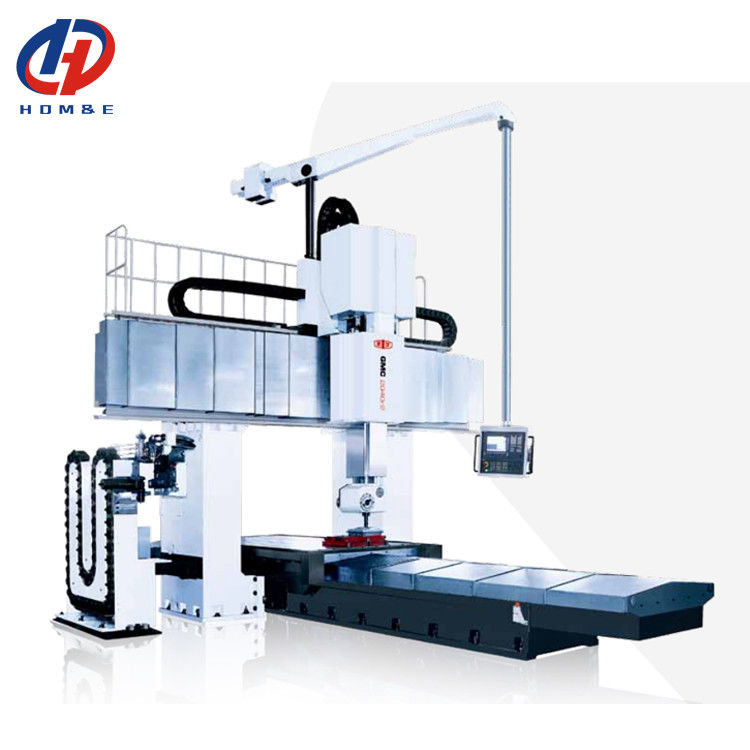

SMTCL GMCr2 CNC Gantry Machining Center Heavy Duty Portal Boring And Milling Machine
Product Details
| Features: | Heavy Boring And Milling Machine | Brand Name: | SMTCL |
|---|---|---|---|
| Model Number: | GMC2550r2 | CNC Or Not: | CNC |
| Key Word: | Gantry Machining Center | Control System: | SIEMENS GSK FANUC (optional) |
| Application: | Metal Gantry Machining Center | ||
| Highlight |
CNC Gantry Machining Center,CNC Portal Boring And Milling Machine,GMCr2 Gantry Milling Machine |
||
Product Description
Product Description:
GMC-r2 series machine tool is a gantry-type boring/milling machine featuring moving workbenchand fixed crossbeam, adopts high rigidity wrap-around ram, and is a high speed and heavycutting machine tool.The series of machine tool is used for machining multiple types of precisecomponents such as various fundamental large-size workpiece, plate workpiece, disc workpiece,housing workpiece and mold.The product is configured with optional automated right-angle millinghead, and is able to complete the machining of various procedures such as milling, boring, drilling,expanding, reaming and rigid tapping of planes other than installation bottom plane after one timeof fixture. The product mainly applies to industries such as ship building, power generation, heavy-dutymachine, locomotive, machine tool, textile machinery, printing machinery and mold manufacture,etc.
|
Item
|
unit
|
GMV 2550r2
|
GMV 2560r2
|
|
|
Workbench
|
Dimension of workbench
|
mm
|
2500×5000
|
2500×6000
|
|
Distance between two columns
|
mm
|
3200
|
3200
|
|
|
Load capacity of workbench
|
kg
|
25000
|
25000
|
|
|
T-shaped groove width
|
mm×pcs
|
28×13
|
28×13
|
|
|
Machining
range |
Workbench travel-X axis
|
mm
|
5200
|
6200
|
|
Slide travelY
|
mm
|
3700
|
3700
|
|
|
Ram travel-Z
|
mm
|
1000
|
1000
|
|
|
C axis
|
|
5×72°
|
5×72°
|
|
|
Distance from spindle nose to workbench-Maximum
|
mm
|
1200
|
1200
|
|
|
Distance from spindle nose to workbench-Minimum
|
mm
|
200
|
200
|
|
|
Distance from horizontal spindlenose to vertical spindle center
|
mm
|
206
|
206
|
|
|
Spindle
|
Taper hole(7:24)
|
|
ISO50
|
ISO50
|
|
Speed range
|
r/min
|
10-2000
|
10-2000
|
|
|
Output torque (rated/30min)
|
N.m
|
1361/1633
|
1361/1633
|
|
|
Spindle motor power(frated/30min)
|
kW
|
37/44
|
37/44
|
|
|
Section size of rectangle ram
|
mm
|
420×470
|
420×470
|
|
|
Feeding
|
Feed speed range
|
mm/min
|
1-5000
|
1-5000
|
|
Rapid motion X-axis
|
m/min
|
13
|
13
|
|
|
Rapid motion Y-axis
|
m/min
|
13
|
13
|
|
|
Rapid motion Z-axis
|
m/min
|
10
|
10
|
|
|
Positioning
accuracy of the machine |
X-axis
|
mm
|
0.03
|
0.032
|
|
Y-axis
|
mm
|
0.03
|
0.032
|
|
|
Z axis
|
mm
|
0.025
|
0.025
|
|
|
Repeatability
accuracy |
X-axis
|
mm
|
0.02
|
0.022
|
|
Y-axis
|
mm
|
0.02
|
0.022
|
|
|
Z axis
|
mm
|
0.01
|
0.01
|
|
|
Total electric capacity
|
KVA
|
110
|
110
|
|
|
Floor spacerequired bythe machine (L*W*H)(forrelerence)
|
mm
|
15278×8000×7400
|
16600×8000×7400
|
|
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
4. Sample processing of each machine
5. 72 hours trial run before delivery
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
