Product Description:
Product Features:
1,Rocker drill guide rail adopts quenching treatment and manual grinding to increase the accuracy and service life of the machine tool;
2,The body is equipped with two-speed motor, stable use, long service life of each part;
3,Super audio hardening gear, high hardness, low noise, gear using CNC worm precision grinding;
4,Hydraulic lock, hydraulic speed change, hydraulic electric lock, hydraulic 16 speed change;
5,Radial drilling machine spindle adopts high-density material, high rigidity, tight clamping drill bit, high drilling accuracy;
6,Resin sand castings, castings clear outline, high dimensional accuracy, after four heat treatment process, by audio hardening, high rigidity, high strength.
|
SPECIFICATIONS
|
Unit
|
Z3132D
|
|
Maximum hole diameter
|
mm
|
32
|
|
Spindle travel
|
mm
|
120
|
|

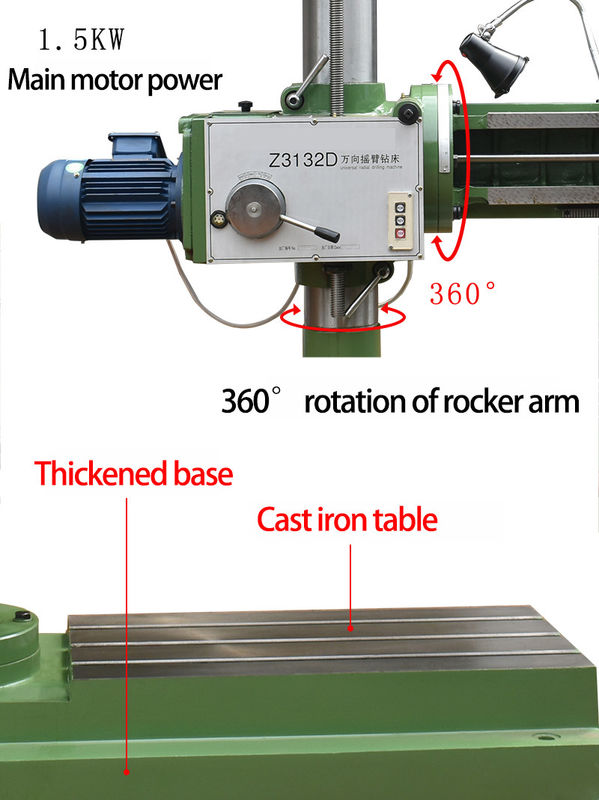

Main motor power
|
kw
|
1.5
|
|
Taper of main shaft hole
|
Mohs
|
4
|
|
Distance between the center line of the spindle and the busbar of the column
|
mm
|
390-870
|
|
Spindle box horizontal movement distance
|
mm
|
480
|
|
Spindle speed range and series
|
r/min
|
173——960r /min ,4
|
|
Feed range and series
|
mm/r
|
/
|
|
Rocker arm lifting distance
|
mm
|
800
|
|
The working area of the workbench
|
mm
|
500×600
|
|
Rocker arm rotation Angle
|
°
|
±360°
|
|
The minimum and maximum distance from the end face of the spindle to the working face of the base
|
mm
|
50-850
|
|
Machine weight
|
Kg
|
680
|
|
Overall dimensions
|
mm
|
1760×570×1900
|
Industry application:
OUR Service:
1. Assemble and debug before delivery
