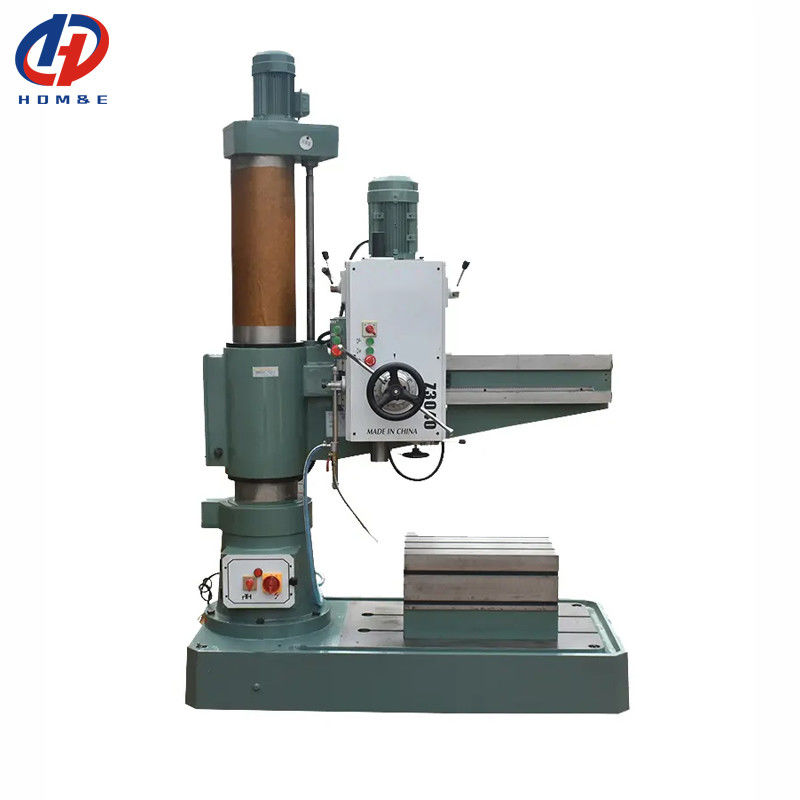

Z3040*10B Mechanical Radial Drill Mechanical Drive Automatic Feed Radial Drilling Machine
Product Details
| Brand Name: | HD | Model Number: | Z3040*10B |
|---|---|---|---|
| CNC Or Not: | Manual | Key Word: | Radial Drilling Machine |
| Spindle Travel: | 200mm | Maximum Hole Diameter: | 40/38mm |
| Table Size: | 475×330×295mm | ||
| Highlight |
Mechanical Drive,Automatic Feed Radial Drilling Machine,Z3040 |
||
Product Description
Product Description:
Product Features:
1,Rocker drill guide rail adopts quenching treatment and manual grinding to increase the accuracy and service life of the machine tool;
2,The body is equipped with two-speed motor, stable use, long service life of each part;
3,Super audio hardening gear, high hardness, low noise, gear using CNC worm precision grinding;
4,Hydraulic lock, hydraulic speed change, hydraulic electric lock, hydraulic 16 speed change;
5,Radial drilling machine spindle adopts high-density material, high rigidity, tight clamping drill bit, high drilling accuracy;
6,Resin sand castings, castings clear outline, high dimensional accuracy, after four heat treatment process, by audio hardening, high rigidity, high strength.
|
SPECIFICATIONS
|
Unit
|
Z3040×10B
|
|
Maximum hole diameter
|
mm
|
40/38
|
|
Center of the column to the center of the spindle
|
mm
|
415-1000
|
|
Distance from spindle face to base working face
|
mm
|
430-1000
|
|
Diameter of main column
|
mm
|
230
|
|
Worktable size
|
mm
|
475×330×295
|
|
Spindle travel
|
mm
|
200
|
|
Spindle taper hole
|
|
4#
|
|
Spindle speed
|
r/min
|
34-1220
|
|
Spindle feedrate
|
mm/min
|
0.06,0.10,0.16,0.20,0.25,0.30
|
|
Number of spindle feeds
|
|
6 step
|
|
Spindle speed series
|
|
12 step
|
|
Rocker rotation angle
|
°
|
±180°
|
|
Spindle allows maximum feed resistance
|
N
|
12000
|
|
main motor power
|
Kw
|
1.5/2.2
|
|
Electric power of rocker lifting motor
|
Kw
|
1.1
|
|
Machine weight
|
Kg
|
1300
|
|
Overall dimensions
|
mm
|
1480×700×2022
|
Industry application:
OUR Service:
1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
