Z3080 Radial Drilling Machine Large Deep Hole Heavy Duty Vertical Drilling Machines
Product Details
| Brand Name: | HD | Model Number: | Z3080×25D |
|---|---|---|---|
| CNC Or Not: | Manual | Key Word: | Radial Drilling Machine |
| Spindle Travel: | 450mm | Maximum Hole Diameter: | 80mm |
| Table Size: | 1000×800×560mm | Headstock Horizontal Movement Distance: | 2000mm |
| Highlight |
Radial Arm Vertical Drilling Machines,Vertical Radial Drilling Machine,Heavy Duty Radial Drilling Machine |
||
Product Description
Product Description:
There are two main variations of radial drilling machine: slide type and universal type. The radial drilling machine is mainly
composed of base, inner column, outer column, rocker arm, spindle box and workbench.
Product Features:
1,The machine speed and feed have a wide range of speed changes, can be maneuvering, manual, micro operation, can be easily connected or cut off the feed at any time.
2,The feed insurance institution is safe, reliable, convenient and reliable for each part to clamp
3,When the spindle is loosened and clamped, the displacement error is small, the transmission control mechanism is concentrated on the spindle box, easy to control and speed, hydraulic power to achieve various parts of the clamping and spindle speed, sensitive and reliable.
4,Casting using machining center processing, high precision, high efficiency, to ensure the quality of the machine stable and reliable
|
SPECIFICATIONS
|
Unit
|
Z3080×25D
|
|
Maximum hole diameter
|
mm
|
80
|
|
Spindle center to column generating distance
|
mm
|
50-2500
|
|
Distance from spindle nose to table surface
|
mm
|
550-2000
|
|
Spindle travel
|
mm
|
450
|
|
Spindle Cone
|
Morse
|
6
|
|
Range of spindle speeds(r.p.m)
|
r.p.m
|
16-1250
|
|
Spindle speed series
|
|
16
|
|
Spinde feeding range
|
r.p.m
|
0.04-3.2
|
|
Spinde feeding step
|
|
16
|
|
Table size
|
mm
|
1000×800×560
|
|
Headstock horizontal movement distance
|
mm
|
2000
|
|
Main motor power
|
Kw
|
7.5
|
|
Machine weight
|
Kg
|
11000
|
|

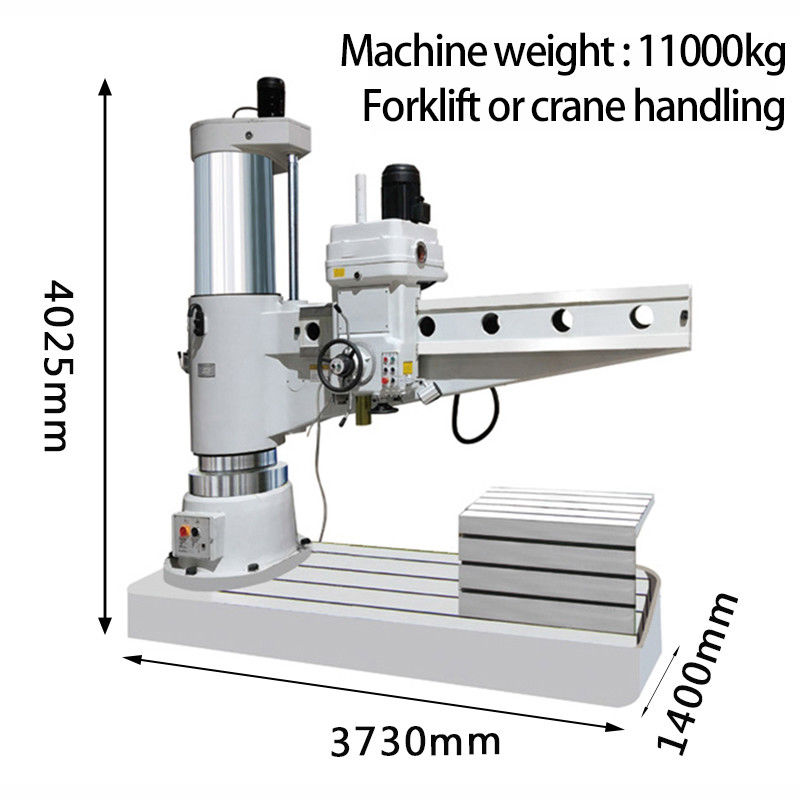

Overall dimensions
|
mm
|
3730×1400×4025
|
Industry application:
OUR Service:
1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
