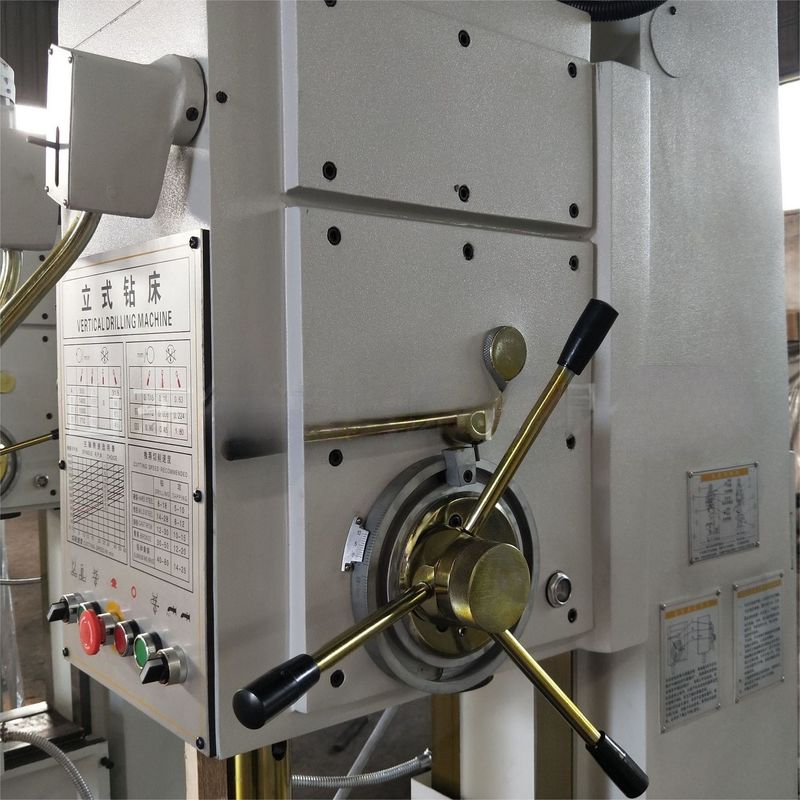

Z5140B Electric Vertical Drilling Machines Vertical Drill Bore Diameter 40mm
Product Details
| Brand Name: | HD | Model Number: | Z5140B |
|---|---|---|---|
| CNC Or Not: | Manual | Key Word: | Vertical Drilling Machine |
| Max. Spindle Speed (r.p.m): | 31.5-1400r.p.m | Maximum Hole Diameter: | 40mm |
| Maximum Feed Resistance Of Spindle: | 16000N | Spindle Maximum Torque: | 350N.m |
| Highlight |
Electric Vertical Drill Machines 1400rpm,40mm Vertical Bore Machine,Reaming Vertical Drilling Machine |
||
Product Description
Product Description:
Product Features:
1,Square column vertical drilling machine, machine tool by the main parts of the spindle box, column, base, table and so on. Machine tools require sufficient reinforcement plates to ensure sufficient strength, rigidity and high stability. Advanced and reliable structure.
2,The motor adopts domestic well-known brands, spindle bearings, screw, main electrical components, main hydraulic components are adopted today - the mainstream products with higher quality in the market.
3,The spindle system has good transmission accuracy and rigidity, and the spindle speed change mechanism at all levels is sensitive and reliable.
4,The operating system is centralized, convenient for workers to use, easy maintenance.
5,Spindle tapping can achieve automatic reversal, automatic feed, fixed cutting.
|
SPECIFICATIONS
|
Unit
|
Z5140B
|
|
Maximum hole diameter
|
mm
|
40
|
|
Maximum feed resistance of spindle
|
N
|
16000
|
|
Spindle maximum torque
|
N.m
|
350
|
|
Main motor power
|
Kw
|
3
|
|
Taper of main taper hole
|
NO
|
4
|
|
Spindle speed
|
r.p.m
|
31.5~1400
|
|
Feed per revolution of spindle
|
mm/rev
|
0.056~1.80
|
|
Main shaft trip
|
mm
|
250
|
|
Headstock stroke
|
mm
|
200
|
|
Distance from center line of spindle to column
|
mm
|
335
|
|
The spindle span
|
mm
|
no
|
|
Lifting stroke of table (manual)
|
mm
|
300
|
|
Distance from spindle end face to table
|
mm
|
750
|
|
Table size
|
mm
|
400*550
|
|
Machine weight
|
Kg
|
1200
|
|
Overall dimensions
|
mm
|
1050*710*2010
|
Industry application:
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
4. Sample processing of each machine
5. 72 hours trial run before delivery
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
