Place of Origin:
CHINA
Brand Name:
SMTCL
Certification:
CE ISO certification
Model Number:

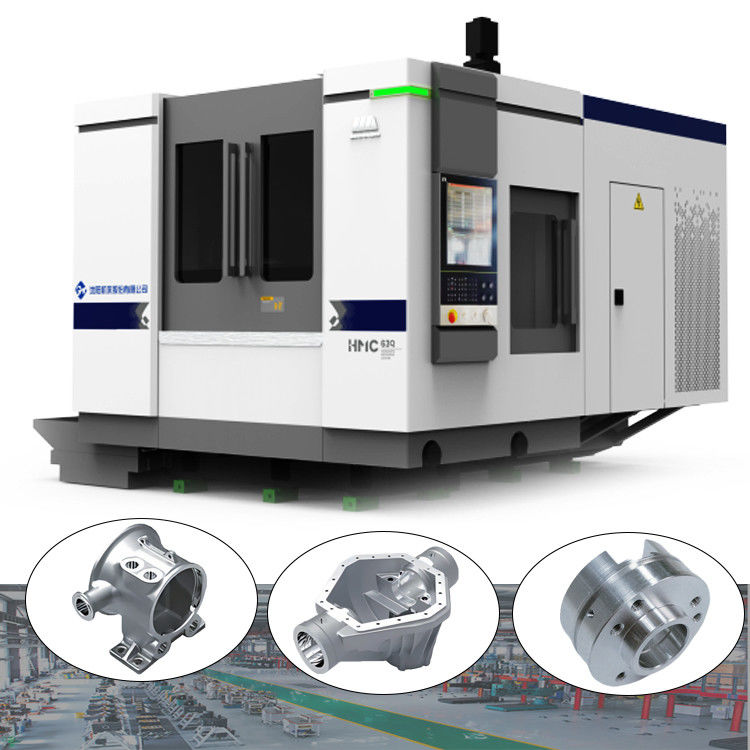

HMC 63Q
![]()
Product Description:
Product Features:
1,High stability structure
◆ Inverted T-shaped integrally cast bed
◆ Y-axis motor base and column are casted together
◆ Thermally symmetrical spindle
| Item | Unit | HMC 63Q |

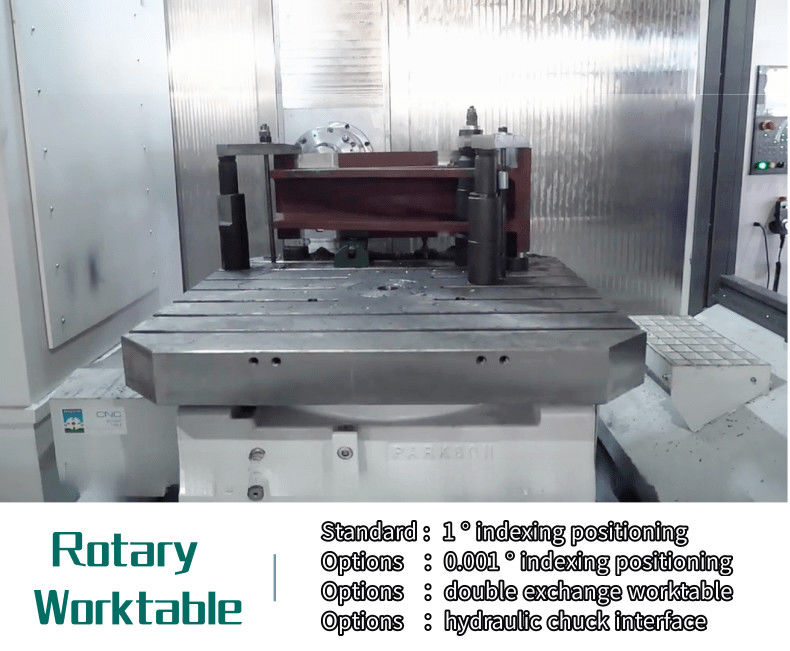

| Work table | ||
| Worktable size | mm | 630*630 |
| Worktable capacity | kg | 1200 |
| Number of worktable | pcs | 1(2) |
| Working range | ||
| X axis travel | mm | 1000 |
| Y axis travel | mm | 900 |
| Z axis travel | mm | 900 |
| B-axis indexing | 1° ×360 | |
| Max. rotation diameter of workpiece | mm | Φ1100 |
| Distance from spindle nose to worktable center | mm | 1050 Max |
| Distance from spindle nose to worktable center | mm | 150 Min |
| Distance between s p i n d l e n o s e t o worktable surface | mm | 900 Max |
| Distance between s p i n d l e n o s e t o worktable surface | mm | 0 Min |

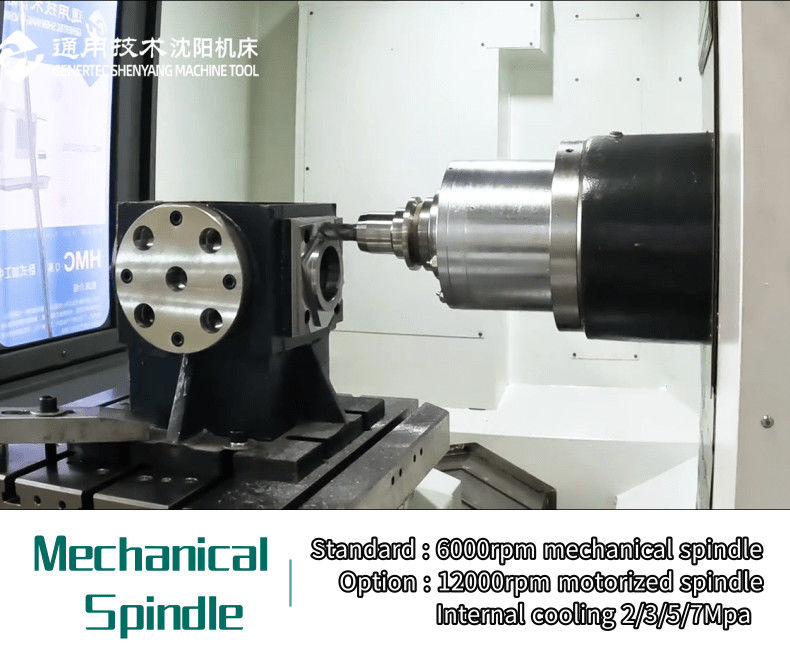

| Spindle | ||
| Spindle taper (7: 24) | BT50 | |
| Maximum speed | rpm | 6000 |
| Spindle motor power (continuous/S2) | kw | 15/18.5 |
| Maximum output torque(continuous/S2) | mm | 433/713(15min) |

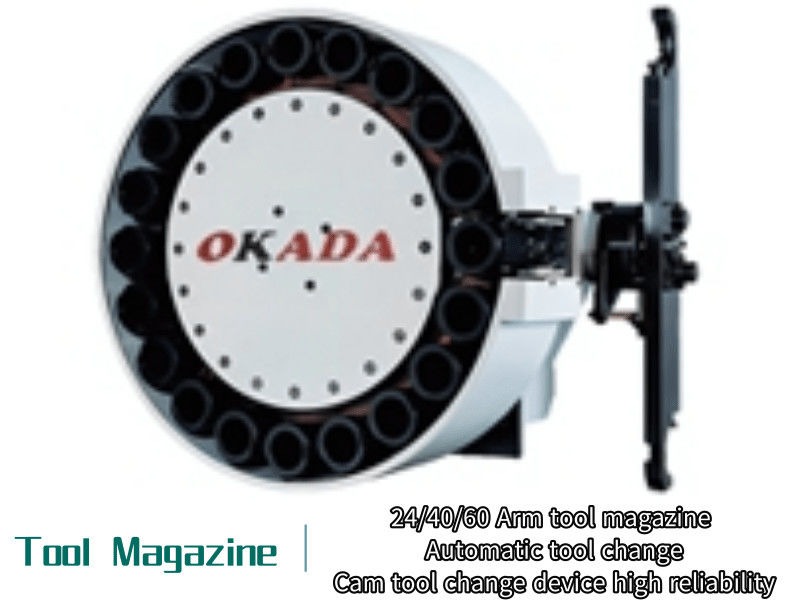

| Tool magazine | ||
| Tool magazine capacity | PCS | 24 |
| Max. tool length | Mm | 400 |
| Max. tool weight | kg | 15 |
| Max. tool diameter full/empty | mm | Φ110/Φ220 |
| Tool change time(T-T) | s | 3.8 |

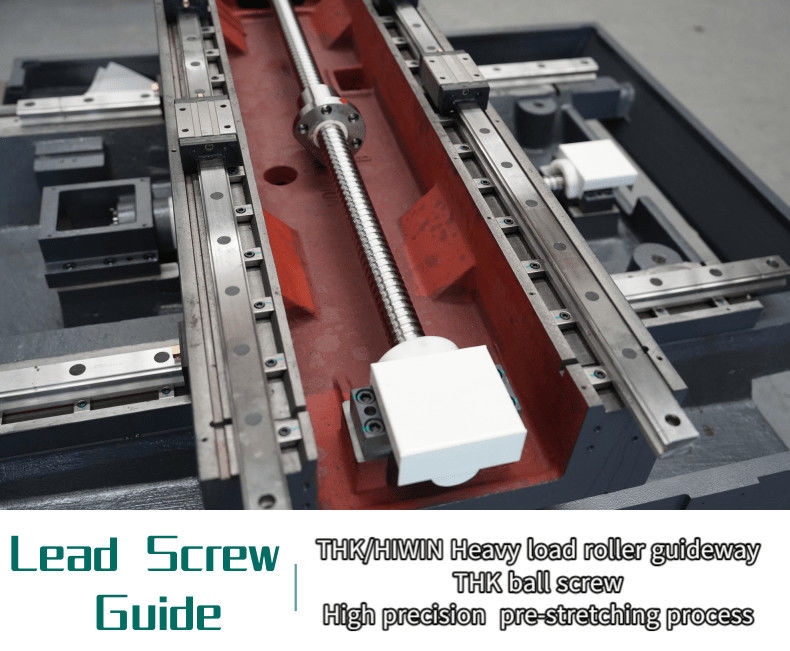

| Feed | ||
| Maximum cutting feed speed(X/Y/Z) | Mm/min | 1-24000 |
| Rapid traverse(X/Y/Z) | M/min | 24 |

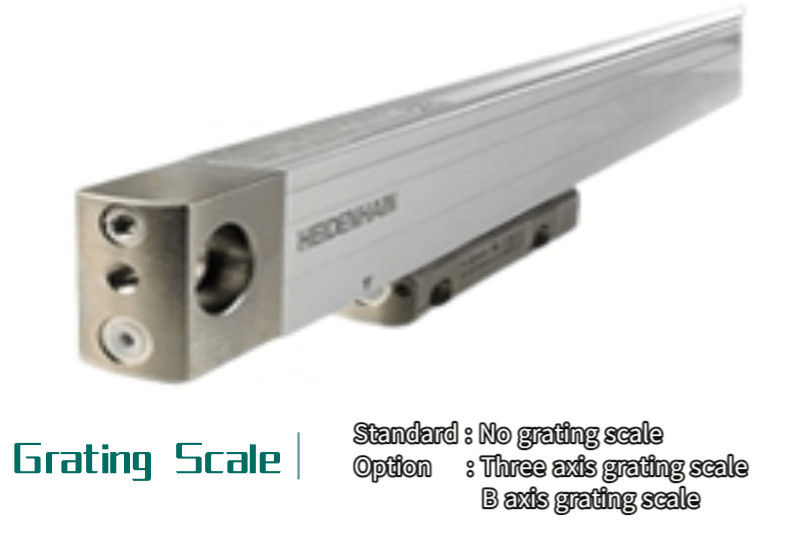

| Positioning accuracy | ||
| X/Y/Z axis | mm | 0.01 |
| B axis(1° X360) | ‘’ | 10 |
| Repetitive positioning accuracy | ||
| X/Y/Z axis | mm | 0.006 |
| B axis(1° ×360) | ‘’ | 3 |
| Overall dimension(LxWxH) | mm | 3700*3000*3250 |
| Floor space | mm | 4500*4300 |

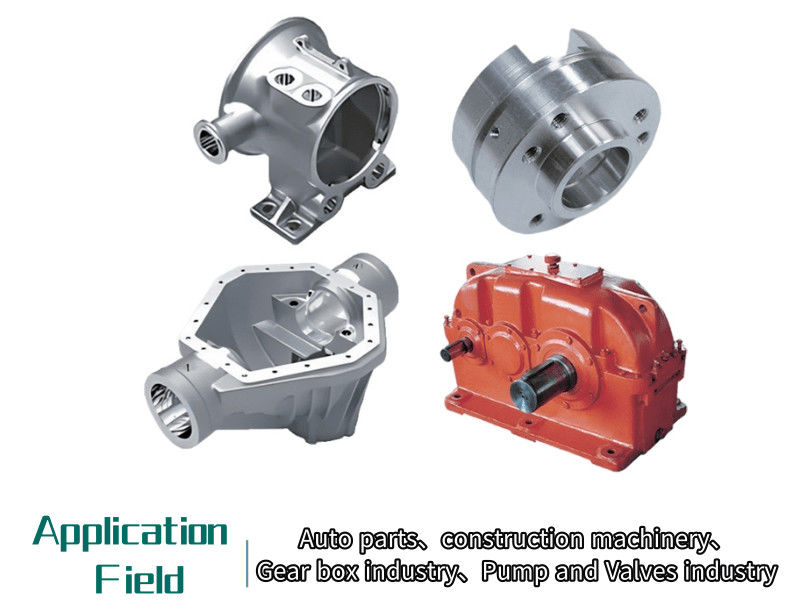

Industry application:
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
![]()
![]()
