Place of Origin:
CHINA
Brand Name:
SMTCL
Certification:
CE ISO certification
Model Number:

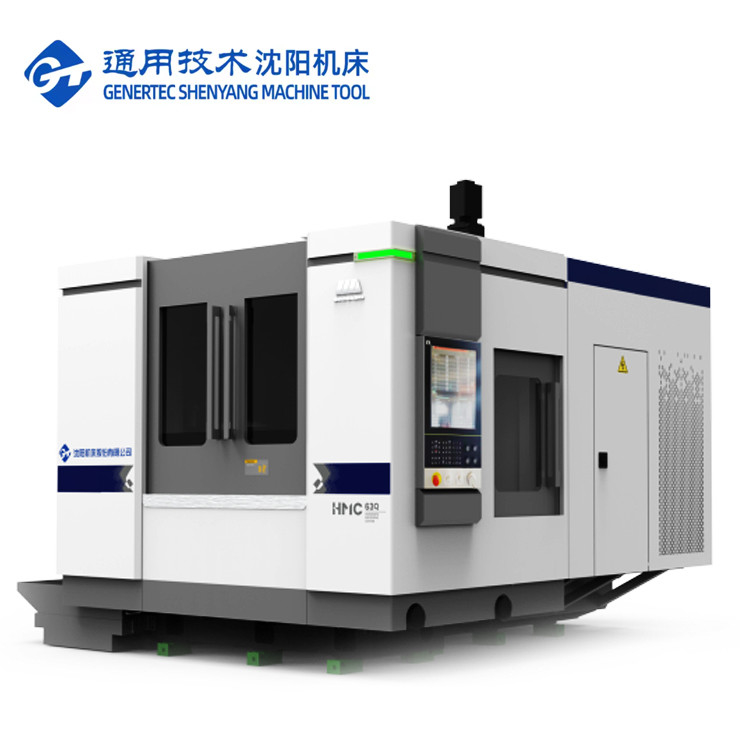

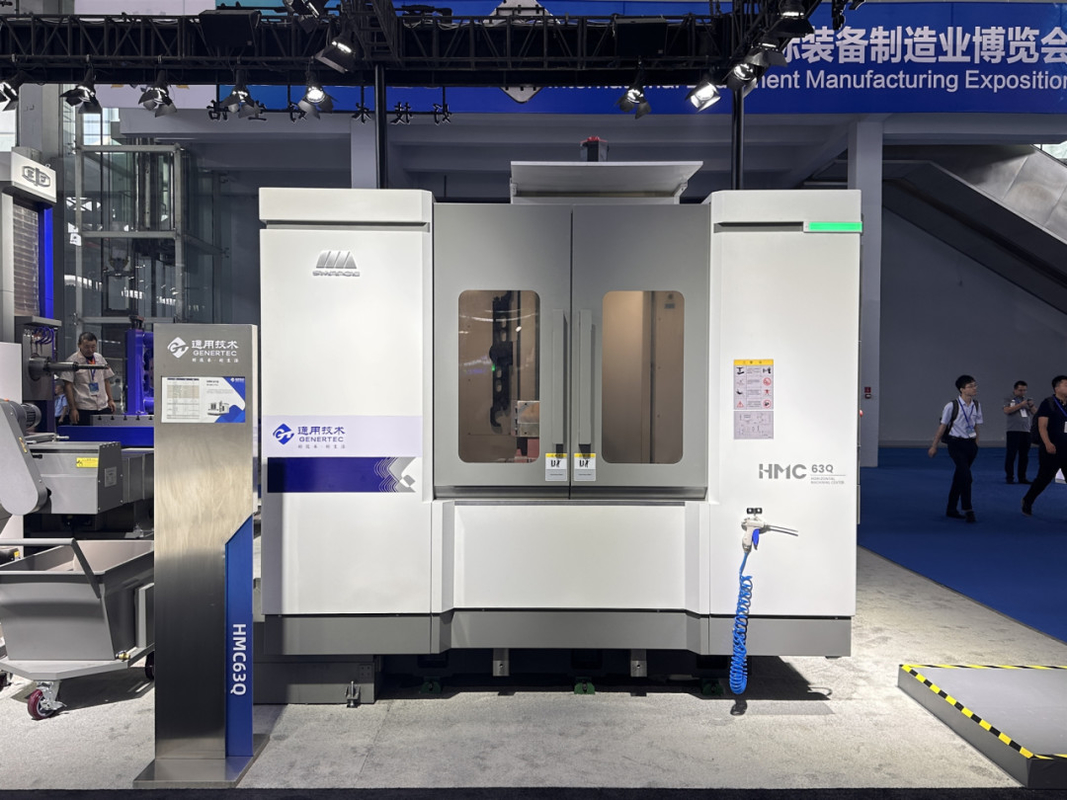

HMC 50Q
![]()
Product Description:
Product Features:
1,High stability structure
◆ Inverted T-shaped integrally cast bed
◆ Y-axis motor base and column are casted together
◆ Thermally symmetrical spindle
| Item | Unit | HMC 50Q |

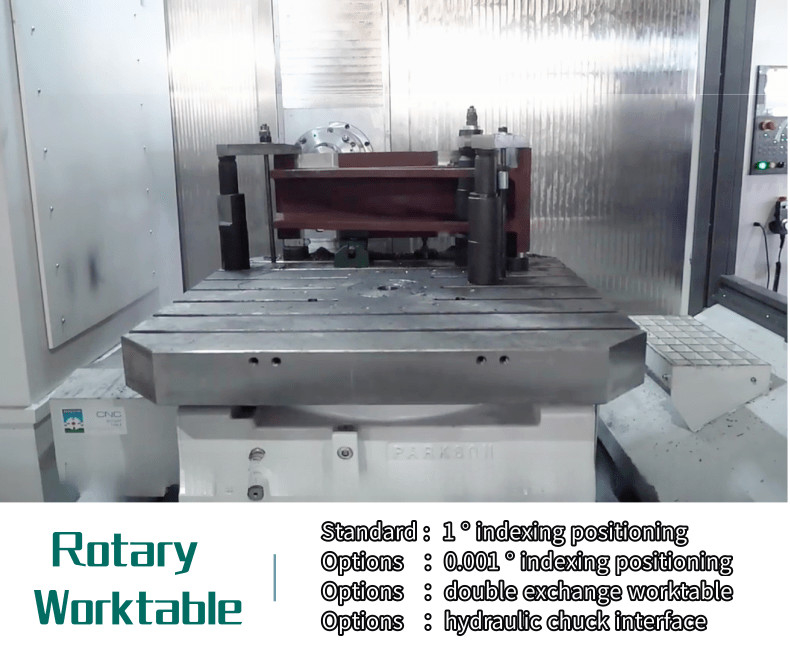

| Work table | ||
| Worktable size | mm | 500*500 |
| Worktable capacity | kg | 800 |
| Number of worktable | pcs | 1(2) |
| Working range | ||
| X axis travel | mm | 750 |
| Y axis travel | mm | 600 |
| Z axis travel | mm | 600 |
| B-axis indexing | 1° ×360 | |
| Max. rotation diameter of workpiece | mm | Φ800 |
| Distance from spindle nose to worktable center | mm | 750Max |
| Distance from spindle nose to worktable center | mm | 150Min |
| Distance between s p i n d l e n o s e t o worktable surface | mm | 650Max |
| Distance between s p i n d l e n o s e t o worktable surface | mm | 50Min |

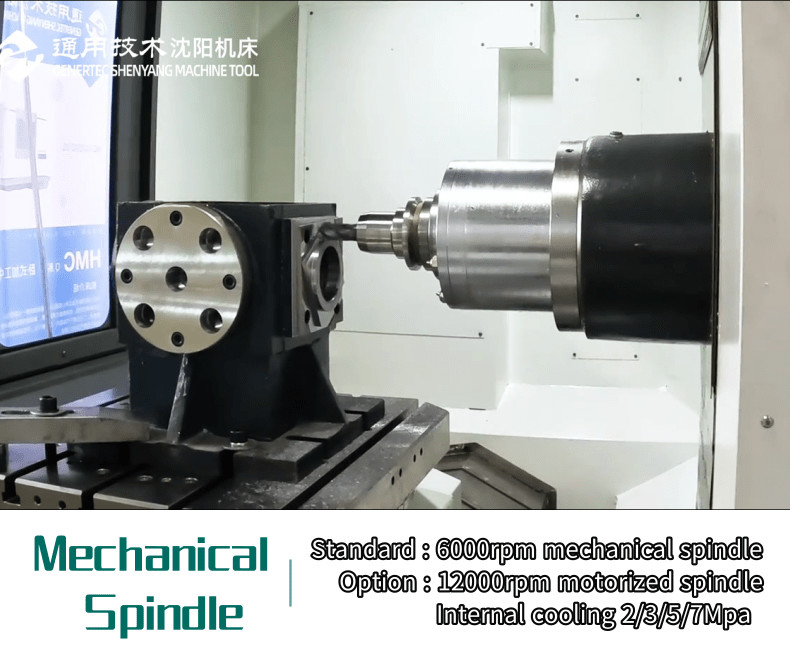

| Spindle | ||
| Spindle taper (7: 24) | BT40 | |
| Maximum speed | rpm | 8000 |
| Spindle motor power (continuous/S2) | kw | 7.5/11 |
| Maximum output torque(continuous/S2) | mm | 53/105(15min) |

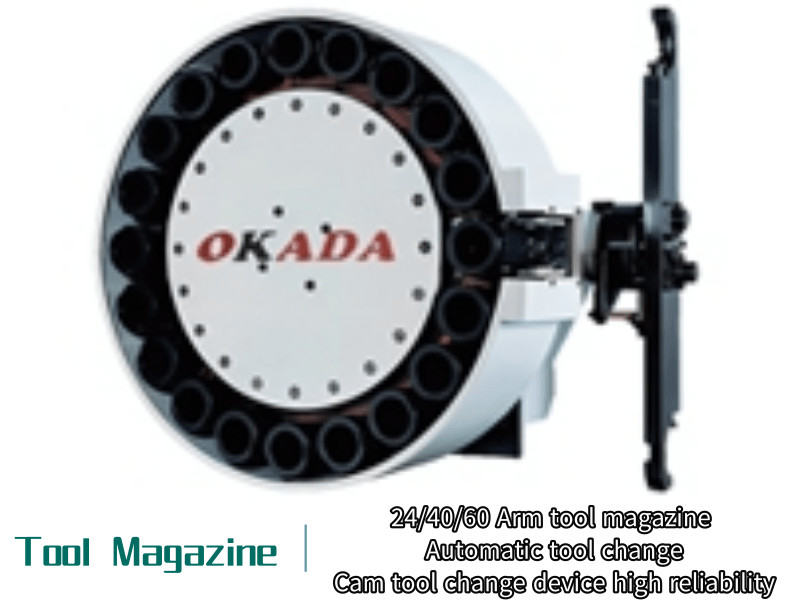

| Tool magazine | ||
| Tool magazine capacity | PCS | 24 |
| Max. tool length | Mm | 300 |
| Max. tool weight | kg | 8 |
| Max. tool diameter full/empty | mm | Φ78/Φ120 |
| Tool change time(T-T) | s | 3 |
| Feed | ||
| Maximum cutting feed speed(X/Y/Z) | Mm/min | 1-36000 |
| Rapid traverse(X/Y/Z) | M/min | 36 |
| Positioning accuracy | ||
| X/Y/Z axis | mm | 0.01 |
| B axis(1° X360) | ‘’ | 10 |
| Repetitive positioning accuracy | ||
| X/Y/Z axis | mm | 0.006 |
| B axis(1° ×360) | ‘’ | 3 |
| Overall dimension(LxWxH) | mm | 3250*2650*2650 |
| Floor space | mm | 4000*4000 |

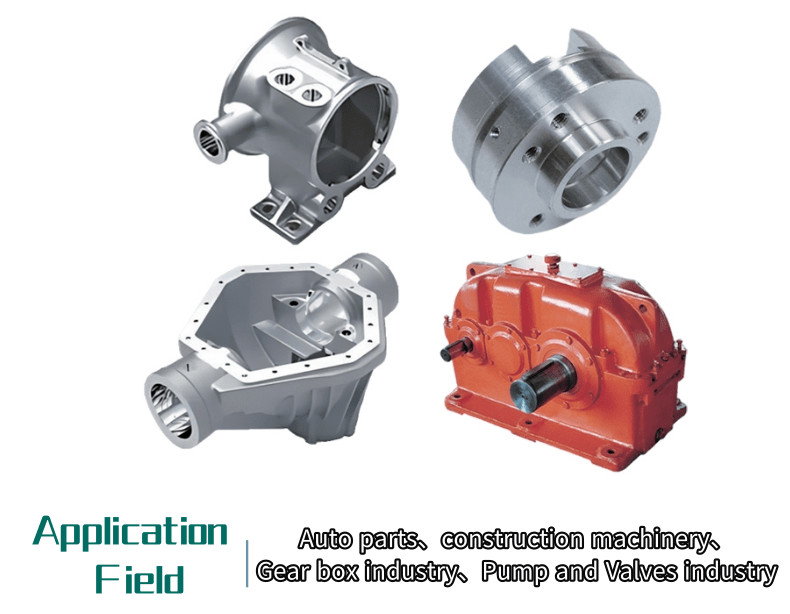

Industry application:
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
![]()
![]()
