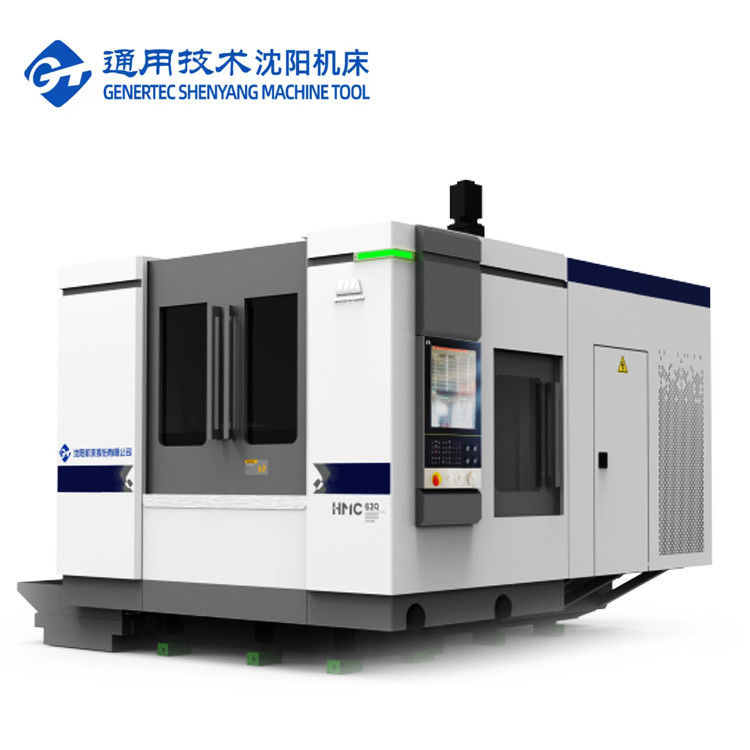

SMTCL FANUC Control Horizontal Machining Center HMC50Q Horizontal Machining Center
Product Details
| Brand Name: | SMTCL | Model Number: | HMC 50Q |
|---|---|---|---|
| CNC Or Not: | CNC | Key Word: | Horizontal Machining Center |
| Max. Spindle Speed (r.p.m): | 8000 R.p.m | Travel (X Axis)(mm): | 750 |
| Travel (Z Axis)(mm): | 600 | Travel (Y Axis)(mm): | 600 |
| Max. Rotation Diameter Of Workpiece: | 800 | ||
| Highlight |
8000rpm Horizontal Machining Center,Fanuc Control Horizontal Machining Center,750mm CNC Horizontal Turning Center |
||
Product Description

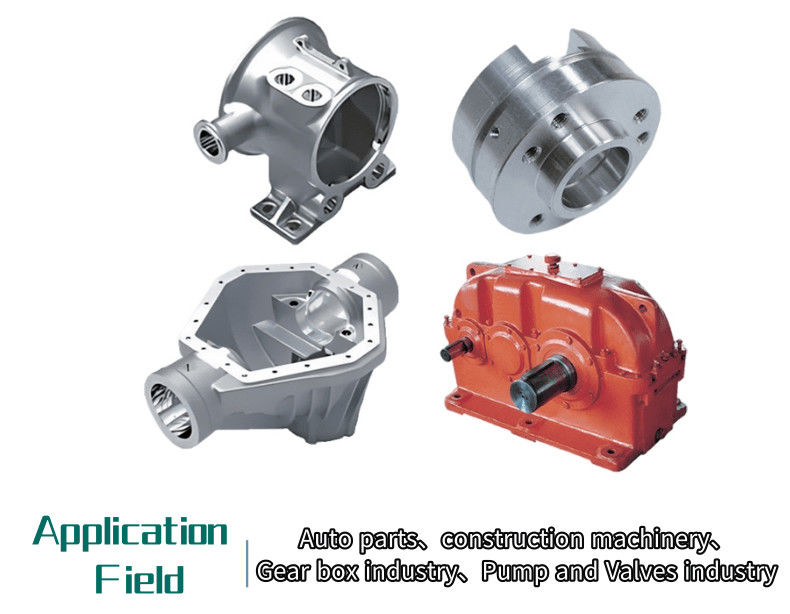

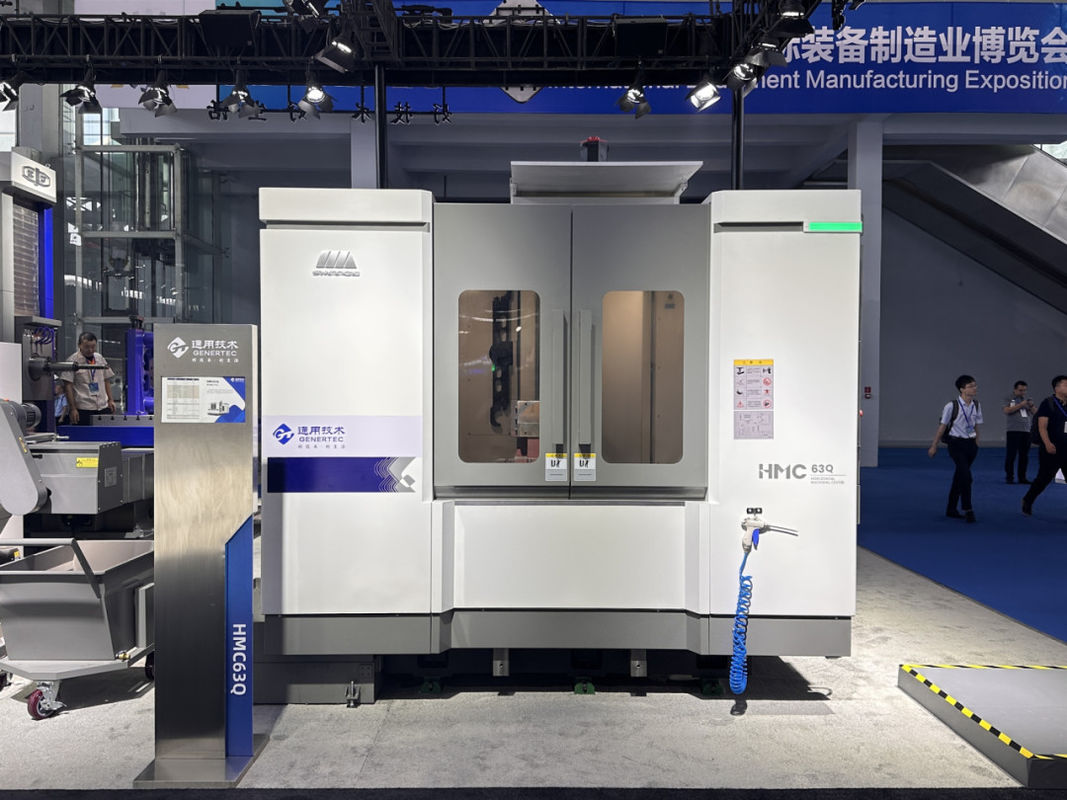

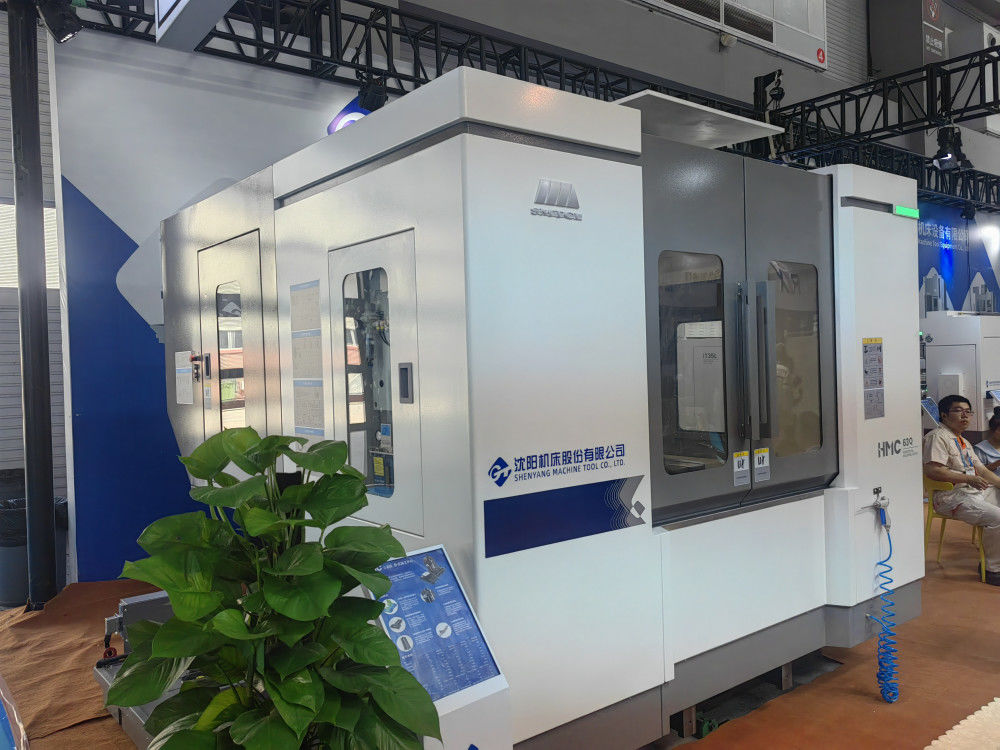

HMC-Q series horizontal machining center is a new generation of highperformance and compact machine. It has excellent quality, high reliability and efficiency. It is widely used in auto parts, pump,valves and other industries. It can meet the processing requirements of single or small batch products with high efficiency
- Inverted T-shaped integrally cast bed
- Y-axis motor base and column are casted together

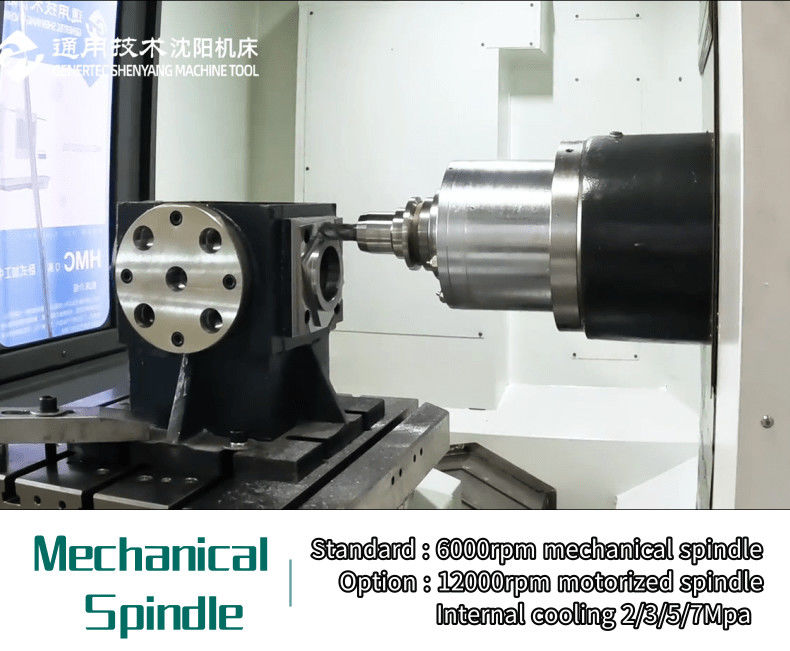

- Thermally symmetrical spindle
- Gearshift headstock
- Multi-spindle selection to meet different working conditions
- Multiple types of tool magazine configuration,meet different efficiiency
- Intelligent check and maintenance plan
- Automatic data backup
- Spindle intelligent load control
The machine tool is designed with finite element analysis and well stiffened, the overall structure and large part are optimized to improve the rigidity and stability of the whole machine.
Inverted T-shaped integrated bed, large span, low center of gravity, well stiffened, strengthened anti-deformation,using 4 groups of twisted cage for chip removal ensure removal efficiency
Double-wall structure is adopted by the columns of this series, Y-axis motor base and column are
casted together to improve the accuracy and stability of machine tool
Thermal symmetry spindle improve the controllability of thermal deformation; Excellent thermal stability.

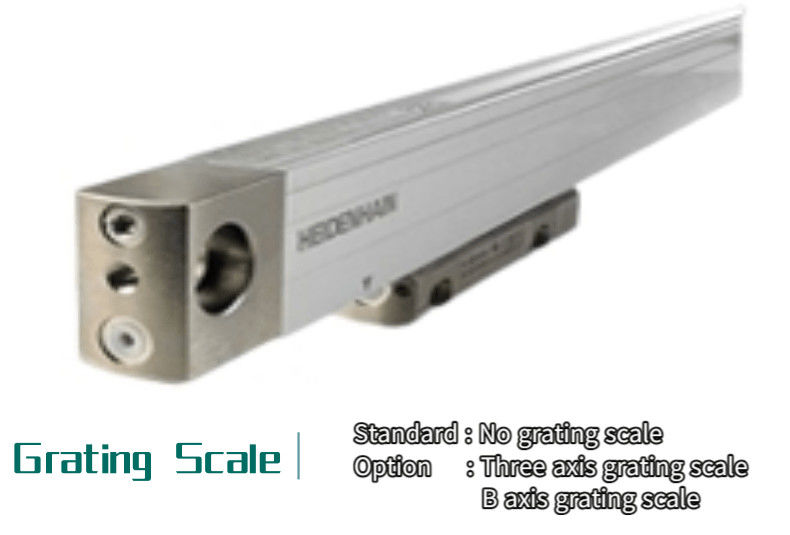

All three axes are equipped with
precision ball screw, pre-stretching process is adopted to effectively reduce the influence of the screw heating during working, improve the accuracy of the machine tool, strengthened anti-deformation ability and accuracy retention.
◆ Two gear shift speed change is adopted to
achieve from high-speed machining to heavy cutting
◆ Large-span bearing arrangement, high rigidity

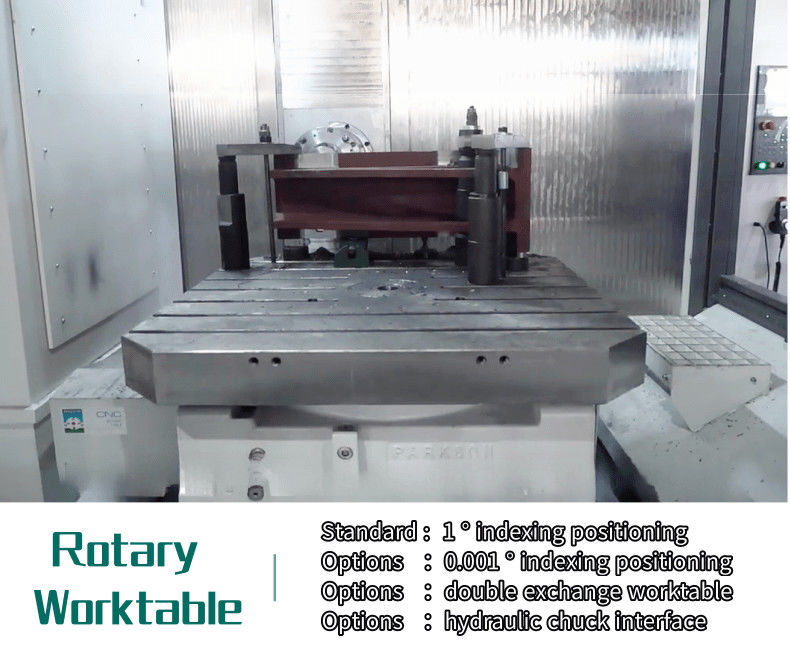

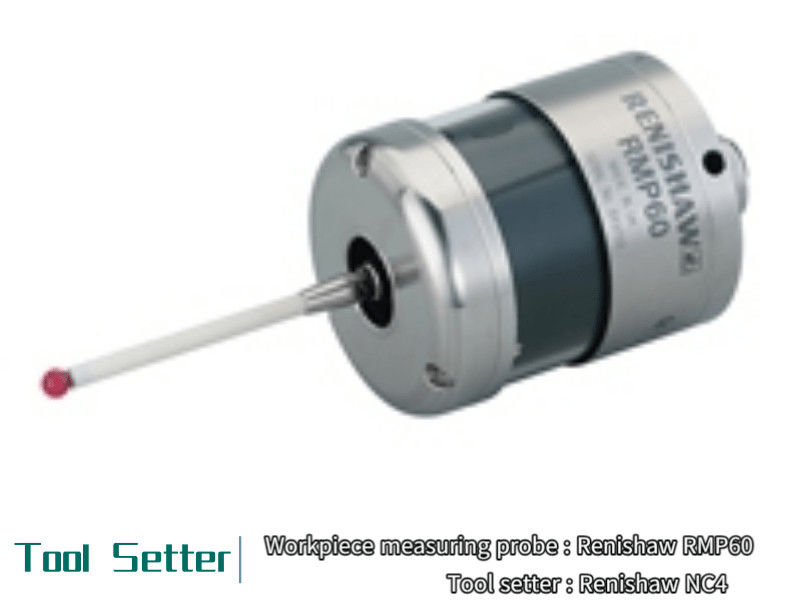

| Item | Unit | HMC 50Q |
| Work table | ||
| Worktable size | mm | 500*500 |
| Worktable capacity | kg | 800 |
| Number of worktable | pcs | 1(2) |
| Working range | ||
| X axis travel | mm | 750 |
| Y axis travel | mm | 600 |
| Z axis travel | mm | 600 |
| B-axis indexing | 1° ×360 | |
| Max. rotation diameter of workpiece | mm | Φ800 |
| Distance from spindle nose to worktable center | mm | 750Max |
| Distance from spindle nose to worktable center | mm | 150Min |
| Distance between s p i n d l e n o s e t o worktable surface | mm | 650Max |
| Distance between s p i n d l e n o s e t o worktable surface | mm | 50Min |
| Spindle | ||
| Spindle taper (7: 24) | BT40 | |
| Maximum speed | rpm | 8000 |
| Spindle motor power (continuous/S2) | kw | 7.5/11 |
| Maximum output torque(continuous/S2) | mm | 53/105(15min) |
| Tool magazine | ||
| Tool magazine capacity | PCS | 24 |
| Max. tool length | Mm | 300 |
| Max. tool weight | kg | 8 |
| Max. tool diameter full/empty | mm | Φ78/Φ120 |
| Tool change time(T-T) | s | 3 |
| Feed | ||
| Maximum cutting feed speed(X/Y/Z) | Mm/min | 1-36000 |
| Rapid traverse(X/Y/Z) | M/min | 36 |
| Positioning accuracy | ||
| X/Y/Z axis | mm | 0.01 |
| B axis(1° X360) | ‘’ | 10 |
| Repetitive positioning accuracy | ||
| X/Y/Z axis | mm | 0.006 |
| B axis(1° ×360) | ‘’ | 3 |
| Overall dimension(LxWxH) | mm | 3250*2650*2650 |
| Floor space | mm | 4000*4000 |
- Every parts need be inspected
- Over 100 production process control
- Over 200 inspection items
- Sample processing of each machine
- 72 hours trial run before delivery
- Top quality sense, customers' requests come first
- 30 years + R & D history, the company was founded in 1993
- High-tech manufacturer with research anddesign capacity
- Stable and mature supplying system
- Young active sales and engineers for instant services(24 hours online)
- Upgrading on mechanism according to ergonomics and easy maintenance
- Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
starting on the machine's bill of lading date.
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
Product Highlights
Product Description: Horizontal Machining Center(50Q Series) HMC-Q series horizontal machining center is a new generation of highperformance and compact machine. It has excellent quality, high reliability and efficiency. It is widely used in auto parts, pump,valves and other industries. It can meet ...
