Heavy Duty Horizontal Machining Center HMC 100Q Turning Center Machining Center
Product Details
| Brand Name: | SMTCL | Model Number: | HMC 100Q |
|---|---|---|---|
| CNC Or Not: | CNC | Key Word: | Heavy Duty Horizontal Machining Center |
| Max. Spindle Speed (r.p.m): | 4500 R.p.m | Travel (X Axis)(mm): | 1800 |
| Travel (Z Axis)(mm): | 1500 | Travel (Y Axis)(mm): | 1350 |
| Max. Rotation Diameter Of Workpiece: | Φ1500 | ||
| Highlight |
Heavy Duty Horizontal CNC Machining Center,Compact CNC Turning Center Machining Center,1800mm Horizontal Machining Center |
||
Product Description
Product Description:
Product Features:
1,High stability structure

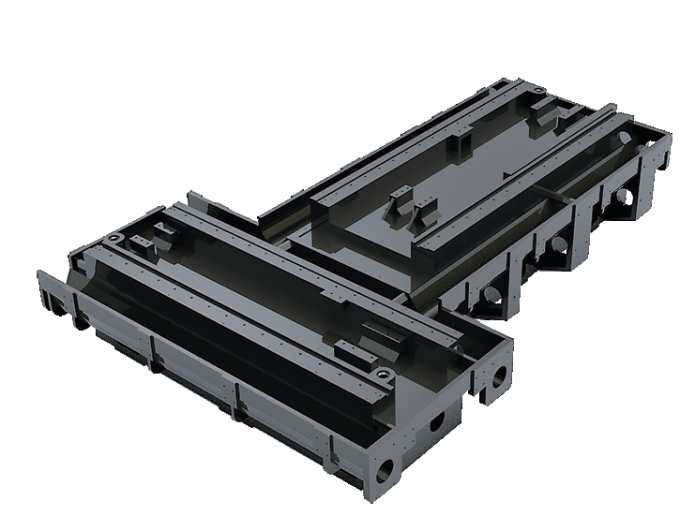

◆ Inverted T-shaped integrally cast bed

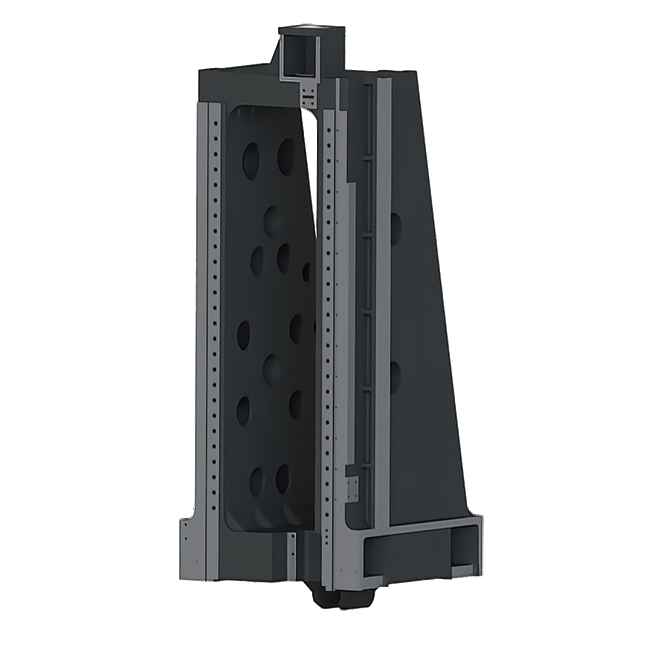

◆ Y-axis motor base and column are casted together
◆ Thermally symmetrical spindle

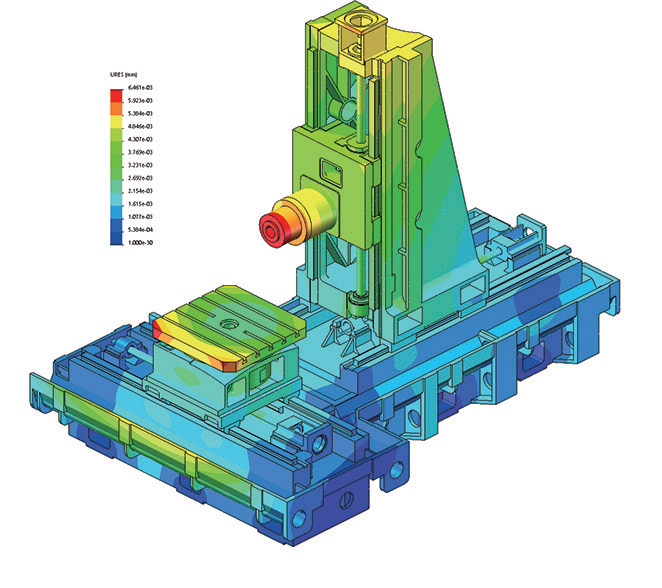

Finite element and topology optimization structure
High strength integrally cast bed
Y-axis motor base and column are casted together
casted together to improve the accuracy and stability of machine tool
Thermally symmetrical spindle

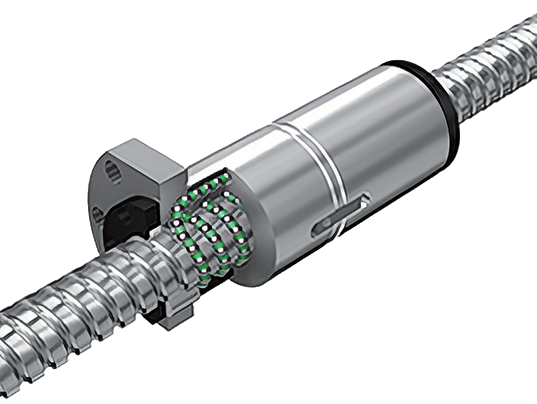

Precision ball screw
precision ball screw, pre-stretching process is adopted to effectively reduce the influence of the screw heating during working, improve the accuracy of the machine tool, strengthened anti-deformation ability and accuracy retention.

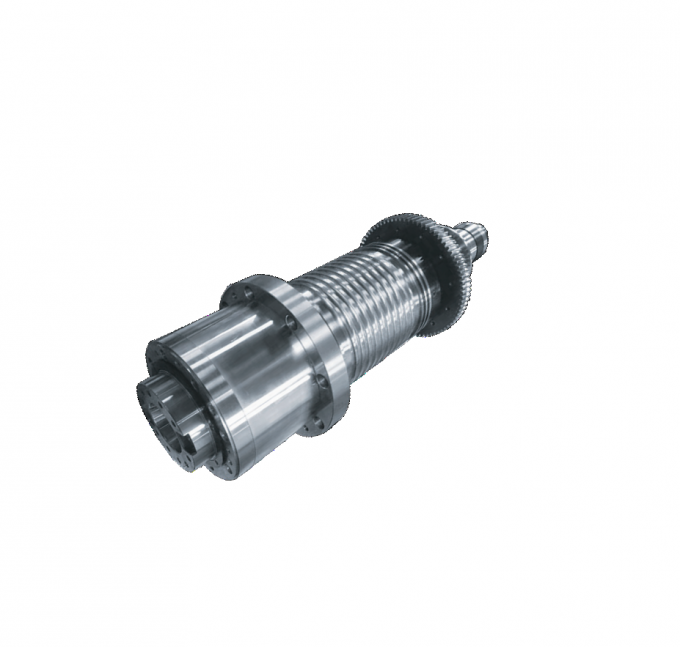

Mechanical spindle
achieve from high-speed machining to heavy cutting
◆ Large-span bearing arrangement, high rigidity
| Item | Unit | HMC 100Q |
| Work table | ||
| Worktable size | mm | 1000*1000 |
| Worktable capacity | kg | 3000 |
| Number of worktable | pcs | 1(2) |
| Working range | ||
| X axis travel | mm | 1800 |
| Y axis travel | mm | 1500 |
| Z axis travel | mm | 1350 |
| B-axis indexing | 1° ×360 | |
| Max. rotation diameter of workpiece | mm | Φ1500 |
| Distance from spindle nose to worktable center | mm | 1650 Max |
| Distance from spindle nose to worktable center | mm | 300 Min |
| Distance between s p i n d l e n o s e t o worktable surface | mm | 1600 Max |
| Distance between s p i n d l e n o s e t o worktable surface | mm | 100 Min |
| Spindle | ||
| Spindle taper (7: 24) | BT50 | |
| Maximum speed | rpm | 4500 |
| Spindle motor power (continuous/S2) | kw | 18.5/22 |
| Maximum output torque(continuous/S2) | mm | 713/871(15min) |
| Tool magazine | ||
| Tool magazine capacity | PCS | 40 |
| Max. tool length | Mm | 500 |
| Max. tool weight | kg | 25 |
| Max. tool diameter full/empty | mm | Φ125/Φ250 |
| Tool change time(T-T) | s | 5.5 |
| Feed | ||
| Maximum cutting feed speed(X/Y/Z) | Mm/min | 1-20000 |
| Rapid traverse(X/Y/Z) | M/min | 20 |
| Positioning accuracy | ||
| X/Y/Z axis | mm | 0.012 |
| B axis(1° X360) | ‘’ | 10 |
| Repetitive positioning accuracy | ||
| X/Y/Z axis | mm | 0.008 |
| B axis(1° ×360) | ‘’ | 3 |
| Overall dimension(LxWxH) | mm | 6100*5000*4600 |
| Floor space | mm | 6800*6000 |
Industry application:
Workpiece samples
OUR Service:
1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
