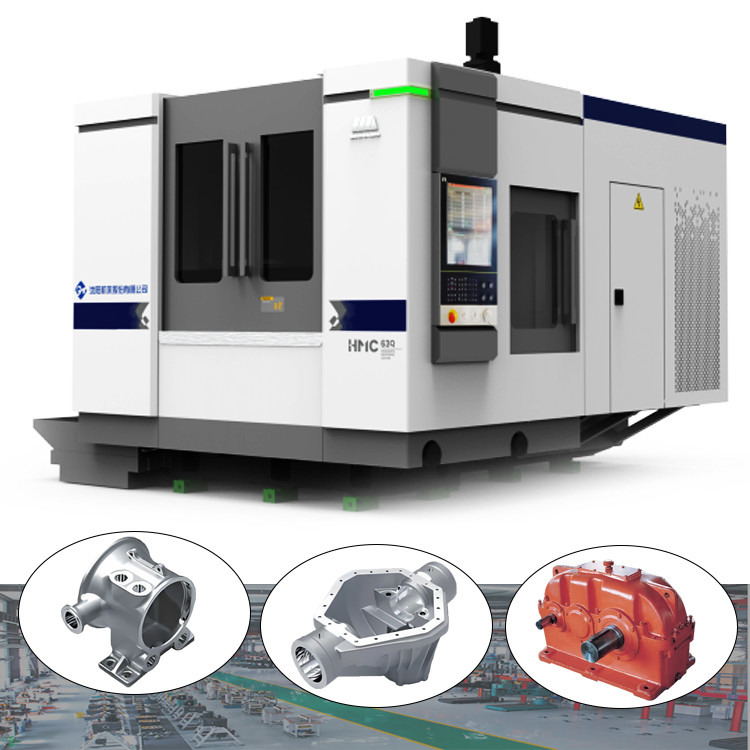

HMC80Q Metal 3 Axis Horizontal Machining Center Milling Drilling Boring Tapping Machine
Product Details
| Brand Name: | SMTCL | Model Number: | HMC 80Q |
|---|---|---|---|
| CNC Or Not: | CNC | Key Word: | Horizontal Machining Center |
| Max. Spindle Speed (r.p.m): | 6000 R.p.m | Travel (X Axis)(mm): | 1350 |
| Travel (Z Axis)(mm): | 1100 | Travel (Y Axis)(mm): | 1100 |
| Max. Rotation Diameter Of Workpiece: | Φ1350 | ||
| Highlight |
5 Axis Metal Milling Machining Center,Boring Tapping Horizontal Machining Center |
||
Product Description
Product Description:
Product Features:
1,High stability structure
◆ Inverted T-shaped integrally cast bed
◆ Y-axis motor base and column are casted together
◆ Thermally symmetrical spindle
Finite element and topology optimization structure
High strength integrally cast bed
Y-axis motor base and column are casted together
casted together to improve the accuracy and stability of machine tool
Thermally symmetrical spindle

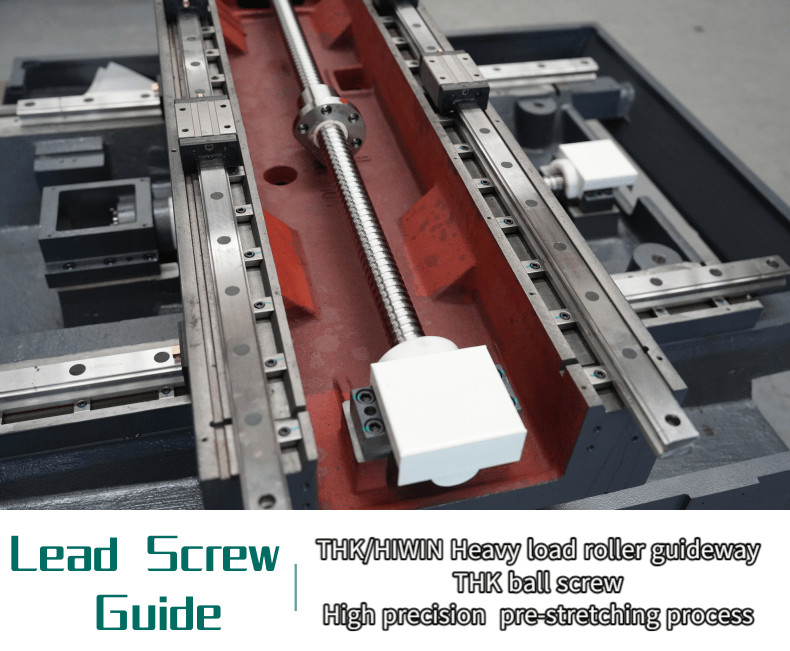

Precision ball screw
precision ball screw, pre-stretching process is adopted to effectively reduce the influence of the screw heating during working, improve the accuracy of the machine tool, strengthened anti-deformation ability and accuracy retention.

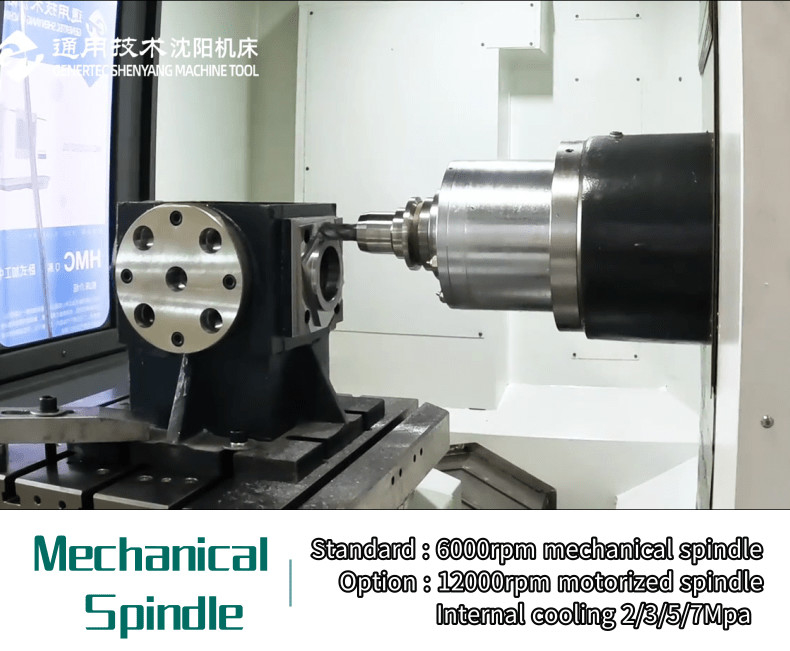

Mechanical spindle
achieve from high-speed machining to heavy cutting
◆ Large-span bearing arrangement, high rigidity

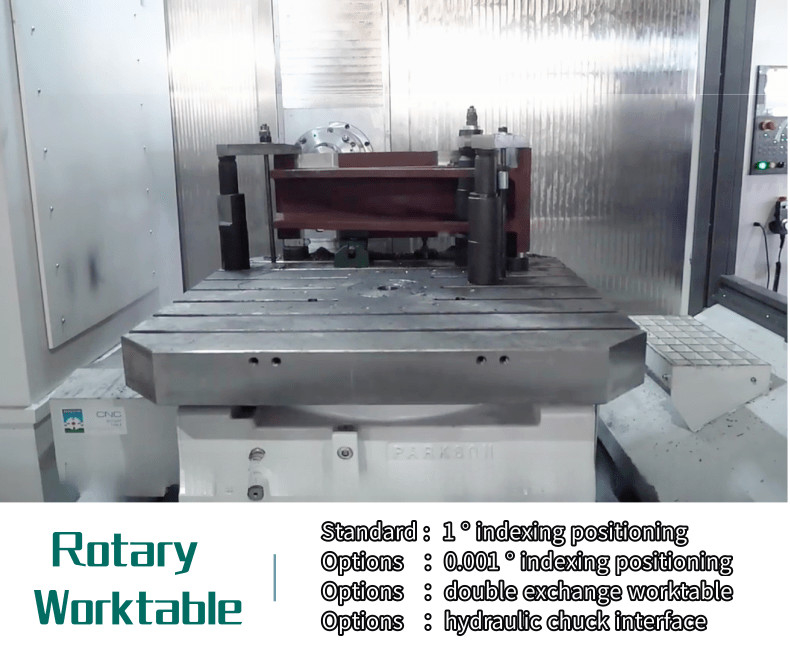

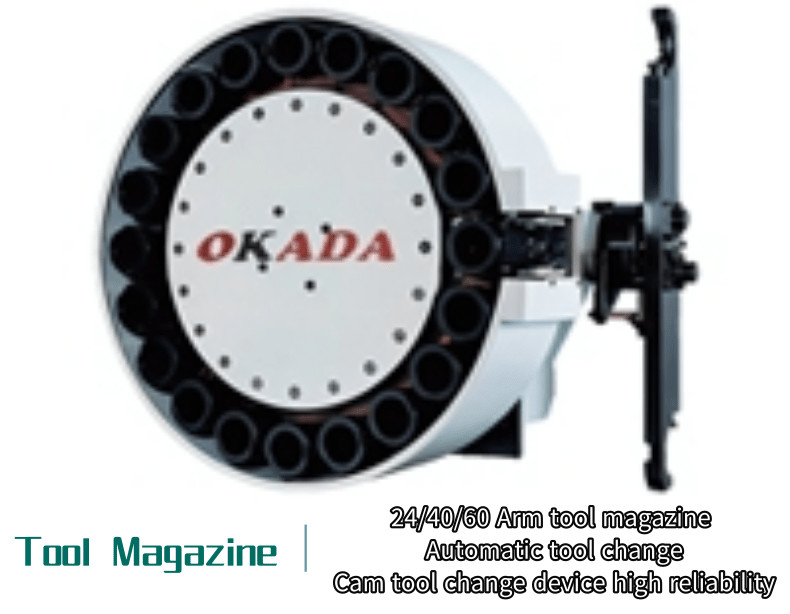

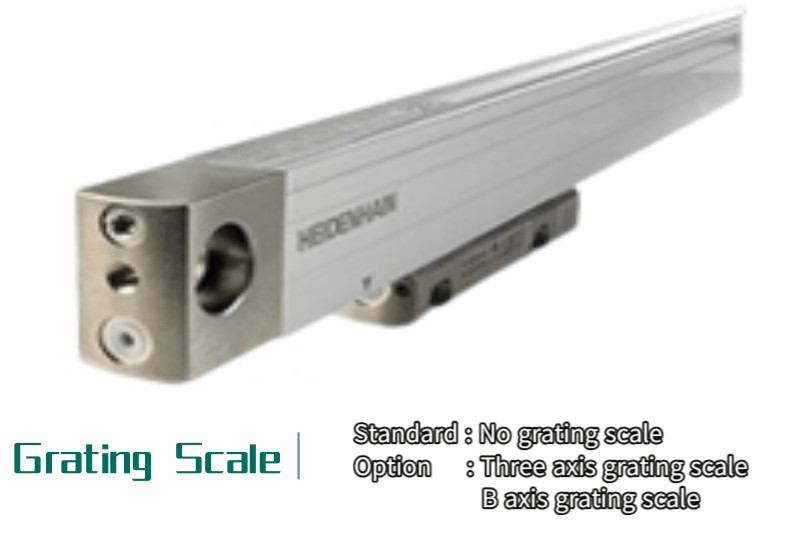

| Item | Unit | HMC 80Q |
| Work table | ||
| Worktable size | mm | 800*800 |
| Worktable capacity | kg | 2000 |
| Number of worktable | pcs | 1(2) |
| Working range | ||
| X axis travel | mm | 1350 |
| Y axis travel | mm | 1100 |
| Z axis travel | mm | 1100 |
| B-axis indexing | 1° ×360 | |
| Max. rotation diameter of workpiece | mm | Φ1350 |
| Distance from spindle nose to worktable center | mm | 1300 Max |
| Distance from spindle nose to worktable center | mm | 200 Min |
| Distance between s p i n d l e n o s e t o worktable surface | mm | 1100 Max |
| Distance between s p i n d l e n o s e t o worktable surface | mm | 0 Min |
| Spindle | ||
| Spindle taper (7: 24) | BT50 | |
| Maximum speed | rpm | 6000 |
| Spindle motor power (continuous/S2) | kw | 15/18.5 |
| Maximum output torque(continuous/S2) | mm | 433/713(15min) |
| Tool magazine | ||
| Tool magazine capacity | PCS | 24 |
| Max. tool length | Mm | 500 |
| Max. tool weight | kg | 15 |
| Max. tool diameter full/empty | mm | Φ110/Φ220 |
| Tool change time(T-T) | s | 4.3 |
| Feed | ||
| Maximum cutting feed speed(X/Y/Z) | Mm/min | 1-24000 |
| Rapid traverse(X/Y/Z) | M/min | 24 |
| Positioning accuracy | ||
| X/Y/Z axis | mm | 0.01 |
| B axis(1° X360) | ‘’ | 10 |
| Repetitive positioning accuracy | ||
| X/Y/Z axis | mm | 0.008 |
| B axis(1° ×360) | ‘’ | 3 |
| Overall dimension(LxWxH) | mm | 4300*3400*3600 |
| Floor space | mm | 5100*5000 |

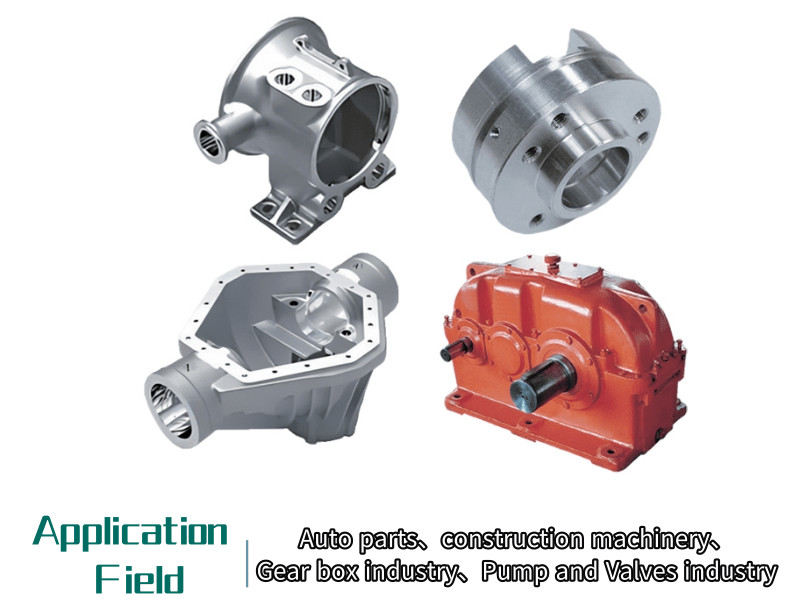

Industry application:
Workpiece samples
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
Product Highlights
Product Description: Horizontal Machining Center(80Q Series) HMC80Q horizontal machining center is a new generation of highperformance and compact machine. It has excellent quality, high reliability and efficiency. It is widely used in auto parts, pump,valves and other industries. It can meet the ...
