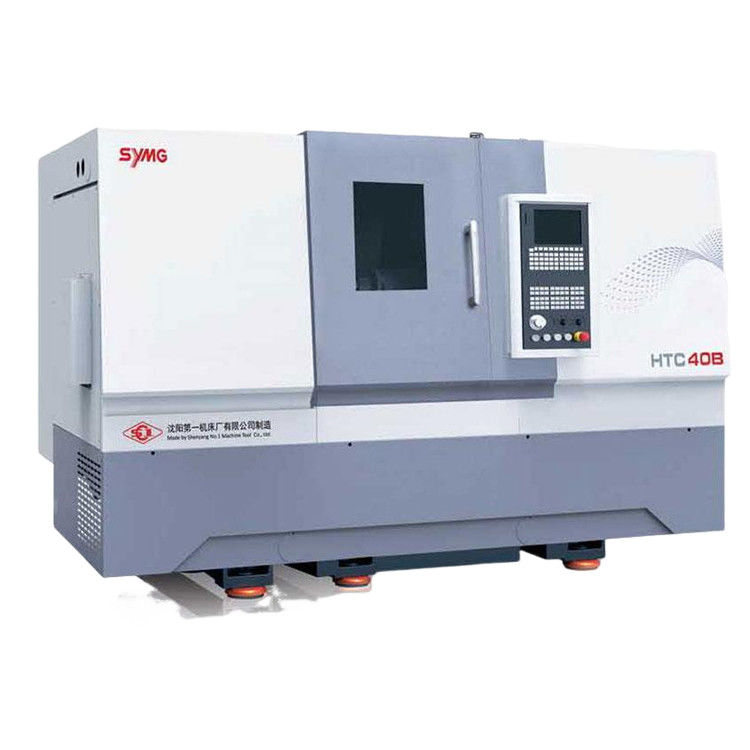

SMTCL Slant Bed CNC Lathe HTC40B Metal CNC Lathe Machine
Product Details
| Brand Name: | SMTCL | Model Number: | HTC 40B500 |
|---|---|---|---|
| CNC Or Not: | CNC | Key Word: | Slant Bed CNC Lathe |
| Max. Turned Length (mm): | 500 | Max. Spindle Speed (r.p.m): | 3500 R.p.m |
| Travel (X Axis)(mm): | 200 | Travel (Z Axis)(mm): | 550 |
| Maximum Turning Diameter: | Φ400 | Maximum Turning Length: | 500 |
| Maximum Swing Over Bed: | Φ600 | Max Swing Over Slide: | Φ320 |
| Highlight |
Slant Bed CNC Lathe HTC40B500 Machining Center,CNC Metal Lathe Milling Machine,Slant Bed CNC Lathe |
||
Product Description
Product Description:
HTC 40B series slant bed CNC lathe is mainly used for cutting of internal and external cylindrical surfaces, internal and external conical surfaces with arbitrary taper angle, complex rotary internal and external surfaces, and cylindrical and conical threads of shaft-type parts or disk-type parts, and it can be used for grooving, drilling, reaming, reaming, and boring processing.
Product Features:
1,Increase spindle torque, increase bearing specification, provide more power and rigidity, A2-8 spindle
telescopic sleeve, manual locking, good rigidity.
|
Items
|
Unit
|
HTC40B/500
|
HTC40B/1000
|
|
|
Maximum swing diameter over bed
|
mm
|
Φ600
|
Φ560
|
|
|
Maximun cutting length
|
mm
|
500
|
970
|
|
|
Maximum cutting diameter
|
mm
|
400
|
400
|
|
|
Maximum swing diameter on the slide
|
mm
|
Φ320
|
Φ350
|
|
|
Spindle nose
|
mm
|
A2-8
|
A2-8
|
|
|
Spindle hole diameter
|
mm
|
Φ80
|
Φ80
|
|
|
Diameter of maximum through bar
|
mm
|
Φ65
|
Φ65
|
|
|
Spindle speed range
|
r/min
|
50-3500
|
50-4000
|
|
|
Spindle maximum output torque
|
Nm
|
245
|
177
|
|
|
Main motor
|
KW
|
15/11
|
15/11
|
|
|
Chuck diameter
|
inch
|
10'' 10''
|
8''
|
|
|
X-axis fast moving speed
|
m/min
|
30
|
30
|
|
|
Z-axis fast moving speed
|
m/min
|
30
|
30
|
|
|
X-axis travel
|
mm
|
200
|
200
|
|
|
Z-axis travel
|
mm
|
550
|
1050
|
|
|
ailstock stroke
|
mm
|
100
|
100
|
|
|
Tailstock spindle taper taper
|
Mohs
|
5#
|
4#
|
|
|
Standard tool holder form
|
mm
|
Horizontal 8 station
|
Horizontal 8 station
|
|
|
External knife
|
mm
|
25×25
|
25×25
|
|
|
Boring bar diameter
|
mm
|
Φ40/Φ32/Φ25/Φ20
|
Φ40/Φ32/Φ25/Φ20
|
|
|
Weight capacity(Disk type)
|
kg
|
200
|
200
|
|
|
Weight capacity(Shaft parts)
|
kg
|
500
|
500
|
|
|
Machine weight
|
kg
|
4200
|
4650
|
|
|
Machine tool appearance
|
Length × width × height
|
2700×1900×2100
|
3570×1860×1850
|
|
Industry application:
Workpiece samples
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
4. Sample processing of each machine
5. 72 hours trial run before delivery
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
