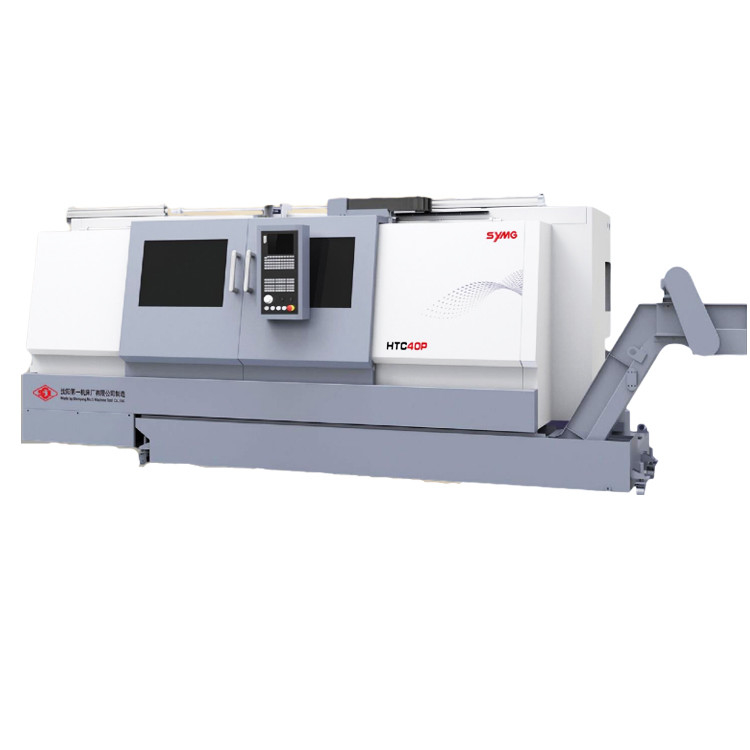

SMTCL CNC Lathe HTC40P Slant Bed Lathe CNC Milling Machines CNC Turning Center For Steel
Product Details
| Brand Name: | SMTCL | Model Number: | HTC 40P1000 |
|---|---|---|---|
| CNC Or Not: | CNC | Key Word: | Slant Bed CNC Lathe |
| Max. Turned Length (mm): | 1000 | Max. Spindle Speed (r.p.m): | 3500 R.p.m |
| Travel (X Axis)(mm): | 270 | Travel (Z Axis)(mm): | 1010 |
| Maximum Turning Diameter: | Φ360 | Maximum Turning Length: | 1000 |
| Maximum Swing Over Bed: | Φ600 | Max Swing Over Slide: | Φ400 |
| Highlight |
CNC Turning Center 3 Axis,Slant Bed Lathe CNC Milling Machines,Steel CNC Slant Bed Lathe |
||
Product Description
Product Description:
Product Features:
1, Increase spindle torque, increase bearing specifications to provide more power and rigidity, standard A2-8 spindle, optional A2-11 spindle
2,HTC40P adopts 45° overall bed optimization bar design, cutting force is more stable. The bed is made of high-density cast iron with high strength and good shock absorption
3,All the guide adopts hardened sliding guide, the width of the guide rail reaches 110mm, the span of the guide rail reaches 380mm, bringing higher processing longitude and higher rigidity
4,HTC40P tail seat with bed integrated sliding guide rail, telescopic sleeve, manual locking, good rigidity
|
Items
|
Units
|
HTC4P 1000
|
|
Length specification
|
mm
|
1000
|
|
Maximum swing diameter over bed
|
mm
|
Φ600
|
|
Maximum cutting length
|
mm
|
1000
|
|
Maximum cutting diameter
|
mm
|
Φ500
|
|
Maximum swing diameter over cross slide
|
mm
|
Φ400
|
|
Spindle nose type and code
|
-
|
A2-8
|
|
Spindle bore diameter
|
mm
|
Φ80
|
|
Maximum bar stock passing diameter
|
mm
|
Φ66
|
|
Headstock
|
||
|
Spindle speed range
|
r/min
|
50-3500
|
|
Maximum output torque of spindle (GSK988TA)
|
Nm
|
302
|
|
Spindle speed steps
|
-
|
Infinitely variable speeds
|
|
Out power of main motor ZJY265A-15AM
|
kW
|
18.5 (30 minutes)/15(rated)
|
|
Chuck
|
||
|
Chuck diameter/type
|
inch
|
8"
|
|
X-axis rapid traverse speed (rolling guide rail)
|
m/min
|
15
|
|
Z-axis rapid traverse speed (rolling guide rail)
|
m/min
|
15
|
|
X-axis travel
|
mm
|
270
|
|
Z-axis travel
|
mm
|
1010
|
|
Tailstock sleeve travel
|
mm
|
100
|
|
Tailstock sleeve taper
|
morse
|
4#
|
|

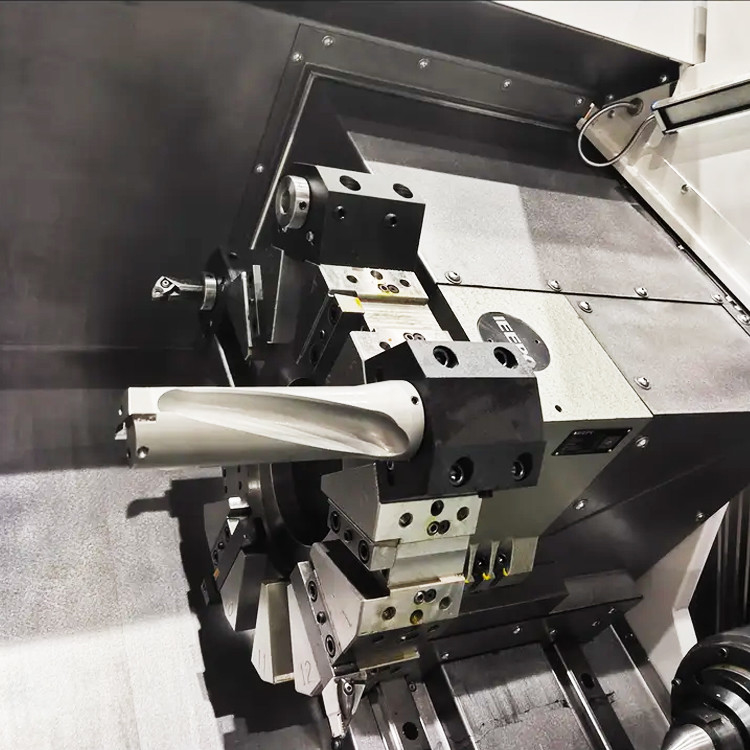

Standard tool post type
|
||
|
Tool size
|
|
Horizontal 12-position
|
|
Cylindrical turning tool
|
mm
|
25X25
|
|
Boring tool bar diameter
|
mm
|
Φ40/Φ32/Φ25/Φ20
|
|
Whether cutter head is able to select cutter handily
|
-
|
yes
|
|
Maximum load capacity
|
||
|
Disc workpieces
|
kg
|
200
|
|
Shaft workpieces
|
kg
|
500
|
|
Machine weight
|
kg
|
5500
|
|
Overall dimension (LXWXH)
|
mm
|
4100X2050X1960
|
Industry application:
Workpiece samples
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
