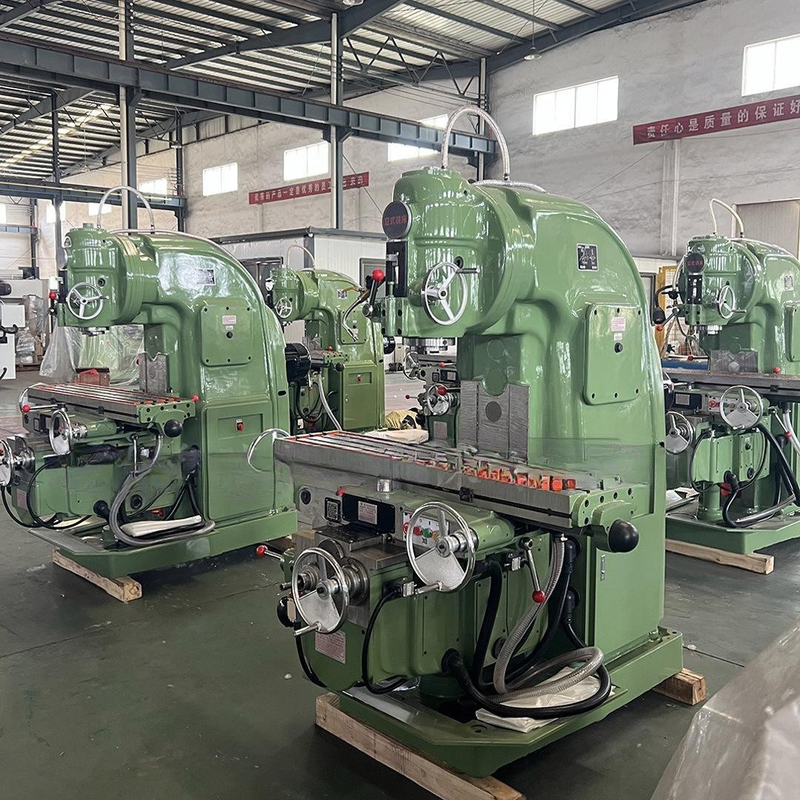

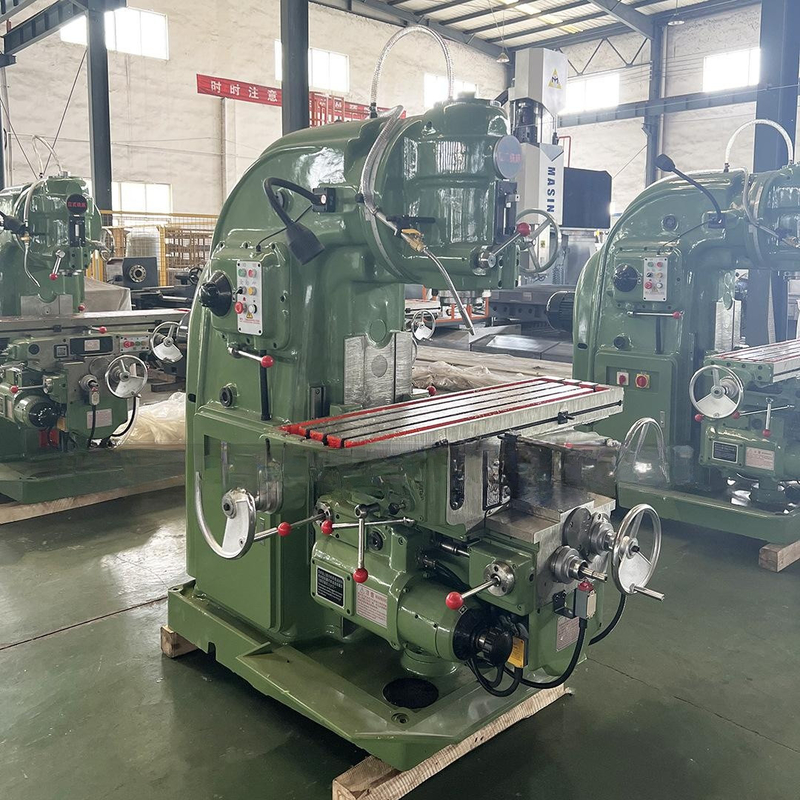

SMTCL Low Cost Universal Milling Machine Vertical Milling Machine 3 Axis Manual Milling Machine

Product Description:

XA5040 vertical milling machine is a strong metal cutting machine, the machine has strong rigidity, wide feed speed range, and can withstand heavy loads of chips. The spindle cone hole can be installed directly or through the accessories of various cylindrical milling cutter, circular milling cutter, forming cutter, face milling cutter and other tools, suitable for processing various parts of the plane, slope, groove, hole, etc., is the ideal processing equipment for machinery manufacturing, mold, instrument, instrument, automobile, motorcycle and other industries.

Product Features:

1,Machine structure rigidity is good, can withstand heavy load cutting;

2,The machine spindle motor has high power and wide speed range, which can give full play to the efficiency of the tool and enable high-speed cutting

3,The machine tool wear-resistant castings are made of vanadium titanium wear-resistant cast iron, and the important transmission parts are made of high-quality alloy steel.

4,Ensure the durability and stability of the machine tool;

5,The machine has a perfect lubrication system.

6,XA5032 vertical lifting table milling machine

7,Random accessories: end milling cutter core shaft, spindle wrench, Morse cone intermediate sleeve, milling machine rod, various wrenches

8,Oil gun, anchor screw, cushion iron.

9,Special accessories (separately priced) : dividing head, disc table, flat pliers, milling chuck, milling cutter head.

10,Color: European Green (standard) Machine grey (optional)

Product Details

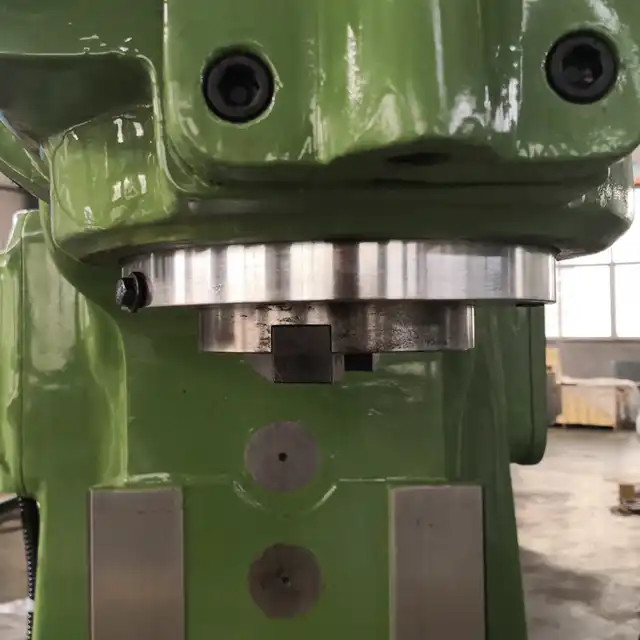

Vertical milling part

__________

The end milling head can be adjusted by 45° in the vertical plane, extending the processing range of the machine.





Lifting part

__________

Made of excellent material casting, and artificial aging treatment, so that the long-term stability of the machine tool. Transmission, gear bite, fast speed and easy to change.

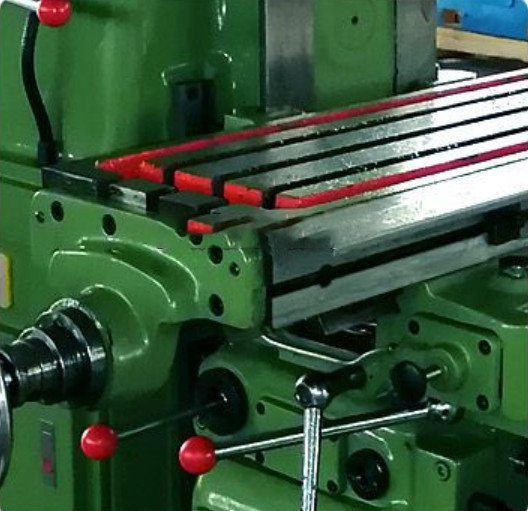

Table part

__________

Table XYZ three-way manual fast forward three, feed speed has different processing requirements; Easy to process.

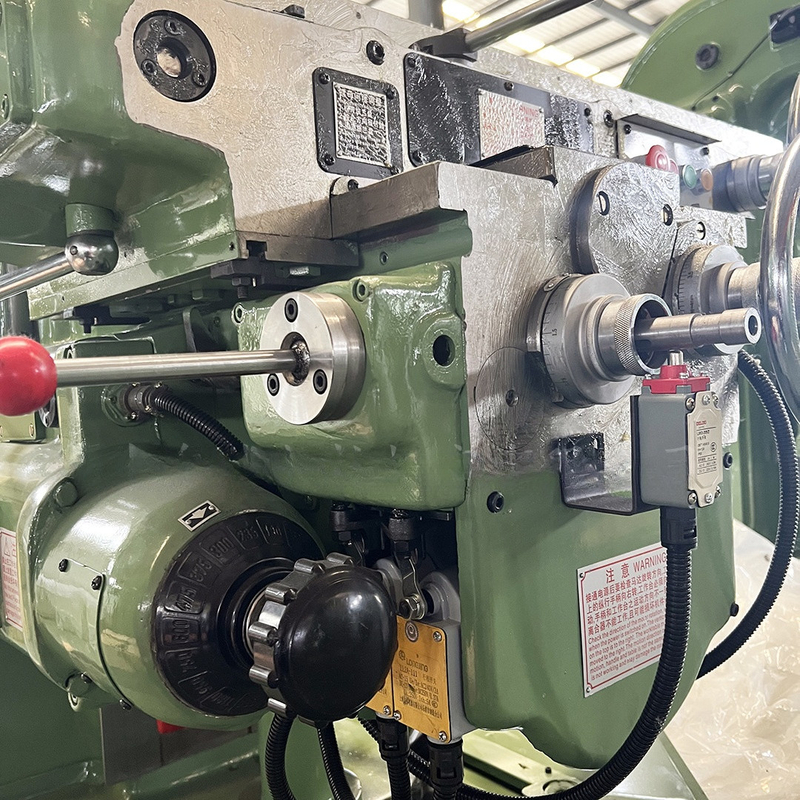

Feed part

__________

Table ×YZ three direction audio quenching, precision grinding and scraping processing, high precision, extend the service life of the machine.



Product Paramenters:



Specifications	Unit	X5040
Table size	mm	400*1700/2000/2200
Table X axis Travel	mm	900/880,1200/1180,1380/1360
Table Y axis Travel	mm	315/300
Table Z axis Travel	mm	385/365
T slot no. /width/distance	mm	3/18/90
Max. load of Table	kg	800
Fast feed speed (x/y/z)	mm/min	2300/1540/770
Spindle taper		ISO50
Spindle speed range	r/min	30-1500
Greater turning Angle		±45°
Main motor	kw	11
Feed motor	kw	1.5
overall dimension	mm	2556*2159*2258
Machine weight	kg	4250
