Low Cost Universal Milling Machine X5040 Vertical Manual Milling Machine
Brand Name:
HD
Model Number:
X5040
Place of Origin:
CHINA
Certification:
CE ISO certification
Minimum Order Quantity:
1
Supply Ability:
50 sets per month
Product Details
| Table Size: | 400*1700/2000/2200mm | Table X Axis Travel: | 900/880，1200/1180，1380/1360mm |
|---|---|---|---|
| Table Y Axis Travel: | 315/300mm | Table Z Axis Travel: | 385/365mm |
| T Slot No. /width/distance: | 3/18/90mm | Max. Load Of Table: | 800kg |
| Fast Feed Speed (x/y/z): | 2300/1540/770mm/min | ||
| Highlight |
Manual Milling Machine,Vertical Manual Milling Machine,Universal Milling Machine |
||
Product Description
Product Description:
XA5040 vertical milling machine is a strong metal cutting machine, the machine has strong rigidity, wide feed speed range, and can withstand heavy loads of chips. The spindle cone hole can be installed directly or through the accessories of various cylindrical milling cutter, circular milling cutter, forming cutter, face milling cutter and other tools, suitable for processing various parts of the plane, slope, groove, hole, etc., is the ideal processing equipment for machinery manufacturing, mold, instrument, instrument, automobile, motorcycle and other industries.
Product Features:
1,Machine structure rigidity is good, can withstand heavy load cutting;
2,The machine spindle motor has high power and wide speed range, which can give full play to the efficiency of the tool and enable high-speed cutting
3,The machine tool wear-resistant castings are made of vanadium titanium wear-resistant cast iron, and the important transmission parts are made of high-quality alloy steel.
4,Ensure the durability and stability of the machine tool;
5,The machine has a perfect lubrication system.
6,XA5032 vertical lifting table milling machine
7,Random accessories: end milling cutter core shaft, spindle wrench, Morse cone intermediate sleeve, milling machine rod, various wrenches
8,Oil gun, anchor screw, cushion iron.
9,Special accessories (separately priced) : dividing head, disc table, flat pliers, milling chuck, milling cutter head.
10,Color: European Green (standard) Machine grey (optional)
Product Details

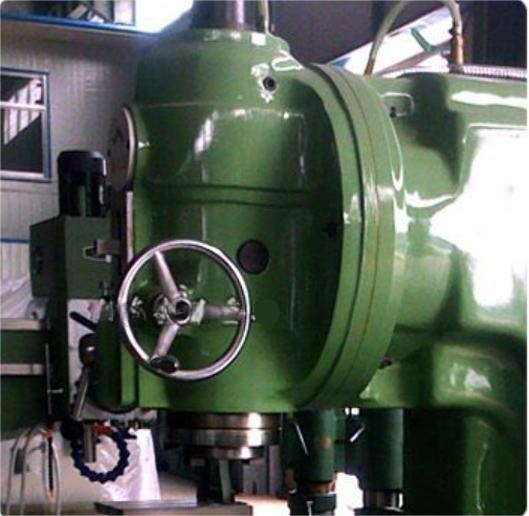

Vertical milling part
__________
The end milling head can be adjusted by 45° in the vertical plane, extending the processing range of the machine.

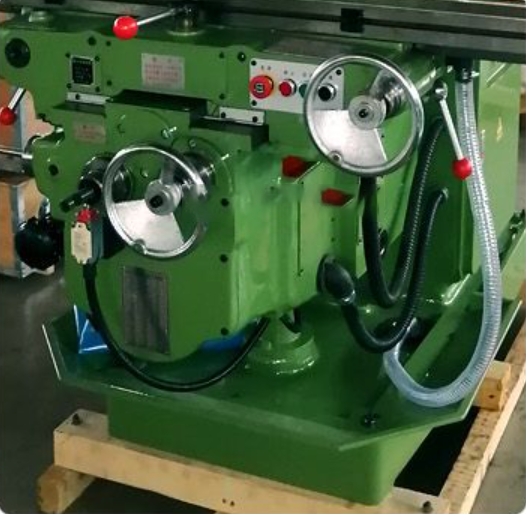

Lifting part
__________
Made of excellent material casting, and artificial aging treatment, so that the long-term stability of the machine tool. Transmission, gear bite, fast speed and easy to change.
__________

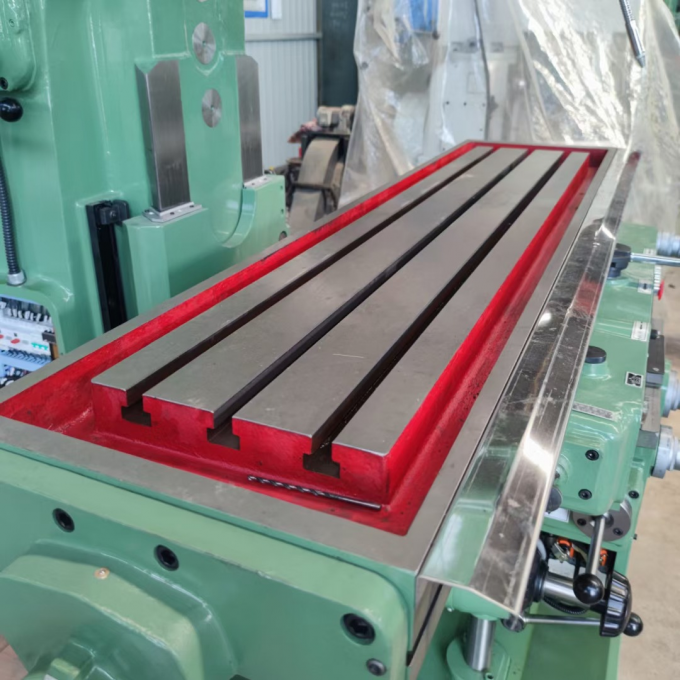

Table XYZ three-way manual fast forward three, feed speed has different processing requirements; Easy to process.
__________
Table ×YZ three direction audio quenching, precision grinding and scraping processing, high precision, extend the service life of the machine.
Product Paramenters:
|
Specifications
|
Unit
|
X5040
|
||
|
Table size
|
mm
|
400*1700/2000/2200
|
||
|
Table X axis Travel
|
mm
|
900/880,1200/1180,1380/1360
|
||
|
Table Y axis Travel
|
mm
|
315/300
|
||
|
Table Z axis Travel
|
mm
|
385/365
|
||
|
T slot no. /width/distance
|
mm
|
3/18/90
|
||
|
Max. load of Table
|
kg
|
800
|
||
|
Fast feed speed (x/y/z)
|
mm/min
|
2300/1540/770
|
||
|
Spindle taper
|
|
ISO50
|
||
|
Spindle speed range
|
r/min
|
30-1500
|
||
|
Greater turning Angle
|
|
±45°
|
||
|
Main motor
|
kw
|
11
|
||
|
Feed motor
|
kw
|
1.5
|
||
|
overall dimension
|
mm
|
2556*2159*2258
|
||
|
Machine weight
|
kg
|
4250
|
||
OUR Service:
1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
SMTCL and SYMG group is our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
Exhibition:
FAQ:
Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
