M1432H CNC Cylindrical Grinding Machine Other Grinding Machine High Efficiency Cylindrical Grinder
Product Details
| Max. Length Ground(O.D): | 2000、3000mm | Center Height: | 180mm |
|---|---|---|---|
| Dia. Ground(O.D): | 8~320mm | Dia. Ground(I.D): | 30~100mm |
| Max. Length Ground(I.D): | 125mm | Max. Weight Of Work Piece: | 500kg |
| Roundness: | 3μm | Cylindricity: | 8 |
| Roughness: | Ra0.32μm | ||
| Highlight |
Cylindrical Grinder,CNC Cylindrical Grinding Machine |
||
Product Description
Product Description:
The series is equipped with internal grinding tools on the basis of ordinary external grinding machines, which are suitable for grinding the outer circle or inner hole of cylindrical or conical rotary bodies. The head frame adopts a frequency converter to realize stepless speed regulation, which can be adjusted at any Angle within 90 degrees counterclockwise to adapt to the chuck grinding of internal and external conical workpieces.
Product Features:

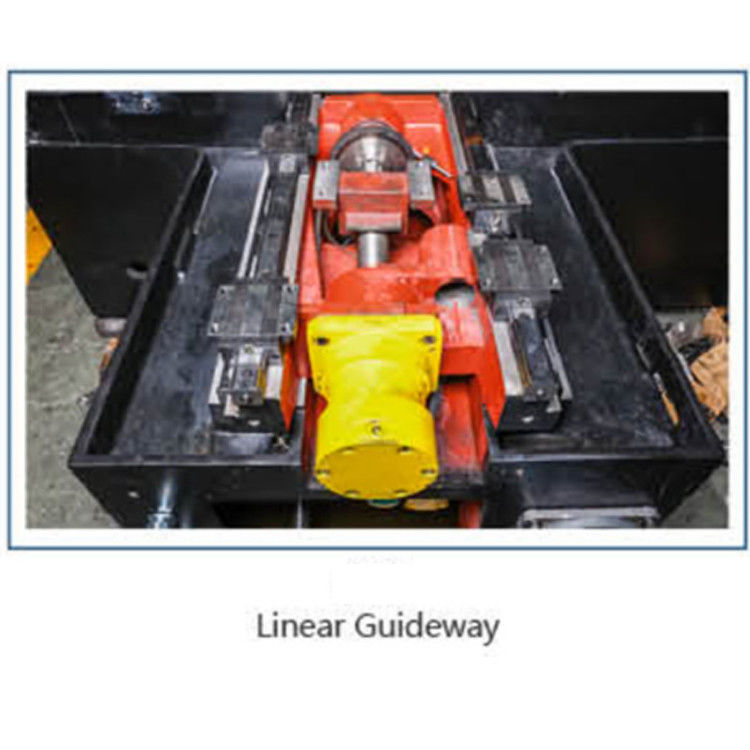

1,The left and right guide rail adopts P-V structure,which is scraped by high precision manual, sothat the whole system products have high precision and high stability.
|
Description
|
unit
|
M1432H
|
|||
|
Max. length ground(O.D)
|
mm
|
2000,3000
|
|||
|
Center height
|
mm
|
180
|
|||
|
Dia. Ground(O.D)
|
mm
|
8~320
|
|||
|
Dia. Ground(I.D)
|
mm
|
30~100
|
|||
|
Max. length ground(I.D)
|
mm
|
125
|
|||
|
Max. weight of work piece
|
kg
|
500
|
|||
|
Workhead
|
|||||
|
Swiveling angle
|
°
|
+90°
|
|||
|
Center taper(MT)
|
MT
|
5
|
|||
|
Spindle speed /Stepless
|
r/min
|
50HZ:26~260
|
|||
|
Wheelhead
|
|||||
|
Max. dimension of wheel(ODxWxID)
|
mm
|
500×50×203
|
|||
|
Wheel peripheral velocity
|
m/s
|
35
|
|||
|
Hand feed per.rev
|
mm
|
rough : 2 fine : 0.5
|
|||
|
Hand feed per.gra
|
mm
|
rough: 0.01 fine : 0.0025
|
|||
|
Table
|
|||||
|
|
Cockwise
|
°
|
3°
|
||
|
Anticlockwise
|
°
|
5° (2000) 3°(3000)
|
|||
|
Longitudinal speed range of table
|
m/min
|
0.1~3
|
|||
|
Internal grinding device
|
|||||
|
Spindle speed
|
r/min
|
10000
|
|||
|
|
|
max 50×25×13
|
|||
|
min 17×20×6
|
|||||
|
Tailstock
|
|
|
|||
|
Center tape(MT)
|
MT
|
5
|
|||
|
Quill travel
|
mm
|
30
|
|||
|
Motor
|
|||||
|
Wheelhead motor power
|
Kw
|
7.5
|
|||
|
Internal grinding
|
Kw
|
1.1
|
|||
|
Workhead motor power
|
Kw
|
1.5
|
|||
|
Machining accuracy
|
|||||
|
Roundness
|
μm
|
3
|
|||
|
Cylindricity
|
μm
|
8
|
|||
|
Roughness
|
μm
|
Ra0.32
|
|||
|
Machine
|
|||||
|
Gross weight
|
t
|
6.2(2000) 7.6 (3000)
|
|||
|
|
|
580×190×205 ( 2000)
|
|||
|
780×190×205 (3000)
|
|||||
Industry application:
OUR Service:
1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
FAQ:
Q1. Are you a trade company or manufacturing company?
starting on the machine's bill of lading date.
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
carried out between plants with a complete production chain which is your most reliable guarantee.
