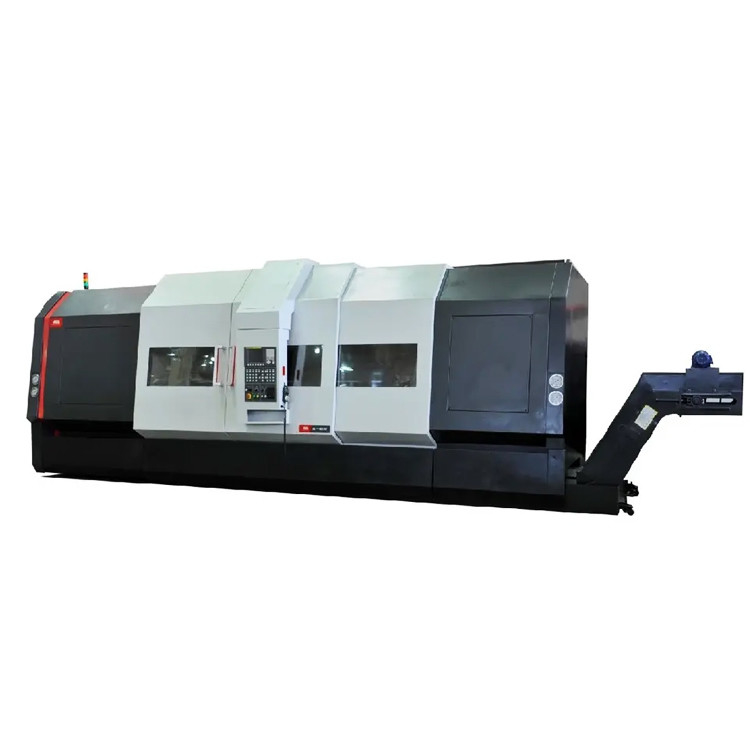

Slant Bed CNC Metal Turning Center HTC63n Heavy Duty Horizontal Lathe Milling Machine
Brand Name:
SMTCL
Model Number:
HTC63n
Place of Origin:
CHINA
Certification:
CE ISO certification
Minimum Order Quantity:
1
Supply Ability:
50 sets per month
Product Details
| Brand Name: | SMTCL | Model Number: | HTC63n |
|---|---|---|---|
| CNC Control System: | GSK/FANUC/SIEMENS | CNC Or Not: | CNC |
| Key Word: | Turning Center | Application: | Multi Purpose Metal Working |
| Max. Swing Over Bed: | Φ1000/Φ1000/Φ970/Φ950 | Max. Swing Over Carriage: | Φ630 |
| Max. Cutting Diameter (disc/shaft): | Φ750/Φ630 | Max. Cutting Length: | 1400/1900/2900/3900 |
| Spindle Bore Diameter: | Φ100 /Φ130 | ||
| Highlight |
Slant Bed CNC Turning Center,3 Axis CNC Metal Turning Center,Heavy Duty Horizontal Lathe Milling Machine |
||
Product Description
Product Description:
Slant Bed CNC Metal Turning Center HTC63n Heavy Duty Horizontal Lathe Milling Machine
HTC63nm/ny series CNC lathes are mainly used for cutting the inner and outer cylindrical surface of shaft parts or disk parts, the inner and outer conical surface of any cone Angle, complex rotary inner and outer surface and cylinder, taper thread, etc., which can be used for grooving, drilling, reaming, reaming and boring.
Product Features:
A:High rigidity

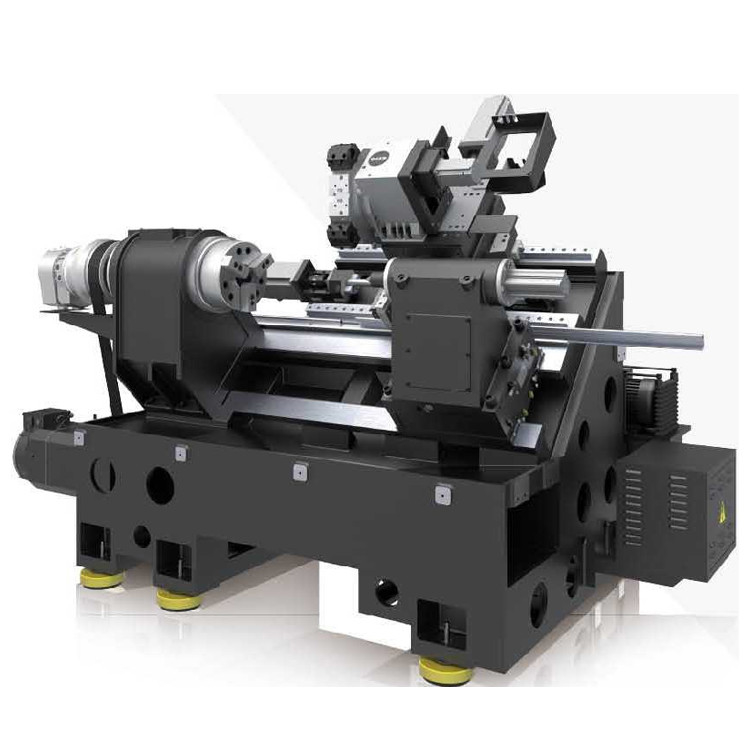

It adopts 45° and 75° high-rigidity integral inclined bed, and all castings are optimized by finite element
method, which effectively eliminates vibration during machine operation and cutting, enhances reliability, and is easy to
maintain, enabling customers to obtain durable and stable processing quality.
method, which effectively eliminates vibration during machine operation and cutting, enhances reliability, and is easy to
maintain, enabling customers to obtain durable and stable processing quality.
B:high precision
All parts of the machine tool adopt precision grinding parts from well-known manufacturers at home and abroad. The advanced structural design and perfect process measures make the overall layout compact, harmonious, and good rigidity, ensuring that the machine tool has high machining accuracy and long-term accuracy retention.
C:Pleasant

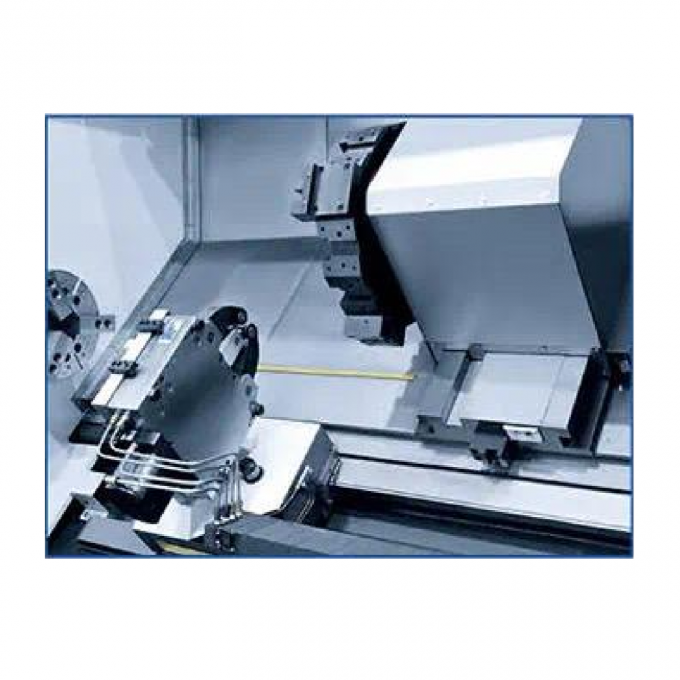

Optional overall 75° inclined bed machine tool, equipped with a vertical and horizontal center frame, the center of the spindle is closer to the operator, which is convenient for loading and unloading workpieces and chip removal.
D:rich configuration
The machine can be configured with various modules to meet the different needs of customers. Some models can be equipped with power tool tower to become the turning center, with rich configuration and high cost performance.
Product Paramenters:
|
Item
|
UNIT
|
HTC63nm Series
|
HTC63ny Series
|
|
Max. swing over bed
|
mm
|
Φ850/Φ850/Φ850/Φ820
|
Φ1000/Φ1000/Φ970/Φ950
|
|
Max. swing over carriage
|
mm
|
Φ630
|
Φ630
|
|
Max. cutting diameter (disc/shaft)
|
mm
|
Φ750/Φ630
|
Φ630
|
|
Max. cutting length
|
mm
|
1000/1500/2000/3000
|
1400/1900/2900/3900
|
|
Spindle bore diameter
|
mm
|
Φ100
|
Φ130
|
|
Form of spindle nose
|
|
A2-11
|
A2-11
|
|
Max. diameter through bar
|
mm
|
Φ85 (with hydraulic hollow chuck)
|
Φ115 (with hydraulic hollow chuck)
|
|
Main motor power (continuous / 30min)
|
kw
|
22/30
|
30/37
|
|
Range of spindle speed / Max. output torque
|
r/min
|
(Mechanical 2 steps) 20~2000 / 950
|
(Mechanical 2 steps) 20~1200 / 2450
|
|
Chuck diameter
|
inch
|
15”
|
15"
|
|
Max. travel of X-axis
|
mm
|
410
|
410
|
|
Max. travel of Z-axis
|
mm
|
1050/1550/2050/3050
|
1550/2050/3050/4050
|
|
Rapid speed (X axis)
|
m/min
|
12/15;12/15;12/12;12/12
|
12/15;12/12;12/12;12/12
|
|
Rapid speed (Z-axis)
|
m/min
|
|
10
|
|
Form of tool turret
|
|
Horizontal 12-position turret
|
Horizontal 12-position turret
|
|
Size of tool shank
|
mm
|
32X32 / Φ50
|
32×32/ Φ50
|
|
Positioning accuracy (X axis)
|
mm
|
0.013
|
0.013
|
|
Positioning accuracy (Z-axis)
|
mm
|
0.020/0.026/0.035/0.040
|
0.026/0.035/0.040/0.048
|
|
Repositioning accuracy(X axis)
|
mm
|
0.006
|
|
|
Repositioning accuracy(Z-axis)
|
mm
|
0.008/0.010/0.013/0.016
|
0.010/0.013/0.016/0.016
|
|
Machining accuracy
|
|
IT6
|
IT6
|
|
Max. weight of disc workpiece
|
kg
|
500
|
500
|
|
Max. weight of shaft workpiece
|
kg
|
2000
|
2000
|
|
weight of machine
|
kg
|
14000/17000/20000/23000
|
14000/17000/20000/23000
|
|
Overall dimensions of machine (LxWxH)
|
mm
|
4900x2760x2630/5400x2825x2680/ 5900x2825x2680/6900x2825x2680
|
5400x2825x2680/5900x2825x2680/ 6900x2825x2680/7900x2825x2680
|
Industry application:

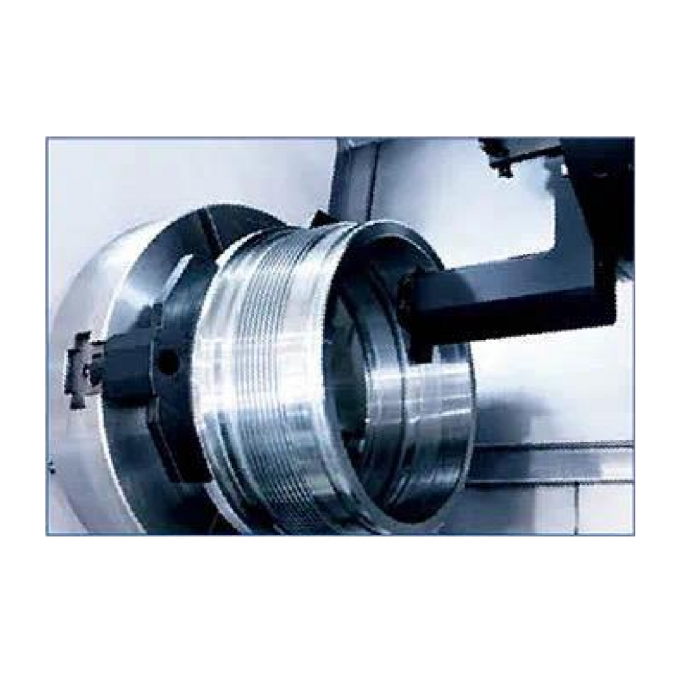

Workpiece example: guide sleeve
Processing model: HTC50t Workpiece material: 27SiMn Linear speed: 120-180m/min Feed rate: 0.1-8mm/r (including thread) Processing efficiency: 26 minutes

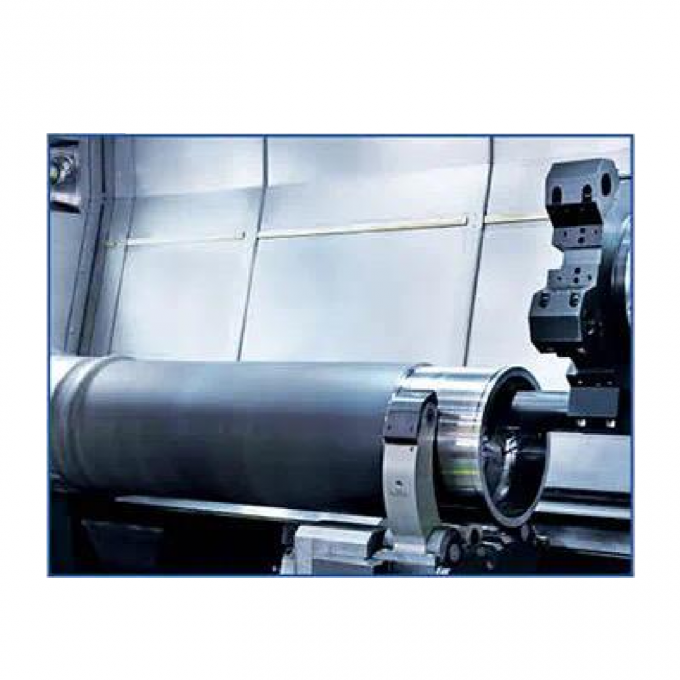

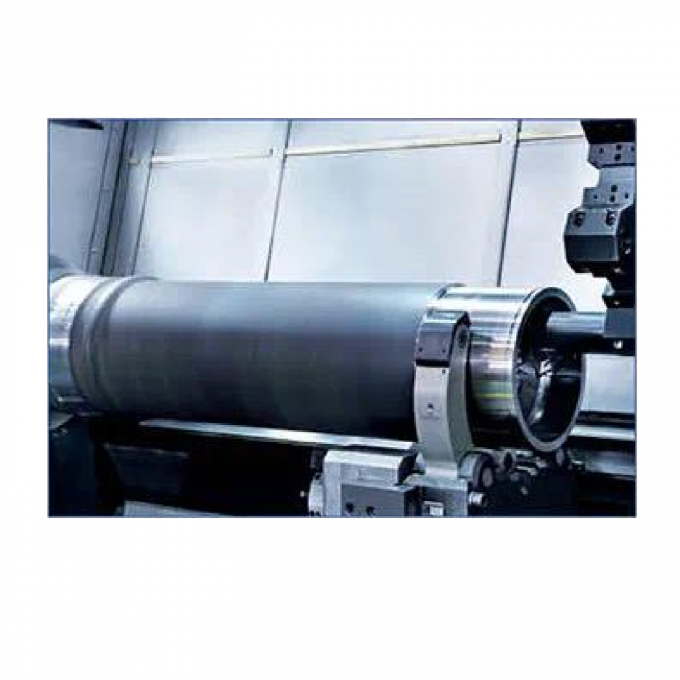

Workpiece example: medium 500 cylinder
Processing model: HTC63350t Workpiece material: 27SiMn Linear speed: 120-180m/min Feed rate: 02-10mm/r (including thread) Processing efficiency: 75 minutes

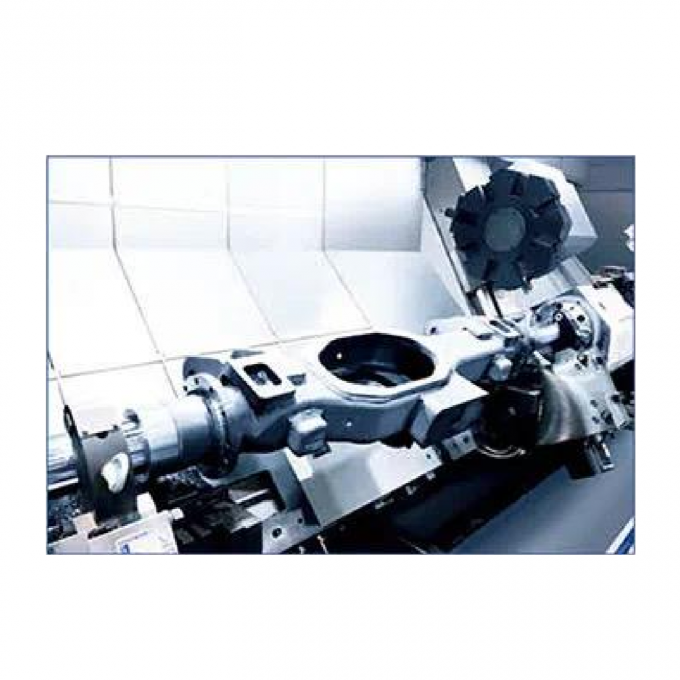

Workpiece Example: Drive Axle
Processing model: CQ850n Workpiece material: 40Cr Linear speed: 150-180m/min Feed rate: 0.1-0.3mm/r Processing efficiency: 12 minutes

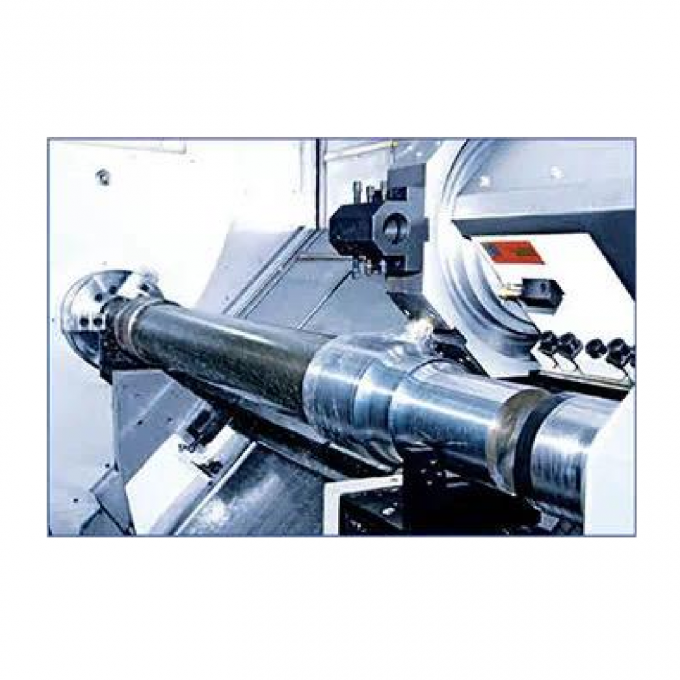

Workpiece example: RE2B axle
Processing model: HTC63n (double turret) Workpiece material: 35CrMo Linear speed: 150-260m/min Feed rate: 0.2-0.5mm/r (including thread) Processing efficiency: 39 minutes.
OUR Service:
Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
Exhibition:
FAQ:
Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
